GR300 самый большой 300hp
- Категория: Motor Graders >>>
- Поставщик: Xuzhou,Focus,Industry,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 362950.18 $* | 381098.90 $* |
| Aug-17-2025 | 359900.87 $* | 377895.74 $* |
| Jul-17-2025 | 301950.72 $* | 317048.49 $* |
| Jun-17-2025 | 353800.6 $* | 371490.51 $* |
| May-17-2025 | 308050.83 $* | 323453.40 $* |
| Apr-17-2025 | 347700.20 $* | 365085.78 $* |
| Mar-17-2025 | 344650.24 $* | 361883.58 $* |
| Feb-17-2025 | 341600.97 $* | 358680.37 $* |
| Jan-17-2025 | 338550.33 $* | 355478.6 $* |
Характеристики

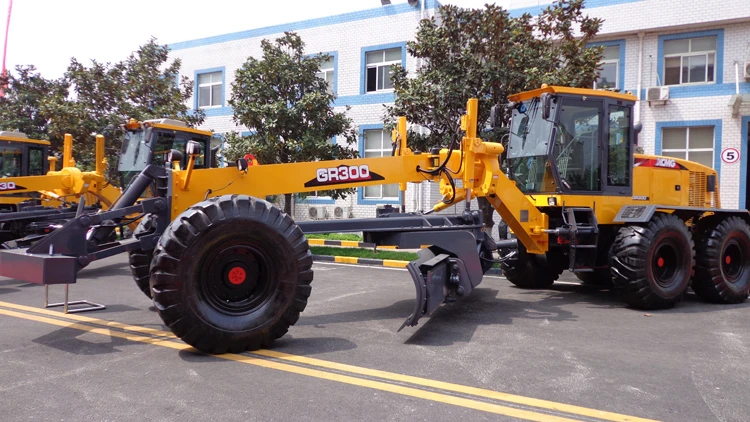

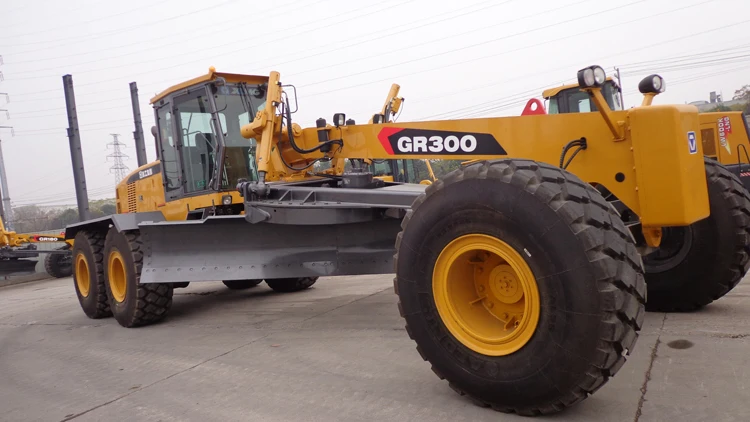

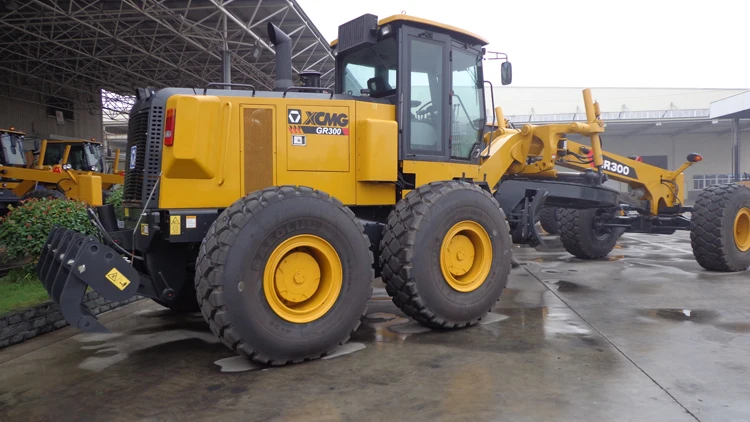

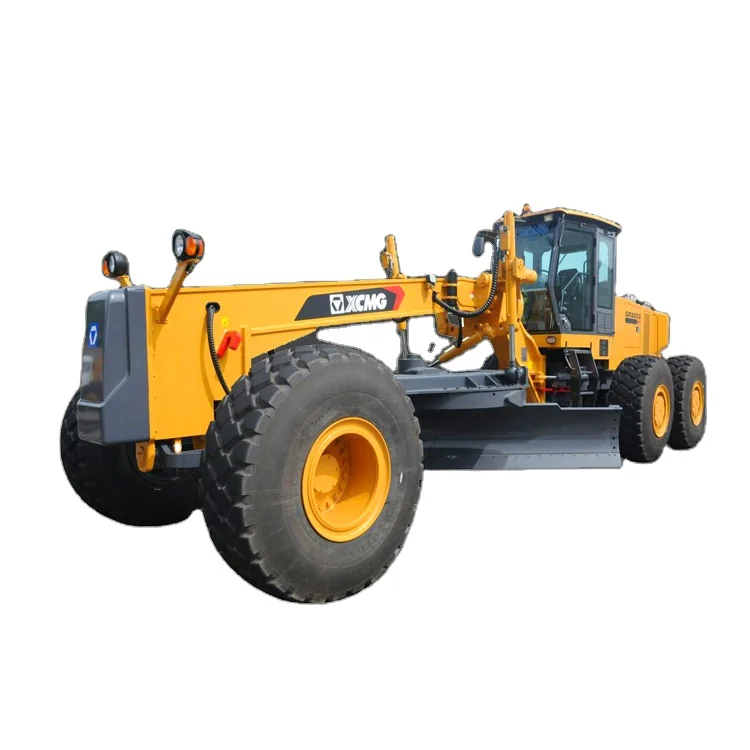

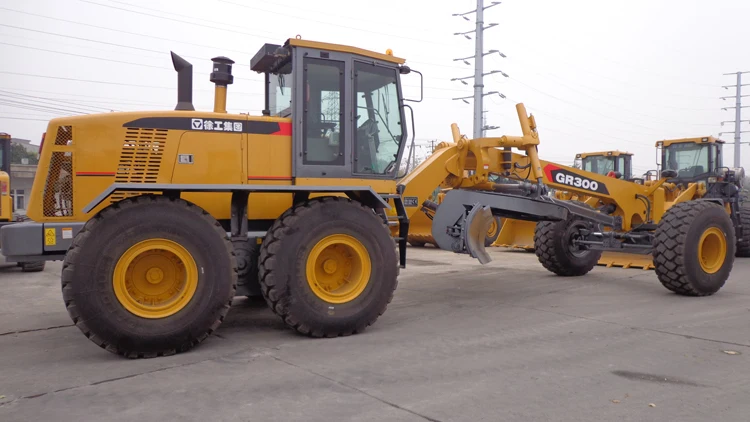

GR300 Largest 300hp Motor Grader
Main parameters:
Operating weight :26 tons ,
Moldboard : 4920×787mm,
Detailed configuration
* QSL9 engine,
* Wet driving axle ,
* CE proved air conditioner driving cabin ,
* Imported differential mechanism .
* Imported ZF transmission ,
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .
Optional parts
* Front mouldboard ,
* Rear scarifier ,
* Shovel blade
Basic specification | GR300 |
Engine model | QSL9 |
Rated power/speed | 224kW/2100rpm |
Dimension(LxWxH) | 10500×3100×3550mm |
Operating weight(Standard) | 26000kg |
Performance specification |
|
Travelling speed ,forward | 5,8,11,19,23,40 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 140KN |
Max. gradeability | 30% |
Operating specification |
|
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 8.0m |
Blade |
|
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 4920×787mm |
GR300 Largest 300hp Motor Grader
