Управляемый Ethernet-коммутатор L2 + 8 * GF SFP-коммутатор гигабитный 24 порта промышленные POE
- Категория: >>>
- Поставщик: Shenzhen,Ewind,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 369.11 $* | 387.57 $* |
| Aug-19-2025 | 366.81 $* | 384.76 $* |
| Jul-19-2025 | 307.59 $* | 322.75 $* |
| Jun-19-2025 | 360.62 $* | 378.88 $* |
| May-19-2025 | 313.71 $* | 329.1 $* |
| Apr-19-2025 | 353.55 $* | 371.91 $* |
| Mar-19-2025 | 350.71 $* | 368.13 $* |
| Feb-19-2025 | 347.65 $* | 364.31 $* |
| Jan-19-2025 | 344.92 $* | 361.86 $* |
Характеристики
8*10/100M RJ45+1*1000M RJ45+1*10/100/1000M SFP ports Unmanaged PoE Switch
Products Description
Ø All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build
networking to meet the needs of various scenarios;
Ø PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Ø Only support 1,2(+)/3,6(-);
Ø Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS etc.;
Ø Switching capacity:598Gbps, MAC table:32K;
Ø POE port can be real-time network management, timed on/off, can force POE working mode, real-time display of POE port power;
Ø Compatible with 1U rack, built-in internal power adapter;
Ø 3 years warranty.
networking to meet the needs of various scenarios;
Ø PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Ø Only support 1,2(+)/3,6(-);
Ø Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS etc.;
Ø Switching capacity:598Gbps, MAC table:32K;
Ø POE port can be real-time network management, timed on/off, can force POE working mode, real-time display of POE port power;
Ø Compatible with 1U rack, built-in internal power adapter;
Ø 3 years warranty.
Introduction

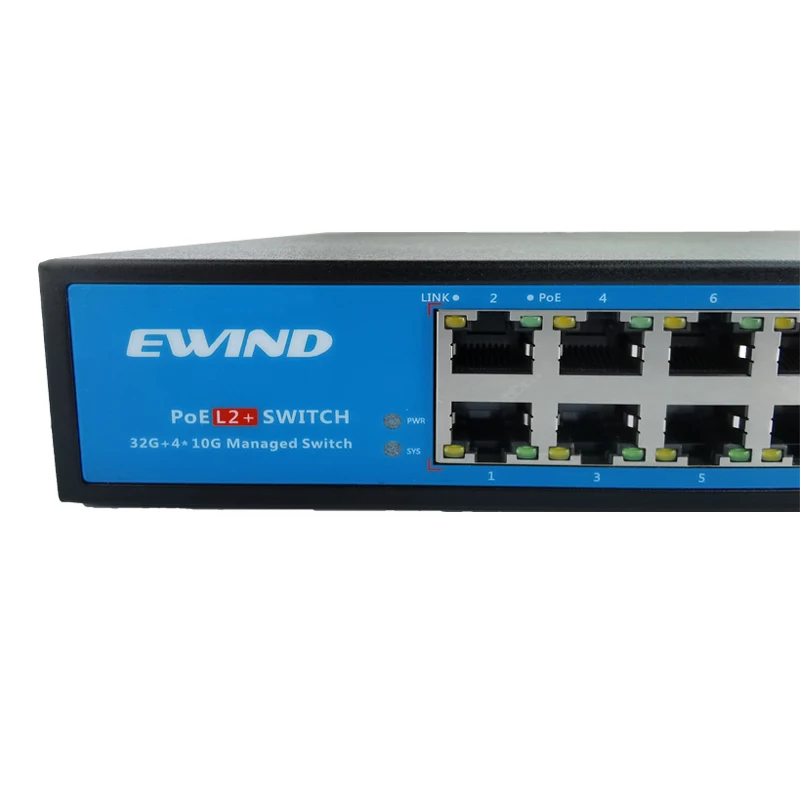

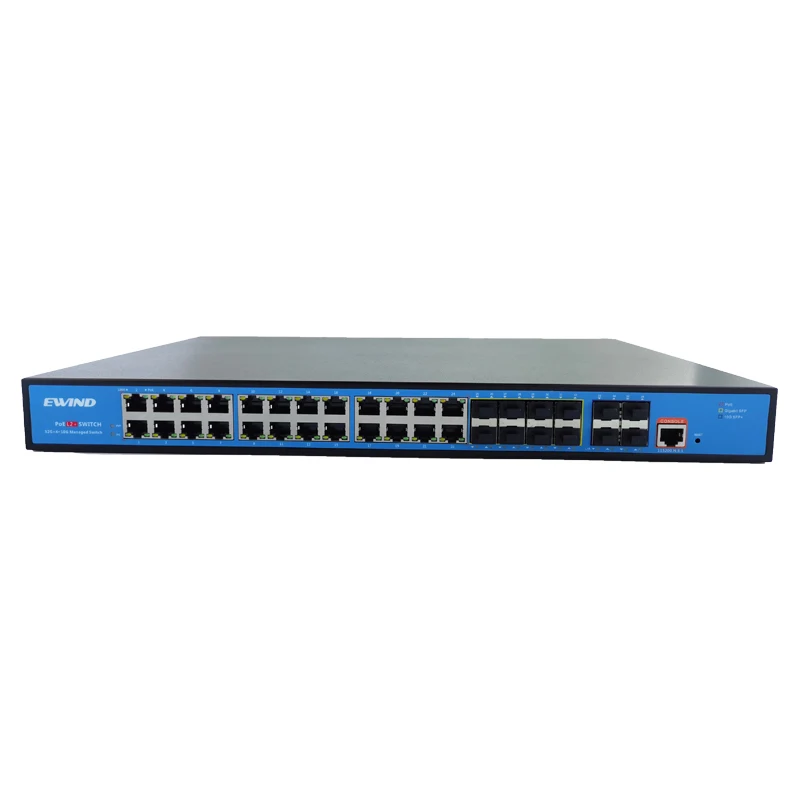

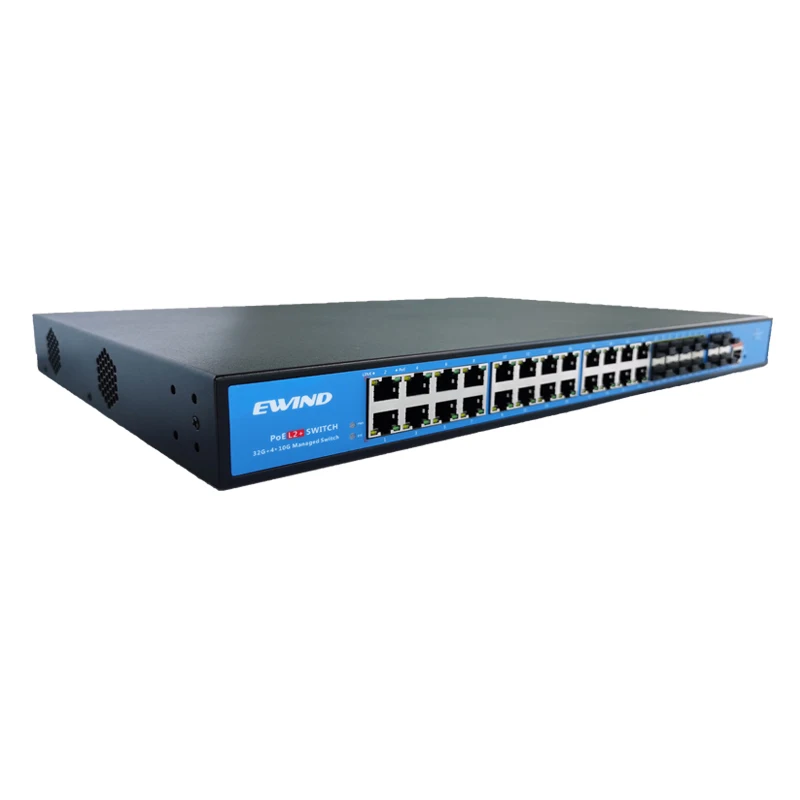

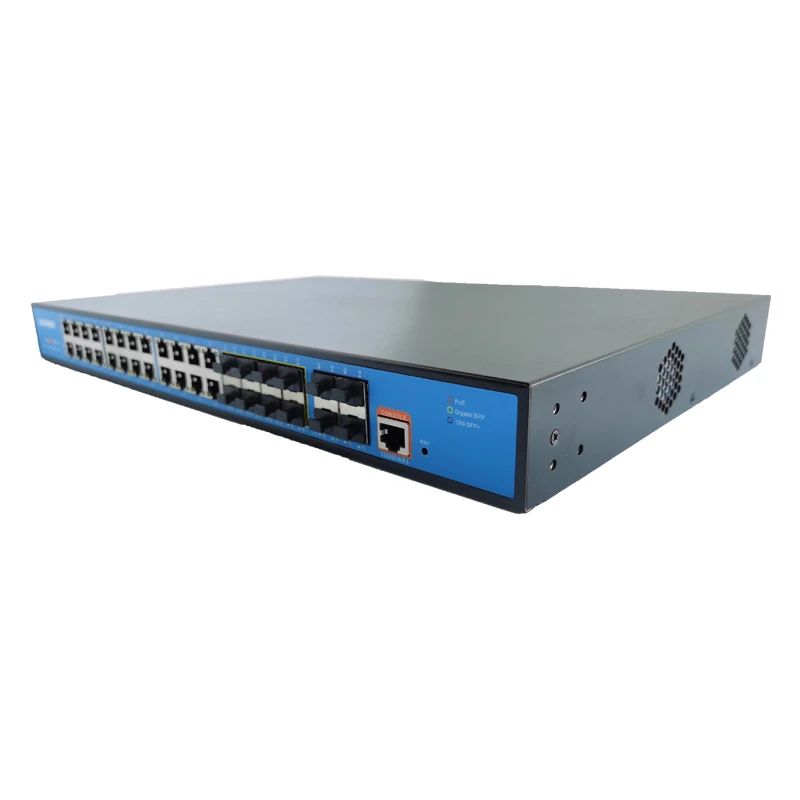

The EW-2936GM-8GF-AP series is a 10G uplink managed PoE switch. It has 24*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports. Port 1-24 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 400W (at-600W) . As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprise. The EW-2936GM-8GF-AP has the L2+ full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and
Technology Specification
Model | EW-2936GM-8GF-AP | EW-2936GM-8GF-AP -AT | |||||
Interface | 24*10/100/1000Base-T PoE ports (Data/Power) 8*100/1000Base-X SFP fiber slot ports (Data) 4*1/10G uplink SFP+ fiber slot ports (Data) 1*Console RS232 port (115200, N,8,1) | ||||||
Managed Type | L2+ | ||||||
POE Port | Port 1-24 can support IEEE 802.3af/at PoE standard | ||||||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3ae 10GBase-SR/LR; IEEE802.3x | ||||||
PoE Standard | IEEE802.3af/at international standard | ||||||
Ethernet Port Feature | Port 1-24 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive | ||||||
Fiber Port Feature | 10G SFP fiber interface (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) | ||||||
Forwarding Mode | Store and Forward (Full Wire Speed) | ||||||
Switching Capacity | 598Gbps (non-blocking) | ||||||
Forwarding Rate@64byte | 107.14Mpps | ||||||
MAC | 32K | ||||||
Buffer Memory | 32M | ||||||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) | ||||||
Optical Fiber Cable | Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. | ||||||
Power Supply Pin | Default: 1/2(+),3/6(-) | ||||||
Max / Average Power Per Port | 30W/15.4W | 30W/30W | |||||
Total PWR / Input Voltage | 400W (AC100-240V) | 600W (AC100-240V) | |||||
Power Consumption | Standby<25W; Full Load<400W | Standby<30W; Full Load<600W | |||||
Power Supply | Built-in power supply, AC 100~240V 50-60Hz 5A | Built-in power supply, AC 100~240V 50-60Hz 6.6A | |||||
LED Indicator | Power indicator:PWR(yellow); system indicator:SYS(yellow); Network indicator;Link(yellow); PoE indicator: PoE (green); Fiber port indicator L/A(green) | ||||||
Reset Button | Support one key to restore factory settings | ||||||
Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing | ||||||
Storage TEMP /Humidity | -40~+80°C;5%~95% RH Non condensing | ||||||
Lightning protection / Protection Level | Lightning protection :4KV 8/20us; Protection Level: IP30 | ||||||
Dimension (L*W*H) | 440*290*44.5mm | ||||||
Net /Gross Weight | <4.6kg / <5.5kg | <5.5kg / <6.5kg | |||||
Installation | Desktop, 19-inch 1U cabinet | ||||||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | ||||||
Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS | ||||||
Warranty | 3 years, lifelong maintenance. | ||||||

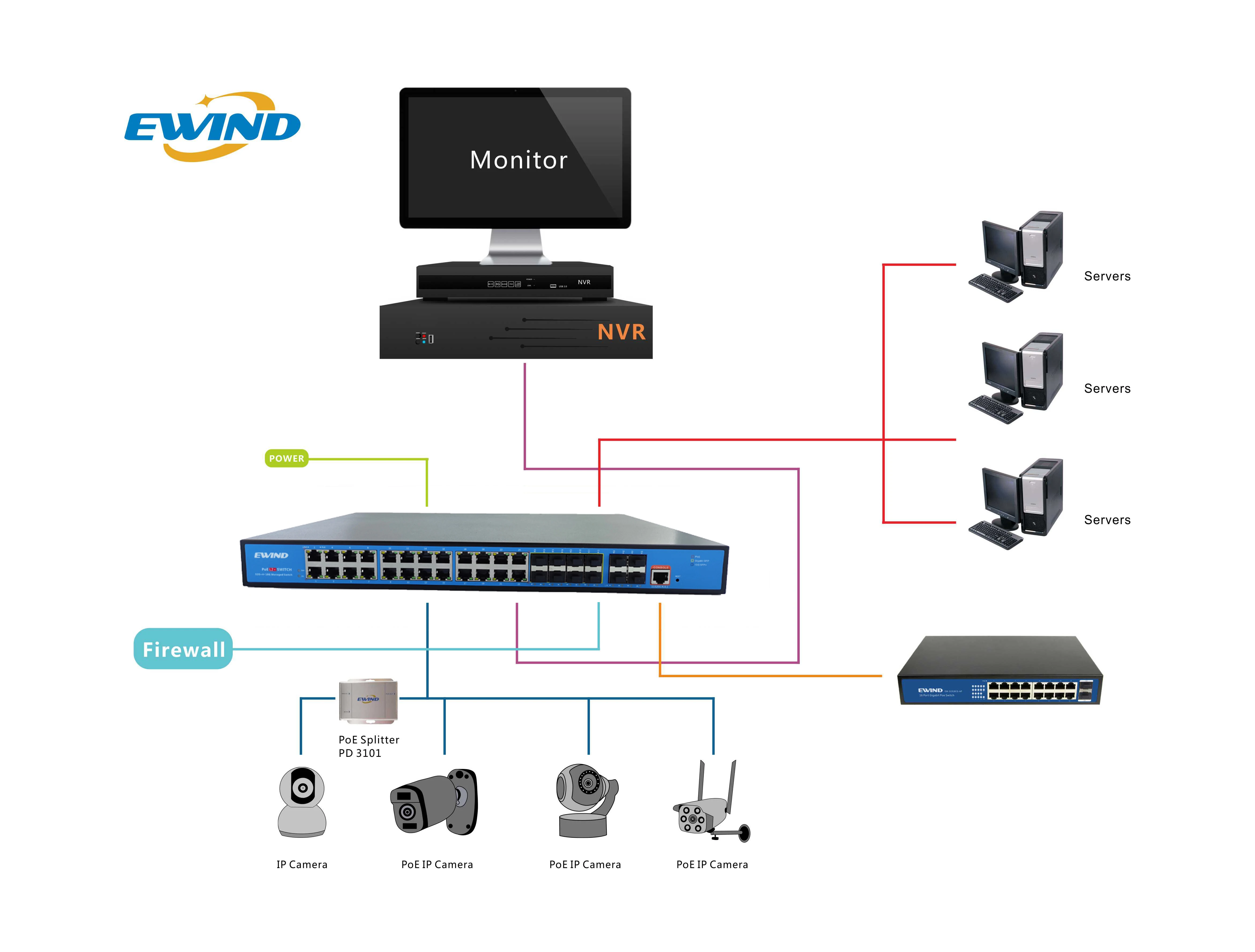

Application

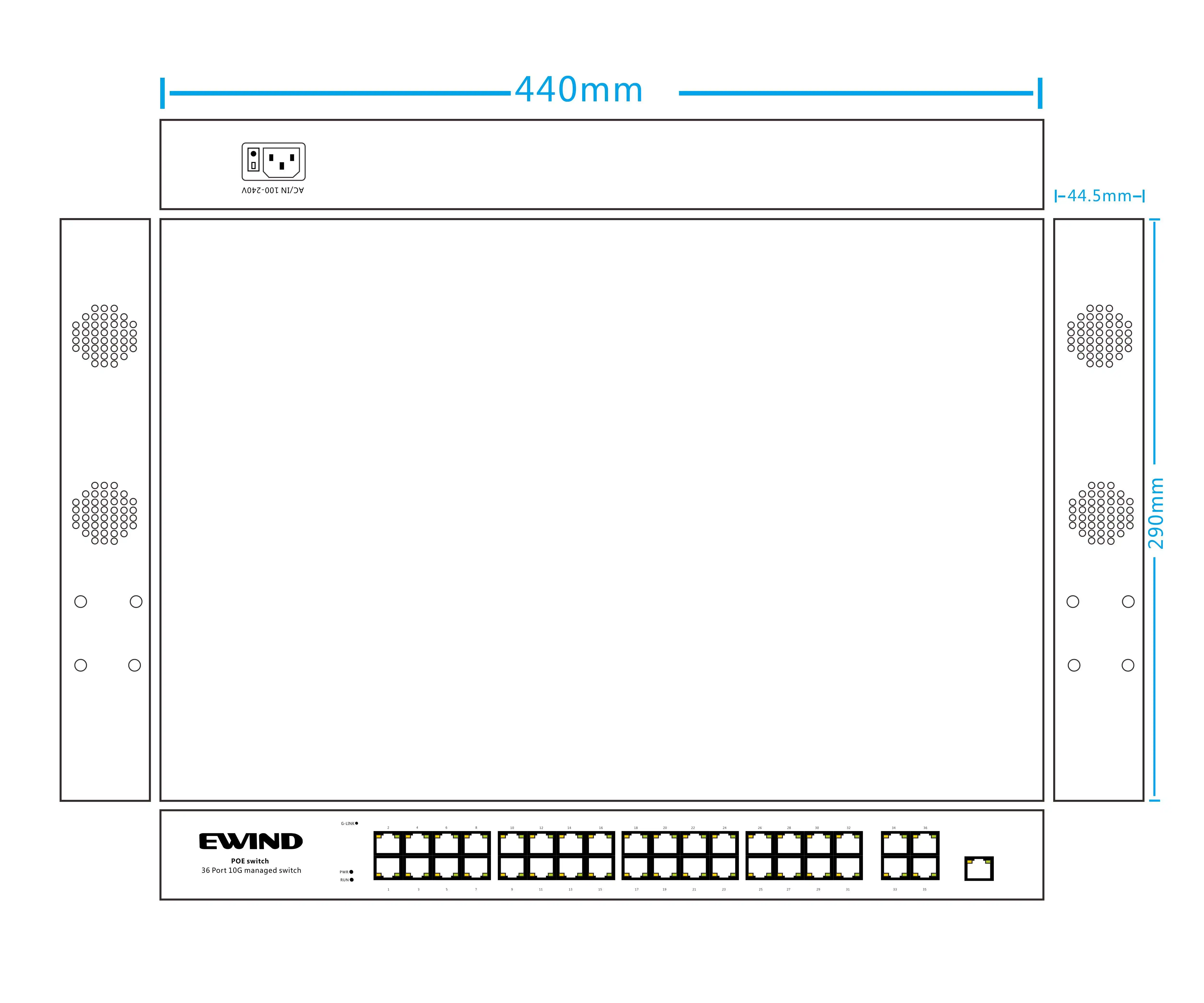

Dimension
Product packaging
CONTENT | QTY | UNIT |
36 Ports Managed PoE Switch with 4*10G SFP (EW-S2936GM-8GF-AP) | 1 | SET |
User Guide | 1 | PC |
Warranty Card | 1 | PC |
