Характеристики
IKO Product Display / Detail
IKO Cross roller Way Parameters

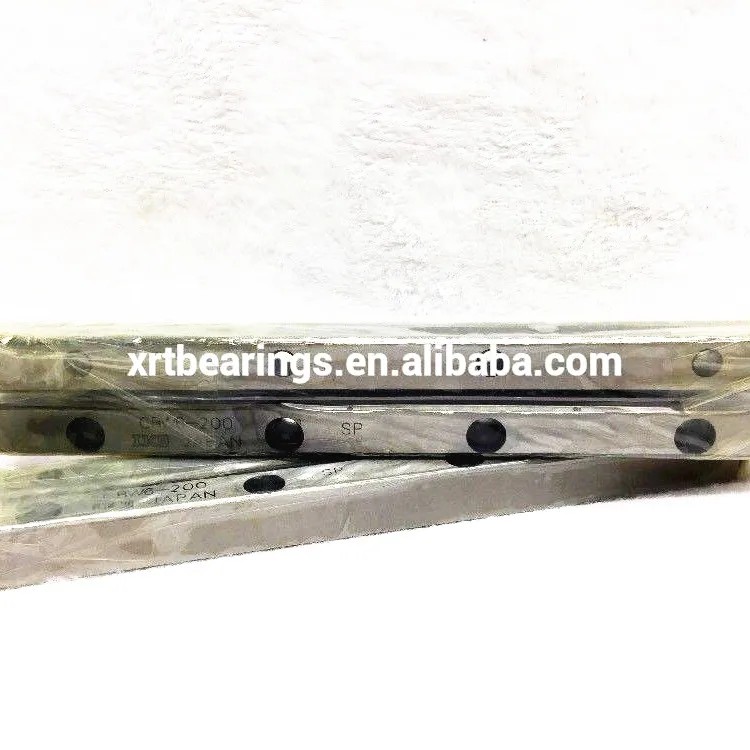

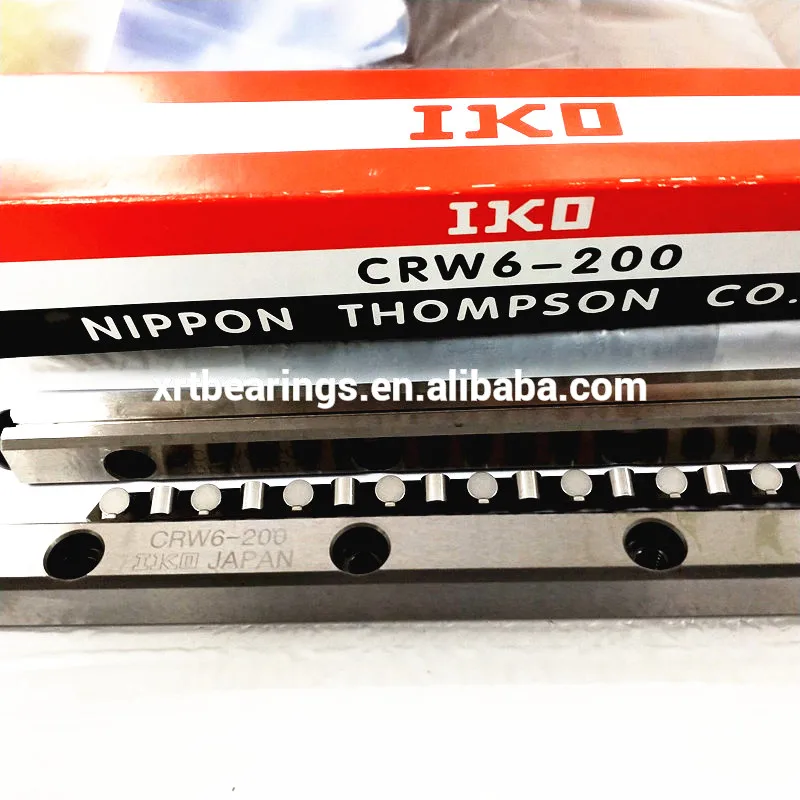

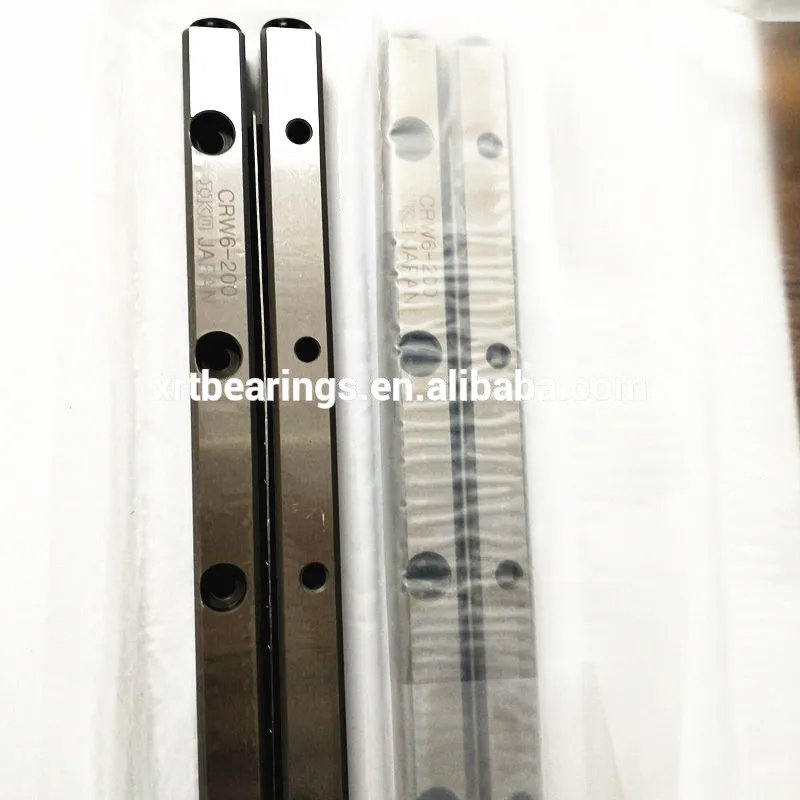

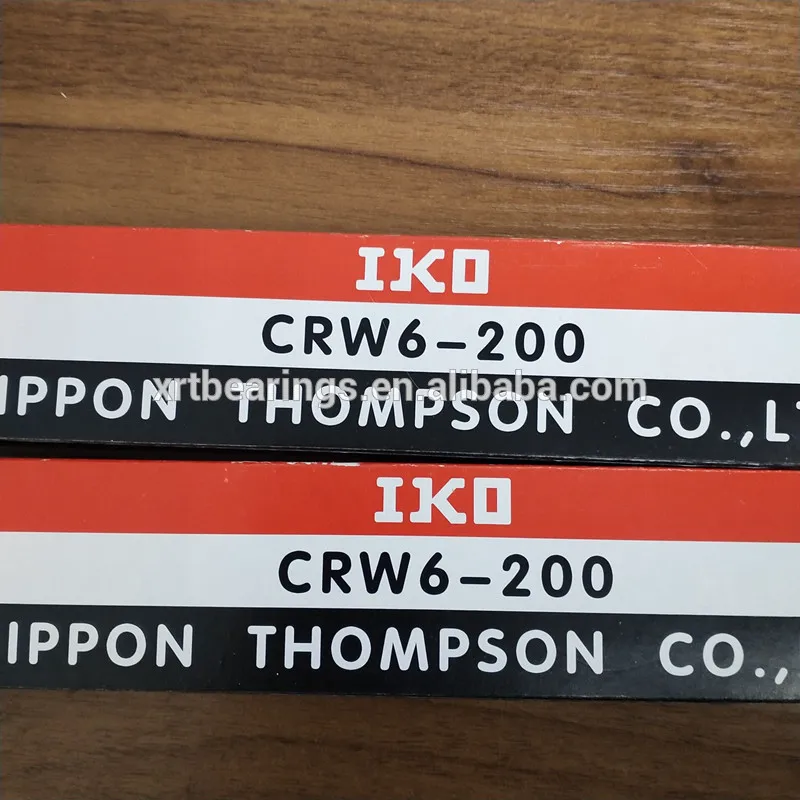

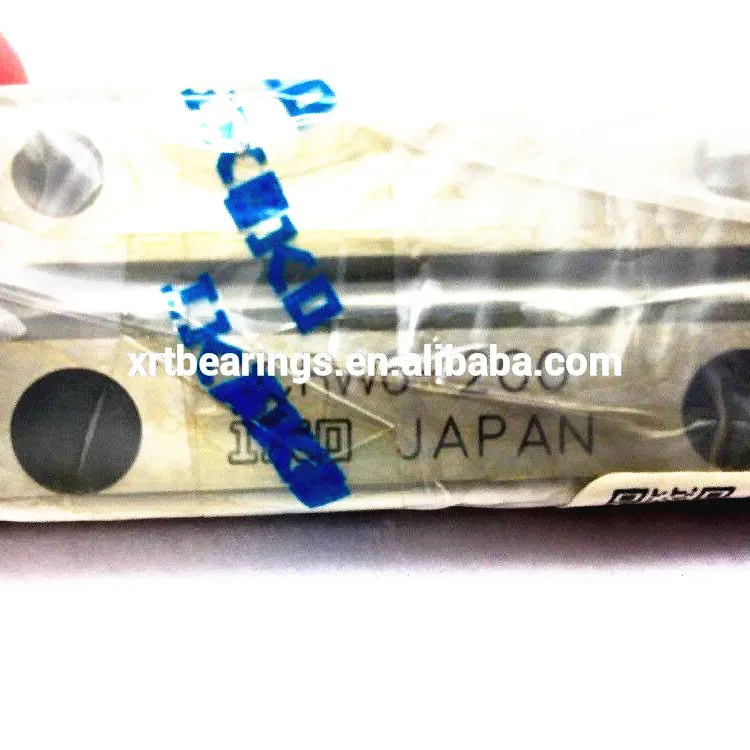

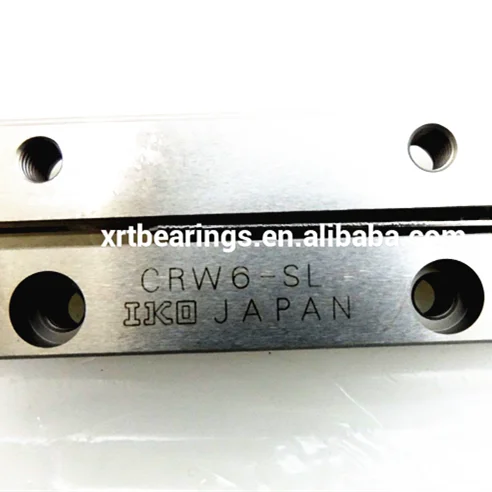

JAPAN IKO Crossed Roller Way CRW6-200 CRW 6-200 CRW6-200SL :
CRW crossed roller way is a linear motion rolling guide incorporating a roller cage between two ways hose two V-shaped surfaces are used as track groove.arrangement of cylindrical rollers by orthogonalizing them alternatey allows receiving of loads in any direction and executes extremely high -accuracy and smooth linear motion.
CRW series Anti-Creep Cage Crossed Roller Way is the product with a cage creep proof function using a rack and pinion mechanism originated from Crossed Roller Way, featuring smooth linear motion with super high accuracy.
There are two types in the CRW:
one is standars type of using four ways and two roller cage in combination as a set and the other is module type of integrating two internal ways in a single structure
IKO CRW6-100 crossed roller guide way details:
| Identification number | CRW6-100 |
|---|---|
| Mass - Way | 1.57 kg/m |
| Mass - Roller cage | 20.3 g (shows the mass of a roller cage with ten cylindrical rollers) |
| A | 31 mm |
| H | 15 mm |
| L(n X F) | 100 (1 x 50) mm |
| E | 25 mm |
| Dw | 6 mm |
| R | 84 mm |
| Z | 9 mm |
| p | 9 mm |
| e | 6 mm |
| W | 14 mm |
| g | 6 mm |
| M | M6 |
| d1 | 5.3 mm |
| d2 | 9.5 mm |
| h | 5.2 mm |
| t | 3 mm |
| Cu | 2570 N, Basic dynamic load rating the value shows the load of a cylindrical roller. |
| C0u | 2310 N, Basic static load rating the value shows the load of a cylindrical roller. |
| Fu | 769 N, Allowable load the value shows the load of a cylindrical roller. |
IKO Cross Roller Way Applications:
- X-Y table
- CNC machine
- Die Bonder ,
- Optical tester
- Optical bench
- Dispensing Equipment
- Precision machine agricultural machinery
| Model No. | Mass (kg) | Diamension | ||||||||||||||||
| Block | Roller Cage | A | H | L(n*F) | E | Dw | R | Z | P | e | W | g | M | d1 | d2 | h | t | |
| CRW 6-100 | 1.57 | 0.02 | 31 | 15 | 100(1*50) | 25 | 6 | 84 | 9 | 9 | 6 | 14 | 6 | M6 | 5 | 10 | 5 | 3 |
| CRW 6-100 SL | ||||||||||||||||||
| CRW 6-150 | 150(2-50) | 129 | 14 | |||||||||||||||
| CRW 6-150 SL | ||||||||||||||||||
| CRW 6-200 | 200(3*50) | 165 | 18 | |||||||||||||||
| CRW 6-200 SL | ||||||||||||||||||
| CRW 6-250 | 250(4*50) | 210 | 23 | |||||||||||||||
| CRW 6-250 SL | ||||||||||||||||||
| CRW 6-300 | 300(5*50) | 246 | 27 | |||||||||||||||
| CRW 6-300 SL | ||||||||||||||||||
| CRW 6-350 | 350(6*50) | 282 | 31 | |||||||||||||||
| CRW 6-350 SL | ||||||||||||||||||
| CRW 6-400 | 400(7*50) | 327 | 36 | |||||||||||||||
| CRW 6-400 SL | ||||||||||||||||||
| CRW 6-450 | 450(8*50) | 363 | 40 | |||||||||||||||
| CRW 6-450 SL | ||||||||||||||||||
| CRW 6-500 | 500(9*50) | 408 | 45 | |||||||||||||||
| CRW 6-500 SL | ||||||||||||||||||
| CRW 6-550 | 550(10*50) | 444 | 49 | |||||||||||||||
| CRW 6-550 SL | ||||||||||||||||||
| CRW 6-600 | 600(11*50) | 489 | 54 | |||||||||||||||
| CRW 6-600 SL | ||||||||||||||||||
| Product No. | Product No. | Product No. | Product No. |
| CRW1-20 | CRW3-100 | CRW6-100 | CRW9-1100 |
| CRW1-30 | CRW3-125 | CRW6-150 | CRW9-1200 |
| CRW1-40 | CRW3-150 | CRW6-200 | CRW12-200 |
| CRW1-50 | CRW3-175 | CRW6-250 | CRW12-300 |
| CRW1-60 | CRW3-200 | CRW6-300 | CRW12-400 |
| CRW1-70 | CRW3-225 | CRW6-350 | CRW12-500 |
| CRW1-80 | CRW3-250 | CRW6-400 | CRW12-600 |
| CRW2-30 | CRW3-275 | CRW6-450 | CRW12-700 |
| CRW2-45 | CRW3-300 | CRW6-500 | CRW12-800 |
| CRW2-60 | CRW4-80 | CRW6-550 | CRW12-900 |
| CRW2-75 | CRW4-120 | CRW6-600 | CRW12-1000 |
| CRW2-90 | CRW4-160 | CRW9-200 | CRW12-1100 |
| CRW2-105 | CRW4-200 | CRW9-300 | CRW12-1200 |
| CRW2-120 | CRW4-240 | CRW9-400 | CRW15-300 |
| CRW2-135 | CRW4-280 | CRW9-500 | CRW15-400 |
| CRW2-150 | CRW4-320 | CRW9-600 | CRW15-500 |
| CRW2-165 | CRW4-360 | CRW9-700 | CRW15-600 |
| CRW2-180 | CRW4-400 | CRW9-800 | CRW15-700 |
| CRW3-50 | CRW4-440 | CRW9-900 | CRW15-800 |
| CRW3-75 | CRW4-480 | CRW9-1000 | CRW15-900 |
