Характеристики
Products Description
Introduction〉
The RY-PTI C5 Enhanced Clip On Thermal Imager (E-COTI), is a high resolution, multi-model thermal imager designed to be used in conjunction with night vision devices (NVD) to improve situational combat awareness and threat detection in combat, patrol and sentry duty.Features〉
◇Select from detection modes (complete thermal, outline and hybrid)
◇A 640x512, 12 μm pixel sensor with 50Hz resolution provides users with a high definition, real time thermal imaging overlay.
◇Mean battery life of 8hrs on 18650 or 2hrs on CR123a.
◇Universally mountable on most NVD without need for extensive modification.
◇External battery pack optional.
◇Lightweight (3.2oz) with 30.5° FOV.
◇Tough construction (Anti-Shock, IP67 water resistance, anti-corrosion).
◇Helpful in spotting targets in dense foliage and low-light conditions.
◇Operational range (1100m man sized target, 270m identification, 140m recognition).
◇Operational temperature (-40℃ - +60℃).
◇Select from detection modes (complete thermal, outline and hybrid)
◇A 640x512, 12 μm pixel sensor with 50Hz resolution provides users with a high definition, real time thermal imaging overlay.
◇Mean battery life of 8hrs on 18650 or 2hrs on CR123a.
◇Universally mountable on most NVD without need for extensive modification.
◇External battery pack optional.
◇Lightweight (3.2oz) with 30.5° FOV.
◇Tough construction (Anti-Shock, IP67 water resistance, anti-corrosion).
◇Helpful in spotting targets in dense foliage and low-light conditions.
◇Operational range (1100m man sized target, 270m identification, 140m recognition).
◇Operational temperature (-40℃ - +60℃).
Included〉
1.Enhanced Clip on Thermal Imager (E-COTI)
2.AA battery adapter3.18650 battery adapter
4.Eyepiece guard
5.Adapter ring（14/31）
6.AA battery
7.18650 battery
8.Video output cable（PAL\\DC-5V）
9.Charger
10.Manual
Technical specifications:
Model | RY-PTI C5 |
Resolution | 640×512 |
Pixel size | 12μm |
Focal length | 11.5mm |
FOV | 30.5° |
Coverage of 40° Objective lens | 76% |
Modes | Complete Thermal/Hybrid/Outline |
Adjustment | Brightness/Frequency |
Auto Brightness Control | Yes |
Image correction | Yes |
Video Output | （PAL\\DC-5V） |
Operating Temp | -40℃ - +60℃ |
IP Rating | IP67 |
Recommend Products

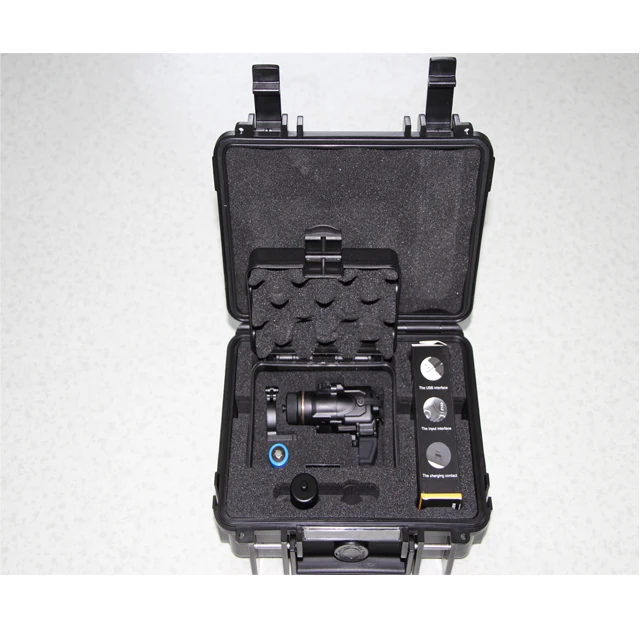

Product packaging
