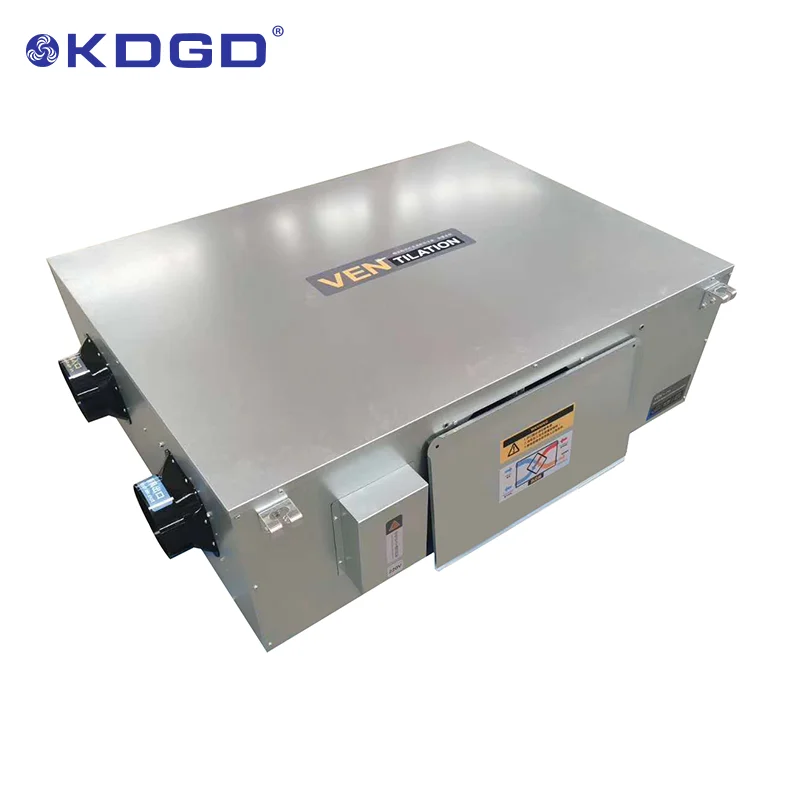

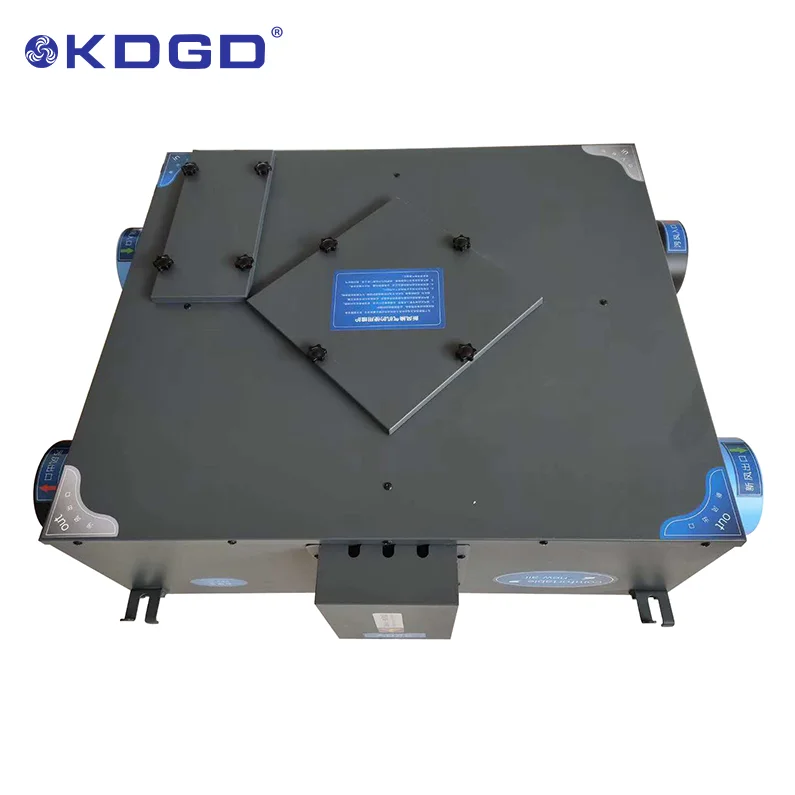

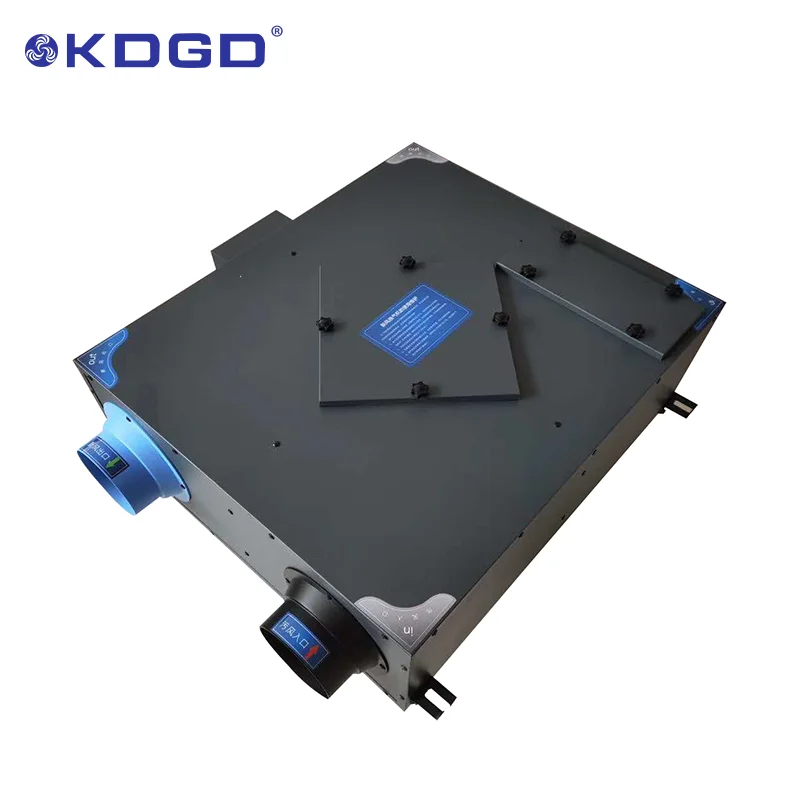

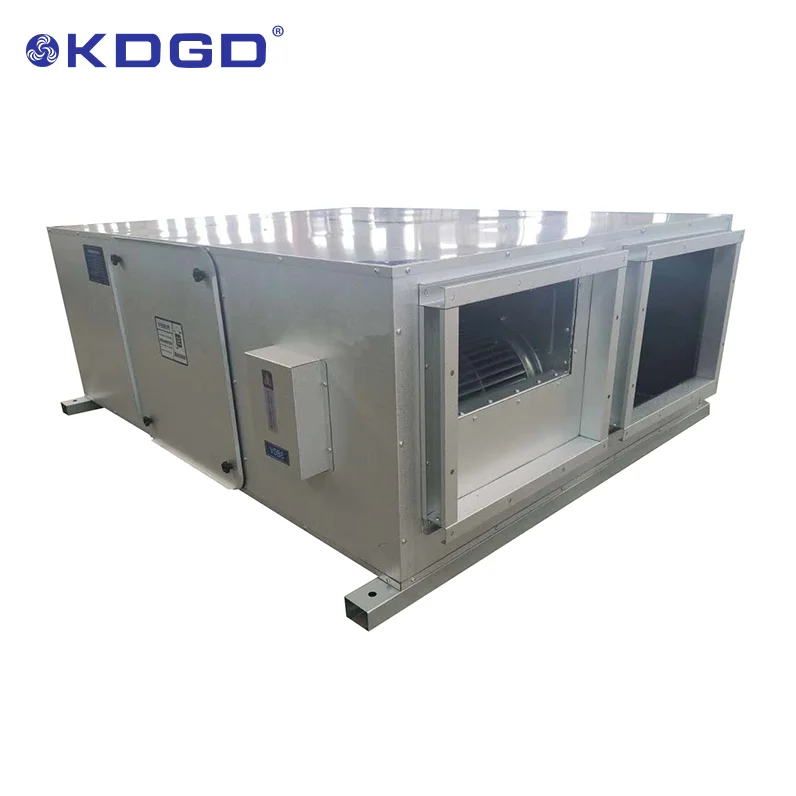

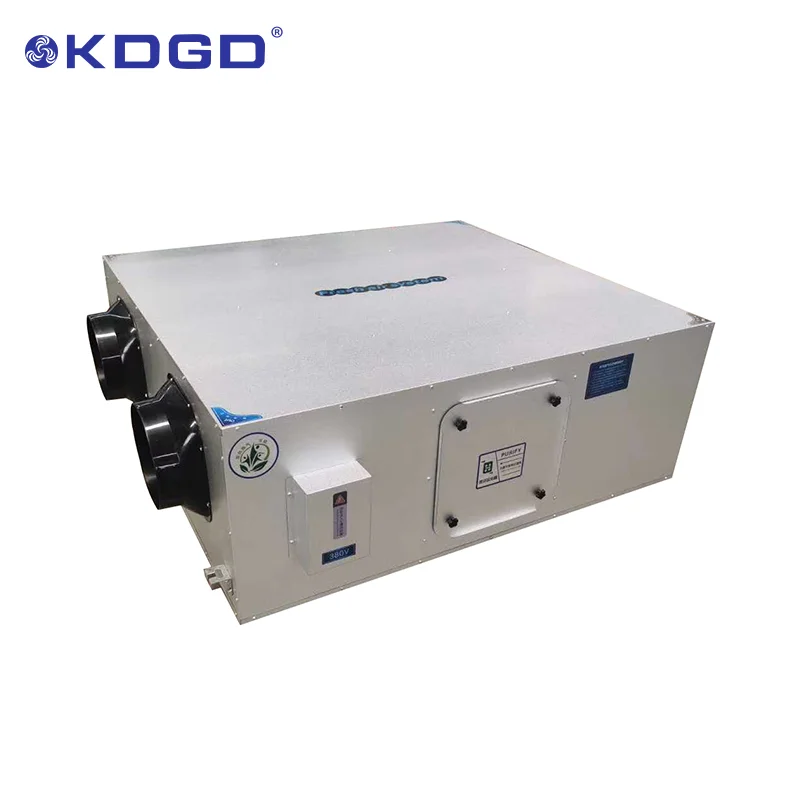

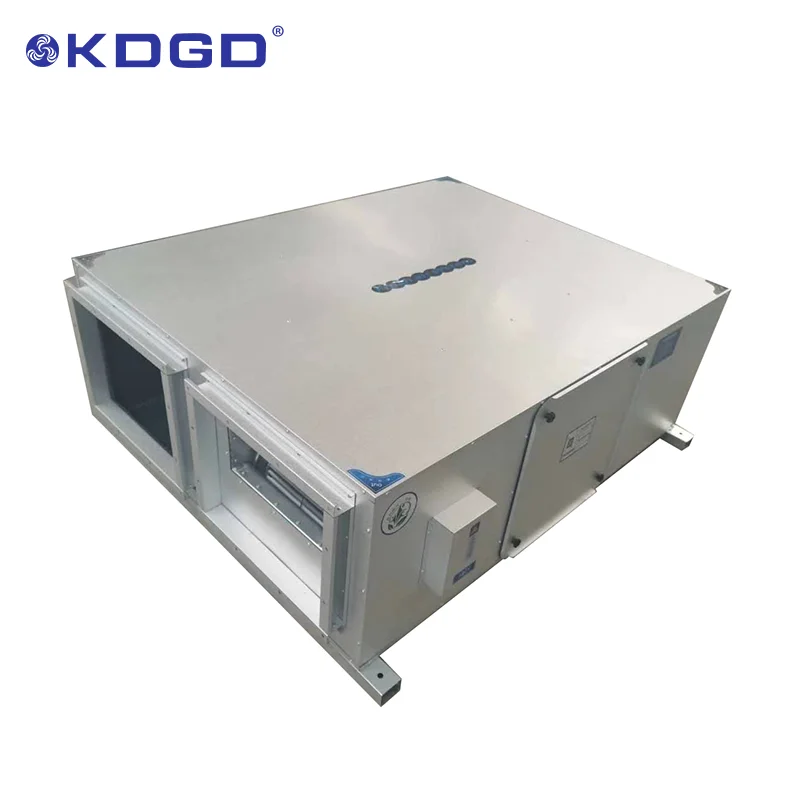

Top quality roof positive pressure attic heat recovery Counter ventilation HRV for VRF system

Breathing clean air

Protecting health

Feeling the comfort of nature

Features

1,TOTAL HEAT EXCHANGER CIRCULATES THE AIR IN THE ROOM

The full thermal core of polymer nanotechnology balances the indoor temperature and circulates the air in two directions, which can easily cope with the extreme outdoor environment. Fully purify the air in the house, circulating clean air.

2,LOW NOISE

The inner wall of the chassis is pasted with professional noise-absorbing cotton to reduce the noise, so that the machine can hardly feel that it is running during the use of the machine, and it quietly delivers fresh air to you.

3,TWO-WAY VENTILATION IS STRONG AND DURABLE

360° no dead angle circulating air flow, uniform and rapid air supply, three-dimensional circulation, accelerate indoor air flow. The dual motors respectively drive the exhaust and supply functions to provide a steady stream of power to circulate indoor air.

4,STRONG POWER OF AC MOTOR

Adopting the national standard pure copper motor, the motor has overheating protection, the motor high-speed rotation continuously provides strong power, stable, quiet, energy-saving and power-saving.

5,HEAT EXCHANGE CORE

Using polymer nano heat exchange material + ABS engineering plastic frame + galvanized outer frame. The design is divided into two sections to save installation space and facilitate later maintenance. With filter protection, high air permeability, good air tightness, tear resistance, aging resistance, moisture removal and mildew resistance. The heat exchange rate reaches 70%.

6,LOW ENERGY CONSUMPTION AND ENERGY SAVING

The full heat exchanger is equipped with an LCD switch and a three-speed switch for three-speed wind speed adjustment, which saves energy and electricity, and adjusts the operating speed of the host motor as you like.

The difference between the core of the fresh air ventilator

Aluminum core:

Corrosion resistant aluminum core, aluminum foil high strength, lifetime use heat exchange efficiency, good air tightness, small airflow resistance, anti-mold, gas can be cleaned or rinsed.Heat exchange efficiency is constant throughout life, and it can be washed by water, easy to extract and operate.

Aluminum core is suitable for high-end luxury homes, five-star hotels, commercial buildings, hospital operating rooms and wards, nuclear power plants, communication rooms, wind power generator warehouse, high-speed railway brake system, planting, manufacturing and some harsh conditions in the use, European and American best-selling products.

Paper core:

High-tech NT heat exchange material + solid ABS engineering plastic frame, high moisture permeability, good air tightness, tear resistance, aging resistance, mildew resistance.

The plate spacing is 2.2mm, which ensures the maximum heat exchange area and high heat exchange law.

Paper core is suitable for residential and commercial buildings.

TECHNICAL DATE OF FRESH AIR VENTILATION EXPERTS

Modle  Air flow (m³/h) Power (KW) Pressure (Pa) Voltage (V) Speed Size (mm) Weight (KG) KGYTBQ-2D 200 0.06 100 220 Three levels 800*660*260 25 KGYTBQ-4D 400 0.118 100 220 Three levels 800*660*260 25 KGYTBQ-6D 600 0.14 110 220 Three levels 900*750*280 36 KGYTBQ-8D 800 0.3 105 220 Three levels 950*800*350 37 KGYTBQ-10D 1000 0.35 125 220 Three levels 950*800*350 37 KGYTBQ-15D 1500 0.42 160 220 Three levels 1200*850*410 62 KGYTBQ-20D 2000 0.64 200 220 Three levels 1250*950*410 67 KGYTBQ-25D 2500 0.9 200 380 Single speed 1250*1000*450 / KGYTBQ-30D 2.2 1.1 240 380 Single speed 1400*1200*500 / KGYTBQ-40D 4000 2.2 260 380 Single speed 1450*1200*580 / KGYTBQ-50D 5000 2.6 300 380 Single speed 1700*1200*580 / KGYTBQ-60D 6000 3 350 380 Single speed 1800*1600*700 / KGYTBQ-70D 7000 3.6 400 380 Single speed 2000*1700*850 / KGYTBQ-80D 8000 4.4 450 380 Single speed 2000*1800*850 / KGYTBQ-100D 10000 6 480 380 Single speed 2100*1900*880 / KGYTBQ-120D 12000 8 480 380 Single speed 2200*2000*900 /



DIMENSION DRAWING OF FRESH AIR VENTILATION EXPERTS

Modle A B C A1 A2 B1 H φd KGYTBQ-2D 800 660 330 940 825 690 260 100 KGYTBQ-4D 800 660 330 940 825 690 260 125 KGYTBQ-6D 900 750 375 1092 925 780 280 150 KGYTBQ-8D 950 800 400 1142 975 830 350 150 KGYTBQ-10D 950 800 400 1074 975 830 350 200 KGYTBQ-15D 1200 850 425 1324 1225 880 410 200 KGYTBQ-20D 1200 950 475 1374 1275 980 410 250 Modle A B C A1 A2 B1 H E*F KGYTBQ-25D 1250 1000 500 1350 1050 1050 450 300*250 KGYTBQ-30D 1400 1200 600 1500 1250 1250 500 350*300 KGYTBQ-40D 1450 1200 600 1550 1250 1250 550 350*300 KGYTBQ-50D 1700 1200 600 1800 1250 1250 580 400*300 KGYTBQ-60D 1800 1600 800 1900 1650 1650 700 450*400 KGYTBQ-70D 2000 1700 850 2100 1750 1750 850 600*400 KGYTBQ-80D 2000 1800 900 2100 1850 1850 850 600*400 KGYTBQ-100D 2100 1900 950 2200 1950 1950 880 600*500 KGYTBQ-120D 2200 2000 1000 2300 2050 2050 900 600*500
