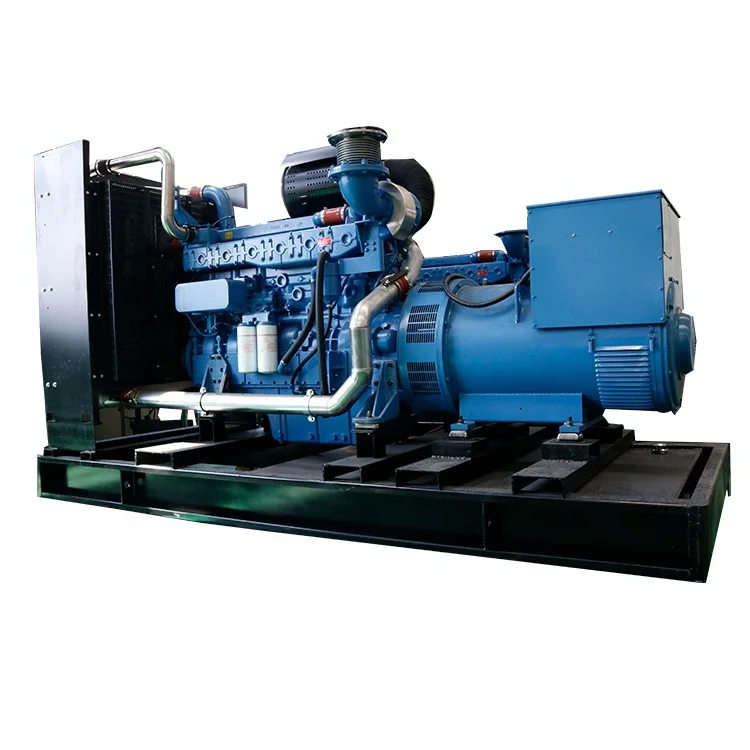

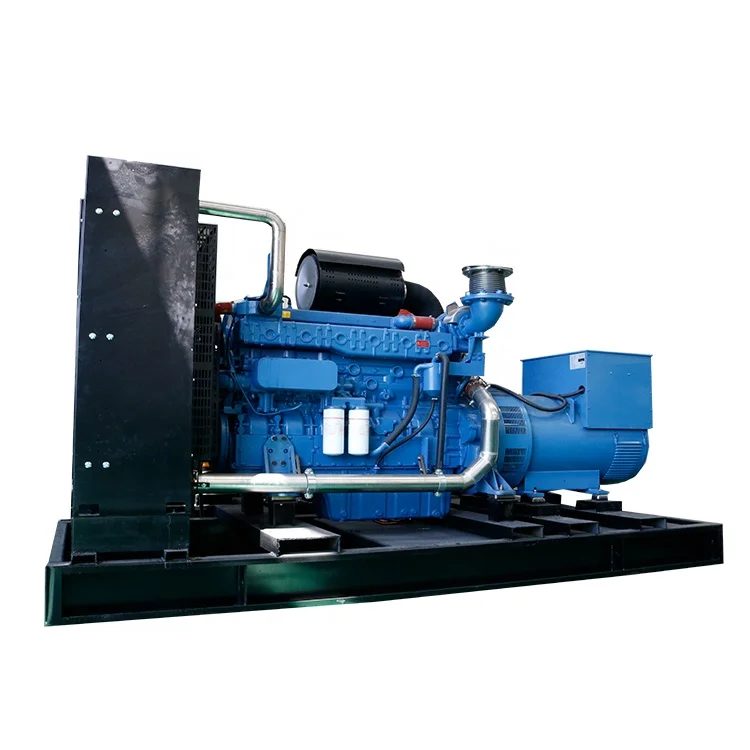

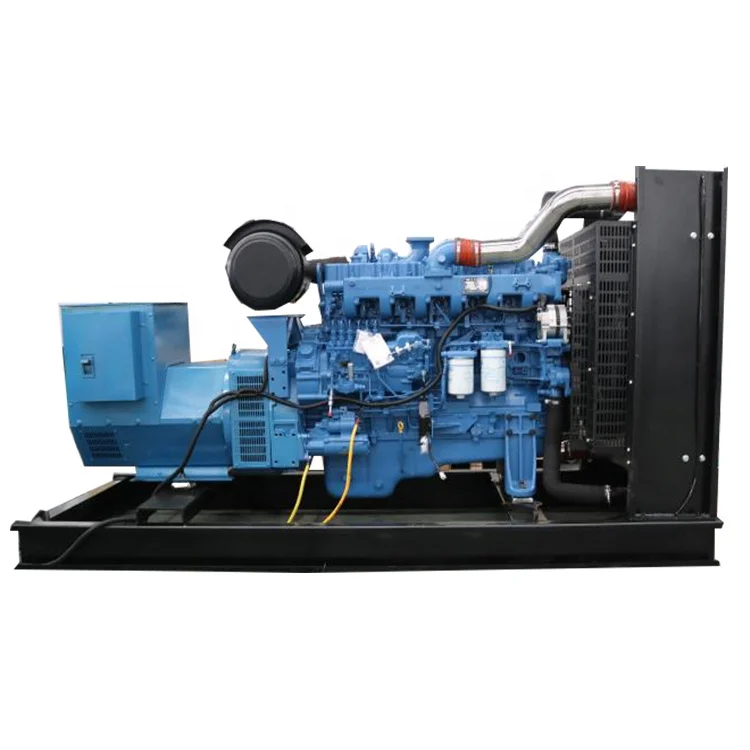

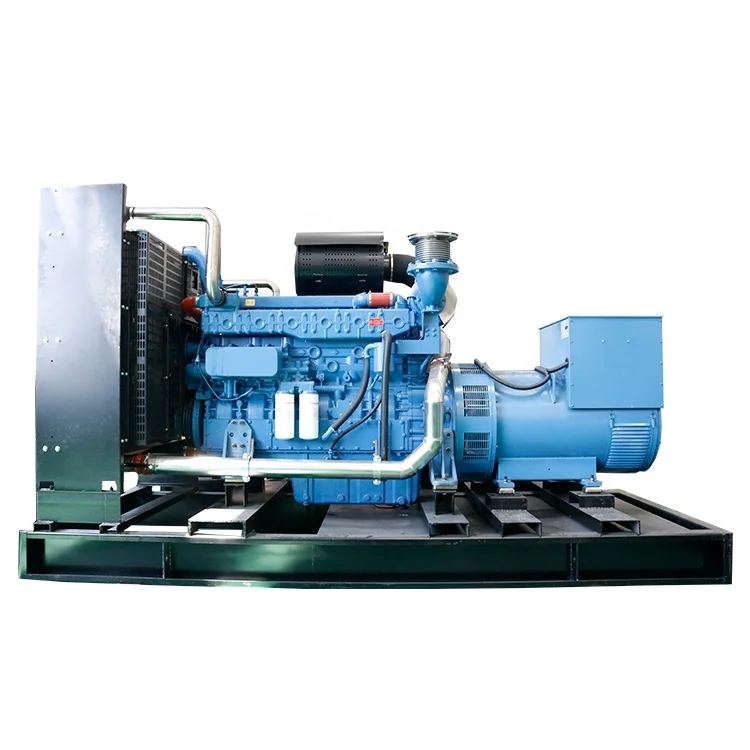

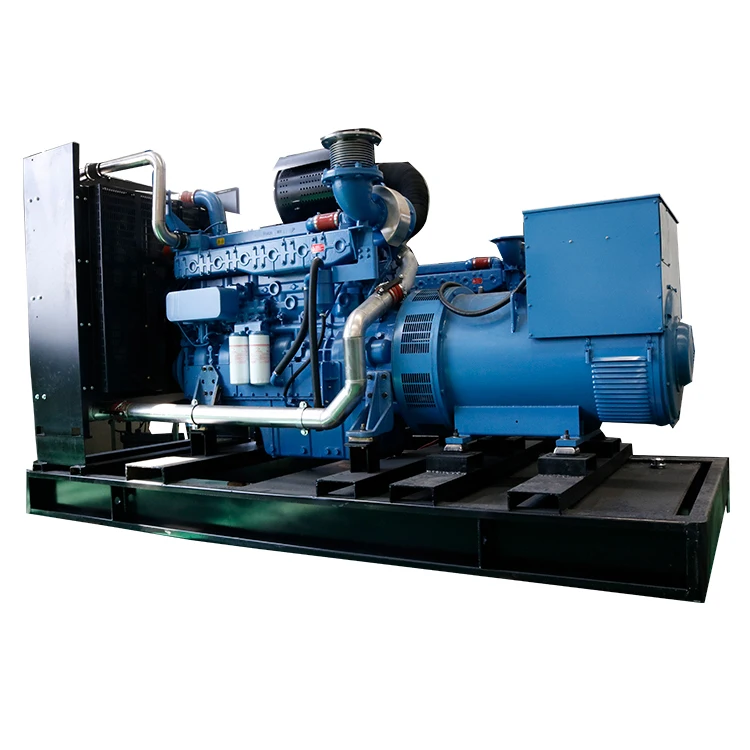

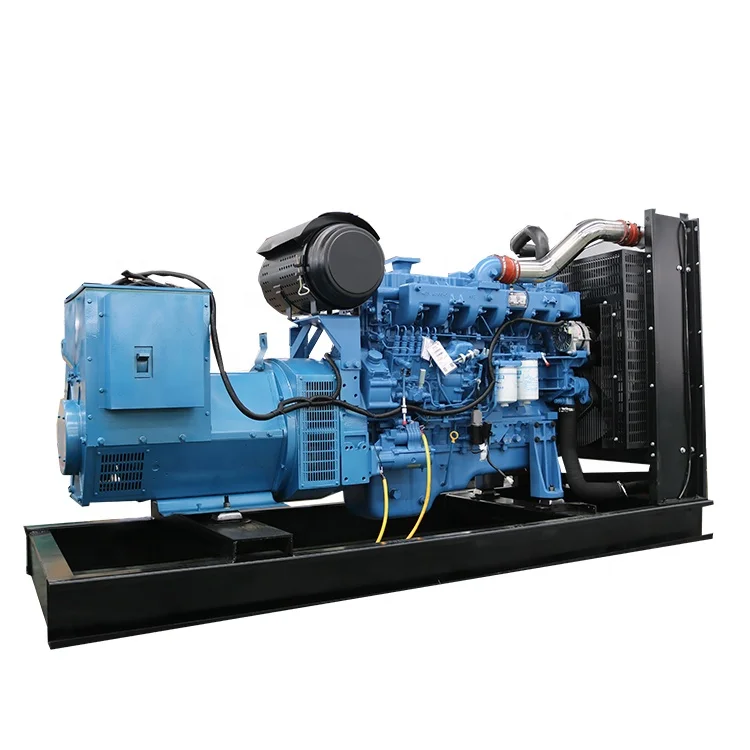

Промышленный генератор с водяным охлаждением 500 кВт 600 кВА дизельным двигателем
- Категория: Дизельные генераторы >>>
- Поставщик: Weifang,Yag,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 45220.80 $* | 47481.11 $* |
| Aug-18-2025 | 44840.53 $* | 47082.57 $* |
| Jul-18-2025 | 37620.6 $* | 39501.2 $* |
| Jun-18-2025 | 44080.21 $* | 46284.16 $* |
| May-18-2025 | 38380.11 $* | 40299.18 $* |
| Apr-18-2025 | 43320.18 $* | 45486.59 $* |
| Mar-18-2025 | 42940.14 $* | 45087.57 $* |
| Feb-18-2025 | 42560.25 $* | 44688.23 $* |
| Jan-18-2025 | 42180.5 $* | 44289.75 $* |
Характеристики
Product Description
The YC6TD series engine is a self-developed product by Yuchai combining the advanced technology for large engines both at home and abroad.The configurations,such as four vales,turbocharged intercooled,and electronic unit pump,are adopted for it;and it is optimized and verified through the advanced combustion development technology of Yuchai,and is characterized by energy-saving and environment-friendly,high reliability,strong loading capability and good maintainability.
Specification
Technical specification parameters of 500KW series diesel generator set | ||||||
Unit model | YAG-500GF | Rated power | 500KW | |||
Rated output voltage | 230V/400V | Rated power factor | 0.8 | |||
Rated current | 900A | Insulation grade | H | |||
Rated speed | 1500/1800rpm | Protection grade | IP22 | |||
Rated frequency | 50/60HZ | Overall dimension (mm) | 3600*1300*1900 | |||
Voltage Control Methods | AVR | Overall weight | 3600KG | |||
Technical specification parameters of diesel engine | ||||||
Brand | Yuchai | Model | YC6TD780L-D31 | |||
Cylinders | 6 | Speed | 1500/1800rpm | |||
Bore * stroke（mm) | 152*180 | Power | 572KW | |||
Displacement | 19.6L | Fuel consumption rate | 215g/kwh | |||
Type | Straight line, four stroke | Lubrication mode | Pressure and splash type | |||
Intake mode | Direct injection | Start-up mode | 24V DC electric start | |||
speed regulation | Electronic speed regulation | Cooling mode | Closed water cooling | |||
Packing & Delivery
Company Profile
Weifang YAG Power Technology Co., Ltd. is a professional manufacturer of diesel engine, generator set and alternator which is integrated research and development, production, sales and service.
The company covers an area of 50000 square meters, the workshop 30000 square meters, owns 5 diesel engine production lines, 3 generator set production lines, 2 alternator production lines, and 2 spare parts production lines. The annual production capacity of the company is 15000 diesel engines, 12000 motors and 10000 diesel generating sets.
The company mainly produces Ricardo series diesel engines, which can be widely used in generator sets, construction machinery and other fields.
The generator set ensures the reliable quality of the generator set through the careful assembly and strict inspection. The generator set can also be assembled with engines and alternators of well-known brands.
The company's products before delivery, through strict testing, to ensure that each product quality qualified.
Through unremitting technical innovation, the company has also achieved fruitful results in many fields such as product noise reduction, energy saving, environmental protection and durability etc., and has been in a leading position among domestic generator set manufacturers in the same industry.
The company takes the customer satisfaction as the purpose, unceasingly improves the product performance, always adheres to the quality first, the good faith as this management policy, has won the general customers' trust and the widespread praise.
The company will continue to provide customers with more cooperation and services.
The company covers an area of 50000 square meters, the workshop 30000 square meters, owns 5 diesel engine production lines, 3 generator set production lines, 2 alternator production lines, and 2 spare parts production lines. The annual production capacity of the company is 15000 diesel engines, 12000 motors and 10000 diesel generating sets.
The company mainly produces Ricardo series diesel engines, which can be widely used in generator sets, construction machinery and other fields.
The generator set ensures the reliable quality of the generator set through the careful assembly and strict inspection. The generator set can also be assembled with engines and alternators of well-known brands.
The company's products before delivery, through strict testing, to ensure that each product quality qualified.
Through unremitting technical innovation, the company has also achieved fruitful results in many fields such as product noise reduction, energy saving, environmental protection and durability etc., and has been in a leading position among domestic generator set manufacturers in the same industry.
The company takes the customer satisfaction as the purpose, unceasingly improves the product performance, always adheres to the quality first, the good faith as this management policy, has won the general customers' trust and the widespread praise.
The company will continue to provide customers with more cooperation and services.
Customer Photos
Why Choose Us
Advantages
1. Ten years dedicated in diesel generator with rich experience.
2. 7-15 days quick delivery, annual output 50,000 sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year warranty.
7. Customized & OEM available.
8. One stop and 7x24 service.
9. Excellent technical support and service.
2. 7-15 days quick delivery, annual output 50,000 sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year warranty.
7. Customized & OEM available.
8. One stop and 7x24 service.
9. Excellent technical support and service.
Quality & Testing
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test
FAQ
Q1: Are you a manufactory or trade company?
A1: We are the Manufactory specialized in diesel generator set industry for many years already. Annual output 50,000sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.
2) Each process under control of IPQC (Input Process Quality Control).
3) Each generator set/part must be pass 100% inspection between process.
4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost.
And it’s negotiable which based on quality or exact demands. It’ll be much helpful if more details could be provide when you make
an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received.
Most of diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ as 1 set.
Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands.
Own design/LOGO on generator set available as well.
Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10 days before shipment.
Or 100% L/C at sight.
A1: We are the Manufactory specialized in diesel generator set industry for many years already. Annual output 50,000sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.
2) Each process under control of IPQC (Input Process Quality Control).
3) Each generator set/part must be pass 100% inspection between process.
4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost.
And it’s negotiable which based on quality or exact demands. It’ll be much helpful if more details could be provide when you make
an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received.
Most of diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ as 1 set.
Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands.
Own design/LOGO on generator set available as well.
Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10 days before shipment.
Or 100% L/C at sight.
