6000w SUDA автоматический станок для резки труб
- Категория: >>>
- Поставщик: Tongxing,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.46 $* | 0.14 $* |
| Aug-18-2025 | 0.59 $* | 0.79 $* |
| Jul-18-2025 | 0.3 $* | 0.80 $* |
| Jun-18-2025 | 0.50 $* | 0.74 $* |
| May-18-2025 | 0.54 $* | 0.58 $* |
| Apr-18-2025 | 0.17 $* | 0.19 $* |
| Mar-18-2025 | 0.9 $* | 0.49 $* |
| Feb-18-2025 | 0.9 $* | 0.79 $* |
| Jan-18-2025 | 0.35 $* | 0.67 $* |
Характеристики
Product

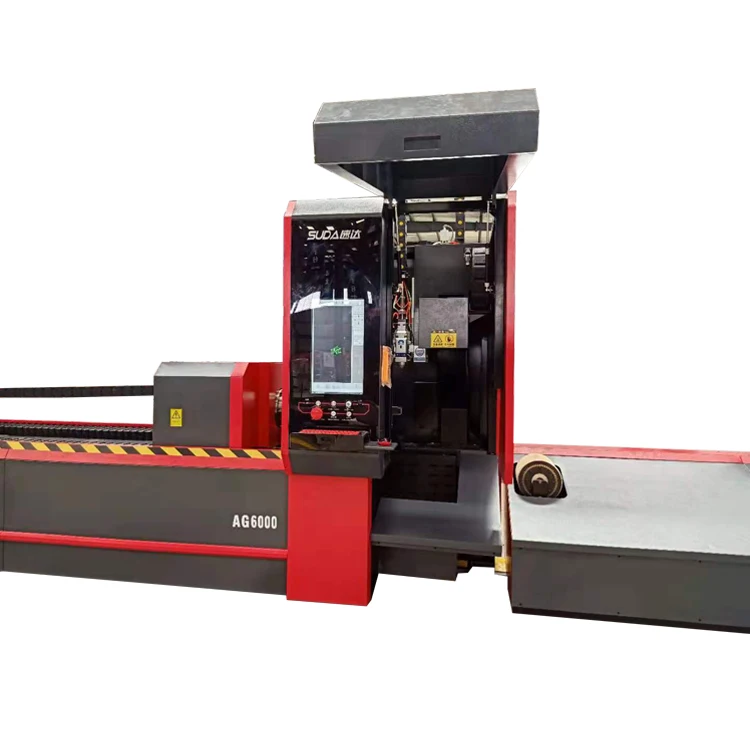

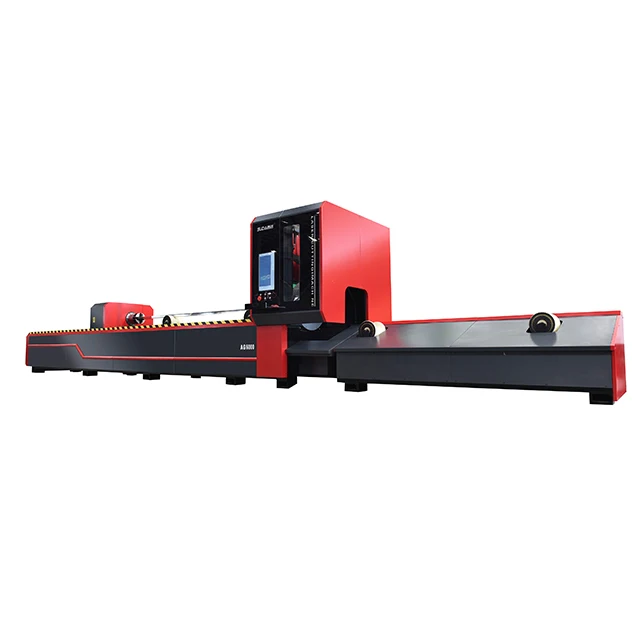

SUDA automatic pneumatic chuck metal pipe fiber laser cutting machine
Product Paramenters
Model Type | AG6000 pipe laser cutting machine | FG4015 | FG4020 | FG6020 | |||
Name Of Goods | Industrial High Precision Optical Fiber Laser Cutting Machine | ||||||
Control System | Shanghai CYPCUT control system, the best control system in China | RAYCUS/MAX/IPG/GW (optional) | |||||
Transmitting Way | XY Axis transmitting by Korea Grinding Rack with Japan Shimpo Reducer, Z Axis transmitting by Rolling Ball Screw | ||||||
Laser Source Brand | 1000W/2000W/3000W/4000W/6000W(optional) | ||||||
Cooling Way | Double Temperature Double Control Industrial Chiller | ||||||
Pipe Diameter Range | 10-222mm (Round pipe - Maximum 220mm; Square pipe - Maximum 150mm) | 1500x3000mm | 2000x4000mm | 2000x6000mm | |||
Pipe Length | 6M (Customizable) | ||||||
Servo power | X-1KW, Y-3KW, Z-750W, W(rotary device)-2KW/3KW | ||||||
Linear rail | Japan THK linear rail, could be used as long as 10 years without problems | ||||||
Voltage Requirement | 380V/50~60Hz (Customizable) | ||||||
Cutting Head | Standard Configured By WSX automatic focusing cutting head | ||||||
Application Ranges | Our Suda Fiber Laser Cutting Machine widely used in sheet metal processing, production of advertising signs,kitchenware,hardware,lighting hardware,Car spare parts,Saw blade ,eyes ,machinery parts and other metal industries . | ||||||
Purchase Guide | 1).Carbon Steel Max Thickness ≤6mm , Stainless Steel ≤3mm Please Choose For 500w Laser Source; Carbon Steel Max Thickness ≤12mm, Stainless Steel ≤ 8mm , Aluminum ≤ 4mm ,Brass ≤3mm Please Choose for 1000w Laser Source 2). Such like the cutting area if your metal sheet size to be 1000x2000mm for example,you can choose for FC1325 working table :1300x2500mm or sheet size is 1420x2500mm can be choose for FC1530 working table -1500x3000mm cutting area ,and so on . 3). If your material thickness over than above data please consult on us about FV series | ||||||
Installation & Trainning | Customers arrange technician getting training in our factory or we send technician to customer side until the operator masters the basic technique of using the machine. 1) The seller provides installation and training in buyer’s factory. Seller pays for the salary for engineer, buyer should buy round-trip airplane tickets and provide accommodation and food to seller's engineer. 2)The seller will provide technical guide by e-mail, telephone, WeChat, WhatsApp and so on. 3) The buyer should pay for the travel expense if local service needed within warranty time. | ||||||
Main Parts

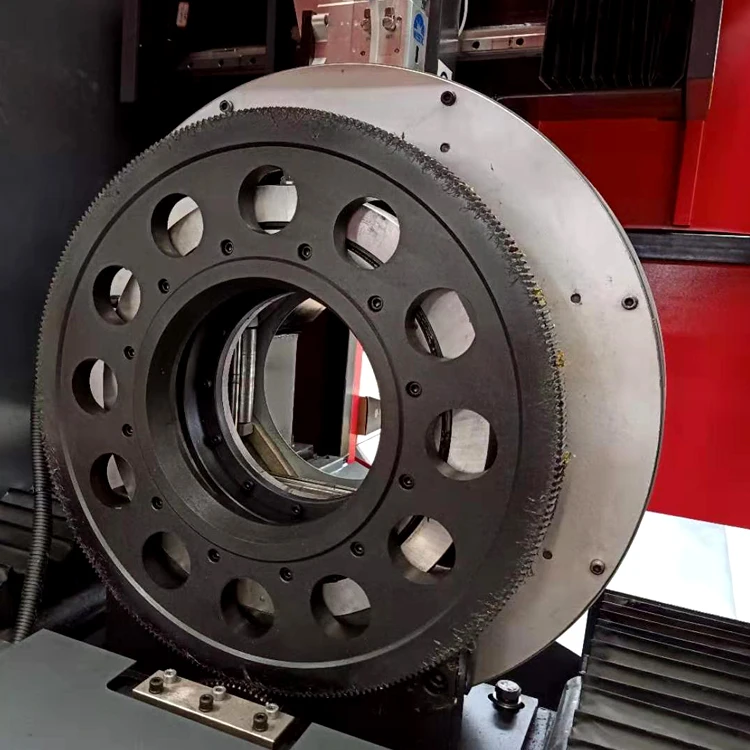

Rotary device:

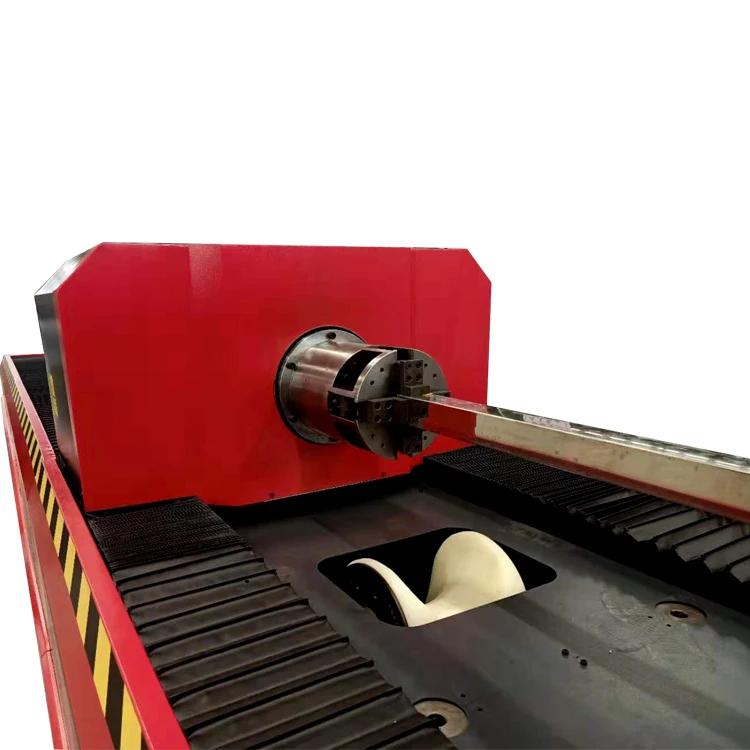

1)Double pneumatic chucks. It would find the material center point automatically and keep the materials in the center points through the whole process. It would fix the material tightly all the times;
2)The diameter of round pipe is 220mm; The diameter of square pipe is 150mm. It could chuck round pipes (maximum diameter is 220mm), and square pipes (maximum diameter is 150mm).
3)The total length of the rotary device is 6M
2)The diameter of round pipe is 220mm; The diameter of square pipe is 150mm. It could chuck round pipes (maximum diameter is 220mm), and square pipes (maximum diameter is 150mm).
3)The total length of the rotary device is 6M
Machine Bed Structure
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing
Japan THK Linear Rail and Block
The machine adopts the best linear rail from Japan. We have the feedback from our client that its block even can use over 10 years and without any problem. The usage lifespan and the product quality definitely can be ensured.
France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
WSX auto focusing Cutting Head
Our pipe laser machines install the WSX automatic focus cutting head, fast perforation (especially the thick materials), The plate is not easy to heat.

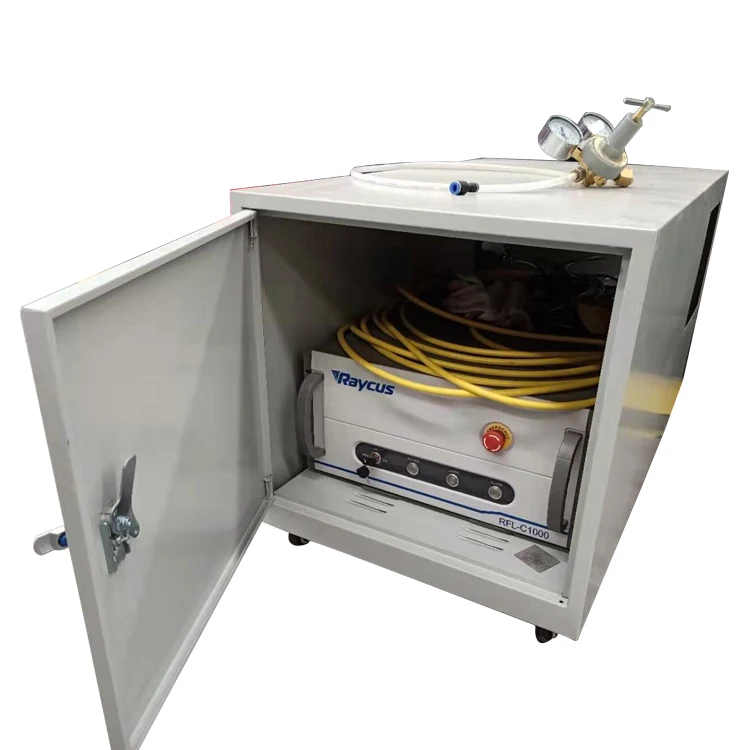

Raycus laser source
The best laser source made in China. high energy conversion rate. Lifespan is 100000 hours
(IPG is optional)
CYPCUT Control System
The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.
S&A Chiller Machine
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research strength, S&A has become a leading enterprise in the domestic industrial refrigeration industry.
Japan Shimpo reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.
Main configurations:
2) Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to improves assembly precision of the machine tool and ensure running precision and stability of equipment.
3) Configure with Japan THK high-precision liner rail for all axis, running smoothly, wear-resistant and dust-proof, and equipped with automatic oil supply.
4) XY axis configured with Korea LEADRACK high accuracy grinding type gear rack, Z axis are transmitting by high accuracy rolling ball screw, equipment precision is higher.
5) Adopt Shanghai CYPCUT 3000S series professional pipe cutting system to support cycle processing, high precision of software operation.
6) Four-axis adopts France Schneider AC servo drive system, X-axis 1KW, Y-axis 3KW, Z-axis 750W, W-axis (front chuck 2KW, back chuck 3KW)
7) Adopt Shenzhen WSX automatic focusing cutting head, pipe material deviation automatically compensates.
8) Professional double pneumatic chuck, material diameter is 10-220mm.
1) Adopt industrial heavy duty steel structure, undergoes numerical control high-temperature heat
treatment, to ensure long-term use of no deformation, suitable for high-power laser operation.
treatment, to ensure long-term use of no deformation, suitable for high-power laser operation.
2) Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to improves assembly precision of the machine tool and ensure running precision and stability of equipment.
3) Configure with Japan THK high-precision liner rail for all axis, running smoothly, wear-resistant and dust-proof, and equipped with automatic oil supply.
4) XY axis configured with Korea LEADRACK high accuracy grinding type gear rack, Z axis are transmitting by high accuracy rolling ball screw, equipment precision is higher.
5) Adopt Shanghai CYPCUT 3000S series professional pipe cutting system to support cycle processing, high precision of software operation.
6) Four-axis adopts France Schneider AC servo drive system, X-axis 1KW, Y-axis 3KW, Z-axis 750W, W-axis (front chuck 2KW, back chuck 3KW)
7) Adopt Shenzhen WSX automatic focusing cutting head, pipe material deviation automatically compensates.
8) Professional double pneumatic chuck, material diameter is 10-220mm.

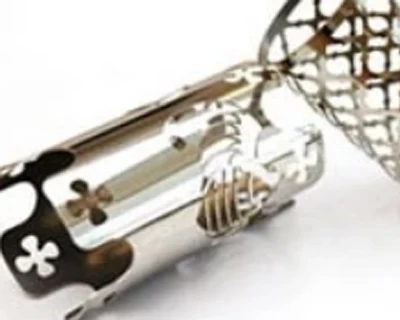

Cutting Sample
Application:
◆Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal plate material.
◆Used for metal round, square tube, such as carbon steel, manganese steel, spring steel, stainless steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper.
◆Ultra-high type, special metal material cutting.
More
Our Company
Our company TONGXING Technology Development Co.,Ltd established in 1992,lies in HEFEI --One of Chinese scientific and technology cities.It has been working on researching and manufacturing CNC machinery in field of woodworking,stone engraving,metal processing,glass cutting and advertising etc. over 20 years.
The main products: Heavy moving column CNC machining center,Heavy static column CNC machining center,High accuracy metal cutting machine,High precision fiber laser machine,Vanguard series CNC engraver, Multistage CNC machine center,SUDA high accuracy CNC engraver, SUDA laser cutting machine,plasma cutting machine,totally 23 series ,more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities,including HongKong,Taiwan&Macao,also the products are exported to more than 120 countries and regions such as Europe,America,Middle-east,South-east Asia, etc.
The main products: Heavy moving column CNC machining center,Heavy static column CNC machining center,High accuracy metal cutting machine,High precision fiber laser machine,Vanguard series CNC engraver, Multistage CNC machine center,SUDA high accuracy CNC engraver, SUDA laser cutting machine,plasma cutting machine,totally 23 series ,more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities,including HongKong,Taiwan&Macao,also the products are exported to more than 120 countries and regions such as Europe,America,Middle-east,South-east Asia, etc.
Welcome to China ,Welcome to Our Company
Every year ,there are many foreign friends come to visit our company and factory. Every time they come to China, our boss and the salesman will hospitality them together, not only invited them to visit our company and factory, eat Chinese food. We will also invite them to visit places of interest in China and enjoy China traditional culture and five thousand customs. Let them have a satisfactory trip in China! So, my friend, if you are very interested in China, our company and factory and our products,, welcome to China, welcome to our TONGXING company and factory！
Our Service
Pre-Sales Service:
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service:
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.
Customers' feedbacks:
Packaging&Shipping
Packaging Improving
Three layers---
-The machine all covers will be protected by the foam board
-The middle layer is wrapped with environmental protection material ;
-And the outermost layer is wrapped with PE stretch film.
About the package of the cnc router:
The machine control cabinet and other machine accessories are put on the machine bed.Then,the machine will be wrapped with PE stretch film in case of damage in transit.
All CNC machines are packaged with the plywood case and the wooden case will be fix on the pallet, the shipping mark will be labeled on the surface of the wooden case.
If the machine is customized even the size is bigger, the machine needs disassembling.
About the package of fiber laser machine:
Normally, the size of fiber laser machine no more than 1325 (1300*2500mm) will be packaged with wooden case. Before that, the machine parts( cutting head, laser source, control cabinet) will be put on the machine bed except for the chiller, the machine will be protected by the foam board of the four corners and wrapped with the film before shipping.
Fiber laser machines of which the size is over 1530(1500*3000mm) cannot be packaged plywood case because the width of the machine exceeds the container’s. The machine will be fix on the pallet.
Fiber laser machine 1530 size(1500*3000mm) with enclosed cover and exchange table need to be shipped with 20 feet frame rack and the 20 feet container.if the size is bigger, the packaging and the shipping way needs to be confirmed.
Frequently Asked Question
Q1: How do you get the best price?
A: As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.
Q2: In case of failure,how to do?
A: Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q3: Are you trading company or manufacturer ?
A: We are factory.
Q4: How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
