Вертикальная мельница для
- Категория: Горнообогатительная установка >>>
- Поставщик: Shanghai,Zenith,Mineral,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 63499.33 $* | 64769.6 $* |
| Jul-18-2025 | 51499.10 $* | 52529.31 $* |
| Jun-18-2025 | 62499.68 $* | 63749.98 $* |
| May-18-2025 | 61999.58 $* | 63239.72 $* |
| Apr-18-2025 | 49499.68 $* | 50489.44 $* |
| Mar-18-2025 | 60999.40 $* | 62219.88 $* |
| Feb-18-2025 | 60499.17 $* | 61709.62 $* |
| Jan-18-2025 | 59999.33 $* | 61199.0 $* |
Характеристики
Vertical Mill Cement Vertical Mill15TPH coal grinding line,zenith LM130M grinding vertical mill
Product Description
Vertical Mill Cement Vertical Millworking principle:
The grinding plate rotates under the action of main motor of LM Vertical Grinding Mill and the reducer. Meanwhile, hot wind enters the vertical mill. After raw materials fall onto the center of grinding plate, they move to the edge of grinding plate under the action of centrifugal force. While passing through the grinding area between roller and grinding plate, bulky materials are broken directly by the pressure of roller while fine materials form a layer where materials crush each other.
Broken materials after grinding continue moving to the edge of grinding plate until they are brought away by the airflow at the air ring. For coarse materials which cannot be brought away would fall onto the grinding plate for another grinding. When passing the upper separator, materials in the air flow will be divided into two parts by the blades of rotor, that is, coarse particles and fine powders. Coarse particles would be sent back to have another grinding while the qualified fine powders enter the powder collector with airflow as finished products.
For sundries like iron block in materials, when they move to the fringe of grinding plate, because of their heavier weight, they would drop to the lower cavity of grinding mill and next be sent into the discharging port by scarper installed at the bottom of grinding plate and finally be discharged out of the grinding mill.
cement vertical millCustomer case:
15TPH Coal Grinding Line
Material: coal
Capacity: 15t/h
Input Size: 0-35mm
Output Size: 250-325mesh
Equipment: LM130M Grinding System
Project Advantages
1. LM130M grinding system is controlled by PLC with high automation. It runs under negative pressure, so no powder spills and clean environment is guaranteed.
2. Customized plant is the characteristic of ZENITH service. In this case, we designed a special technological process in terms of special requirements.
3. Simple operation and maintenance: It is easy for local workers to operate and maintain the grinding line.
4. Considerate project service: Our technical engineers designed reasonable technical drawings, solved every technological difficulty and explained project details for the customer.
Customer Evaluation
The MTW175 European Mill we firstly purchased from ZENITH has been stable. Besides, ZENITH performed well for the spare part supply and revisit, making us satisfied. Because of the high-quality equipment and services, we trusted in ZENITH and decided to cooperate with ZENITH once more. Meanwhile, we are expecting that the cooperation can last forever.

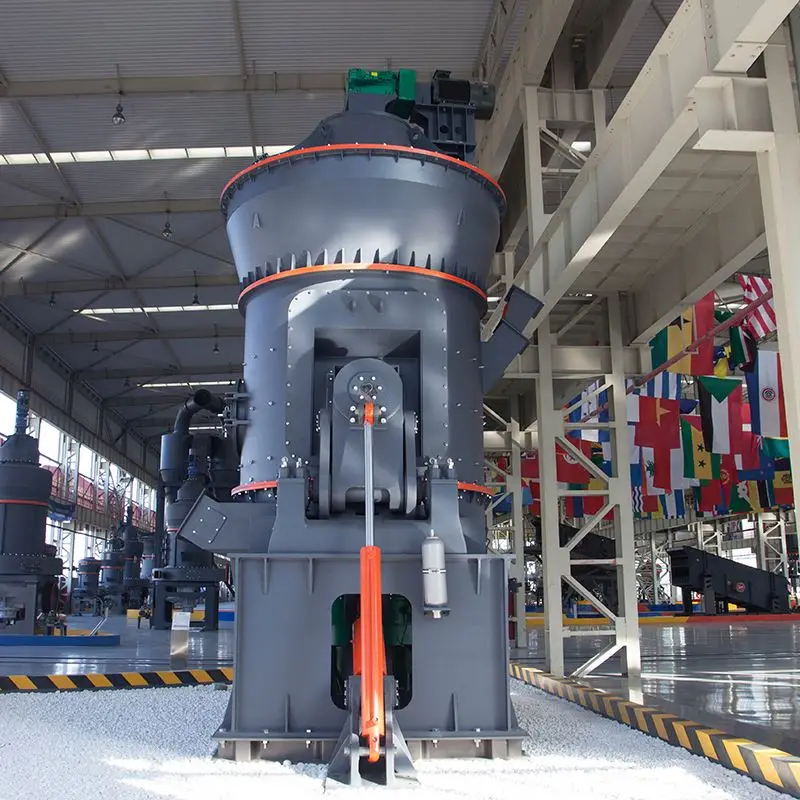

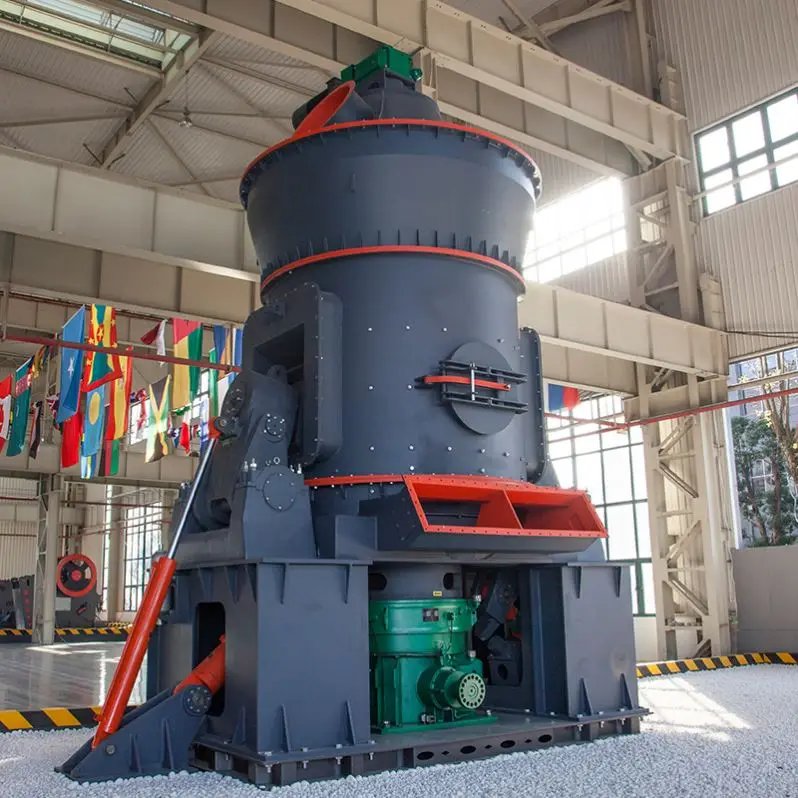

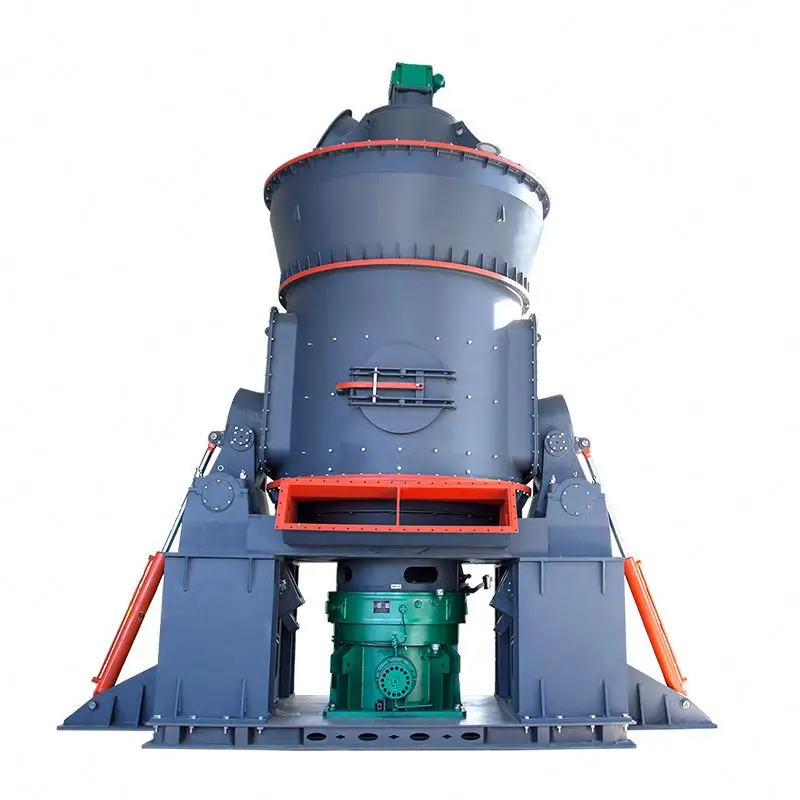

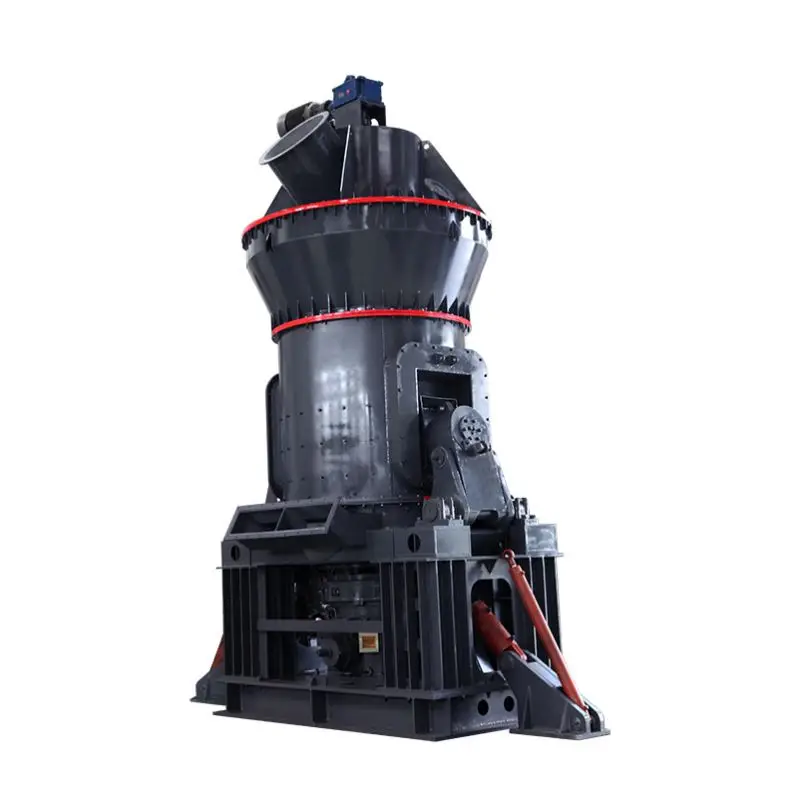

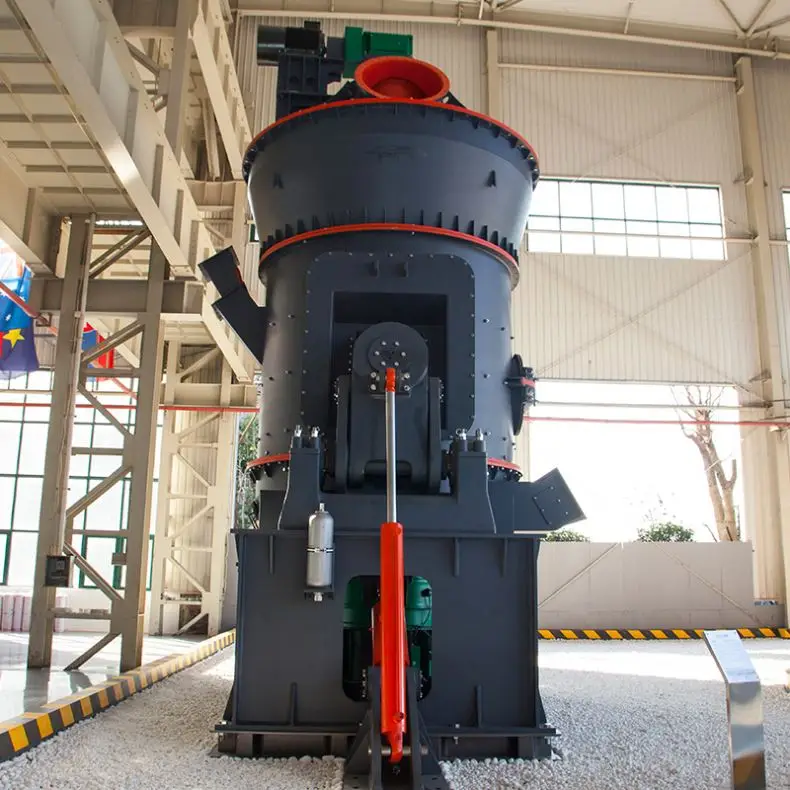

Vertical Mill Cement Vertical Mill photo:
Vertical Mill Cement Vertical Mill parameters:
Vertical Coal Mill Series
| Model | LM80M | LM110M | LM130M | LM150M | LM170M | LM190M | LM220M | LM240M | LM280M | LM340M |
| Wheel diameter(mm) | 800 | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | 2800 | 3400 |
| Output (th) | 3-5 | 7-10 | 10-17 | 16-22 | 20-30 | 26-40 | 35-45 | 50-70 | 70-90 | 100-140 |
| Coal powder fineness (R0.08) | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% | 5~20% |
| Coal powder moisture (%) | <1% | <1% | <1% | <1% | <1% | <1% | <1% | <1% | <1% | <1% |
| Grinding material particle size D80 (mm) | <10 | <10 | <10 | <10 | <10 | <10 | <10 | <10 | <10 | <10 |
| Grinding material max feed size(mm) | 20 | 25 | <38 | <40 | <42 | <45 | <50 | <50 | <50 | <50 |
| Material moisture of into mill (%) | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% | <15% |
| Into mill air temperature (°C) | <350 | <350 | <350 | <350 | <350 | <350 | <350 | <350 | <350 | <350 |
| Out of the mill air temperature (°C) | 75~95 | 75~95 | 75~95 | 75~95 | 75~95 | 70~95 | 75~95 | 75~95 | 75~95 | 70~95 |
| Raw coal hardgrove grindability index (HGI) | >55 | >55 | >55 | >55 | >55 | >55 | >55 | >55 | >55 | >55 |
| Main motor power (kw) | 45 | 90 | 185 | 250 | 315 | 400 | 500 | 630 | 900 | 1400 |
Company Information
A VARIETY OF TRUSTED EXPERIENCE ZENITH has a variety of professional, reliable and efficient crushing lines all around the world. So customers have great confidence in us. |
INFINITE BRAND VALUE What ZENITH is doing is customizing economical and suitable production lines for customers and building brand value. |
1200,000 SQUARE METERS OF PRODUCITION AREA 6 large-scale manufacturing bases occupy 1200,000 square meters in total. So quick delivery is a matter of course. |
Shanghai Zenith Mineral Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Zenith Factory
Headquarter of Zenith is located in Shanghai, China and now we have two manufacturing bases as our strong support. One is located in Shanghai about 450,000 square meters, and the other is in Qidong city, about 600,000 square meters. It takes about one-hour driving from Shanghai to Qidong city.
Exhibition
Zenith participate in various exhibitions frequently,such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Our Services
Pre-sales Service: The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
|
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also. |
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Get Price
If you are interested with our products, please don't hesitate to contact us now!
You can tell me the following questions, Then I can send you accurate quotation, including additional discount!
1. Which machine do you need?
2. what is your raw material plan to process?
3. The capacity you need.
4. Your contact information. Both Email and phone number are essential, we can contact you easier.
Now,please click the following contact to send us email or chat online!
