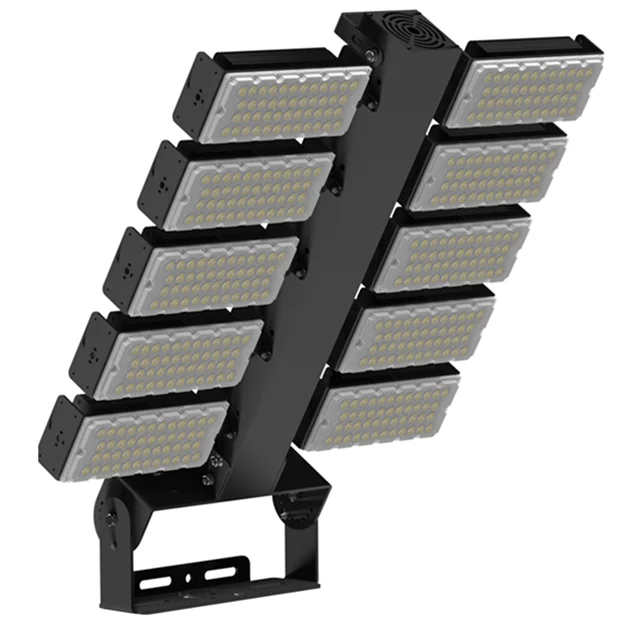

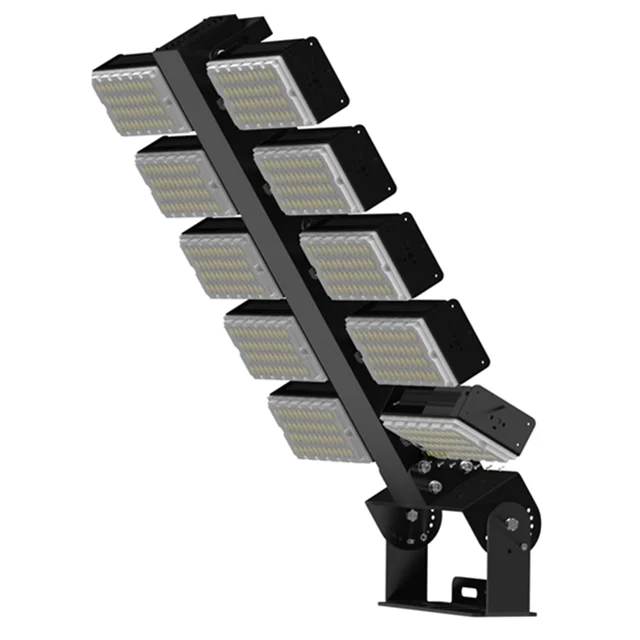

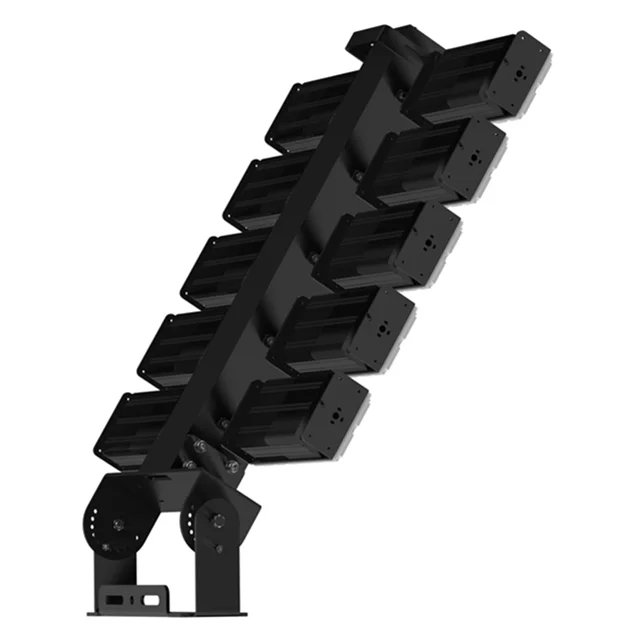

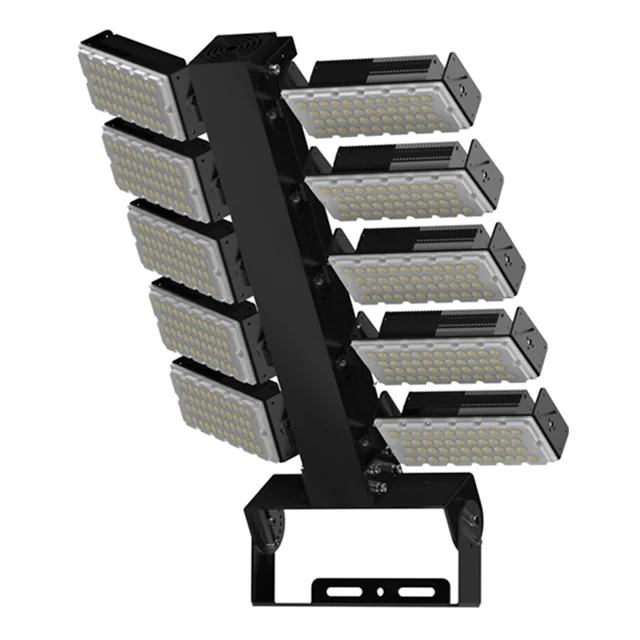

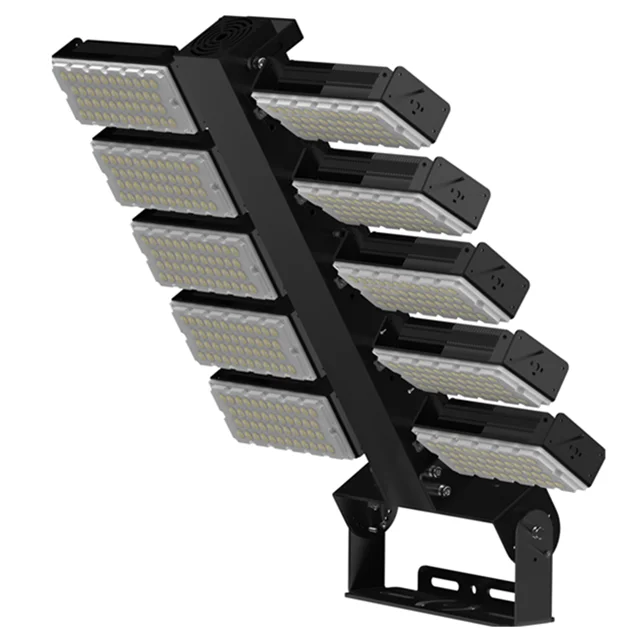

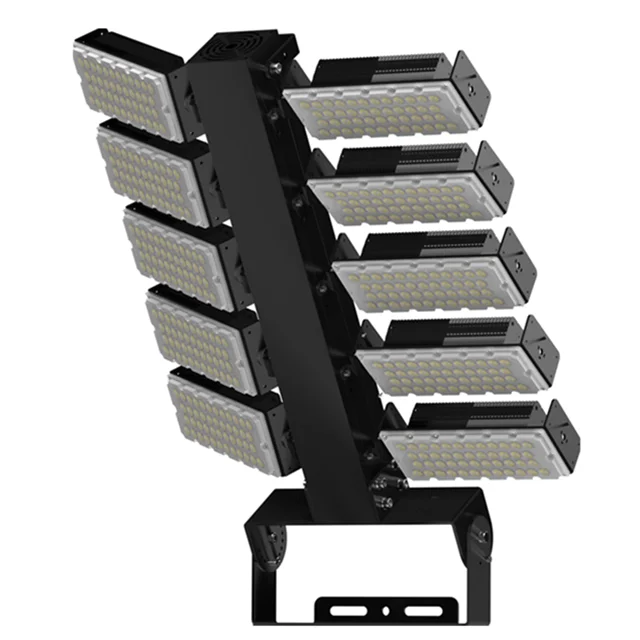

Трансформаторная серия светодиодный спортивный светильник с высокой мачтой для стадиона 1200 Вт 1500 30 м наружное освещение поля и
- Категория: Прожекторы >>>
- Поставщик: Shenzhen,Guohui,Lighting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 678.40 $* | 712.67 $* |
| Aug-17-2025 | 673.3 $* | 707.3 $* |
| Jul-17-2025 | 564.63 $* | 592.58 $* |
| Jun-17-2025 | 661.38 $* | 694.94 $* |
| May-17-2025 | 576.75 $* | 605.16 $* |
| Apr-17-2025 | 650.53 $* | 683.85 $* |
| Mar-17-2025 | 644.51 $* | 676.76 $* |
| Feb-17-2025 | 638.79 $* | 670.59 $* |
| Jan-17-2025 | 633.62 $* | 665.89 $* |
Характеристики
Specification
Transformer Series LED High Mast Stadium Sport Light 1200W 1500W 30M pole outdoor field and court lighting
Item Name: | Transformer Series LED High Mast Stadium Sport Light 1200W 1500W 30M pole outdoor field and court lighting |
Power(W): | 1500W |
Lumen Effciency: | 145-165 lm/w |
CCT: | 2700k ~ 6500K |
Ra(CRI): | 70 |
Protection: | IP67 |
Beam Angle: | 20°/40°/60°/90°/140°*100° |
Lifespan(hour): | 50000 |
Certificate: | CE, RoHS |
Products Description
Product Details
1.Modules's beam angle angle can be adjuable!
2. PC cover, Beam angle :20°/40°/60° /90°/140*100°
3. Import Philips LED lamp beads, Light efficiency>165LM/W;
4. Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm;
5. Use 304 stainless steel screws;
6. Internal wiring is waterproof, safe,
Convenient;
Product Number | GH-TFDA-1500w / Transformer Series LED High Mast Stadium Sport Light 1200W 1500W 30M pole outdoor field and court lighting | ||||
Input Power | 1500W | ||||
Led Chips | SMD 3030 1840PCS | SMD 5050 460PCS | SMD5050 138PCS | ||
Light Effiency | 145LM/W | 165LM/W | 165LM/W | ||
Input Voltage | AC100-305V | Frequency | 50/60HZ | ||
Power Factory | PF>0.95 | CCT | 2700-6500k or customized | ||
Power Supply | Meanwell ELG 300W*5pcs | CRI | >70 | ||
Production Sizes | 780*1004*119mm | Packing Sizes | 800*1050*150mm | ||
Net Weight | 32.60 KG | Gross weight | Approx 34.10KG | ||
Lamp Boady Color | Black/Silver | ||||
Power Cable | Brown L firewire | ||||
Yellow Green G ground | |||||
Blue N zero Line | |||||
Beam Angle | 20/40/60/90/140*100 degree | ||||
IP grade | IP67 waterproof | Material | Fin 1060 pure Aluminum | ||
Lifetime | 50000 hours | Temperature | -30-+55 degree | ||
Certificate | CE ROHS | Warranty | 5 years | ||
Installation Instructions
1. The mounting rood or mounting surface can be directly screwed through the mounting hole one the product bracket;
2. After fixing the product, you can loosen the screws on both sides of the bracket and then change the angle of the bracket, which is equivalent to adjusting the installation angle of the fixture;
3. Working environment temperature -30℃-+55℃ storage;
4. When installing the luminaire, the wiring and wiring are closed to prevent leakage;
5. When the external power cord is connected, the corresponding waterproof and water leakage measures must be taken;
6. Anti-glare design, uniform light distribution;
7. Independent power supply box design is beneficial to heat dissipation of the lamp body, reducing light decay and prolonging the service life of the light source;
8. Support light sensor installation, which can realize intelligent control of lamps and improve energy saving benefits.
Applications
Used in shiopping mall, exhibition hall, parking lot, playground,gymnasium, billboards, park, sculpture, national green lighting project, bulding facede and public corridor, stair corridor and other indoor and outdoor lighting.
FAQ
Q1. Can I have a sample order for led light? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .1pcs sample is accepted.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Can you provide the Dialux for sports field?
A: Yes, we can provide free according to customer requriments.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to put customer logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new light with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .1pcs sample is accepted.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Can you provide the Dialux for sports field?
A: Yes, we can provide free according to customer requriments.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to put customer logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new light with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
