Поставка фабрики 6000нм 600 кг 12В 24В постоянного тока 1500 мм ход мини моторизованный линейный привод для открытия
- Категория: Motors >>>
- Поставщик: Dongguan,Xinhui,Transmission,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 55.80 $* | 58.6 $* |
| Aug-19-2025 | 54.85 $* | 57.71 $* |
| Jul-19-2025 | 46.65 $* | 48.19 $* |
| Jun-19-2025 | 53.98 $* | 56.15 $* |
| May-19-2025 | 46.2 $* | 48.0 $* |
| Apr-19-2025 | 52.93 $* | 55.75 $* |
| Mar-19-2025 | 52.31 $* | 55.26 $* |
| Feb-19-2025 | 52.85 $* | 55.24 $* |
| Jan-19-2025 | 51.80 $* | 54.55 $* |
Характеристики
Factory supply 6000Nm 600kg 12v 24v dc 1500mm stroke mini motorized linear actuator to open gates
Product Description
A)Properties:
1)DC 12V24V36v48v electric push rod motor, there is a travel limit switch at each end of the push rod, and the telescopic rod will
automatically stop when it runs to the end or the top.
2)The motor will not run idling and burn,and it is driven by a DC motor and a screw drive. T
he telescopic rod can only extend and not rotate.
3)T he motor have positive and negative, For example, the positive electrode stretches, and the negative electrode shrinks. You
can change the direction of the rod expansion and contraction by just changing it.
Note: The bracket and controller need to be purchased separately. If you need it, please contact customer service.
B)Shopping guide:
1)there are four options for the voltage: DC 12V 24V 36V 48V.
2)the activity length of putter to 10MM-2000MM,and can be customized.
3) Different speeds correspond to different forces.
| voltage | stroke | Speed (mm/s) | thrust | Self-locking |
| 12v | 10-2500mm | 100 | 50 | no |
| 65 | 70 | no | ||
| 60 | 150 | no | ||
| 48 | 250 | no | ||
| 36 | 250 | no | ||
| 36 | 220 | no | ||
| 24 | 500 | yes | ||
| 22 | 550 | yes | ||
| 20 | 550 | no | ||
| 14 | 750 | yes | ||
| 12 | 1000 | yes | ||
| 7 | 1300 | yes |
| voltage | stroke | Speed (mm/s) | thrust | Self-locking |
| 24v | 10-2500mm | 100 | 33 | no |
| 65 | 47 | no | ||
| 60 | 100 | no | ||
| 48 | 167 | no | ||
| 36 | 167 | no | ||
| 36 | 147 | no | ||
| 24 | 333 | yes | ||
| 22 | 367 | yes | ||
| 20 | 367 | no | ||
| 14 | 500 | yes | ||
| 12 | 667 | yes | ||
| 7 | 867 | yes |
Dimension and installation:
Details

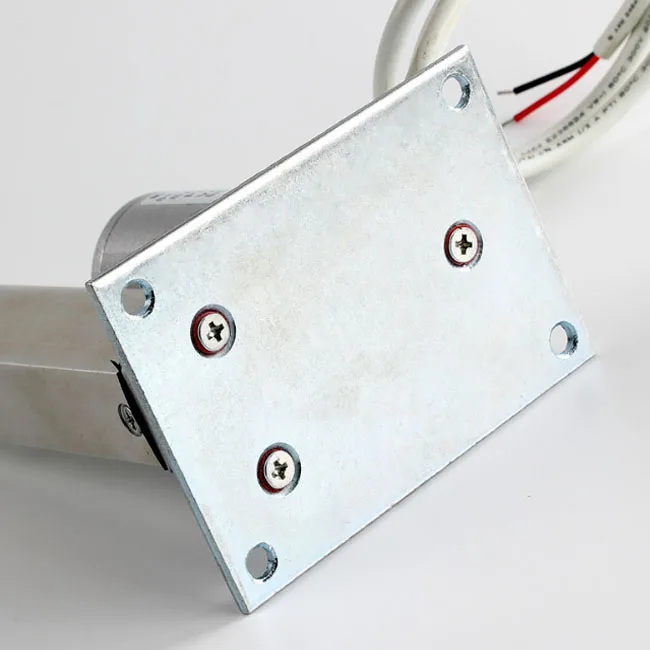

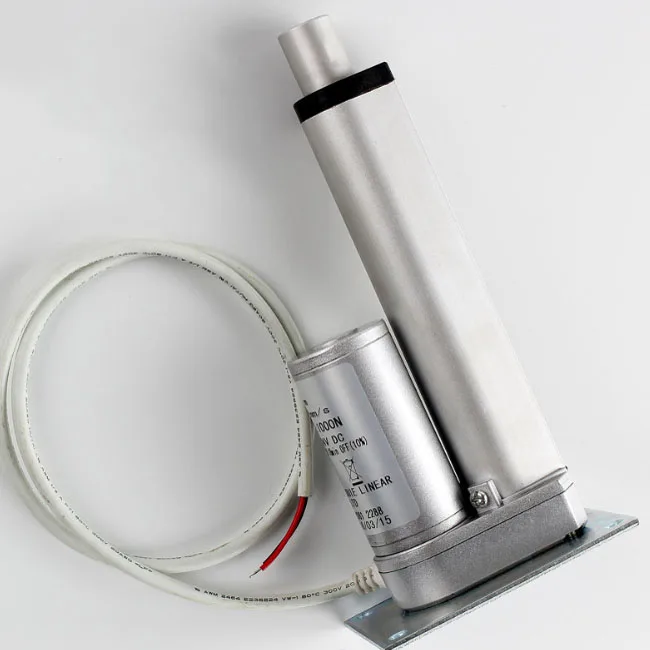

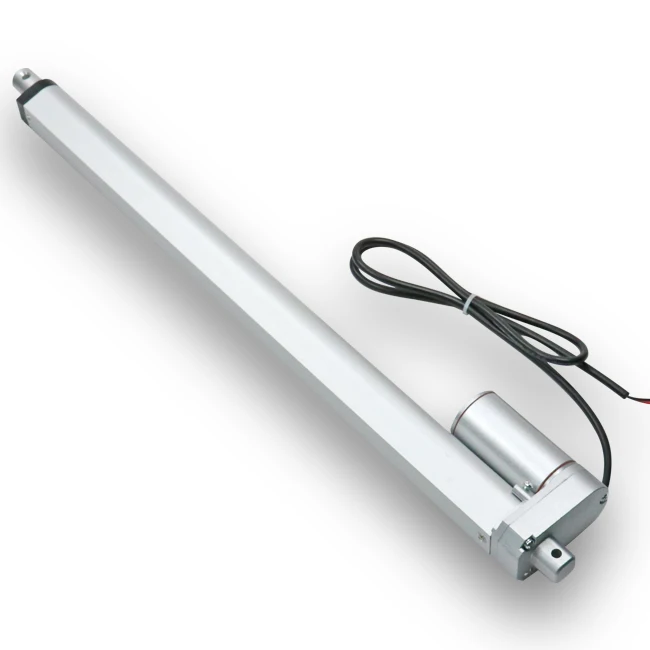

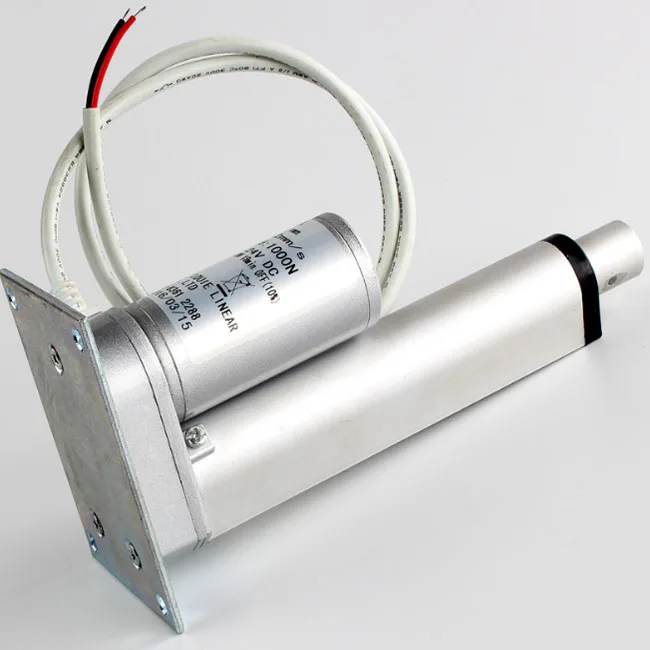

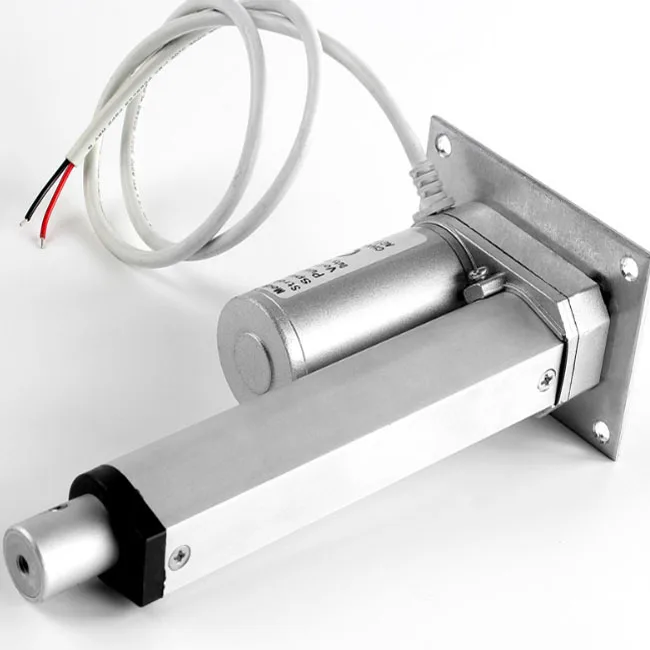

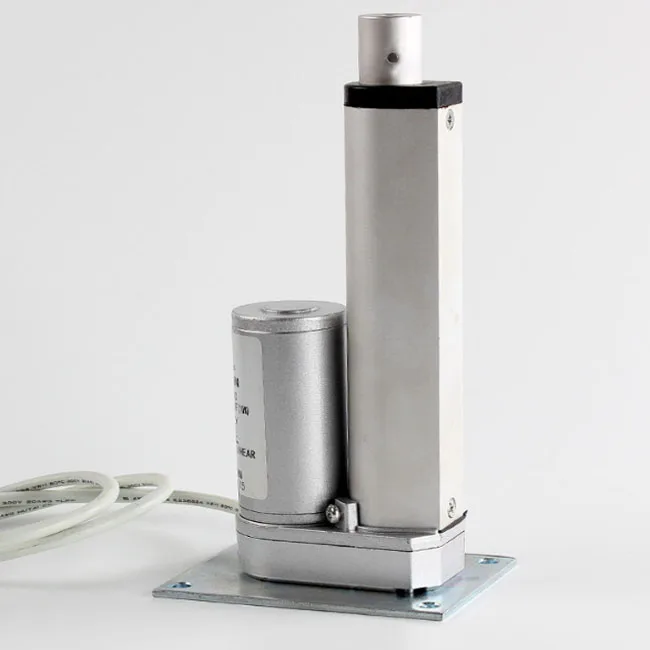

Actual photos
Application
Application
it can be widely applied for window pusher,chairwheel,hospital bed,desk,massager...
Company Information
Company profile
Xinhui motor founded in 2000year,focused on R&D service,5 QC,20 engineers,200 workers,8 production lines,fully facilities to application,the capacity of production more than 100.000.000pcs per year.
the main catagories as like dc gear motor,worm gear motor,planetary gear dc motor,dc reducer dc gear motor.
presently,our products have covered more than 80 countries as like Japan,UK,USA,Korea...achieved high praise from difference customers.
expecting our signal can expand to all over the world and realize win-win.
Workshop
Certificates
Packaging&Shipping
Packaging
individual package to each motor,avoiding it is damaged on the way shipment.
50pcs to each carton.
the logo and pattern can be customized according customer's requests.
Shipping
Generally,5-7days to shipping time via DHL,FEDEX,UPS,TNT...
