Электрический строительный Колыбель


Поделиться:


Цена:1 530,00 $ - 1 690,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 1821.68 $* 1912.8 $*
Aug-16-2025 1805.14 $* 1895.27 $*
Jul-16-2025 1515.25 $* 1591.77 $*
Jun-16-2025 1775.52 $* 1864.97 $*
May-16-2025 1545.61 $* 1622.51 $*
Apr-16-2025 1744.51 $* 1831.81 $*
Mar-16-2025 1729.90 $* 1815.96 $*
Feb-16-2025 1714.34 $* 1800.50 $*
Jan-16-2025 1698.58 $* 1783.45 $*

Характеристики



Marketing Campaign




ZLP630 Specification


Parameters of Painting ZLP630 Suspended Platform
     Type
Bolt Type
1.   Rated Load
630kg
2.   Lifting speed
9.3m/min
3.   Lifting height
100m
4.   Hoist
LTD6.3
     4.1 Power
1.5kw, 2 Pcs
     4.2 Voltage
380V 50Hz 3PH
5.   Safety Lock
LSG20, use 8.3mm Steel Rope
6.   Electric Cabinet
1 Pc, 380V 50Hz 3PH, CHNT
7.   Working Cage
1 set, Steel + Red Powder Painting
      Working  Cage Size
L=6m(2+2+2), W=0.69m, H=1.42m
8.   Roof Structure
2 sets, Steel + Red Powder Painting
    8.1 Front Beam Extension
1.3m--1.6m
    8.2 Beam Adjustable Height
1.06m--1.66m
9.   Steel Wire Rope
4pcs; 100m/pcs, D=8.3mm;
10.   Safety Rope
1 Pc, 100m/pcs
11.   Electric Cable
1 Pc, 100m/pcs, 2.0mmsq
12. Counterweight (Optional)
Cement, 900kg, 36 pcs, 25kg/pc
13. Gross Weight (without Counterweight)
900Kgs
14. Total Volume (witout Counterweight)
3 CBM
15. Loading quantity of one 20" Container
13 sets

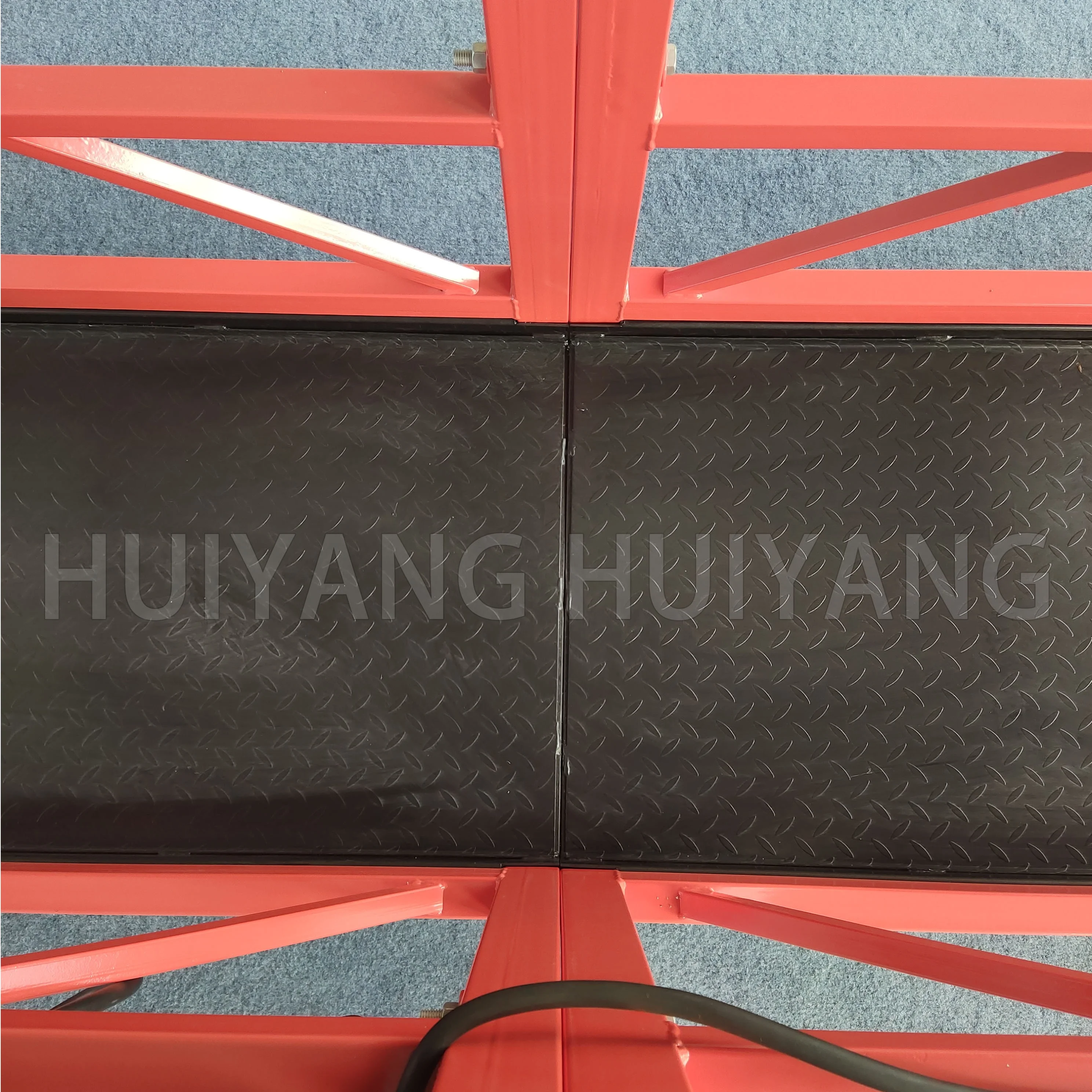

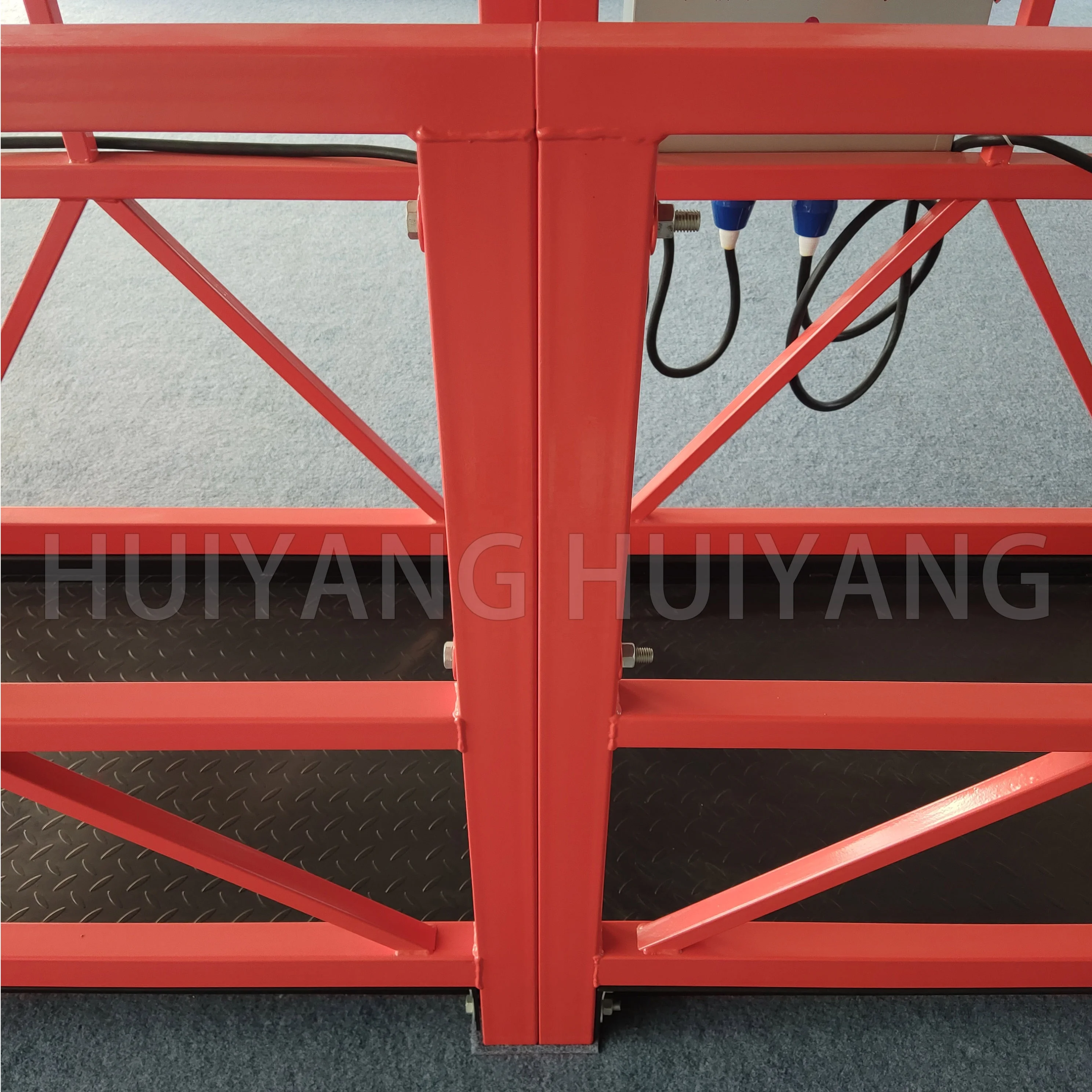

Working Platform: Steel + Red Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)

 1.1  Working Cage is the workplace at heights for the workers.

 1.2  L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3)  W=0.69m; H=1.42m;
 1.3  With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

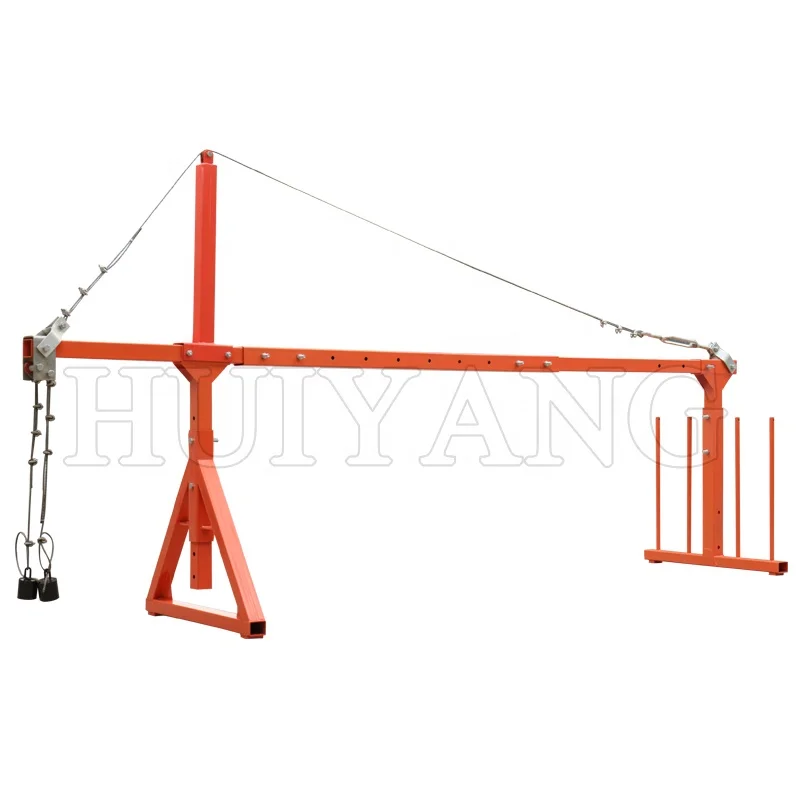

Suspension Mechanism: Surface with Red Powder Painting (or Hot-dipped Galvanized)

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.


Components:
Hoist, LTD6.3, 1.5kw, 2 Pcs;
Safety Lock, LSG30, 2 Pcs;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 2.0mm2;
Safety Rope: 1pcs; 100m/pcs; Nylon;
Counterweight (Optional): 40pcs, 25kg/pcs.


Working Principle:
ZLP630 Suspended Platform is manned non-permanent suspended equipment for overhead operation. Suspended Platform is moved up and down driven by electric hoist and steel wire rope, running against the building façade, through the suspension mechanism which was installed on the top of the building.

Usage and Application:

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.

Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.

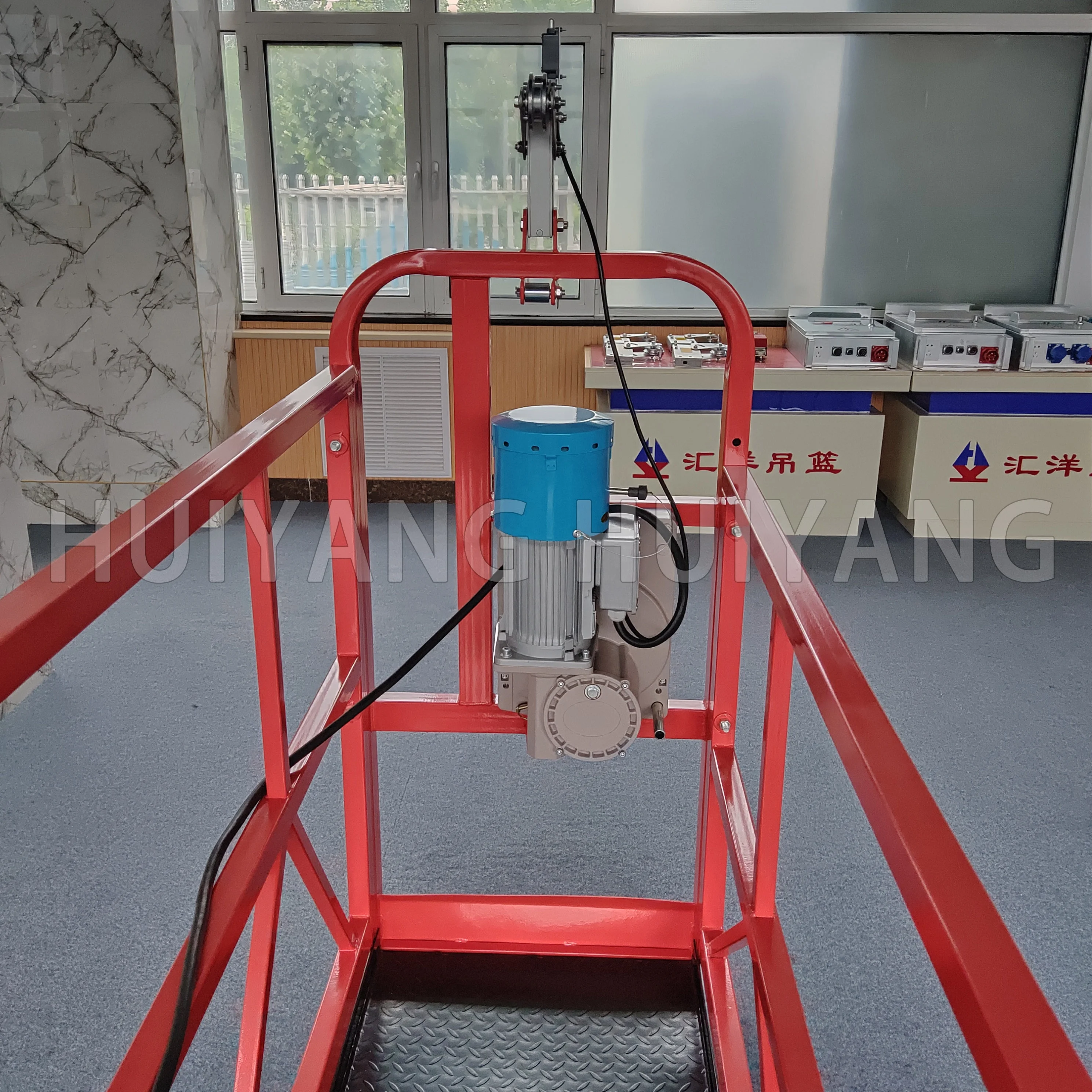

1. Hoist

Brand: HUIYANG
Model:LTD6.3
Quantity: 2 pcs
Lifting Speed:9.3±0.5m/min
Lifting Force: 6.3KN

Motor Brand: Tianjin YONGHENG
Power: 1.5kw*2
Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed:1420rpm
Weight: 48kgx2

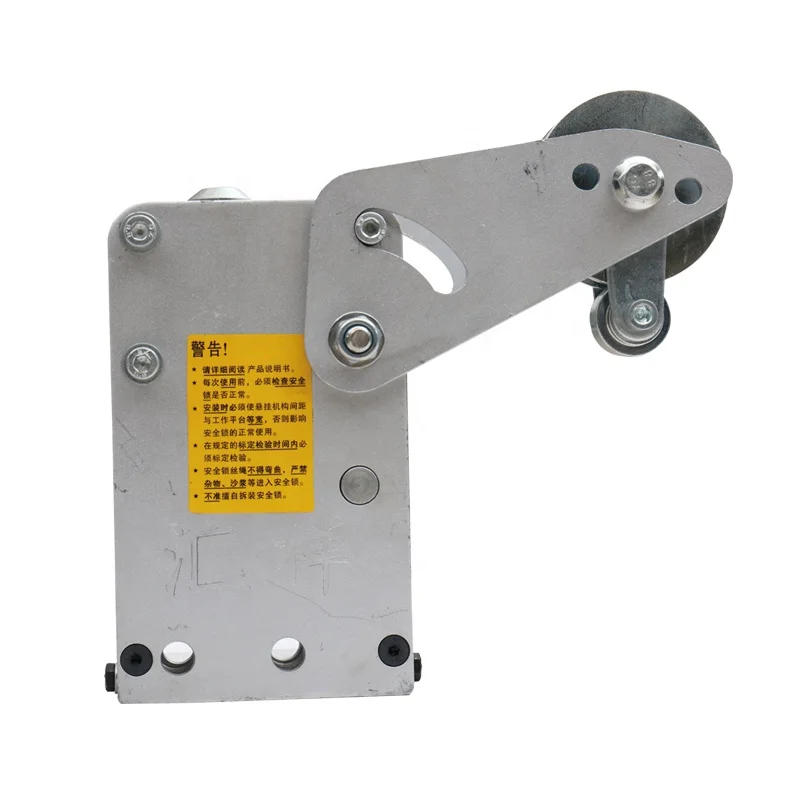

2. Safety Lock

Brand: HUIYANG

Model: LSG20

Quantity: 2 pcs

Locking Rope Angle: 3°~8°

Allow impulsive force: 20KN

Steel Wire Diameter: 8.3mm

Weight: 5kgx2


LSG30 Anti-tilting Safety Lock is the safety-protecting device for the suspended platform. When the working steel rope is broken or the suspended platform is inclined to certain angle, the safety lock will be actuated to lock the safety steel rope to prevent the suspended platform from falling down.



3. Electric Cabinet

Brand: HUIYANG

Surface: Cold Galvanised

With manual Switch

Voltage: 380V 50Hz 3PH

Contactors: CHNT


On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )




4. Steel Rope

Brand: Fasten

Quantity: 4pcs

Length=100m/pcs;

Diameter=8.3mm

Weight:25kgx4


5. Nylon Safety Rope: 1Pcs=100m

6. Electric Cable: 1Pcs=100m, 2.0mmsq

7. Counterweight: (Optional)

Cement or Cast Iron



Certifications


1) CE Certificate.
2) EAC Certificate.
3) ISO9001-2015 Certificate.
4) CCC Certificate.


Packing & Contact






Company Introduction










HUIYANG Company Introduction.

Shandong Huiyang Construction Equipment Co., Ltd, established in 2005, covers 43,000 sauare meters, located at Dezhou City, is an integrative enterprise which specializing in the R&D, production, maintaining and leasing of Suspended Platform Mast Climber and Self-climbing Scaffolding.


Now Huiyang becomes the production base and research centre of exporting Self-climbing Scaffolding in
China. The quality of Huiyang Self-climbing Scaffolding is in the first-class in China and our products have been exported to more than 13 countries, which can be comparable with European famous suspended platforms.


Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 15000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.


No matter what structure needs, everything is easier with Huiyang!


WhatsApp: 0086-18706398887  www.facebook.com/suspendedplatform1



Our Service


Pre-Sales Service
* Factory Show.
* Consulting Support
* Fast Quotation and PI Feedback
* View our Factory.
* Sample testing support.

After-Sales Service
* Video Training: Installation Instructions.
* Engineer Online Service.
* Email Instruction.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.



FAQ.

1. How much is this suspended platform?
    Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
    We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
    Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
    Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term? T/T or L/C at sight.
6. Spare parts & guarantee?
   If any parts get damaged because of quality within 12 months after shipping date.

   We will send new parts to replace right away.
7. Can you make suspended platform with our brand?    Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.
