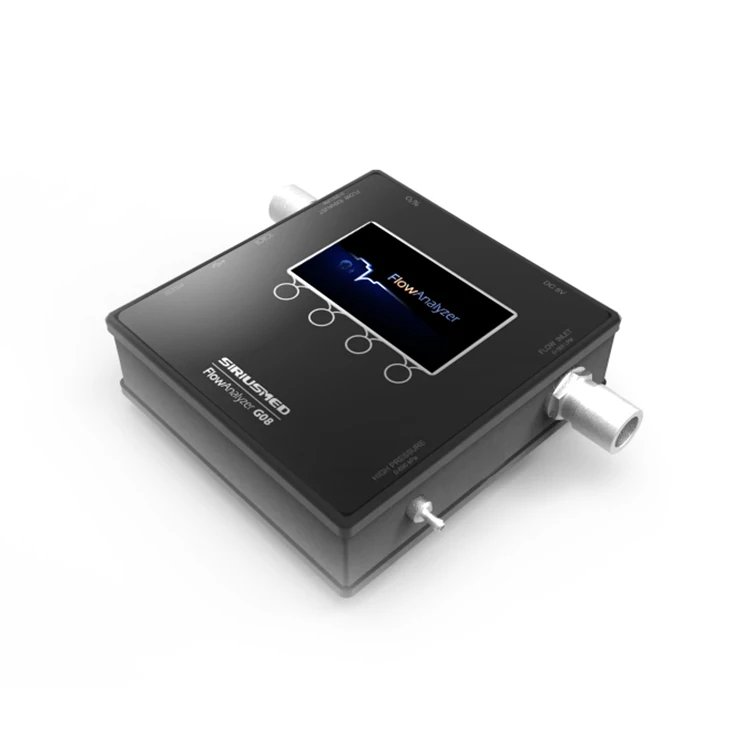

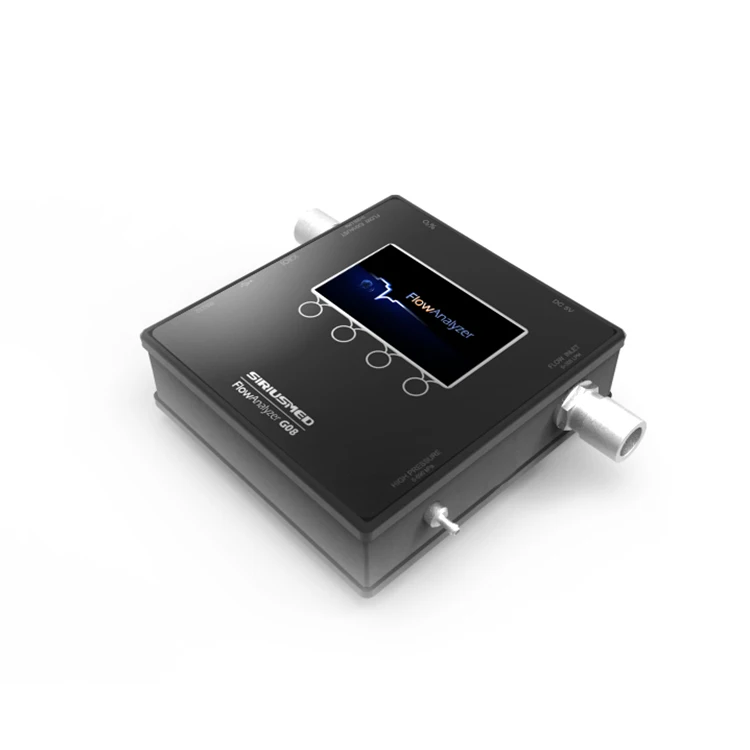

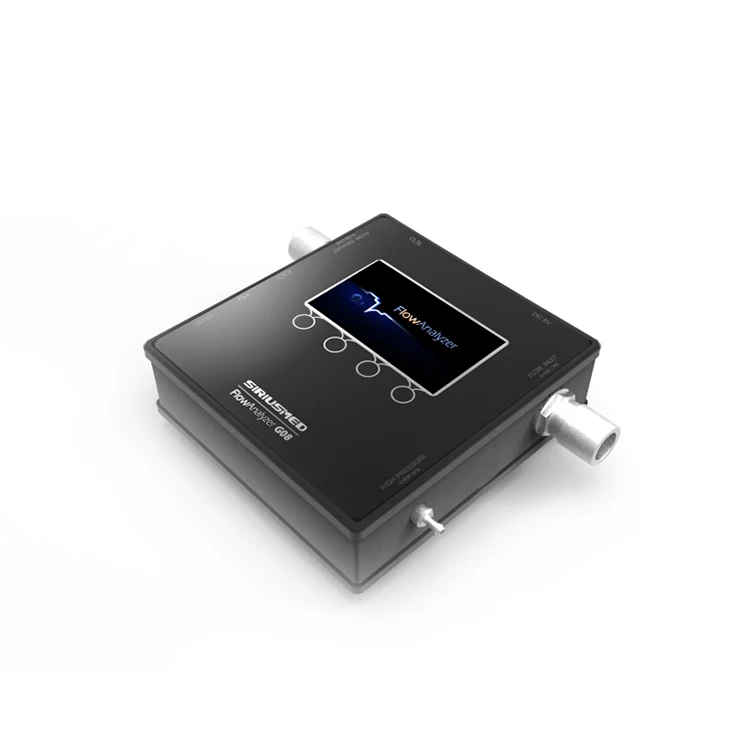

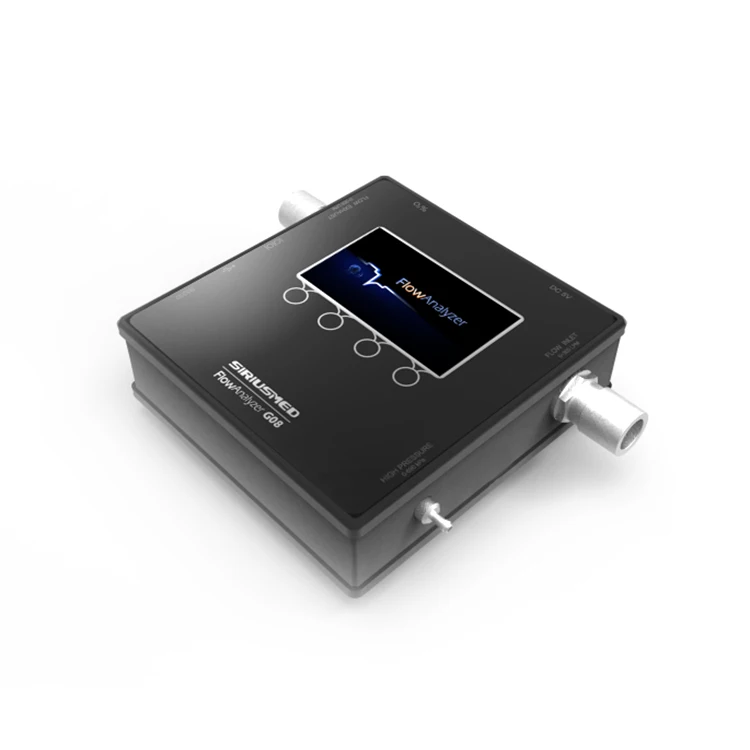

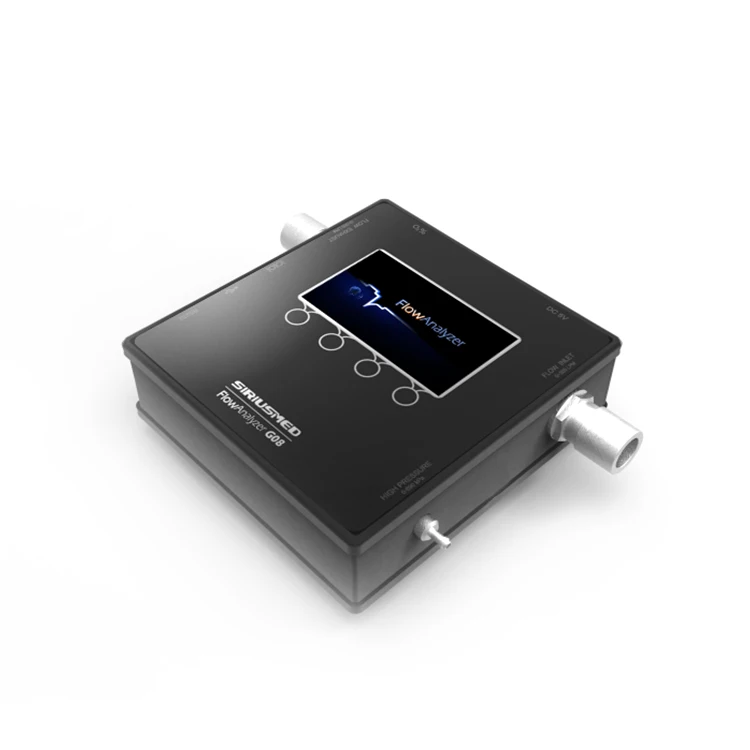

The Flow Analyzer G08 is a device that monitors unidirectional gas flow and pressure. The basic function of the device is to monitor the flow, airway pressure and high pressure. The device can also measure the gas temperature within the flow channel that improve the flow accuracy.

G08 Features

1. One-way flow rate, airway pressure, high pressure and oxygen concentration measurement

2. Flow, pressure real-time waveform display

3. Touch buttons control

4.RS232 serial port and can be used for flow calibration

5. Intuitive interface, easy to operate

6. Easy to carry



Operating Environmental Conditions



Temperature Range	10 to 30°
Humidity	10 to 95 %
Barometric Pressure	50 to 106 kPa
Storage Environmental Conditions
Temperature Range	5 to 40 ℃
Humidity	10 to 95 %
Parameter		Range	Resolution
Flow		0~300 lpm	0.1 lpm
airwayPressure(PAW)		-50~130 cmH2O	0.1 cmH2O
High Pressure(HP)		0~690 kPa	0.1 kPa
barometric pressure(BARO)		15~115 kPa	0.1 kPa
Gas Temperature(Temp)		-20~60 ℃	0.1 ℃
airway resistance(R)		0~1000 cmH2O/L/s	0.1 cmH2O/L/s
oxygen concentration(O2%)(Option)		0~100 %	0.10%
MAC(Option)		0~10	0.01
FiCO2(Option)		0~13.3 kpa	0.1 kpa
		0~13.3 %	0.10%
		1~100 mmHg	1 mmHg
FiN2O(Option)		0~100 %	1%
ETN2O(Option)		0~100 %	1%
AA	FiHAL(Option)	0~8 %	0.10%
	ETHAL(Option)	0~8 %	0.10%
	FiENF(Option)	0~8 %	0.10%
	ETENF(Option)	0~8 %	0.10%
	FiISO(Option)	0~8 %	0.10%
	ETISO(Option)	0~8 %	0.10%
	FiSEV(Option)	0~10 %	0.10%
	ETSEV(Option)	0~10 %	0.10%
	FiDES(Option)	0~22 %	0.10%
	ETDES(Option)	0~22 %	0.10%
