Features

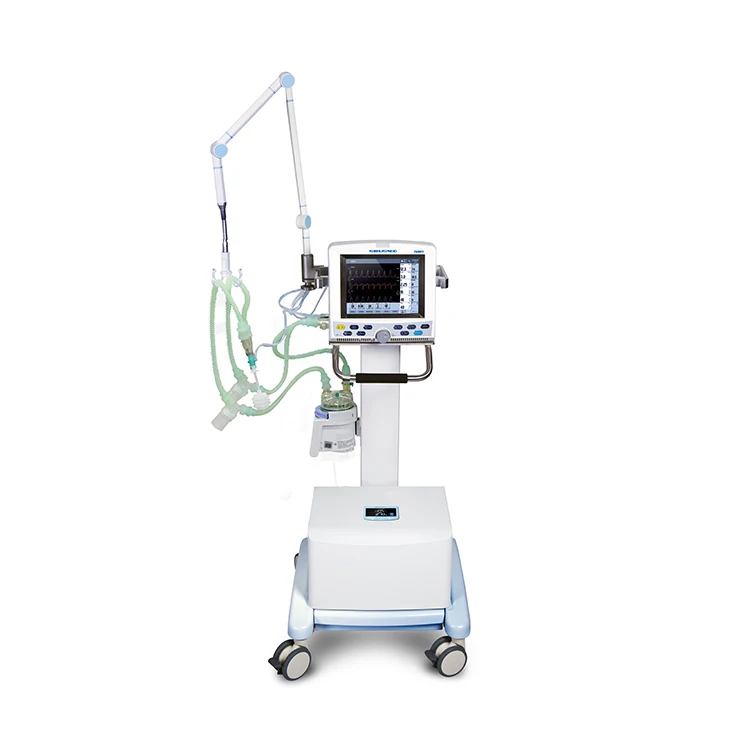

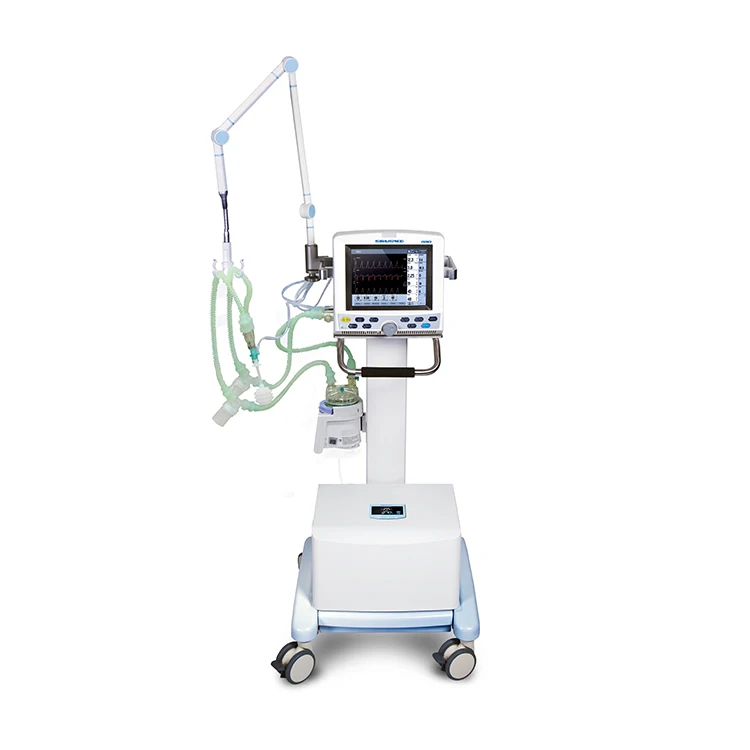

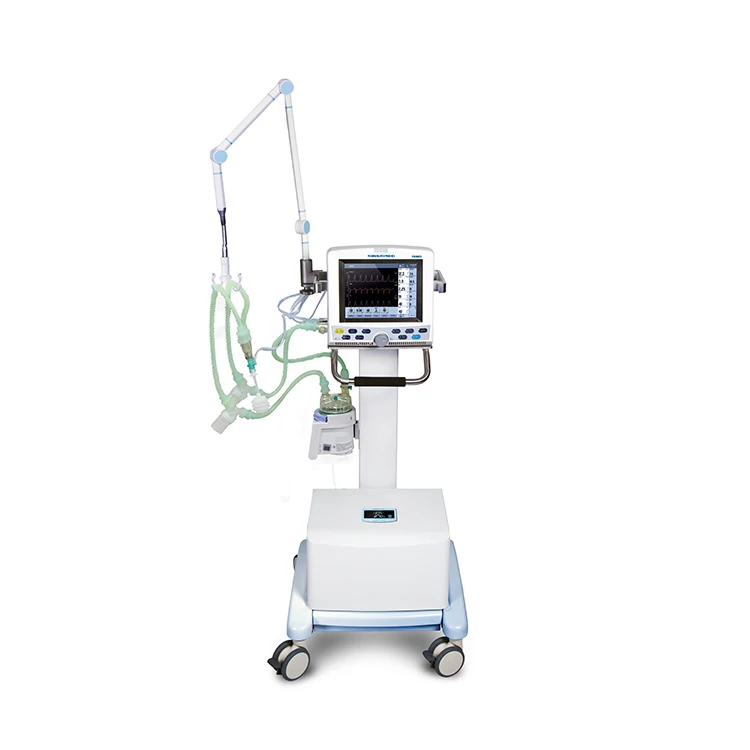

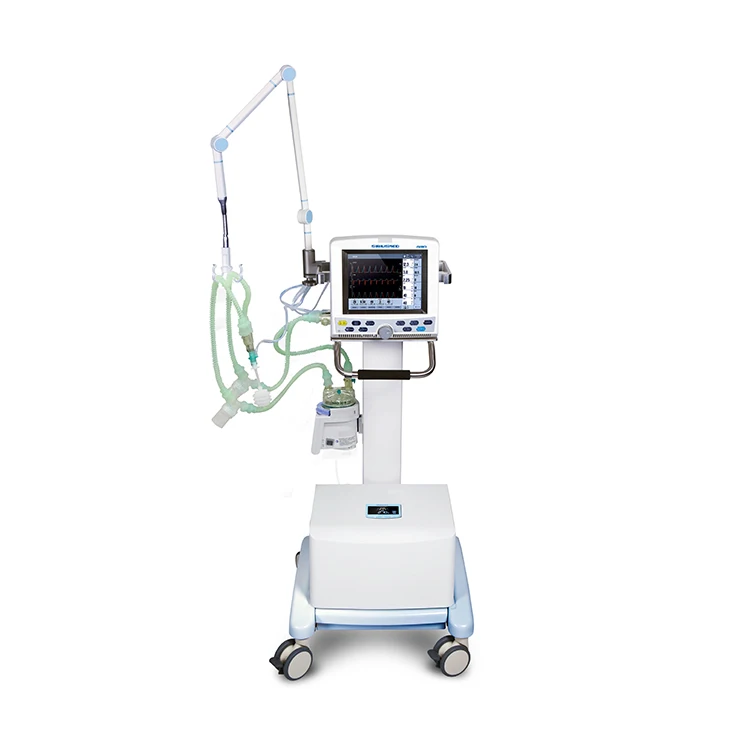

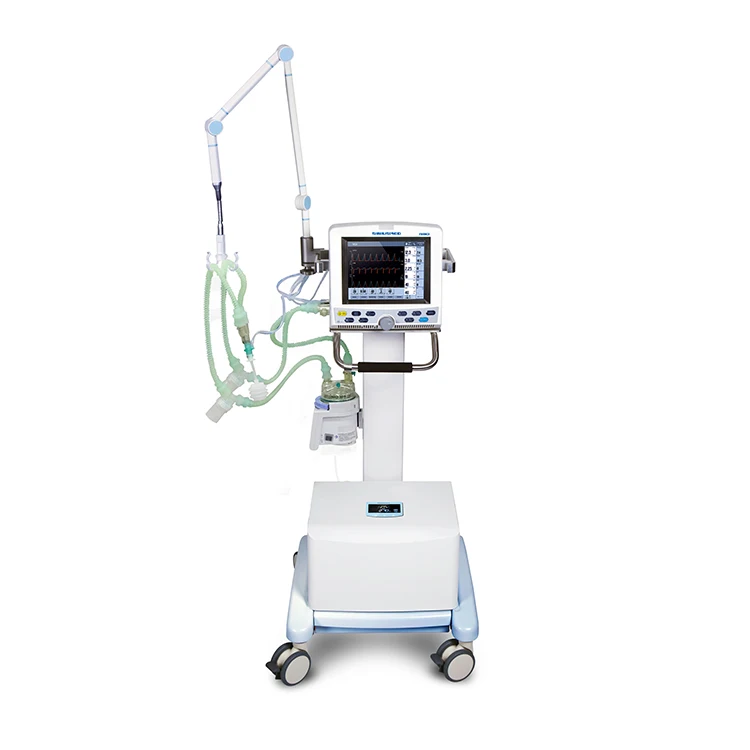

Pneumatically driven and electronically controlled NICU ventilator.

Widely usage range: Suitable for Neonatal Padiatric.

Tidal Volume setting 5~350mL.

Sufficient modes of Ventilation: VCV, PCV, SPONT/CPAP, BACKUP,  SIGH

Friendly user interface: TFT  color screen with touch screen;

Knob and Hard key input.

Easy to position ergonomic trolley with two brakes.

Easily removable and sterilizable exhalation valve.



Good integration

Built-in active expiratory PEEP valve

Built-in O2 & Air mixture device

Built-in battery (≥ 90mins)

100% O2 suction



Friendly Interface

10.4" TFT touch screen, with a rotary knob.

High-resolution display suit for long-term application in ICU.

Keyboard Lock

Prevent accidental touching leads to parameter changes and endanger patient safety, use this key to lock operation interface.

Active Exhalation Valve

Achieve breathing during both inspiratory and expiratory. Actively controls the target pressure, prevent airway pressure high, promotes patient ventilator synchrony.

Freeze

All the data reserved can be review by adjust the light axis, it’s record volume, pressure, flow etc.

High Quality Spare Parts

The spare parts of the world’s leading brand ensure faster and more accurate O2 & Air delivery in proportion and reduce WOB, to ensure high accuracy and stable performance.

Monitoring Interface

Optional monitoring displays all relevant respiratory parameters. Overall vital signs can be quickly and comprehensively assessed.

Multiple Alarm Systems

Well organized display layout visualizes all relevant respiratory parameters. The patient’s vital signs can be assessed quickly and comprehensively.



Value for owner ship

Easy Maintenance Low Service Cost

Friendly interface, easy to cooperate. Low costs of spare parts, no more tie-up of funds.

Easy maintenance by cartridge type, easy replacement of service parts.

Simple to maintenance makes an efficient daily routine.  Software upgrade by USB.

Rapid respond after sales service, save your time and reduce the risks.

High Performance Compressor

Compact size, portable type for easy installing.

User convenient display, enable timely effective operation and maintenance efforts.

Available operation in connection with a maximum of 2 units of ventilator simultaneously.

Verified low noise suitable for long term working in ICU, oil-free, overheat protection and high performance dehydration design makes this compressor can be isolated as gas supply.

Safety solution & dust-protection,  temperature warning system & Auto/manual shut down.

High-end air compressor automatically switches between the compressor pump and central gas supply.



System Specifications

Pneumatic Ventilator	R30
Display	10.4”, TFT display, with touch screen
Respiratory mode	VCV, PCV, CPAP/SPONT, BACKUP, SIGH
Graphical display	P-T, F-T, V-T
Battery	NI-MH battery, >90mins
Data communication port	RS232, VGA, USB, Remote alarm
Operating Conditions
Gas supply	Air, O2, 280kPa -600kPa (40~87 PSI)
Power supply	100-240V, 50/60Hz
Temperature	10-40 (Operation), -20-60 (Storage)
Relative humidity	5-95%, non-condensing (Operation)
	≤95%, non-condensing (Storage)
Atmospheric pressure (Operation & Storage)	500hPa-1060hPa
Dimensions (H×W×D)
Ventilator	455mm x 400mm x 300mm
Trolley	565mm X 535mmX 910mm
Weight
Ventilator	12.5 kg
Trolley	20 kg
Standards
IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, IEC 60601-2-12
Alarm	Upper limit	Lower limit
Tidal volume	5~500 mL	OFF, 1~490 mL
Minute volume	1~50 L	0~49 L
Oxygen concentration	22~100%, OFF	20-99%
Airway pressure	1~99 cmH2O	0~98 cmH2O
Respiratory frequency	1~150 bpm	0~130 bpm
PEEP	1-35cmH2O	0~27
Circuit occlusion	(PEEP+15) cmH2O, 15s
Apnea alarm	15~60s
O2 SUPPLY DOWN alarm	< 280 kPa
Mains failure alarm	Automatically switch
Battery power low alarm	< 10 min
Battery discharged alarm	< 5 min
Alarm silence	≤120 s
Setting	Parameter	Monitoring	Parameter
Tidal volume	5~350mL	Inspiratory tidal volume	0~2500 mL
Respiratory frequency	1~150 bpm	Expiratory tidal volume	0~2500 mL
Inspiratory time	0.1~5s	Minute volume	0~50 L
Breath-hold time	<10s	Spontaneous minute volume	0~50 L
Pressure triggering	-20cm H2O~PEEP 0	Spontaneous respiration frequency	0~150 bpm
PEEP	0~30 cmH2O	PEEP	0~100 cmH2O
Pressure support	0~80 cmH2O	Airway peak pressure	0~100 cmH2O
Pressure control	5~80 cmH2O	Mean airway pressure	0~100 cmH2O
Oxygen concentration	21~100%	Inspiratory platform pressure	0~100 cmH2O
Freeze	Yes	Minimum airway pressure	-20~100 cmH2O
		Inhaled oxygen concentration	15% ~100 %
		Airway resistance	0 ~ 600 cmH2O/(L/S)
		RSBI	0 ~ 9999 bpm/L
