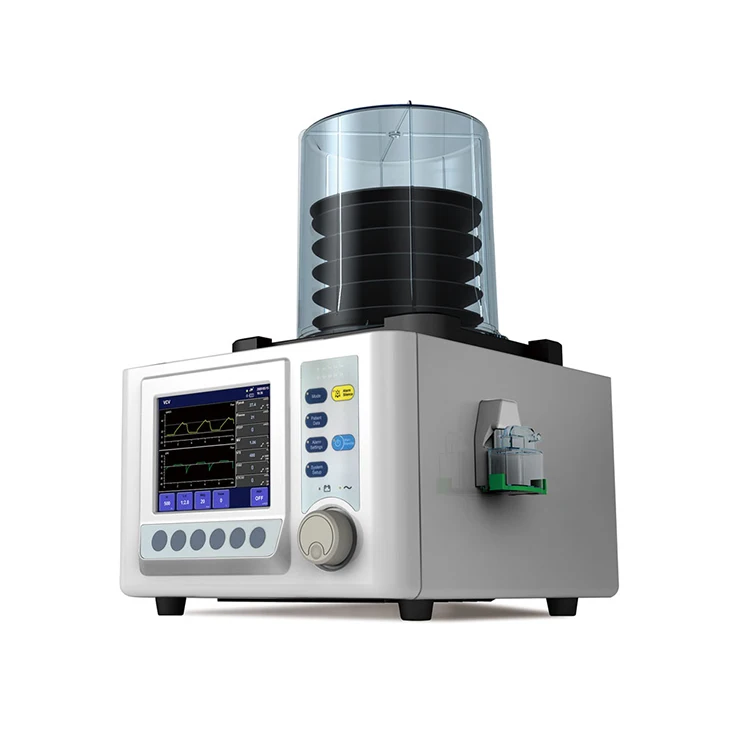

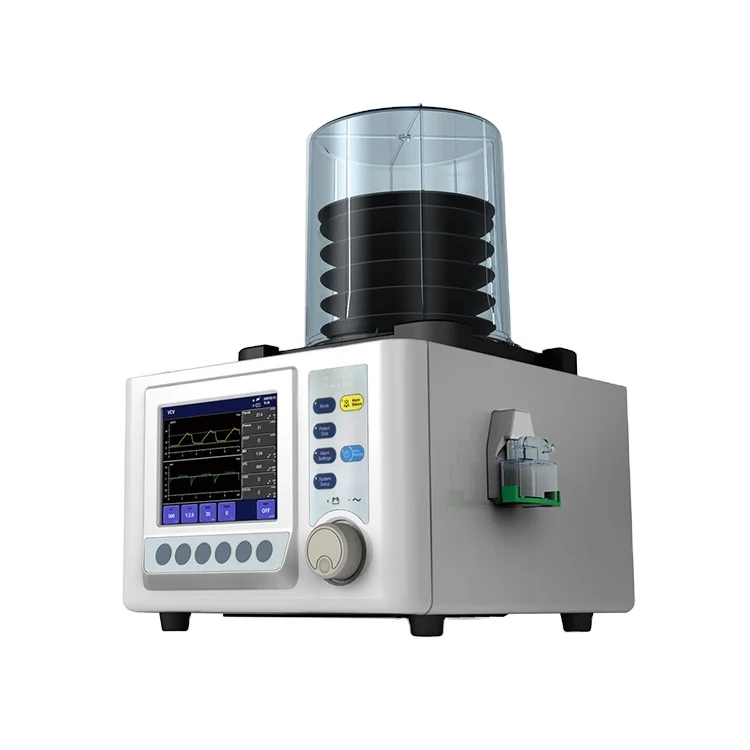

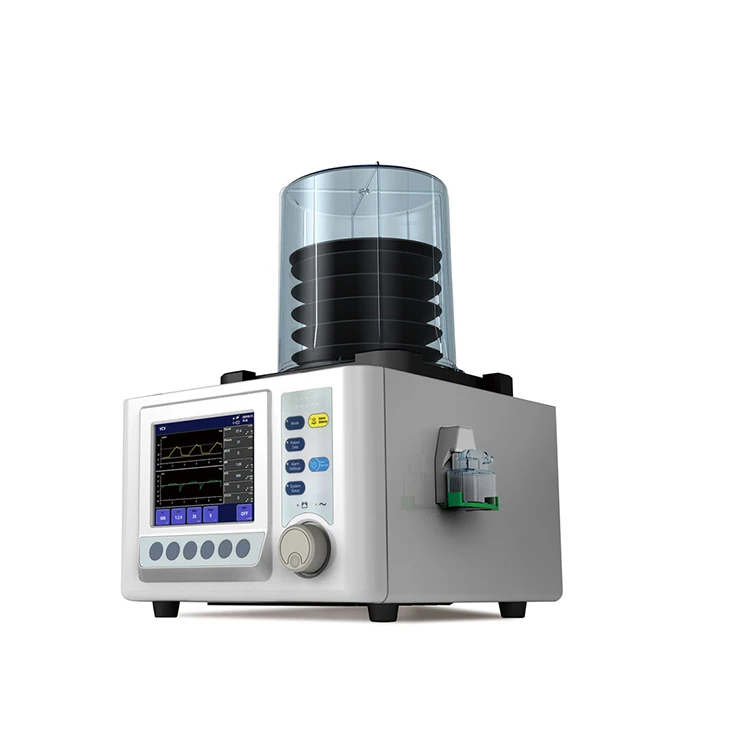

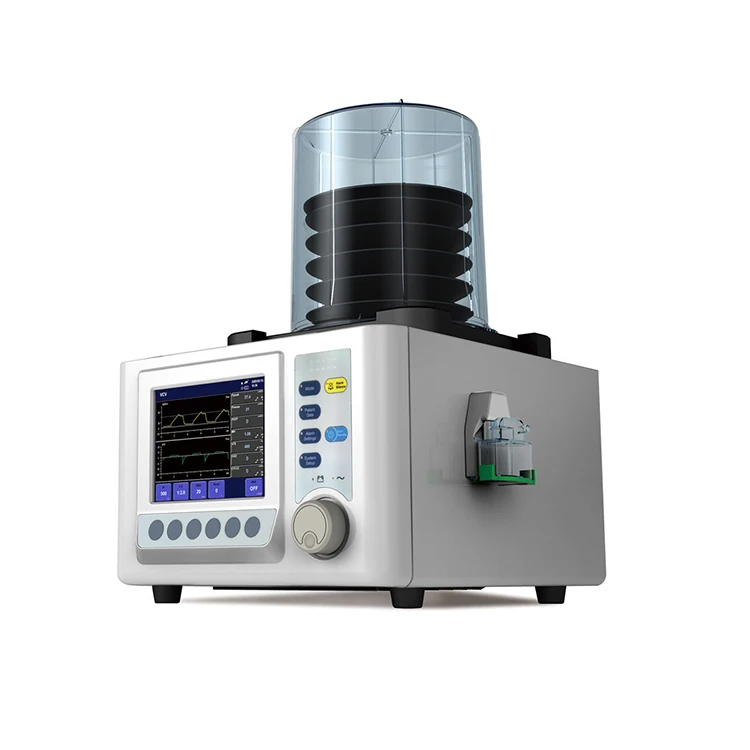

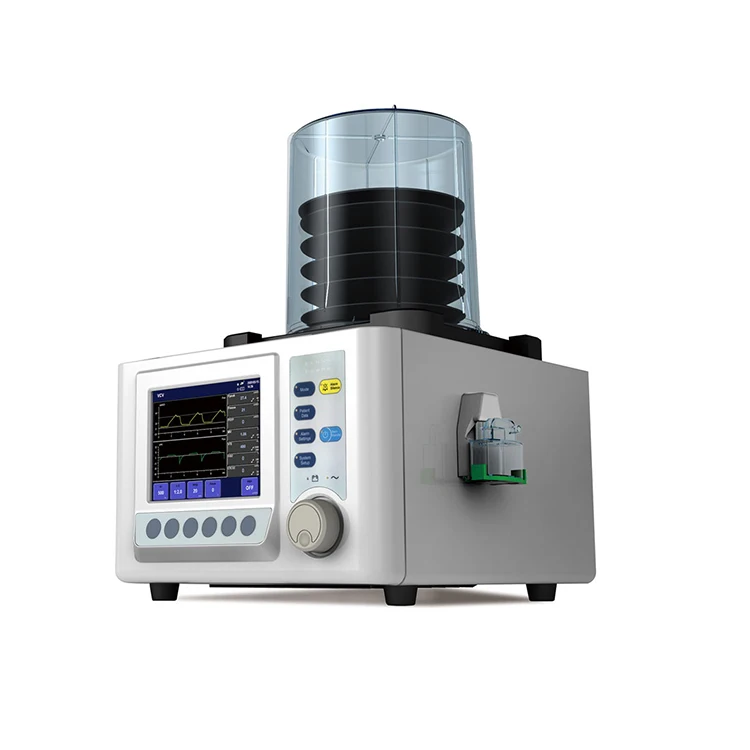

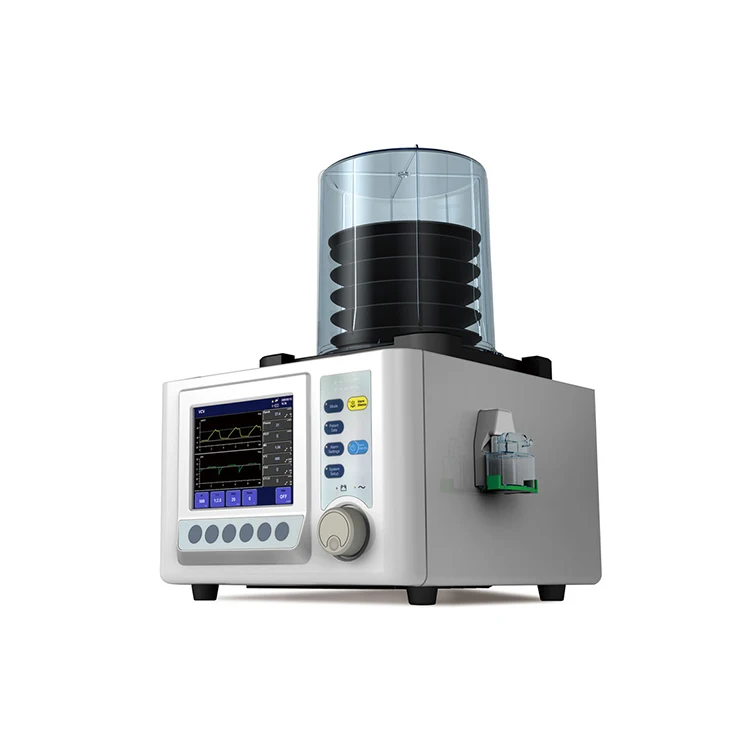

Высококачественное ветеринарное оборудование X3 ветеринарный ингаляционный анестезирующий вентилятор 0 1 ~ 10 s 5 20 л/мин см h2o 70

Высококачественное ветеринарное оборудование X3 ветеринарный ингаляционный анестезирующий вентилятор 0 1 ~ 10 s 5 20 л/мин см h2o 70

Цена:*

Количество:

Product Description

X3 Features

User friendly interface, 5.7”TFT LCD color screen display

Tidal Volume setting 50~1500ml (Optional 20~1500mL)

Pneumatic drive and electronic control

Sufficient ventilation modes:VCV, PCV, Standby

Multiple wave display PAW-T, FLOW-T, lung mechanics parameters

Built-in active expiratory PEEP valve

Built-in battery

Easily removable and sterilizable flow sensor module

O2 monitoring module

Specification

Setting
Items	Description
Tidal Volume	50~1500ml (Optional 20~1500mL)
Frequency	1~100bpm
Tinsp	0.1~10.0s
I:E	4:1~1:10
Pause	0~60%
PEEP	OFF, 3~30
Pressure Control	5~70cmH2O
Flow Trigger	0.5~20L/min
Pressure Trigger	0~20cmH2O
Monitoring
Tidal Volume Inspiration	0~2500ml
Tidal Volume Expiration	0~2500ml
MV	0~60L/min
MVspont	0~60L/min
Frequency	0~100bpm
Ratespont	0~100bpm
I:E	9:1~1:99
Ppeak	0~100cmH2O
Pmean	0~100cmH2O
PEEP	0~100cmH2O
Pplat	0~100cmH2O
O2%	15~100%
Compliance	0~300ml/ cmH2O
Resistance	0~600cmH2O/( L/S)
Power Specifications
AC inlet
Input voltage	100~240V
Input frequency	50/ 60 Hz
Input power
Built-in battery
Battery type	NiMH
Shutdown delay	Less than 10mins
Shortest supply time	90 mins
Charging time	4 hrs
Working Environment
Temperature	10~40℃
Humidity	5~95%, non-condensing
Environmental pressure	70~106 kPa
Storage Environment
Temperature	-20~60℃
Humidity	10~95%, non-condensing
Environmental pressure	50~106 kPa
Alarms	MV, Paw, VTe, F, FiO2, Apnea
Alarms	Mains failure, Battery low, Battery discharged, O2 supply failure, Circuit occlusion
Alarm log	Other facility
	O2 sensor port, Flow sensor port
	Fan, Power switch, Power socket
	O2 inlet, O2 outlet, AGSS
Communication port	USB, Cal. Port, RS232, VGA.
