Характеристики

Product Description

1.VHANDY Zirconia Ceramic Parts

VHANDY is professional with high quality zirconia ceramic parts;
Molding process is mainly hot, dry pressure, isostatic pressing;
Products alumina purity to meet customer requirements, tolerances can be controlled within ± 0.001mm range;
Surface roughness can reach Ra0.2um, for deep processing, the surface roughness can be controlled below Ra0.02um;
According to the use of ceramic pieces of the environment, recommend the best solution for customers.

Send your inquiry quickly! ! !

Ceramic product function

1.A variety of specifications available.
2.Satisfy various technical request.
3.Lower medium spoilage.
4.Good insulation performance.

5.High strength.

6.Wear resistant performance.

7.High density.

8.refractory and high temperature resistance.

9. Customizable specifications
10. Drawing samples
11. Global transportation
12. Military aerospace applications
13. More discounts
14. Support after-tax delivery
15. The pictures are all real shots
16. Multiple payment methods

Send your inquiry quickly! ! !

Item	Unit	95% Al2O3	99% Al2O3	99.7% Al2O3	ZTA
% Al2O3	%	95	99	99.7	70
Density	g/cm³	3.6	3.89	3.9	4.3
Porosity	%	0	0	0	0
Firing Temp	°C	1680	1700	1800	1600
Hardness	HV	1500	1600	1700	2000
Flexural Strength	Kgf/cm²	3000	3500	3500	4500
Compressive Strength	Kgf/cm²	25000	30000	30000	45000
Fracture Toughness	MPa/m	3~4	3.8	4	5~6
Max Operating Temp	°C	1450	1600	1700	1500
Coefficient	cm/cm/°C	8	5.6	8	8
Thermal Expansion	(RT to 700°C)	8	5.6	8	8
Volume Resistivity	20°C (ohm - cm)	10¹²	10¹²	10¹²	10¹²
		100°C (ohm - cm)	10¹² -10¹³	10¹² -10¹³	10¹² -10¹³	10¹² -10¹³
		300°C (ohm - cm)	10¹⁰	10¹²	10¹²	10¹⁰
Dielectric Strength	Volts/mil	210	216	220	210

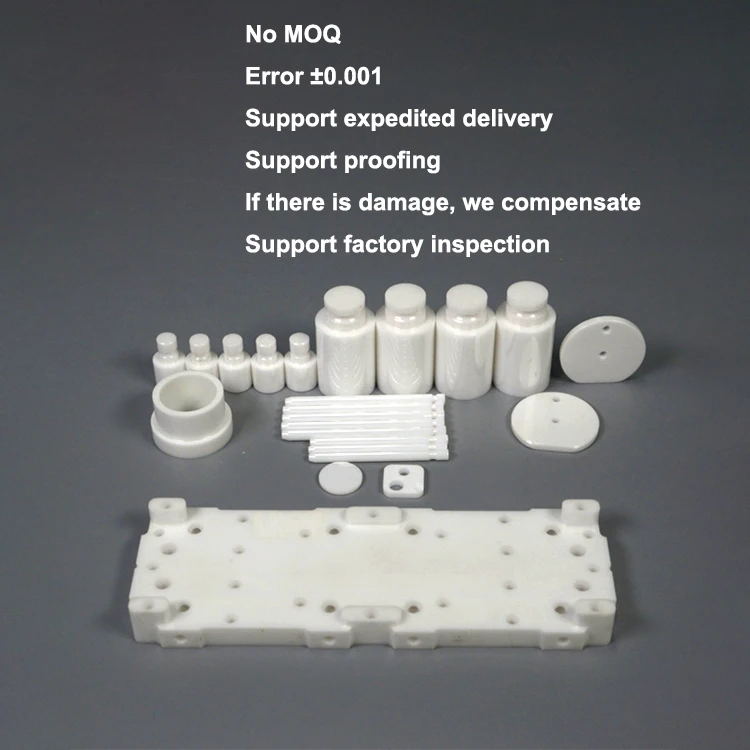

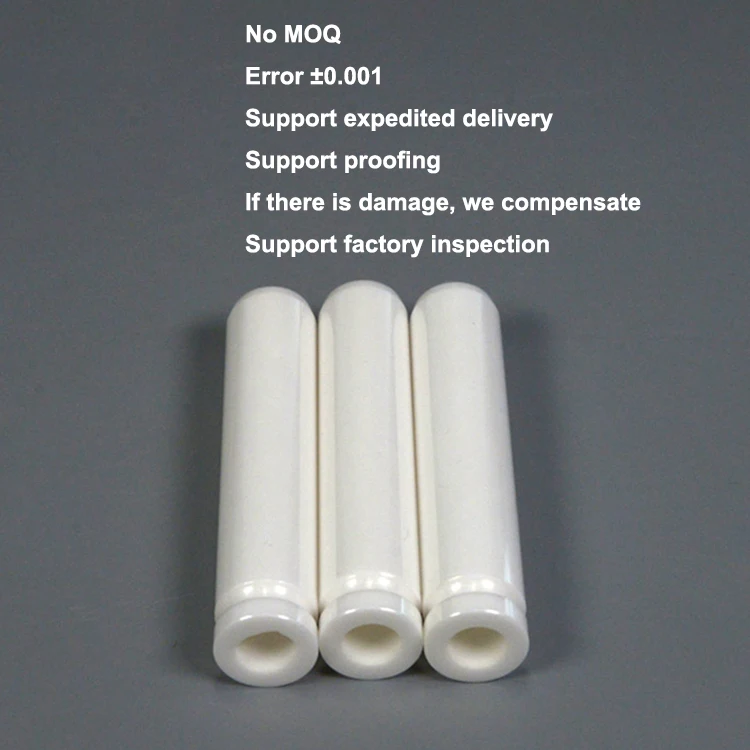

Shooting in kind

Send your inquiry quickly! ! !

Company Profile

Send your inquiry quickly! ! !

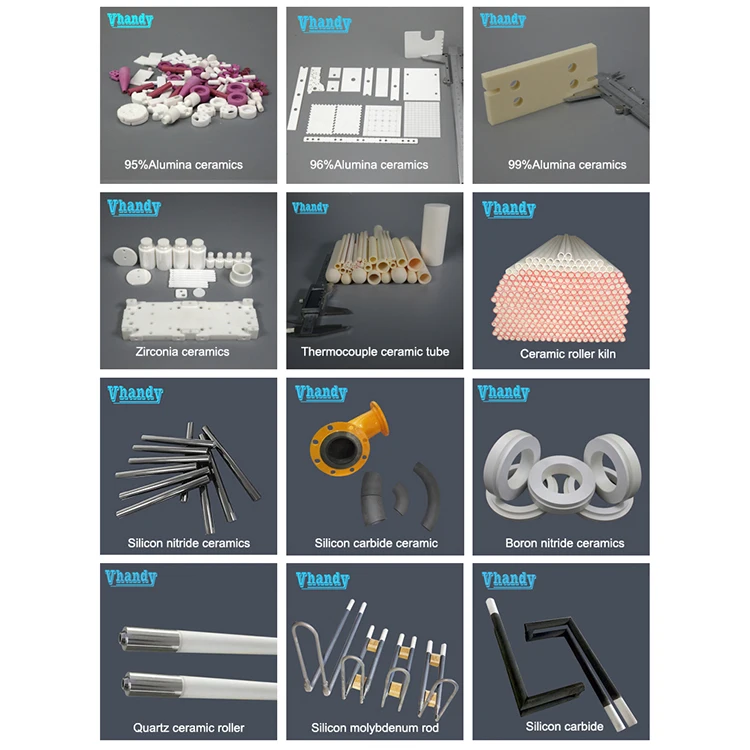

Shenyang Vhandy Technology Co., Ltd. has been committed to the design, development and manufacture of industrial ceramics, specialized in manufacturing and exporting ceramic products, such as zirconia ceramic, alumina ceramic, cordierite, mullite, ZTA, silicon carbide, silicon nitride, boron carbide, boron nitride, etc.

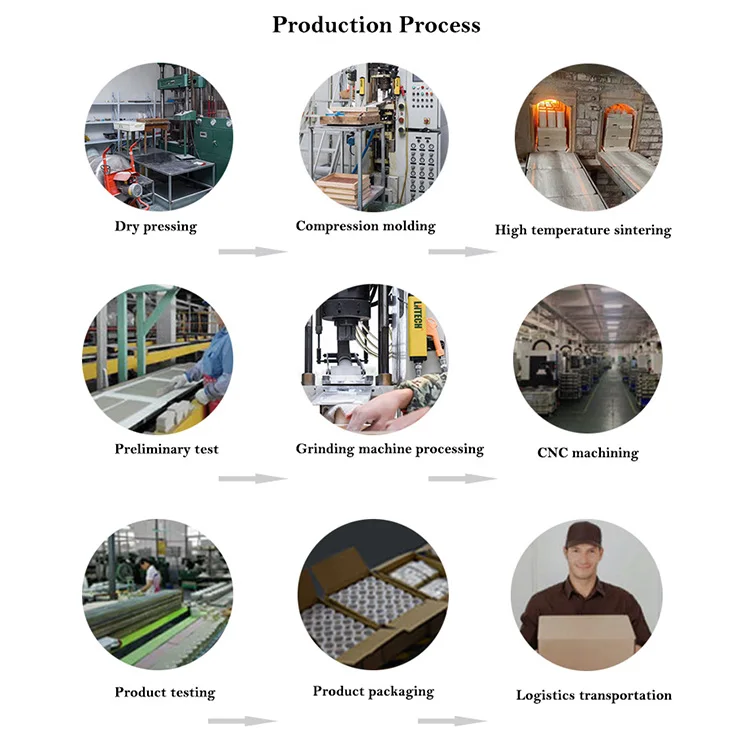

After years of efforts and explorations, rich experience has been accumulated, especially in domestic and oversea ceramic processing. Producing capabilities include the latest pressing and compaction technologies, state of the art CNC green machining, sintering and precision diamond grinding techniques. With senior scientists and skilled technicians, we can handle customer drawings under the R&D, producing and processing all types of ceramic pieces. Our products have already passed the ISO 9001 quality certification system and SGS ROSH system. Because of stable performance and high precision, our products have been successfully used in various areas, including electronic, mechanical, aerospace, textile, chemical fileds, as well as scientific researches.

Quality, service and reputation are three main purposes of our company. We will manage our production and check standards strictly according to client’s drawings. We promise we will spare no efforts to serving our clients with high-quality products. Welcome clients around the world come to contact us.

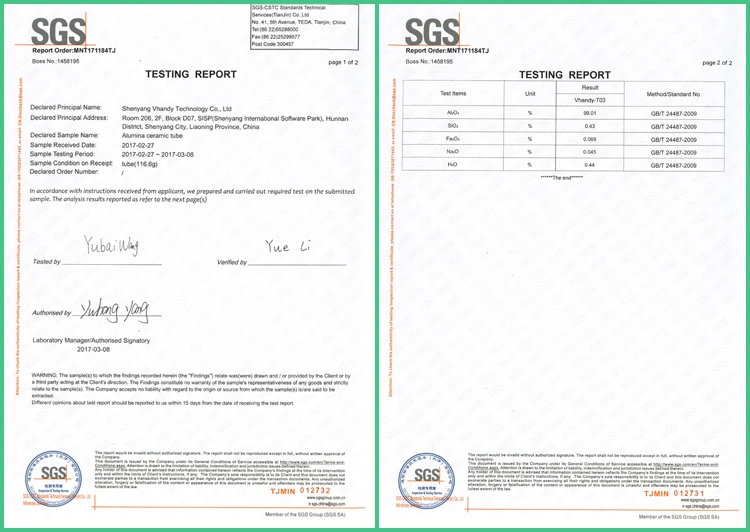

Certifications

Send your inquiry quickly! ! !

Packaging style

FAQ

Send your inquiry quickly! ! !

Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally within 30 working days, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: The samples can be provided, but the shipping cost should be on buyer's account.
Q: What is your term of payment?
A: Payment<=10000 USD, 100% in advance. Payment>=10000 USD, 70% T/T in advance, balance before shipment.
