Автомобильный видеорегистратор GPS школьный автобус 4 канала 3G 4G Wi-Fi MDVR GPS-трекер Sim-карта 3G/4G без системы
- Категория: GPS Tracker >>>
- Поставщик: Rope,Innovation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 210.9 $* | 214.48 $* |
| Jul-19-2025 | 170.22 $* | 173.49 $* |
| Jun-19-2025 | 206.76 $* | 210.57 $* |
| May-19-2025 | 205.87 $* | 209.86 $* |
| Apr-19-2025 | 163.86 $* | 166.33 $* |
| Mar-19-2025 | 201.30 $* | 205.37 $* |
| Feb-19-2025 | 200.54 $* | 204.23 $* |
| Jan-19-2025 | 198.77 $* | 202.27 $* |
Характеристики
Product Description

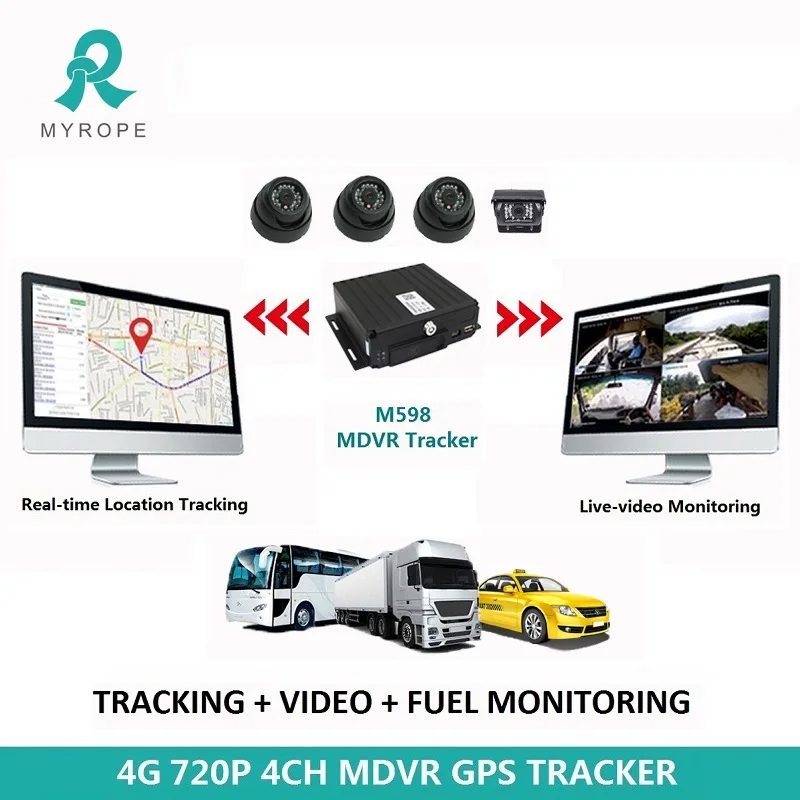

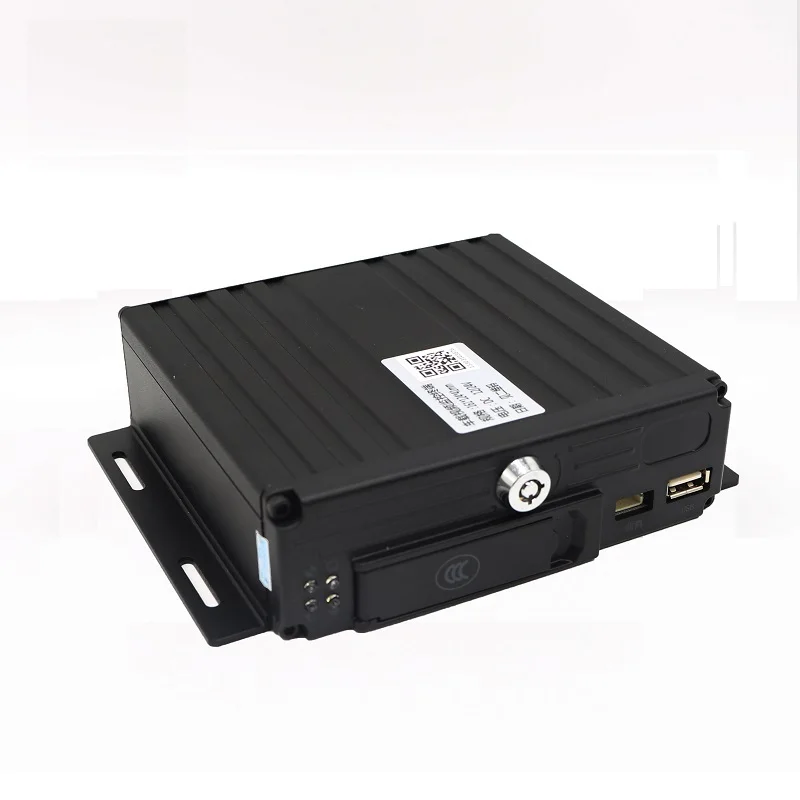

Truck School Bus GPS Tracking 4 Channel Video Recording 3G 4G Wifi MDVR 4G Car DVR GPS M598
MDVR M598 supports audio and video recording, driving data recording, two-way calling, real-time monitoring and other functions. It can be applied to the supervision requirements of the vehicle industry such as bus, transportation vehicle, truck, taxi, school bus and so on.
Product Function
1) GPS locating in real time;
2) Track by 4G network;
2) Track by 4G network;
3) Low power alarm;
4) Over speed alarm;
5) Geo-fence alarm;
6) Parking alarm;
7) Tired driving alarm
8) History playback;
9) Mileage statistics;
10) Reports statistics;

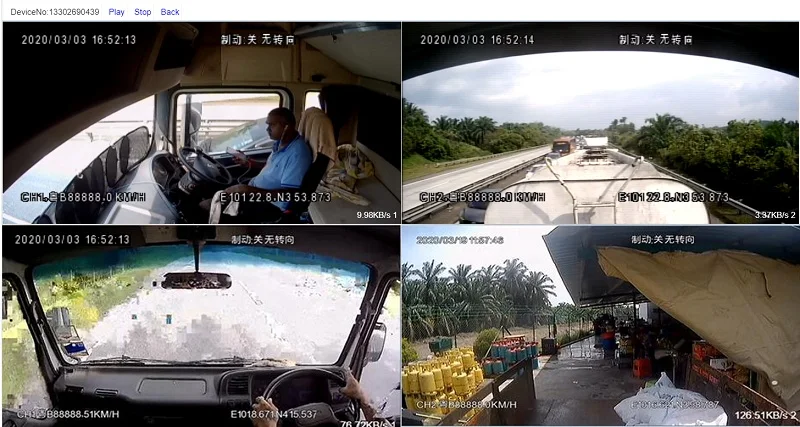

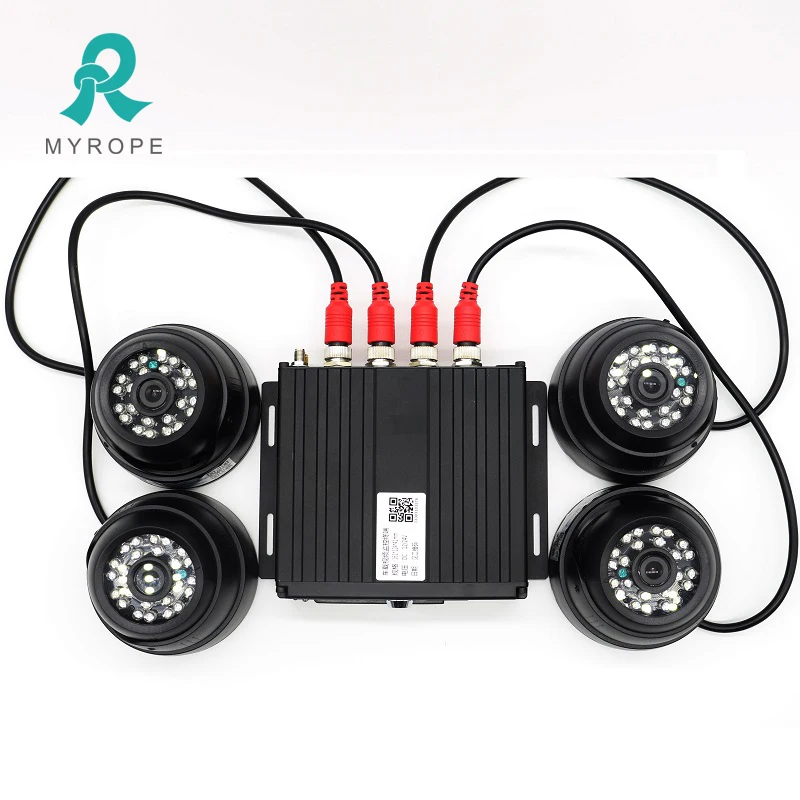

11) Support 4 channels of 720P HD video real-time storage and upload;
12) Support 1 channel CVBS video output, external AV display for real-time video live broadcast;
13) Support remote intercom;
14) Support 2PCS of SD card (128GB maximum) cyclic storage at the same time;
15) Multiple expansion interface, support to connect to fuel sensor, advertising screen, broadcast station, etc.;
16) It can support built-in or external WIFI module, connect to senior assistant (APP) through WIFI, flexibly configure device parameters, video real-time viewing and retrieval, camera angle adjustment.
4) Over speed alarm;
5) Geo-fence alarm;
6) Parking alarm;
7) Tired driving alarm
8) History playback;
9) Mileage statistics;
10) Reports statistics;
11) Support 4 channels of 720P HD video real-time storage and upload;
12) Support 1 channel CVBS video output, external AV display for real-time video live broadcast;
13) Support remote intercom;
14) Support 2PCS of SD card (128GB maximum) cyclic storage at the same time;
15) Multiple expansion interface, support to connect to fuel sensor, advertising screen, broadcast station, etc.;
16) It can support built-in or external WIFI module, connect to senior assistant (APP) through WIFI, flexibly configure device parameters, video real-time viewing and retrieval, camera angle adjustment.
Product Specifications
Technical Item | Technical Specifications | |||||
Operating System | Operating System | Linux | ||||
Control Mode | Network, Phone App | |||||
Video | Standard Definition Input | 4-channel D1 | ||||
AHD720P | 4-channel 720P | |||||
AHD1080P | 2-channel 1080P | |||||
IPC | 1 channel | |||||
Output | 1 channel CVBS | |||||
Video Signal | PAL | |||||
Audio | Input | Maximum 5-channel audio | ||||
Output | Maximum 5-channel audio | |||||
Display | Screen display | 1/2/4/6/8 screen display | ||||
Video Recording | Video and audio compression format | Video H.264, Audio ADPCM, g726, g711 (default g726) | ||||
Image Resolution | CIF、HD1、D1、720P | |||||
Video mode | Power on/manual/timing/plan/alarm recording events | |||||
Real-time Video | Support | |||||
ACC off, time-lapse video | Delay Parameter Range: 10-65535s， Default: 300s | |||||
Mirror video | Support | |||||
Alarm video | Support | |||||
Backup video | Support | |||||
Playback Channel | Support local multi-channel synchronous playback, PC software remote single-channel playback | |||||
Browse Mode | Time，Channel | |||||
2G/3G/4G | 4G TD-LTE/4G FDD-LTE/3G TD-SCDMA/ 3G WCDMA/3G CDMA2000/2G（GSM） | |||||
WIFI | 802.11b/g/n/（Optional） | |||||
Storage | SD Card | Double SD Card（Maximum Of Single Card Is 128G） | ||||
Note: Maximum support 4-channel 720P HD cameras | ||||||
Interface Characteristics | Interface Description | ||
Interface | USB interface | USB mouse, USB WiFi | |
SIM Card | Single card (for GPS data upload and video data transmission) | ||
SD Card | Dual SD card (single card supports up to 128G) | ||
SPK/TTS | Intercom call, TTS voice broadcast | ||
AV video signal | CVBS video signal output, connected to AV screen | ||
VGA OUT | Not supported | ||
IPC/LAN | IPC extension, connect to webcam | ||
Transparent Transmission Port | Connect to fuel sensor, advertising screen, broadcast station, etc. | ||
Other Characteristics | Working Voltage | DC 9-36V | |
Working Current | 300mA@12V；110mA@24V (No load) | ||
Backup Battery | 3.7V 500mAh Lithium Iron Phosphate Battery | ||
Working Temperature | -25℃ — +80℃ | ||
Storage Temperature | -40℃ — +85℃ | ||
Web Platform & App
Powerful Gps Tracking Platform Deployed in Cloud Cluster Server
Our company provides web platform and mobile application to customers to use. The web platform is hosted by cloud cluster server, which is consist of many servers. The advantages are:
1. The platform can host unlimited quantity of gps tracking device.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.
Our company provides web platform and mobile application to customers to use. The web platform is hosted by cloud cluster server, which is consist of many servers. The advantages are:
1. The platform can host unlimited quantity of gps tracking device.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.
Company Profile
Rope Innovation Co., Ltd. is a direct manufacturer with more than 10 years of experience in the GPS tracking industry. Its headquarter locates in Shenzhen, China's most innovative city. Rope Innovation is a true innovator of high-quality GPS tracker devices and has satisfied the needs of customers from 120 countries around the world.
Within 10 years development, we had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. In order to improve the quality and safety of products and meet the requirements of various customers, we have obtained certificates such as ISO9001-2008, CCC, CE, FCC, RoHS and explosion-proof certificates.
Within 10 years development, we had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. In order to improve the quality and safety of products and meet the requirements of various customers, we have obtained certificates such as ISO9001-2008, CCC, CE, FCC, RoHS and explosion-proof certificates.
Strict QC
Our company pays highly attention to QC. Before delivery, we check and test all units one by one to make sure that our clients receive 100% good quality products.
Certificates
Rope Innovation is the verified supplier by Alibaba and TUV. It is well guaranteed to work with us. And our products are passed certificates of CE, ROHS and FCC.
Customers Feedback
FAQ
No.1: Are you manufacturer?
---Yes, we are manufacturer for GPS Tracker in China for more than 10 years.
No.2: Do you accept OEM/ODM?
---Yes, we can customize for you not only on hardware/firmware, but also the software.
No.3: What certificate you have?
---CE, RoHS, ISO9001:20087, NBTC, DLT.
No.4: How is quality control and warranty?
---All products have been 100% strictly Quality Checked before packing.
No.5: Is the goods free shipping or free sample?
---Sorry about this. It's buyer's responsibility to pay for the shipping cost and sample fee.
No.6: What's your advantages?
---You'll get such benefits from us:
Quality products.
Competitive price.
Fast shipping.
Long time warranty.
Excellent service.
Quality products.
Competitive price.
Fast shipping.
Long time warranty.
Excellent service.
