Product Description

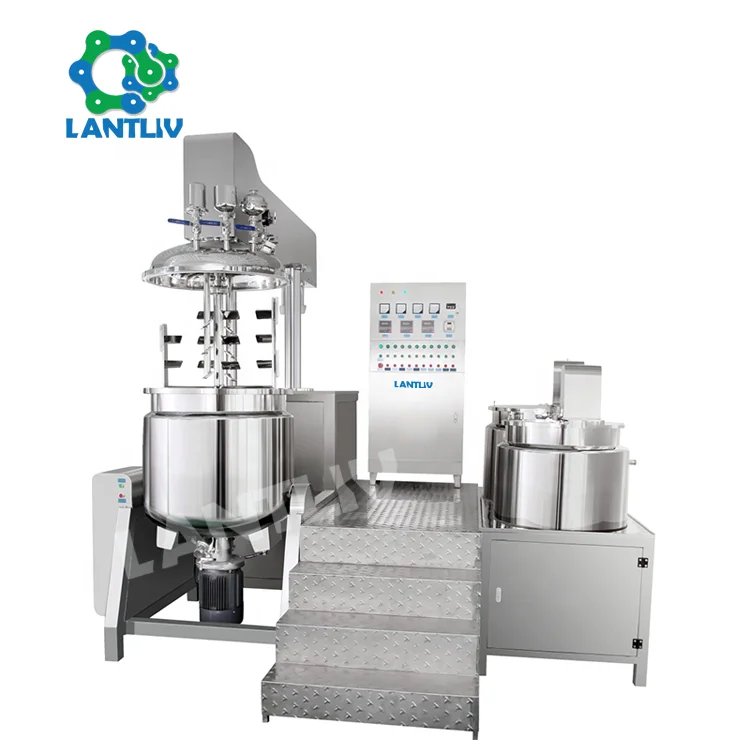

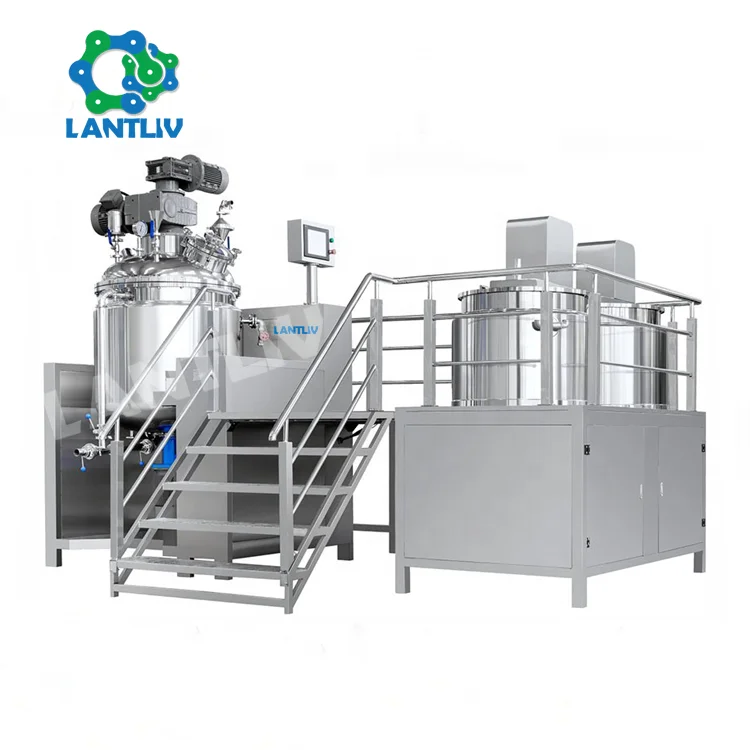

Vacuum homogenizing emulsifying pot consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system(OPTION), Mixing system, Homogenizer system and Heating / Cooling system. All those functions work together to produce batches of good cosmetics products.
Features
1. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3. Vacuum industrial emulsifying mixer machine homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300mesh (sanitation grade) accords with daily chemical and GMP regulation;
5. Vacuum industrial emulsifying mixer machine can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min.
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3. Vacuum industrial emulsifying mixer machine homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300mesh (sanitation grade) accords with daily chemical and GMP regulation;
5. Vacuum industrial emulsifying mixer machine can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min.
Technical Parameter
Capacity (L) | Frame-wall scrapping oar (kw) | Homogenizer (kw) | Mail pot heating (kw) | Oil pot disperser (kw) | Water pot disperser (kw) | Vacuum Pump (kw) | Hydraulic lifting (kw) | |||||||
50 | 1.1 | 2.2 | 3 | 0.37 | 0.37 | 0.75 | 0.55 | |||||||
100 | 1.5 | 3~4 | 6 | 0.55 | 0.55 | 1.5 | 0.75 | |||||||
200 | 3 | 5.5 | 9 | 0.75 | 0.75 | 1.5 | 0.75-1.1 | |||||||
300 | 3~4 | 5.5 | 9 | 1.1 | 1.1 | 2.2 | 1.5 | |||||||
500 | 4 | 7.5 | 12 | 1.5 | 1.5 | 2.2 | 1.5 | |||||||
800/1000 | 5.5 | 11 | 18 | 1.5 | 2.2 | 4 | 2.2 | |||||||
2000 | 7.5 | 15 | 27 | 2.2 | 2.2 | 4 | 2.2 | |||||||
3000 | 15 | 22 | 27 | 3 | 3 | 7.5 | 2.2 | |||||||
The parameters for reference only, all the machines can be customized accordingly. | ||||||||||||||
Product Advantages
Vacuum Emulsifying Pot
1. Full stainless steel 304 or 316L material.
2. 3 layers with insulation.
3. Electric heating or steam heating.
4. Cold water cooling.
5. Mirror polishing inside and outside.
Lid Parts
1. Man-Hole.
2. Material suction inlet.
2. Material suction inlet.
3. Vacuum presssure gauge.
4. Vacuum port.
5. Vent filter.
6. Positive pressure inlet.
7. Essence hopper.
8. CIP spray ball.
9. LED Light.
10. Sight window.
4. Vacuum port.
5. Vent filter.
6. Positive pressure inlet.
7. Essence hopper.
8. CIP spray ball.
9. LED Light.
10. Sight window.
Frame Wall Scrapper Mixer
1. SUS316L wall scrapper mixer.
2. PTFE scraper.
3. Fixed propeller.
4. 45degree blades on opposite angles to make sure mixture complete.
5. Siemens motor drive.
6. 0-65 rpm with variable speed control.
Water and Oil Pot
1. Machine equipped a set of water and oil pot.
2. Water pot and Oil pot capacity can be customized.
3. Power: 2.2kw, Siemens motor, 1440RPM.
4. Electric heating by Water or Conduction Oil.
5. Mixing: High shearing Disperser plates with baffle on the wall.
5. Mixing: High shearing Disperser plates with baffle on the wall.
6. Half open hinged lid for easy operation.
7. Top/Bottom disperser (Option).
High Shear Homogenizer
1. SUS316L material.
2. Speed 0-3600rpm, frequency inverter.
3. Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, two sides tungsten seal.
4. Water circulation cooling homogenizer.
Operation Panel
Each function can be controlled separately:
1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula .
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional

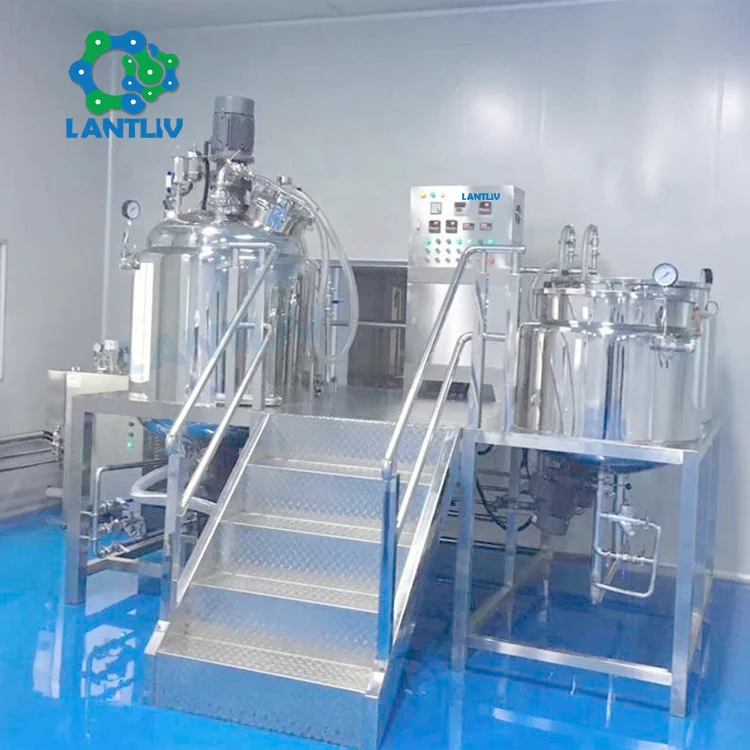

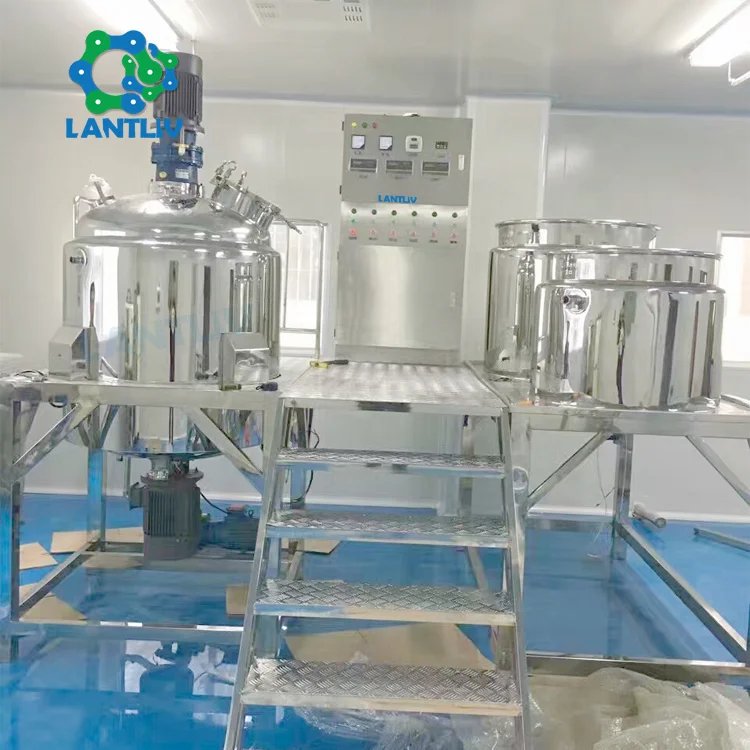

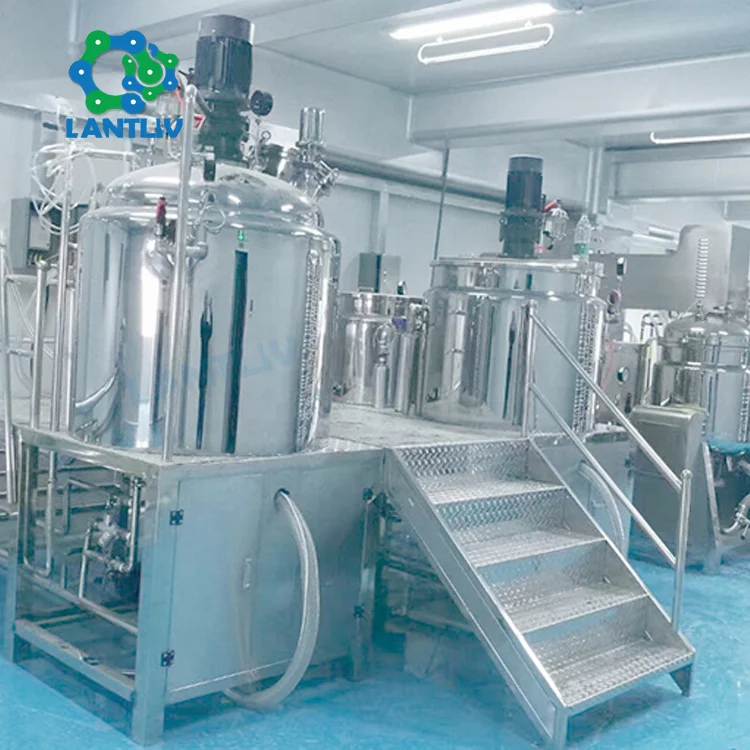

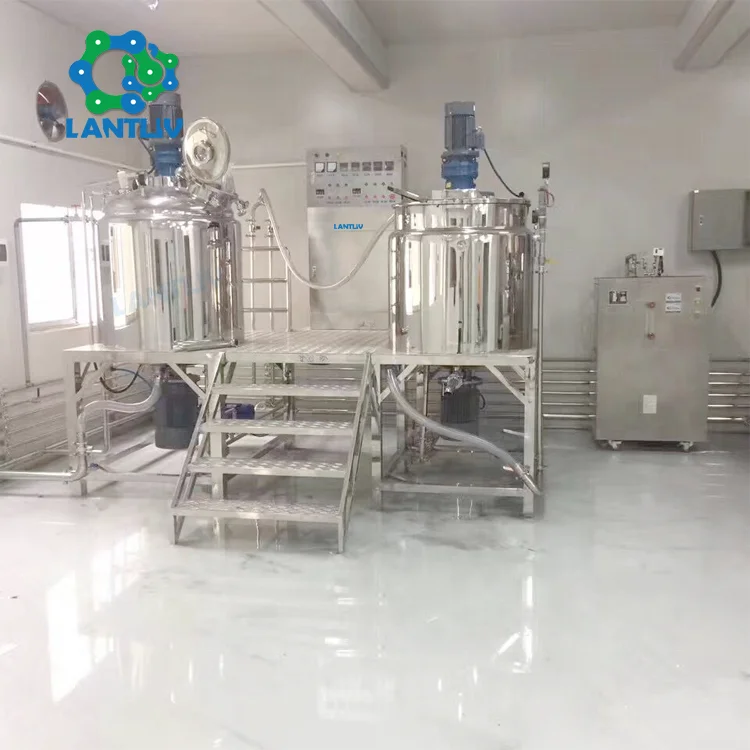

Plant Installation
Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE / FSC / ISO9001' and so on .
D. 7/24 service for you, all the question will be dealt within 24 hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
D. 7/24 service for you, all the question will be dealt within 24 hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
Certifications
Packing & Delivery
1. The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use PE film for packing or pack it according to customers special request.
2. Delivery time: 15-25 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
After Sales Service
1. Manual / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core temp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine, During the warranty year if any of the parts broken not by man-made, we will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We have an independent team for after-sale service. Any emergency please call the salesman or our after-sales manager.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core temp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine, During the warranty year if any of the parts broken not by man-made, we will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We have an independent team for after-sale service. Any emergency please call the salesman or our after-sales manager.
