Hot Sale Telescopic Boom Lift ZT42J for Lifting Construction Price
Products Description
* ZT42J is a newly developed aerial work platform. This unit features the advantages of telescopic boom lifts, and delivers industry-leading vertical height, horizontal outreach and lift capacity. Provide a vertical reach of 42.08 m (138ft 1in) and horizontal reach of 25 m , offer a dual lift capacity of 300/454 kg (660/1000lb) and 15 safety protection measures, and equip with PLC control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault detection and alarm display function offer convenient maintenance. Creative U-shaped boom design effectively reduces the weight of the boom and deflection, and provides better machine stability; R-shaped slider and U-shaped channel steel design at the bottom of the boom, effectively reducing the lateral deflection of the boom; Jib rotary function provides larger working range and more
flexible motion.
flexible motion.
Product Paramenters
Model | ZT42J | |||
Metric | Imperial | |||
Size | ||||
Work Height | 44.08m | 144ft 7in | ||
Platform Height | 42.08m | 138ft 1in | ||
Horizontal Outreach | 25m | 82ft | ||
A - Stowed Length | 13m | 42ft 8in | ||
B - Stowed Width | 2.49m | 8ft 2in | ||
C - Stowed Height | 3m | 9ft 10in | ||
D - Platform Length | 2.44m | 8ft | ||
E - Platform Width | 0.91m | 3ft | ||
F - Wheelbase | 3.81m | 12ft 6in | ||
G - Ground Clearance | 0.41m | 1ft 4in | ||
Performance | ||||
Platform Capacity (Unrestricted/Restricted) | 300/454kg | 660/1000lb | ||
Drive Speed (Stowed) | 5.2km/h | 3.23mph | ||
Gradeability | 45%(24°) | |||
Turning Radius (Inside) | 3.3/7.7m | 10ft 10in/25ft 3in | ||
Turning Radius (Outside) | 8.2/10.8m | 26ft 11in/35ft 5in | ||
Turntable Swing | 360° continuous | |||
Platform Rotation | ±90° | |||
Tail Swing | 2.36m | 7ft 9in | ||
Jib (Range of Articulation) | 130° | |||
Max. Working Slope | 3° | |||
Max. Wind Speed | 12.5m/s | 28mph | ||
Power | ||||
Engine | TD2.9 L4 Imported QSF2.8 | |||
Fuel Tank Capacity | 200L | 52.8gal | ||
Control Voltage | 12V DC | |||
Hydraulic Tank Capacity | 250L | 66gal | ||
Drive Mode | 4WD | |||
Steering Mode | Four wheels/Front wheel/Crab | |||
Tire | ||||
Type | IN445/50D710 Foam-filled Tires | |||
Weight | ||||
Gross | 21900kg | 48281lb | ||

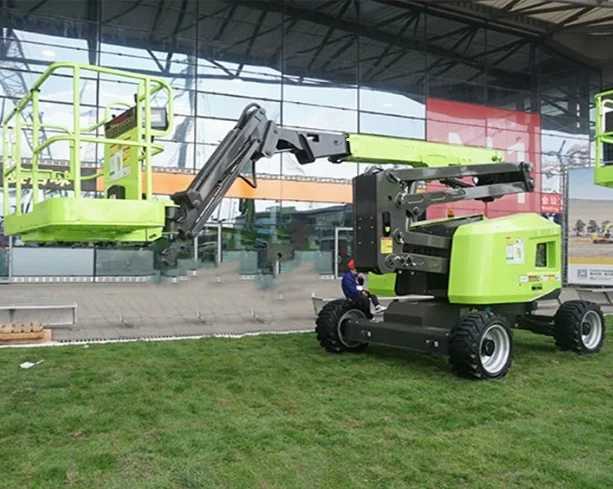

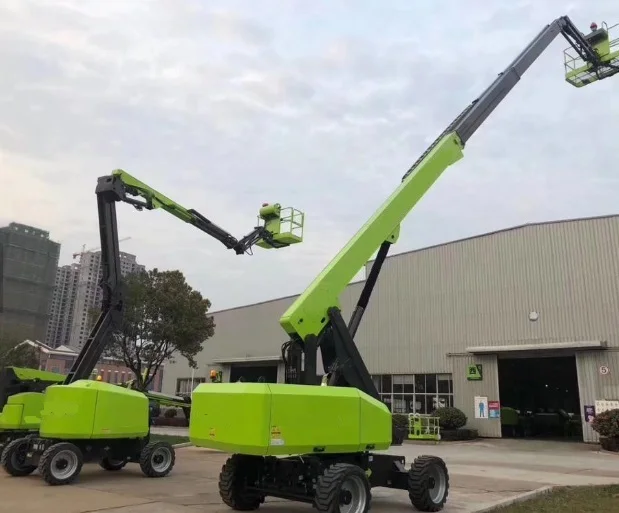

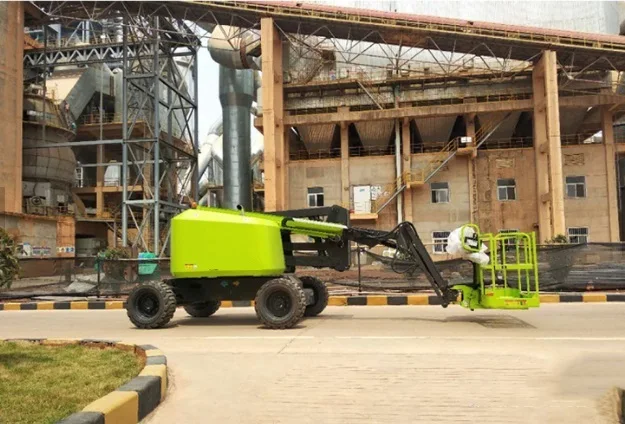

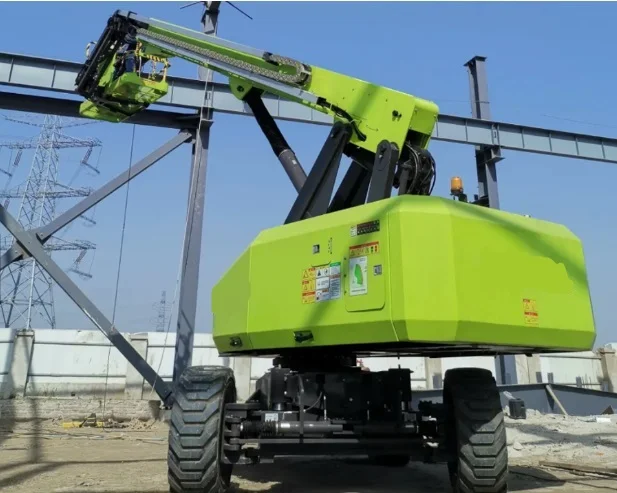

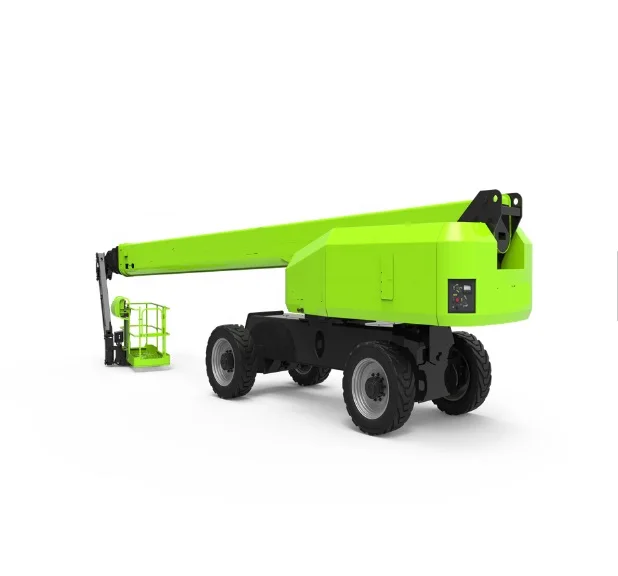

Product Pictures
