Ground Drilling Machine Mini Hydraulic Auger Auger Drill Earth with Homemade Gear Box

Application Field: Tree planting, Pole and Mast Installations, Landscaping, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps etc.

Auger Drive is the heart of earth auger. We adopt imported motor to ensure its quality.

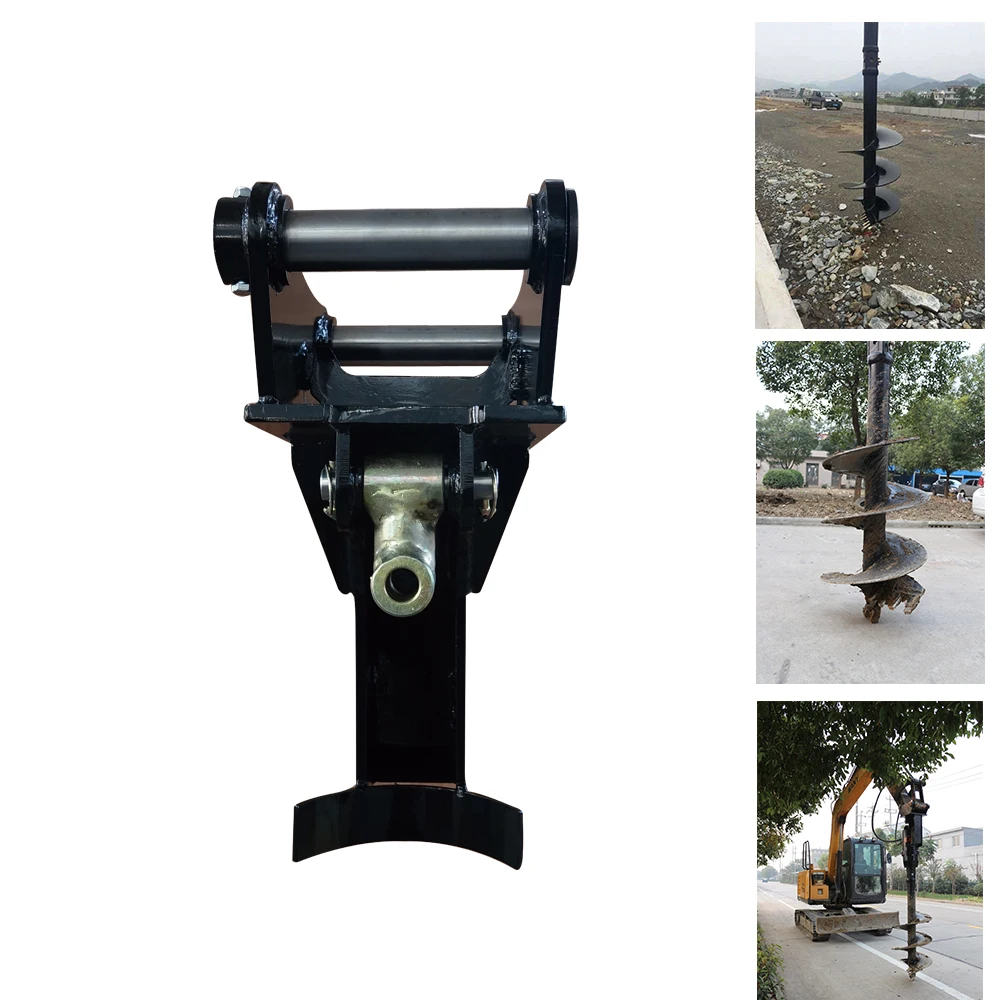

Pin Hitch:

(1) Single pin hitch is the most simple and low cost one.

(2) Double pin hitch has double lock and can accurate positioning.

(3) Double pin cradle hitch is the most security one, which can keep the earth auger vertical to the ground when it operated

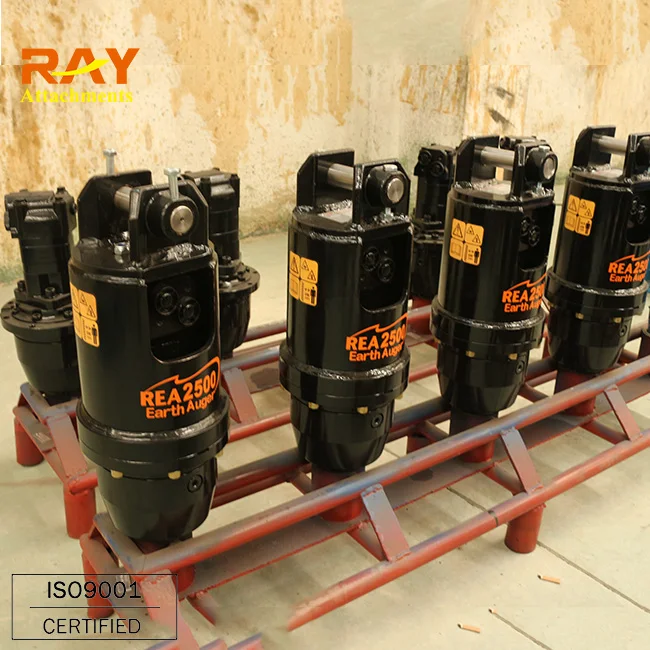

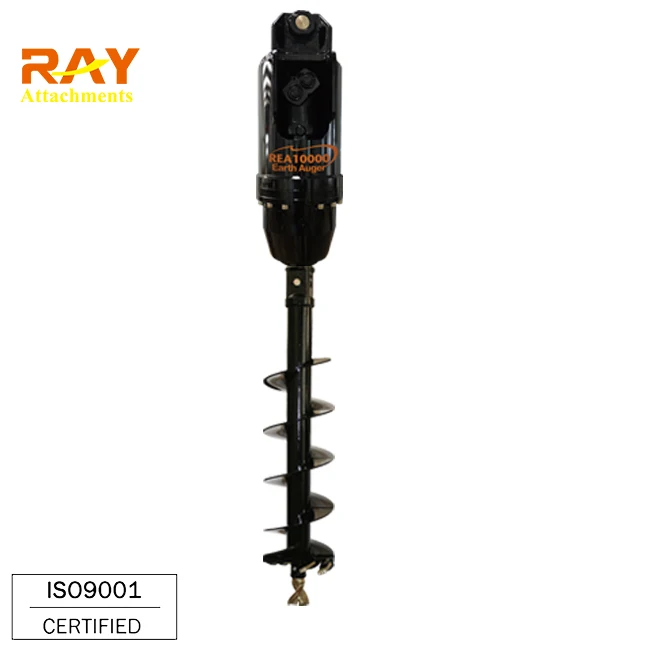

Auger Drive:

Auger Drive is the heart of earth auger. We adopt imported motor to ensure its quality. It is divided into two major parts, Motor and gear. The motor from American Eaton, brand quality assurance. And we ensure the quality of the auger drive of 18 months warranty.

1.Forged hoods ears: Deal with the heavy strain of daily use.Contact surface wider and safer.

2.Eaton Motor: Developing the most reliable attachments .

3.ERICYLIC gearbox: Unique planetary gearbox.Multiplied output torque.

Extreme efficiency

4.NON-dislodgement shaft: Assembled top down locked into earth drill house.Never fall out.Provided a safer environment.

Pay attention: We have independently developed a tungsten tooth and have a patent (patent no: 201520425163.4) .

Hoses:

Hoses is determined based on the tonnage of the excavator.

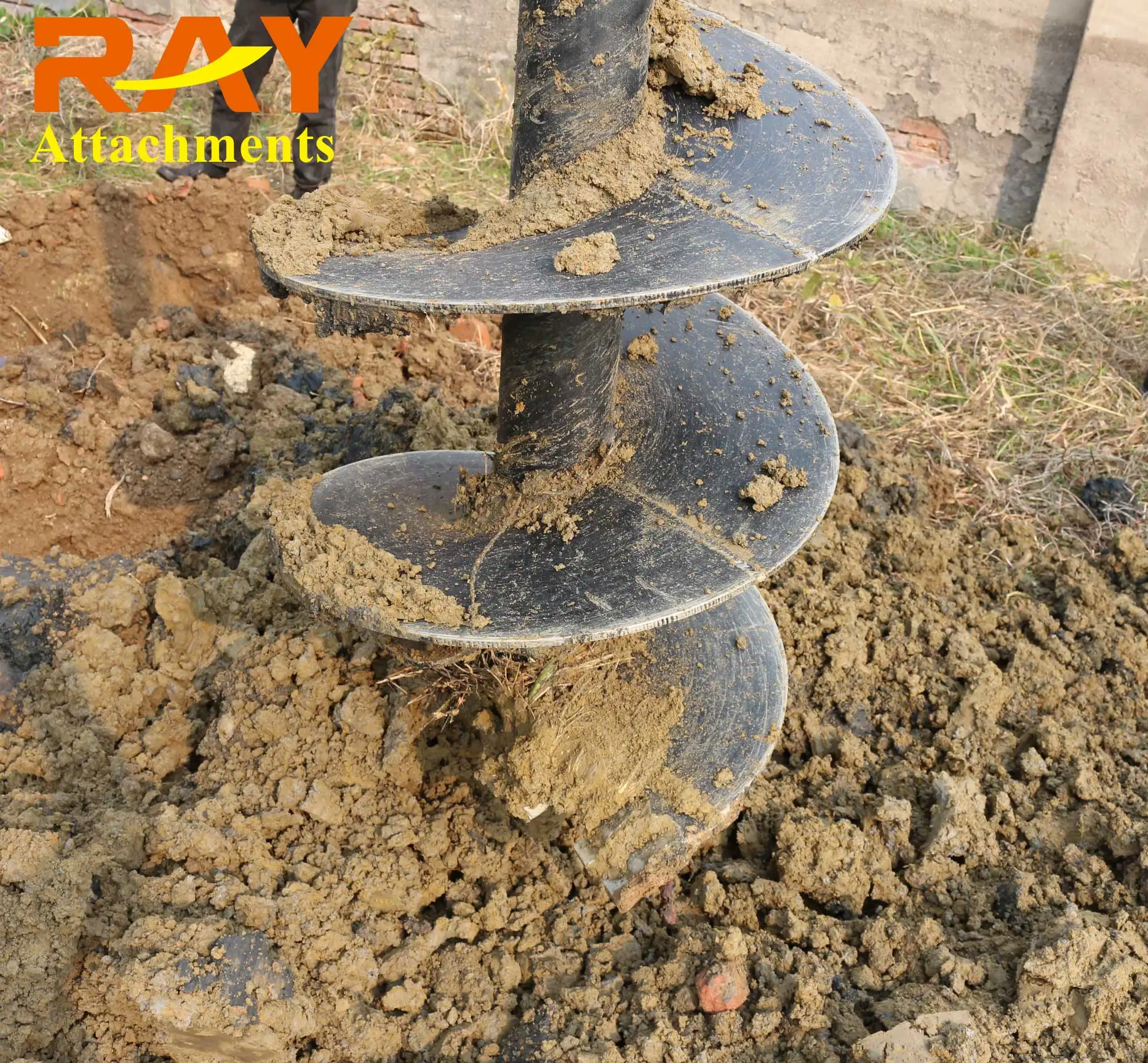

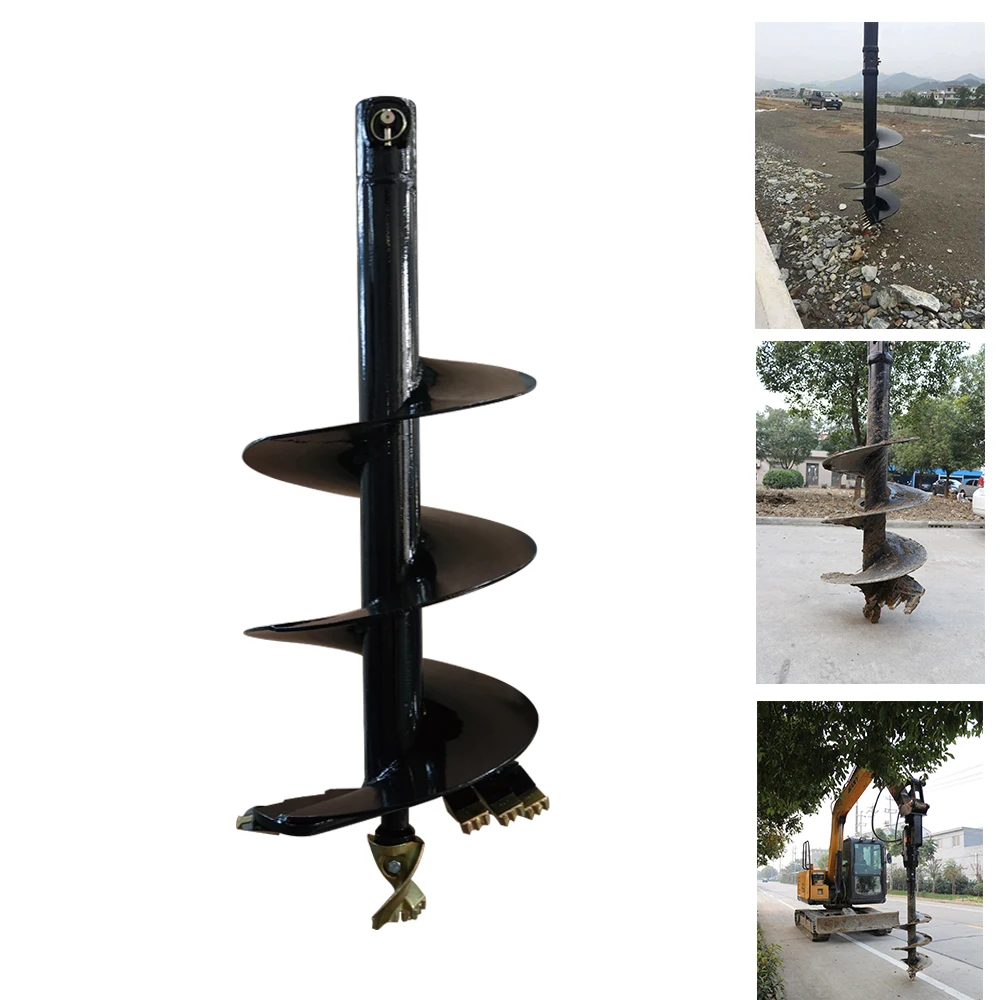

Auger Drill:

1,Auger drill can be flexibly selected, S4, S5, S6,PA,four types are available.

2,Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer requirements (size within a certain range).

3,Rock auger drill: It fit to rock, pitch or a lot of gravel land.

Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily.

Sharp auger drill: It fit to rock,  concrete, cement, asphalt and so on.

Model	Oil Folw		Max Torque		Pressure		Rotary Speed	Carrier	Oil Hose	Drill Dia.
	gal./min	l/min	Lbf·Ft	N·M	Psi	Bar	Rpm	T	Inch	mm
REA2000	6-14	23-53	2537	1871	3000	205	40-92	1-2.5	1/2	100-400
REA2500	8-16	30-61	3297	2432	3000	205	40-82	1.5-3	1/2	100-500
REA3000	8-16	30-61	3900	2877	3500	240	40-81	2-3.5	1/2	100-600
REA3500	8-18	30-68	4900	3614	3500	240	32-72	2.5-45	1/2	100-750
REA4500	10-20	38-76	5719	4218	3500	240	32-64	3-5	1/2	100-900
REA5000	10-20	38-76	6855	5056	3500	240	29-58	4.5-7	1/2	150-600
REA5500	12-22	45-83	8012	5910	3500	240	28-50	5-7	1/2	150-750
REA6000	12-28	45-106	8338	6150	3500	240	34-80	6-8	3/4	150-900
REA7000	16-32	61-121	9397	6931	3500	240	37-72	7-10	3/4	150-900
REA8000	16-36	61-136	10911	8048	3500	240	29-64	8-12	3/4	150-900
REA10000	18-36	70-136	14612	10778	3500	240	26-45	10-13	3/4	150-900
REA12000	21-37	80-140	16236	11976	3500	240	22-43	13-17	1	150-900
REA15000	21-40	80-151	20399	15046	3500	240	20-39	13-17	1	150-1200
REA20000	21-45	80-170	25812	19039	3500	240	17-34	13-20	1	150-1200
REA25000	24-48	90-180	33825	24949	3500	240	16-30	15-23	1	150-1200
REA50000	26-74	100-280	68052	50195	4000	280	11-30	21-50	1	300-2400

Packaging details:Cartons and wooden boxes.

Delivery time: shipped in 7 days after payment.

We can supply OME service: Logo, Colour, Shape.

 RAYMOND is a factory with authorized Imp. & Exp. right which including two companies,Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City,Jiangsu Province,China,Factory building areas cover around 20,000 Square Meters.Raymond Precision Machinery Co.,Ltd was established in 2002,committed to focus on the development,production and sales of construction machinery and their spare parts.

Q: Are you a manufacturer?

A: Yes,our factory was established in 2002 and we have our own trading company.



Q: Are you sure your product will fit my excavator?

A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.



Q: Can you provide customers’ design?

A: Sure, we can provide OEM and ODM service.



Q: What’s the MOQ and payment terms?

A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.



Q: How about delivery time?

A: 5-25 work days after the payment, depend on your quantity.



Q: How about the package?

A: Our earth auger packed by polywood case.



Q: Which country have you exported?

A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico,South Africa, etc.
