Характеристики
Product Description

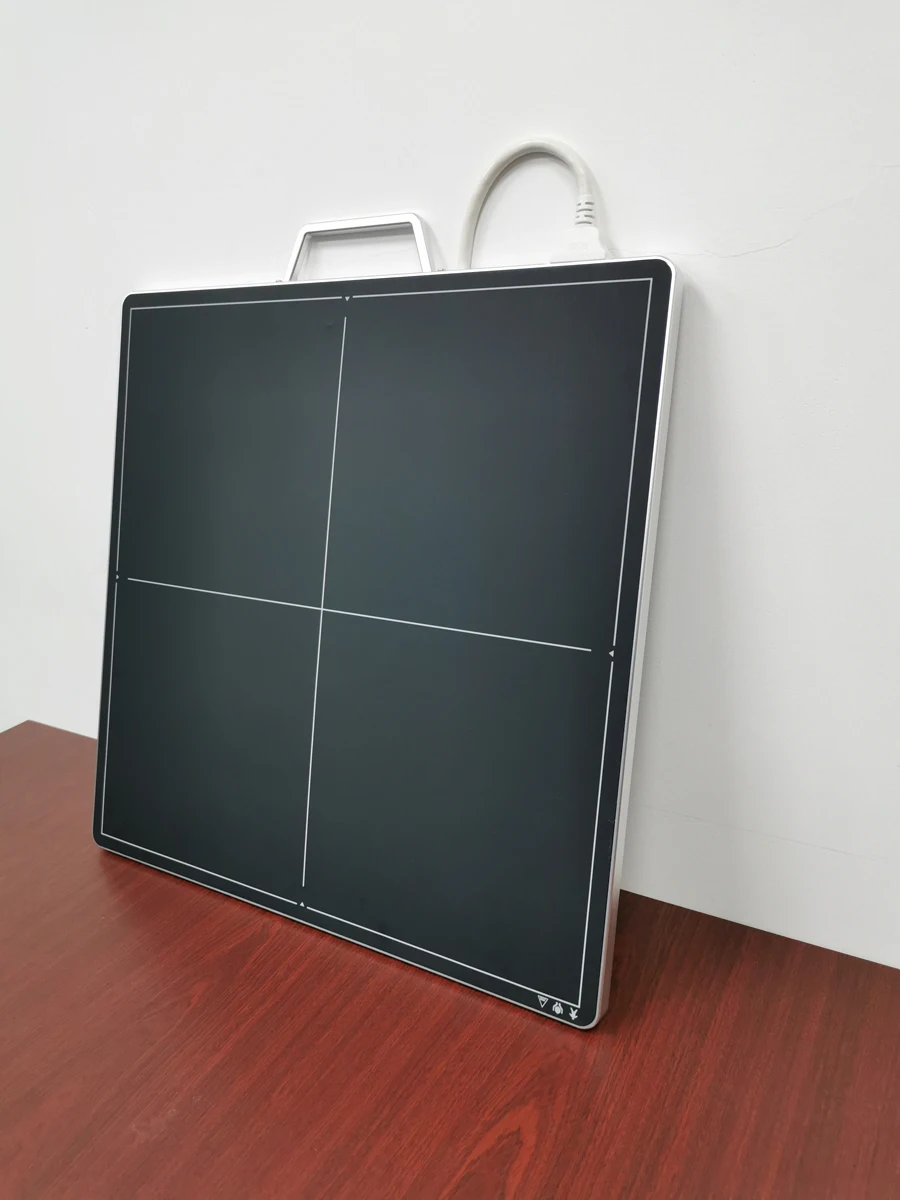

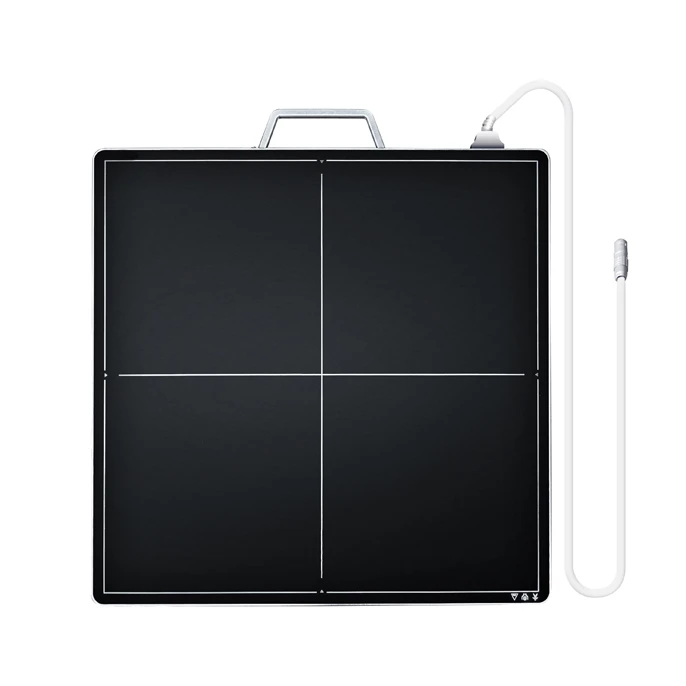

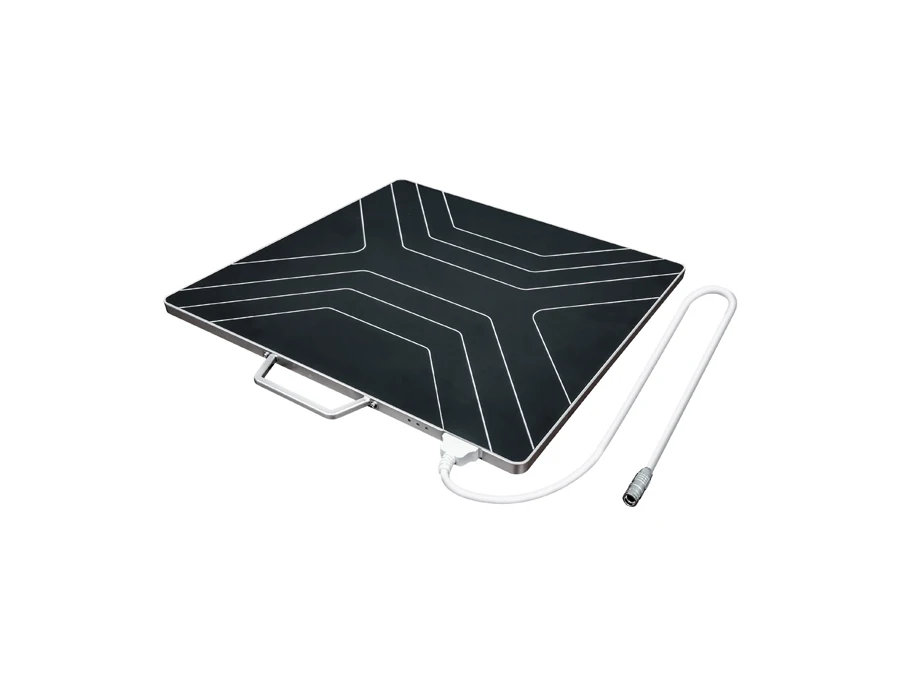

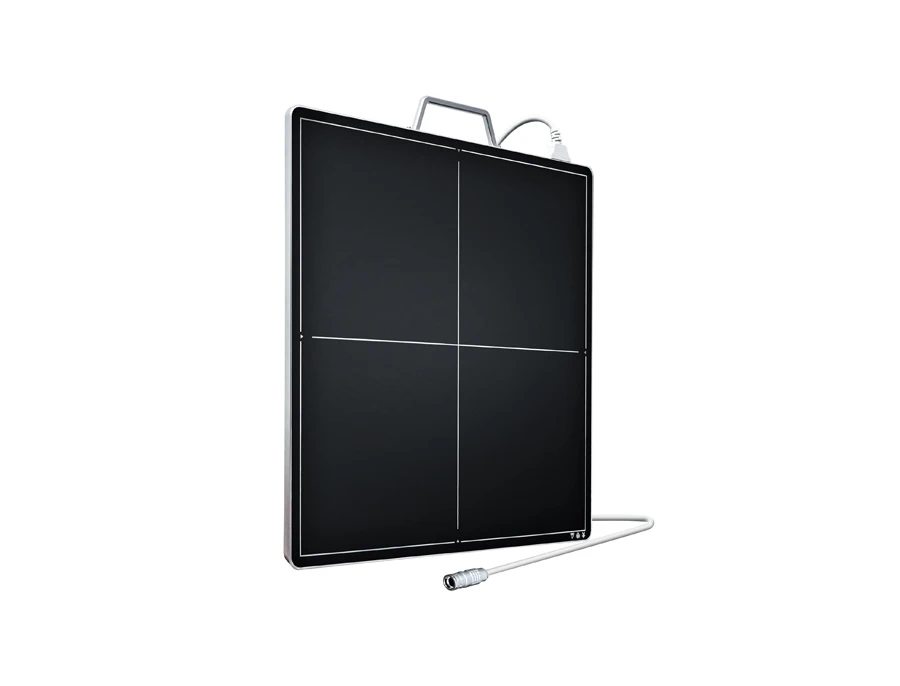

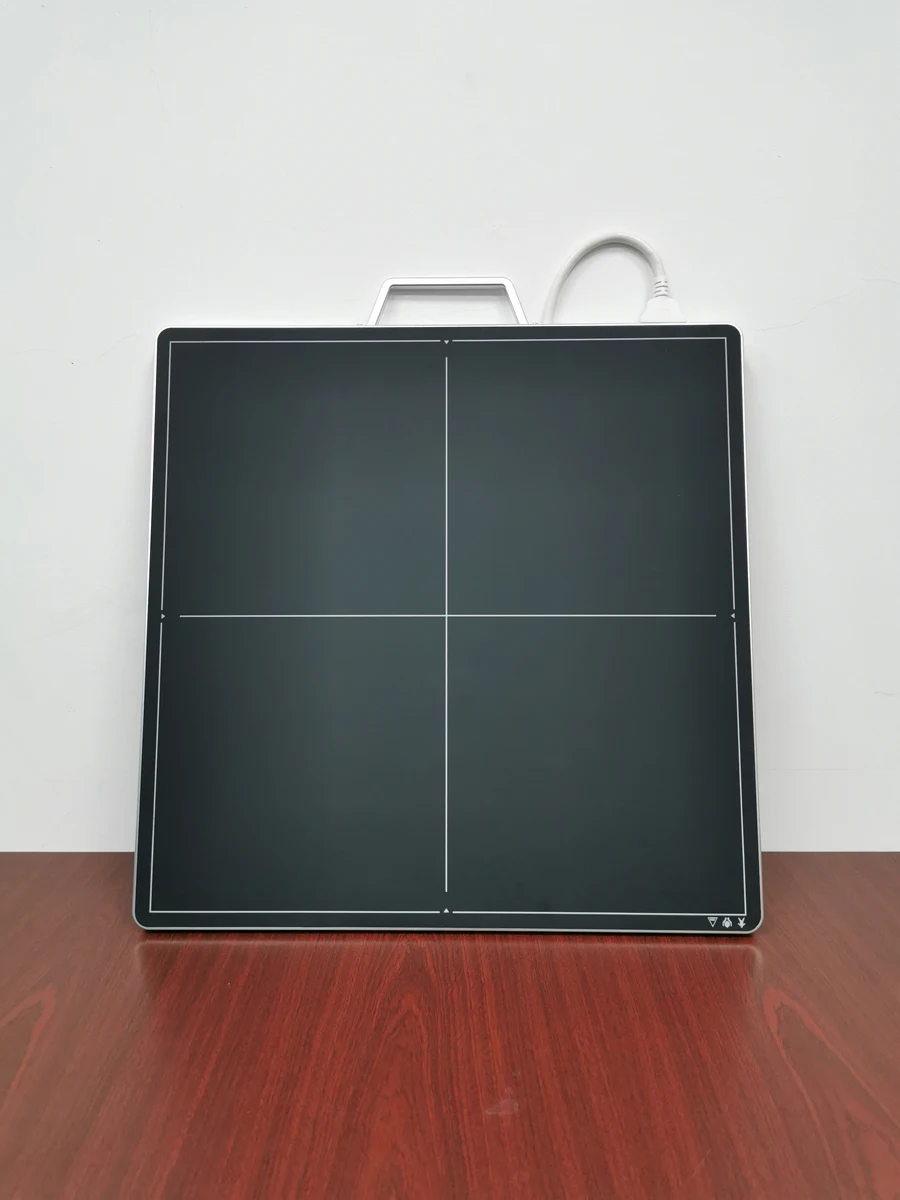

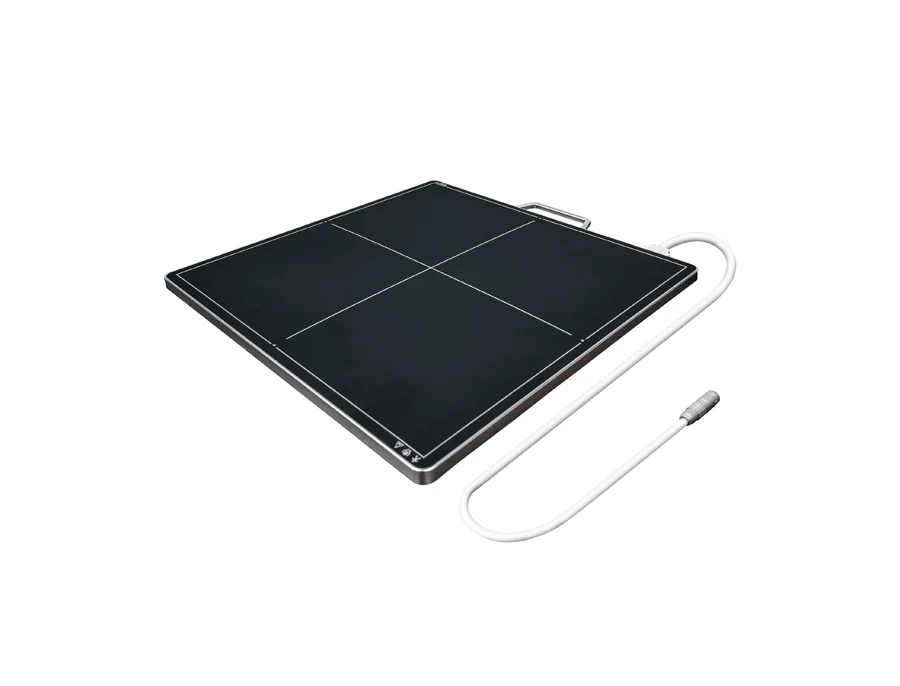

High quality Wireled Mls Flat Panel Detector digital X Ray Flat Panel Detector
MSLCV07 is 1717 movable flat panel detector. This manual describes the parameter specification, installation way, storage and transportation, precautions and other aspects of the flat panel detector.
Main Features
•Advanced encapsulation and internal and external frame design allow the detector to be used in a wide temperature range and vibration environments;
•Pixel size: 140μm, image array: 3072x 3072, 9.43 million pixels;
•High sensitivity, low X-ray dose; fast exposure (less than 5 ms);
•Excellent dynamic range, 9×107 saturated electrons; maximum linear exposure dose: more than 100μGy;
•Multi-stage gain adjustable; it is easy for users to get the best digital images.
•Advanced encapsulation and internal and external frame design allow the detector to be used in a wide temperature range and vibration environments;
•Pixel size: 140μm, image array: 3072x 3072, 9.43 million pixels;
•High sensitivity, low X-ray dose; fast exposure (less than 5 ms);
•Excellent dynamic range, 9×107 saturated electrons; maximum linear exposure dose: more than 100μGy;
•Multi-stage gain adjustable; it is easy for users to get the best digital images.
Main Advantages
•Completely independent development, cost-effective;
•The most advanced flat panel detector technology with cesium iodide directly coupled with amorphous silicon can be used;
•TFT module from the international famous manufacturer is selected;
•Timely, effective and comprehensive quality services;
•It can be widely used in the fields such as medical diagnostic imaging system, animal diagnosis, industrial NDT and safety inspection.
•Completely independent development, cost-effective;
•The most advanced flat panel detector technology with cesium iodide directly coupled with amorphous silicon can be used;
•TFT module from the international famous manufacturer is selected;
•Timely, effective and comprehensive quality services;
•It can be widely used in the fields such as medical diagnostic imaging system, animal diagnosis, industrial NDT and safety inspection.
Main Structure
The amorphous silicon flat panel detector is mainly composed of an X-ray scintillation screen with high absorption rate, a large-size amorphous silicon photodiode/TFT flat panel, a detector electronic control system, etc.
The amorphous silicon flat panel detector is mainly composed of an X-ray scintillation screen with high absorption rate, a large-size amorphous silicon photodiode/TFT flat panel, a detector electronic control system, etc.
Specification
Application | General radiography |
Scintillator | Csl |
Pixel Pitch | 140μm |
Pixels | 3071*3071 pixels |
Image size | 427*427mm |
Spatial resolution | 3.74p/mm |
A/D conversion | 16bits |
Preview image access time | About 5 seconds after exposure |
Operating environment | Sensor unit: 10-35℃30-80%RH(NON-condensing) |
Dimensions | 46*46*15mm |
Weight | 3.5KG |
Installation Instructions
1、The flat panel detector must be installed by specialized personnel.
2、When installing the detector system, prevent the detector from slipping off.
3、During the installation of detector, reduce or avoid detector vibration and impact as much as possible!
2、When installing the detector system, prevent the detector from slipping off.
3、During the installation of detector, reduce or avoid detector vibration and impact as much as possible!
Installation Steps for Detector
X-ray flat panel detector must be installed in the film magazine before use. Specific installation steps are as follows:
•Put the detector into the film magazine, and fasten the detector with pressing pieces around the film magazine;
•Lead the detector connecting wire out of the film magazine through the film magazine wire hole;
•Connect the external connecting wire in the air and connect it to the power supply box;
•Connect the power supply box with DROC workstation through the network cable;
•Connect the power supply box with the high voltage generator through a hard synchronous line;
•Plug in the power cord and AC cable and turn on the detector, and the detector can work normally.
X-ray flat panel detector must be installed in the film magazine before use. Specific installation steps are as follows:
•Put the detector into the film magazine, and fasten the detector with pressing pieces around the film magazine;
•Lead the detector connecting wire out of the film magazine through the film magazine wire hole;
•Connect the external connecting wire in the air and connect it to the power supply box;
•Connect the power supply box with DROC workstation through the network cable;
•Connect the power supply box with the high voltage generator through a hard synchronous line;
•Plug in the power cord and AC cable and turn on the detector, and the detector can work normally.
Introduction to DR System Connection
The whole DR system mainly includes X-ray ball tubes, an X-ray generator, a flat panel detector and a DROC workstation, and the connection among the flat panel detector, the high voltage generator (Ruidi high voltage generator) and DROC workstation is shown in Figure 7 below. The detector is directly connected to the power supply box, and the gigabit Ethernet cable and the synchronous exposure cable transferred by the power supply box are connected to DROC workstation and the high voltage generator respectively. 220V power of the power supply box can be supplied from the grid power on the wall or the rack.
The whole DR system mainly includes X-ray ball tubes, an X-ray generator, a flat panel detector and a DROC workstation, and the connection among the flat panel detector, the high voltage generator (Ruidi high voltage generator) and DROC workstation is shown in Figure 7 below. The detector is directly connected to the power supply box, and the gigabit Ethernet cable and the synchronous exposure cable transferred by the power supply box are connected to DROC workstation and the high voltage generator respectively. 220V power of the power supply box can be supplied from the grid power on the wall or the rack.
Image Performance
Packing&Shipping
Standard packing: carton or wooden case
