5-10TPH каменный камень для полировки золота дробления процесс завод молотковая дробилка песка кирпича делая
- Категория: Mining Machinery >>>
- Поставщик: Jiangxi,Walker,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2975.26 $* | 3124.79 $* |
| Aug-15-2025 | 2950.22 $* | 3098.3 $* |
| Jul-15-2025 | 2475.8 $* | 2599.43 $* |
| Jun-15-2025 | 2900.6 $* | 3045.22 $* |
| May-15-2025 | 2525.71 $* | 2651.83 $* |
| Apr-15-2025 | 2850.28 $* | 2993.38 $* |
| Mar-15-2025 | 2825.97 $* | 2966.88 $* |
| Feb-15-2025 | 2800.48 $* | 2940.82 $* |
| Jan-15-2025 | 2775.76 $* | 2914.34 $* |
Характеристики
Product Description

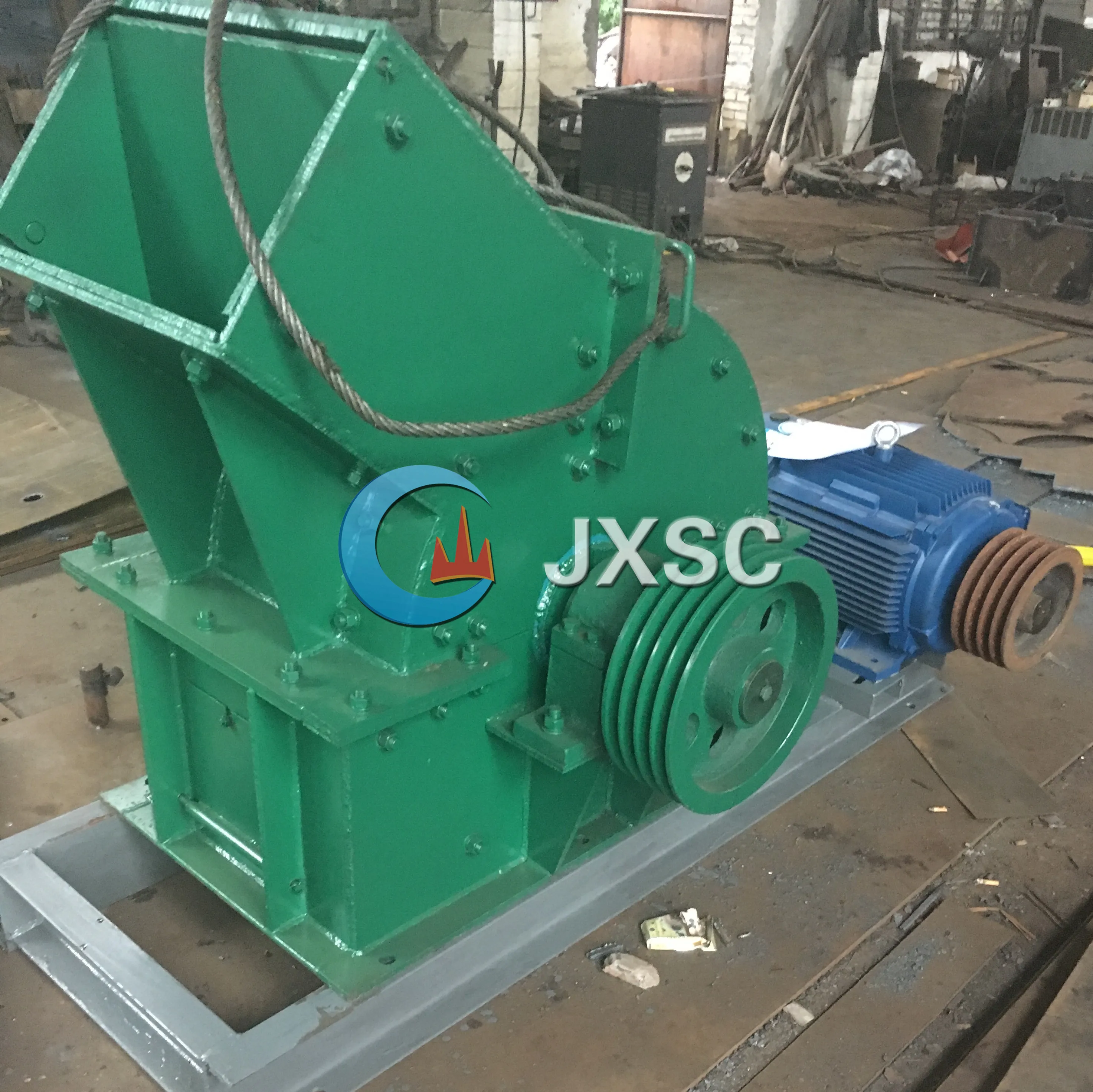

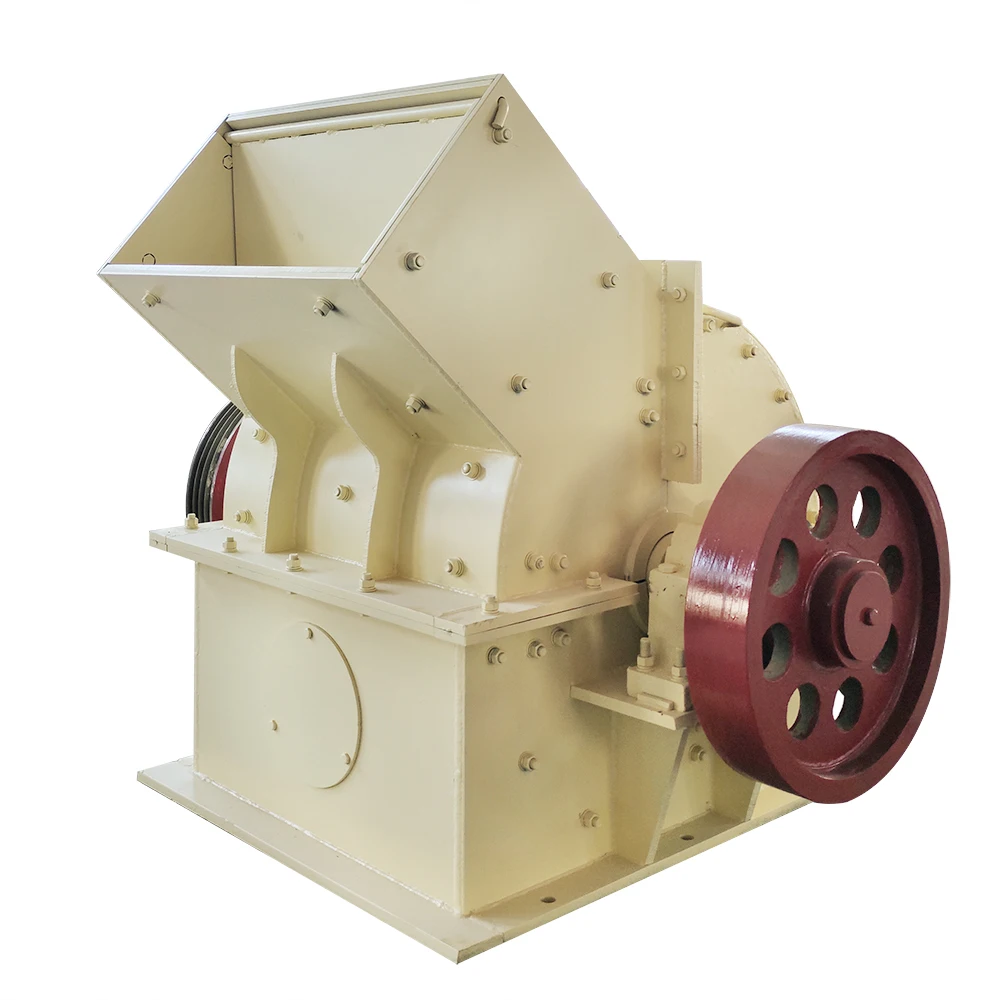

Hammer mill crusher is a kind of equipment that crushes materials in the form of impact. Crushing the size of 100-400 mm material to 10-15m or less. Hammer mill machine can not only be used in stone crusher plant, sand plant, but also can replace the cone crusher in the mineral processing because of its cost-effective price. It widely used in small rock gold ore processing project.
Specification Parameter
Model | Speed (r/min) | Feed particle size (mm) | Discharge grain size (mm) | Capacity (t/h) | Weight(t) | Power (kw ) |
PC-400x300 | 1450 | ≤100 | 10 | 3-10 | 0.8 | 11 |
PC-600x400 | 1000 | ≤220 | 15 | 5-25 | 1.5 | 22 |
PC-800x600 | 980 | ≤350 | 15 | 10-50 | 3.1 | 55 |
PC-800x800 | 980 | ≤350 | 15 | 10-60 | 3.5 | 75 |
PC-1000x800 | 1000 | ≤400 | 13 | 20-75 | 7.9 | 115 |
Performance characteristics of our products:
1. Hammerhead uses new cast technology which with wear-resistant and impact-resistant characteristic.
2. Can adjust the granularity size.
3. The seal structure that solves the problems of dust pollution and dust leakage in the crushing workshop.
4. The overall design of hammer crushing equipment has the advantages of beautiful appearance, compact structure, few wearing parts, convenient maintenance, etc.
Product Spare Parts
Suitable Material:\t
Pebble,granite, basalt, iron ore, limestone, quartz, diabase, etc.\t
Application Field:
Quarry,mining, coal mining, dry powder mortar, concrete mixing station, power plant desulfurization, quartz sand, etc.
Quarry,mining, coal mining, dry powder mortar, concrete mixing station, power plant desulfurization, quartz sand, etc.
We JXSC mine machinery have provided a complete set 2 TPH Hard Rock gold processing plant to our Congo Customer.
This Plant also can be used for Hard Rock Tin ore/ Coltan ore/ Tungsten Ore/ Chrome Ore primary processing.
Process flowchart as below:
Jaw crusher-> belt conveyor-> hammer crusher-> shaking table
Main machines specifications :
- Jaw crusher: 2 sets (one set for reserve), model PE150*250. with 1-3 TPH capacity, flywheel with cover, with diesel engine.
-Belt Conveyor: 1 set, 10 m long, 500 mm width.

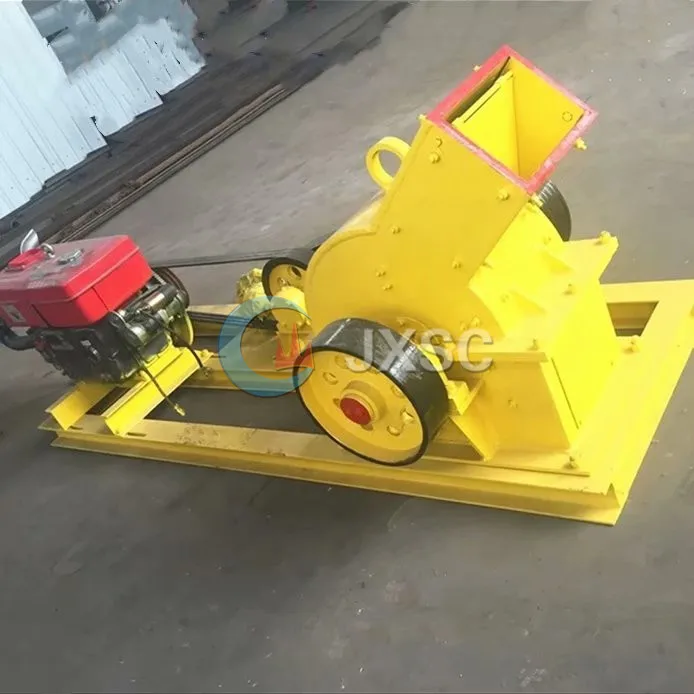

-Hammer crusher: 1 set, model PC400*300, 1-3 TPH capacity, 0-2 mm output size. flywheel with cover, with diesel engine, with strong frame operation floor, wet process.
-Shaking table: 2 sets, model 6S big shaking table, with 1 TPH capacity, table size 4500*1850mm. New designed type, with PP material feeding and discharging chute, big channel,flywheel with cover, Siemens brand motor.
This Plant also can be used for Hard Rock Tin ore/ Coltan ore/ Tungsten Ore/ Chrome Ore primary processing.
Process flowchart as below:
Jaw crusher-> belt conveyor-> hammer crusher-> shaking table
Main machines specifications :
- Jaw crusher: 2 sets (one set for reserve), model PE150*250. with 1-3 TPH capacity, flywheel with cover, with diesel engine.
-Belt Conveyor: 1 set, 10 m long, 500 mm width.
-Hammer crusher: 1 set, model PC400*300, 1-3 TPH capacity, 0-2 mm output size. flywheel with cover, with diesel engine, with strong frame operation floor, wet process.
-Shaking table: 2 sets, model 6S big shaking table, with 1 TPH capacity, table size 4500*1850mm. New designed type, with PP material feeding and discharging chute, big channel,flywheel with cover, Siemens brand motor.
Product Spare Parts
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Ways of Packing | ||
1 | Standard Parts Packed in the Wooden Cases | |
2 | Big Parts Packed by Plastic Membrane | |
3 | The Whole Machine is Loaded in the Container | |
Shiping by Sea/Air Freight
or Any Way the Customer Requires
About Company
Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant work flow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory.
Our products are exported to Africa,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Services
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
