Круговой передвижной Вибрационный экран от компании Baichy
- Категория: Vibrating Screen >>>
- Поставщик: Baichy,Heavy,Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 14637.51 $* | 15369.80 $* |
| Aug-15-2025 | 14514.57 $* | 15240.9 $* |
| Jul-15-2025 | 12177.26 $* | 12786.30 $* |
| Jun-15-2025 | 14268.60 $* | 14981.56 $* |
| May-15-2025 | 12423.23 $* | 13044.19 $* |
| Apr-15-2025 | 14022.95 $* | 14723.41 $* |
| Mar-15-2025 | 13899.16 $* | 14594.48 $* |
| Feb-15-2025 | 13776.69 $* | 14465.68 $* |
| Jan-15-2025 | 13653.60 $* | 14336.49 $* |
Характеристики

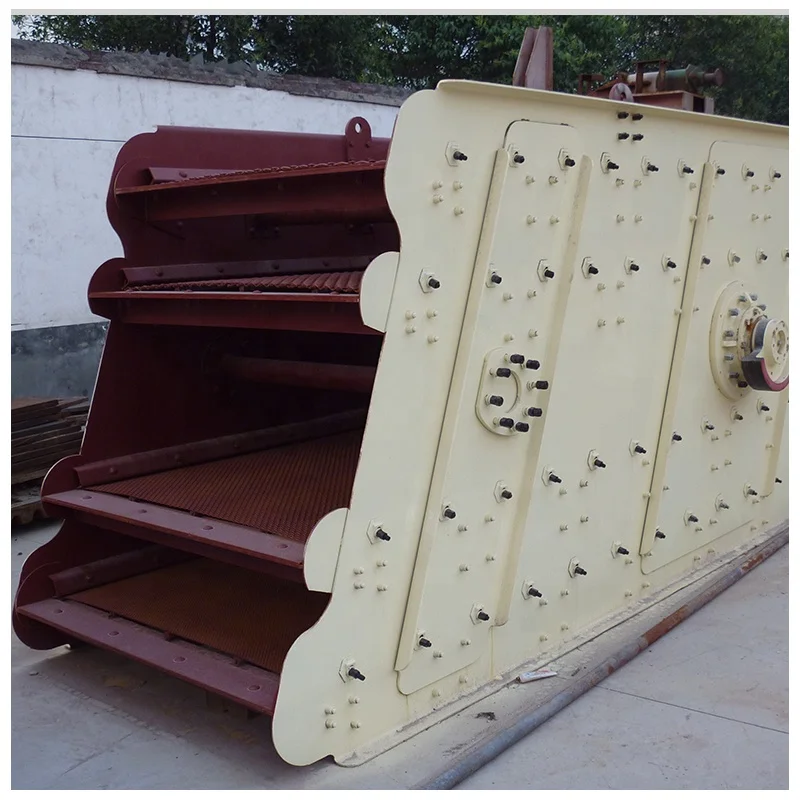

Circular mobile sand vibrating screen made by Baichy machinery company![3]()
vibrating sieves are used to separate materials into various sizes for further processing or for end use. The material is separated by passing through a vibrating “screen or meshes” which has a number of different sized according to customer’s requirements. The end products can then be used in the building and construction industries. It feature advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.
The vibrating screen with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.
Advantage:
A). Reliable quality certified by CE and reaches European standard.
B). Two types of vibrating screen,
C). Unique and advanced design.
D). Powerful vibrating forces, low vibrating noise
E) Easy to maintain, high durability, etc.
Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
| Model | Sieve specification (mm) | layer | Mesh size (mm) | Max feeding size (mm) | Processing capacity (t/h) | Moto power (kw) | Vibrating Frequency (r/min) | Double amplitude (mm) |
| 2YK1237 | 1200X3700 | 2 | 3-50 | 200 | 30-100 | 5.5 | 970 | 5-9 |
| 3YK1237 | 1200X3700 | 3 | 3-50 | 200 | 30-100 | 7.5 | ||
| 2YK1548 | 4800X1500 | 2 | 3-100 | 400 | 30-275 | 15 | ||
| 3YK1548 | 4800X1500 | 3 | 3-100 | 30-275 | 15 | |||
| 2YK1848 | 4800X1800 | 2 | 3-100 | 56-330 | 18.5 | |||
| 3YK1848 | 4800X1800 | 3 | 3-100 | 56-330 | 18.5 | |||
| 4YK1848 | 4800X1800 | 4 | 3-80 | 56-330 | 22 | |||
| 2YK1860 | 6000X1800 | 2 | 3-100 | 65-586 | 18.5 | |||
| 3YK1860 | 6000X1800 | 3 | 3-100 | 65-586 | 22 | |||
| 4YK1860 | 6000X1800 | 4 | 3-100 | 65-586 | 30 | 980 | ||
| 2YK2160 | 6000X2100 | 2 | 3-100 | 81-720 | 22 | 980 | ||
| 3YK2160 | 6000X2100 | 3 | 3-100 | 81-720 | 30 | 970 | ||
| 4YK2160 | 6000X2100 | 4 | 3-100 | 81-720 | 37 | 980 | ||
| 2YK2460 | 6000X2400 | 2 | 3-150 | 100-810 | 22 | 970 | ||
| 3YK2460 | 6000X2400 | 3 | 3-150 | 100-810 | 30 | 980 | ||
| 4YK2460 | 6000X2400 | 4 | 3-150 | 150-850 | 37 | 980 | ||
| 2YK2470 | 7000X2400 | 2 | 3-100 | 180-900 | 30 | 980 | ||
| 3YK2470 | 7000X2400 | 3 | 3-100 | 180-900 | 37 | 980 | ||
| 4YK2470 | 7000X2400 | 4 | 3-100 | 180-900 | 45 | 980 | ||
| 2YK2480 | 8000X2400 | 2 | 3-150 | 190-940 | 30 | 980 | ||
| 3YK2480 | 8000X2400 | 3 | 3-150 | 190-940 | 37 | 980 | ||
| 4YK2480 | 8000X2400 | 4 | 3-150 | 190-940 | 45 | 980 | ||
| 2YK3070 | 7000X2400 | 2 | 3-100 | 220-1000 | 37 | 980 | ||
| 3YK3070 | 7000X2400 | 3 | 3-150 | 220-1000 | 45 | 980 | ||
| 4YK3070 | 7000X2400 | 4 | 3-150 | 220-1000 | 55 | 980 |
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
