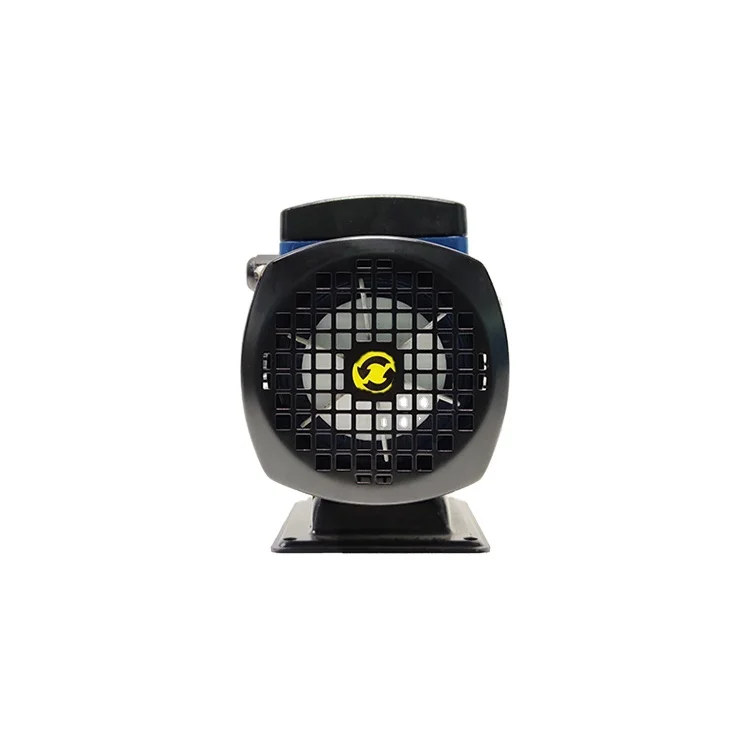

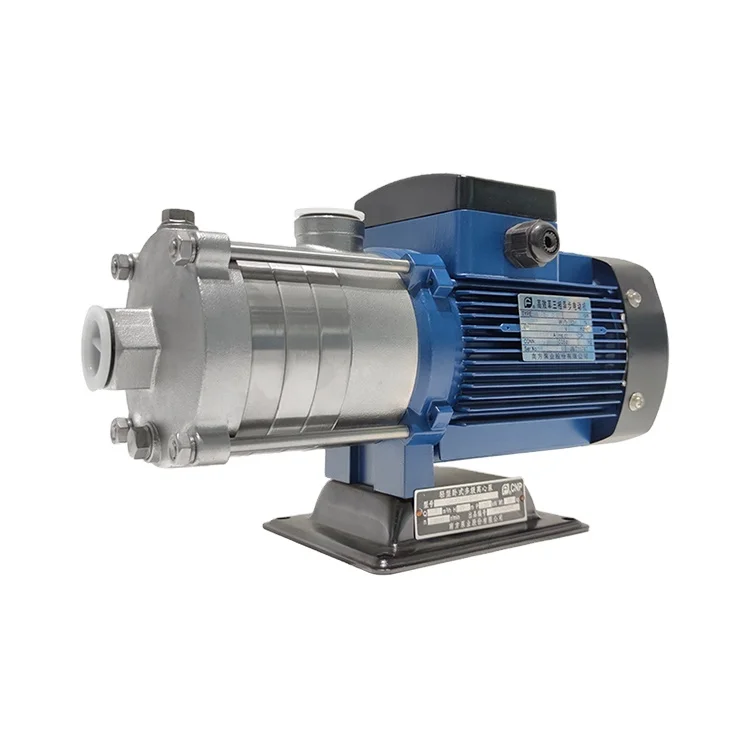

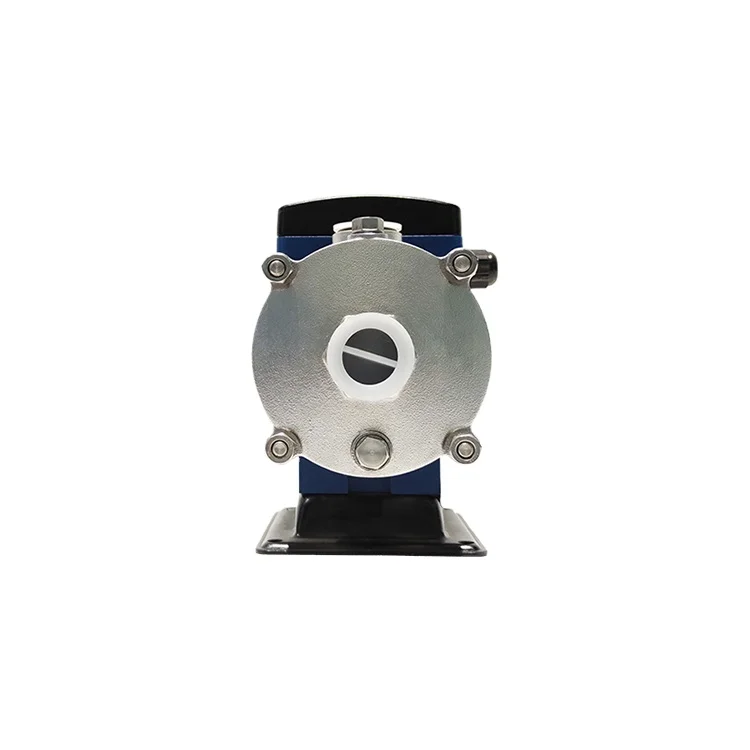

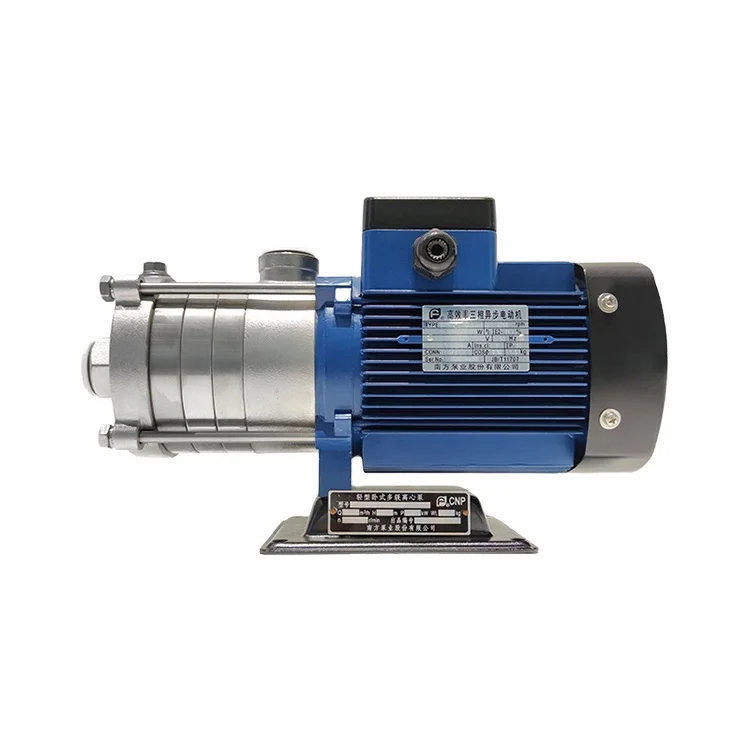

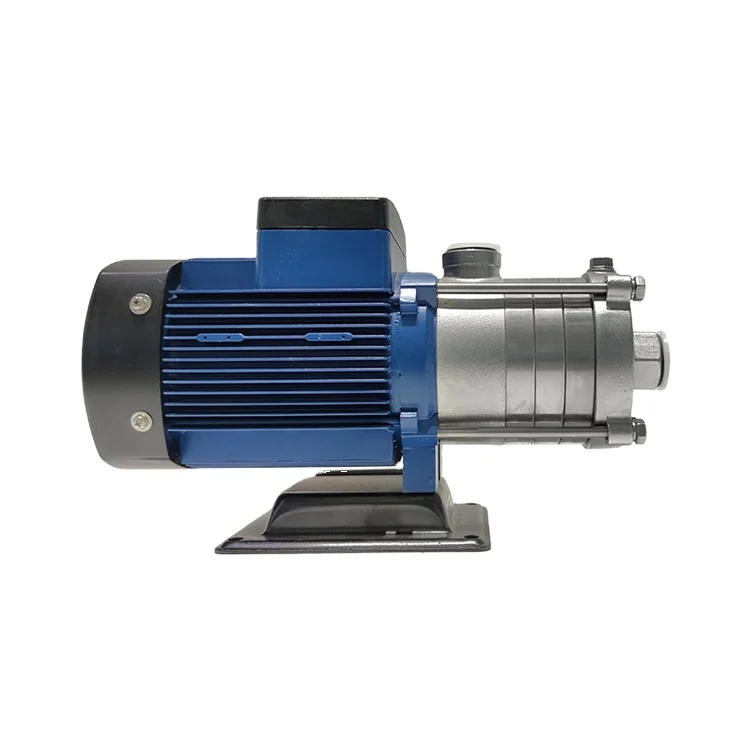

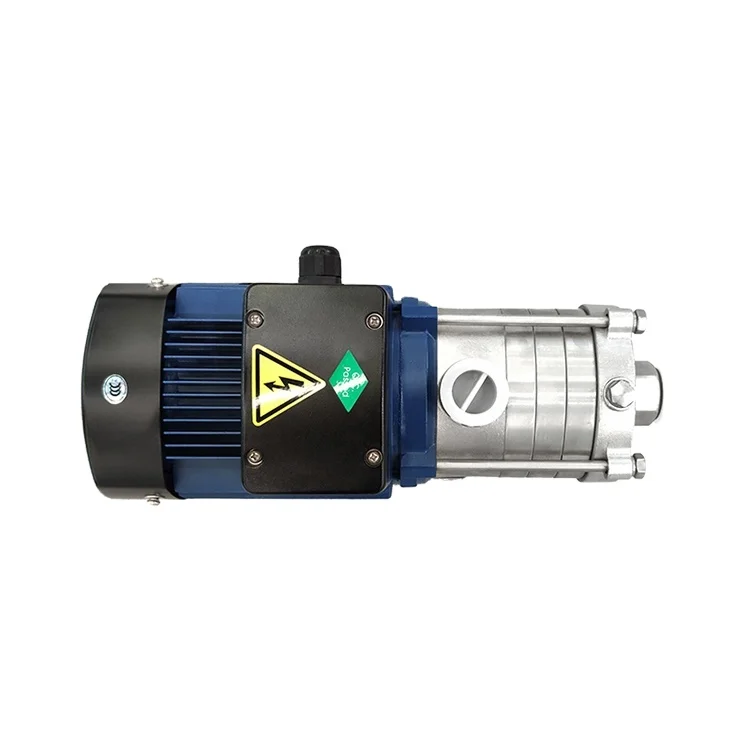

Горизонтальный многоступенчатый центробежный насос CNP CHLF20 50 Гц из нержавеющей стали Электрический
- Категория: Environmental Machinery >>>
- Поставщик: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 47700.55 $* | 50085.62 $* |
| Aug-19-2025 | 47299.9 $* | 49664.8 $* |
| Jul-19-2025 | 39683.81 $* | 41667.15 $* |
| Jun-19-2025 | 46497.71 $* | 48822.48 $* |
| May-19-2025 | 40485.97 $* | 42509.36 $* |
| Apr-19-2025 | 45696.5 $* | 47981.5 $* |
| Mar-19-2025 | 45295.76 $* | 47560.46 $* |
| Feb-19-2025 | 44894.99 $* | 47139.14 $* |
| Jan-19-2025 | 44493.34 $* | 46718.77 $* |
Характеристики
Product name | Manufacturer CNP CHLF20 50HZ Stainless Steel Horizontal Multistage Centrifugal Booster Electric Water Pump |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
![]()
Motor
TEFC motor 2-pole
Protection class：IP 55
Insulation class：F
Standard voltage: 50Hz: 1x 220-240V
3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V
3 ×220-240V/380-415V
Single phase motor(max) ：2.4kW
Protection class：IP 55
Insulation class：F
Standard voltage: 50Hz: 1x 220-240V
3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V
3 ×220-240V/380-415V
Single phase motor(max) ：2.4kW
Operation condition
Liquid temperature: Normal temperature type：-15℃-+70℃
Hot water type：-15℃-+110℃
Ambient temperature：up to+40℃
Max.operation pressure：10bar
Max.inlet pressure is limited by max.Operation pressure
Liquid temperature: Normal temperature type：-15℃-+70℃
Hot water type：-15℃-+110℃
Ambient temperature：up to+40℃
Max.operation pressure：10bar
Max.inlet pressure is limited by max.Operation pressure
Curve conditions
Following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz：constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, kinematic viscosity of lmm-/sec.
The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload f motor due to too large flow rate.
Following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz：constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, kinematic viscosity of lmm-/sec.
The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload f motor due to too large flow rate.
Material
NO | Name | Material | ANSI/ASTM | |||
1 | Plug | Stainless Steel | AISI 304 | |||
2 | Bearing | Tungsten Carbide | AISI 304 | |||
3 | Impeller | Stainless Steel | AISI 304 | |||
4 | Shaft | Stainless Steel | AISI 304 | |||
5 | Mechanical Seal | |||||
6 | Motor End Cover | Aluminum Alloy | ||||
7 | Base Plate | Steel Plate | AISI 1015 | |||
8 | Staybolt | Stainless Steel | AISI 304 | |||
9 | Diffuser | Stainless Steel | AISI 304 | |||
10 | Support Diffuser | Stainless Steel | AISI 304 | |||
11 | Impeller Sleeve | Stainless Steel | AISI 304 | |||
CHLF | Diffuser | Stainless Steel | AISI 304 | |||
12 | Suction | Stainless Steel | AISI 304 | |||
13 | Discharge | Stainless Steel | AISI 304 | |||
CHLF(T) | ||||||
14 | Suction | Cast Iron | ASTM25B | |||
15 | Discharge | Cast Iron | ASTM25B | |||
Performance Table
![]()
![]()
