Conprofe ультразвуковой высокоскоростной графитовый обрабатывающий центр с ЧПУ цифровой фрезерный станок 3
- Категория: Фрезерные станки с ЧПУ >>>
- Поставщик: Conprofe,Technology,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.16 $* | 0.52 $* |
| Aug-17-2025 | 0.49 $* | 0.83 $* |
| Jul-17-2025 | 0.40 $* | 0.72 $* |
| Jun-17-2025 | 0.7 $* | 0.53 $* |
| May-17-2025 | 0.48 $* | 0.57 $* |
| Apr-17-2025 | 0.35 $* | 0.79 $* |
| Mar-17-2025 | 0.86 $* | 0.71 $* |
| Feb-17-2025 | 0.41 $* | 0.25 $* |
| Jan-17-2025 | 0.74 $* | 0.6 $* |
Характеристики

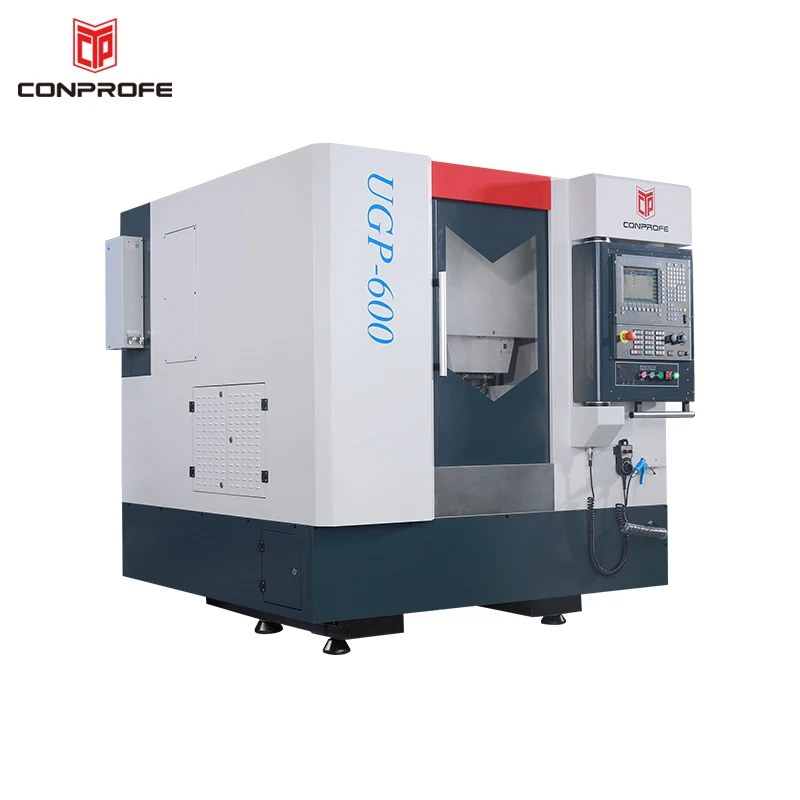

Conprofe Ultrasonic High Speed Graphite Machining Center CNC Digital Milling Machine 3 Axis
Product Description
| UGP 600 | ||
| System | 840Dsl system | |
| Product Name | Conprofe Ultrasonic Graphite Machining Center | |
| Work table | Dimension | 620x560 |
| Max.Load | 200 | |
| Travels | Max.Travel in X-/Y-/Z-axis | 600x500x180mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |

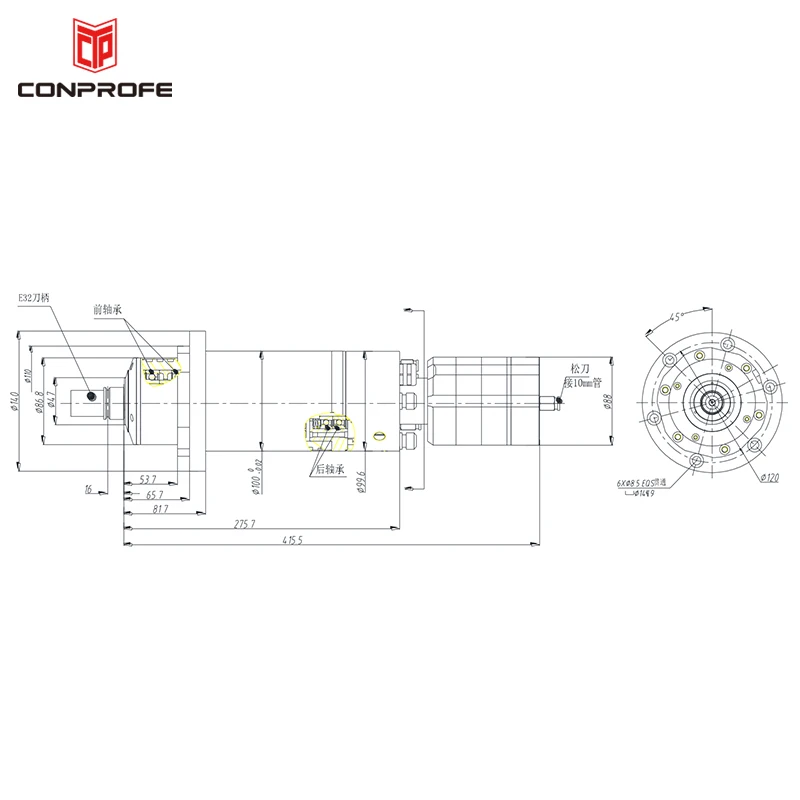

| Spindle | Diameter | 100mm |

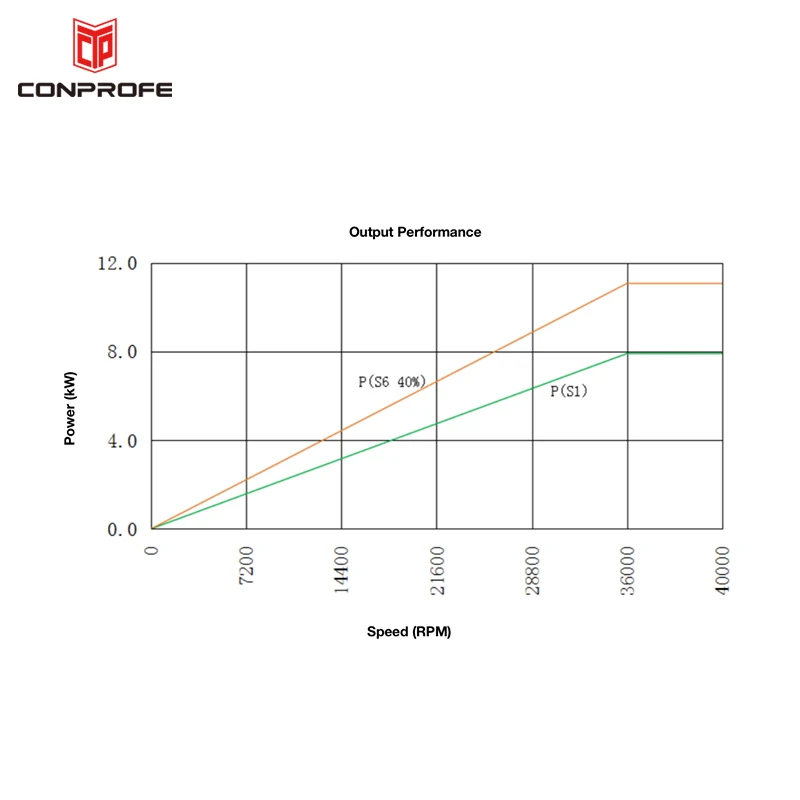

| Power Rating | 6.5kW | |
| Max.Speed | 40000rpm | |
| Magazine | Tool Capacity | 15Positions |
| Tool Holder Spindle | HSK-32E | |
| Tool Overhang | 90mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.003mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.002mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A |
| Weight | 5000kg | |
| Dimensions(X/Y/Z) | 2160 × 2090 × 2390mm | |
Make the Impossible Possible:
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%

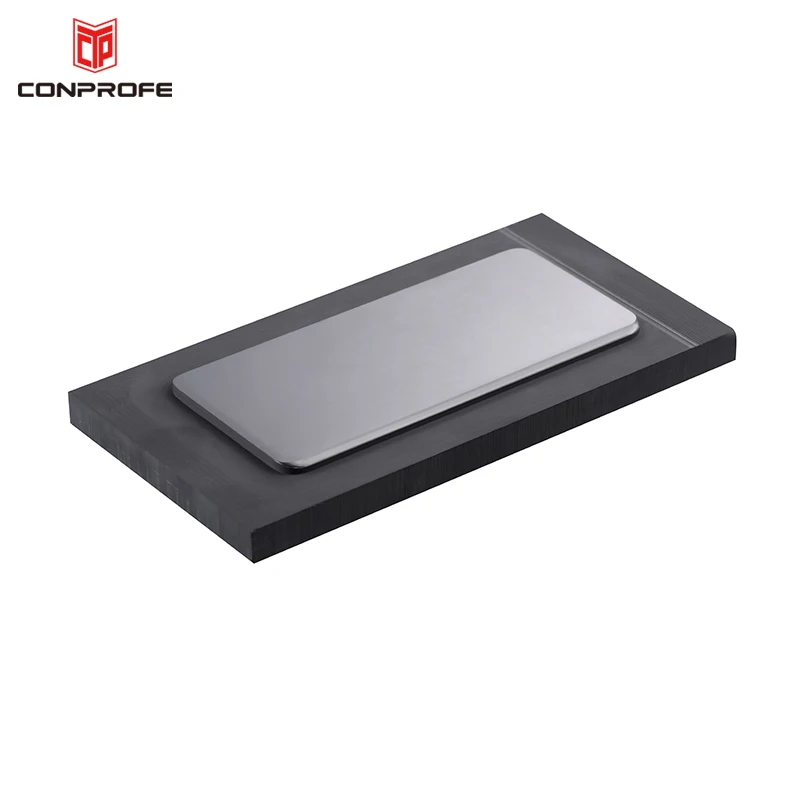

1. Best fit for graphite processing
2. High precision and efficiency with ultrasonic technologies
3. Permanent magnet synchronous motor built into spindle and thus low thermal elongation
4. Double-lay protection and positive pressure sealing technology against graphite dust
5. High-precision grating scale allows for closed loop control
6. Significant tool life improvement![]()
![]()
![]()
![]()
![]()
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%
1. Best fit for graphite processing
2. High precision and efficiency with ultrasonic technologies
3. Permanent magnet synchronous motor built into spindle and thus low thermal elongation
4. Double-lay protection and positive pressure sealing technology against graphite dust
5. High-precision grating scale allows for closed loop control
6. Significant tool life improvement
