Sand Washer
Мини-тромели для мытья Ганы запчасти экрана стиральной машины ковер золотого

Мини-тромели для мытья Ганы запчасти экрана стиральной машины ковер золотого

Категория: Sand Washer >>>
Поставщик: Jiangxi,JXSC,Mining,Machinery,Co.,Ltd.

Цена:3 800,00 $ - 4 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4522.36 $*	4748.52 $*
Aug-19-2025	4484.54 $*	4708.38 $*
Jul-19-2025	3762.32 $*	3950.98 $*
Jun-19-2025	4408.95 $*	4628.79 $*
May-19-2025	3838.28 $*	4030.55 $*
Apr-19-2025	4332.72 $*	4549.44 $*
Mar-19-2025	4294.21 $*	4509.33 $*
Feb-19-2025	4256.35 $*	4469.12 $*
Jan-19-2025	4218.59 $*	4429.60 $*

Характеристики

Product Description

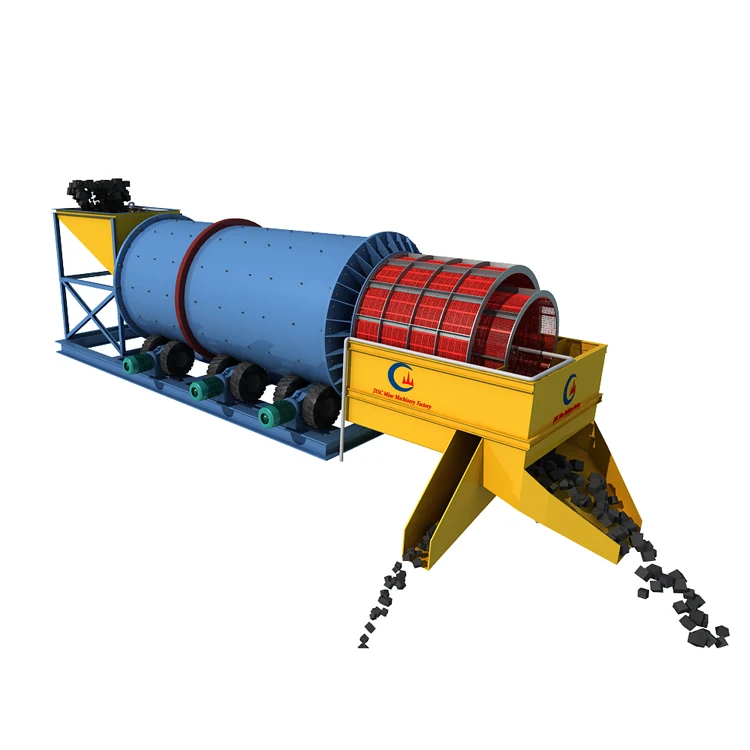

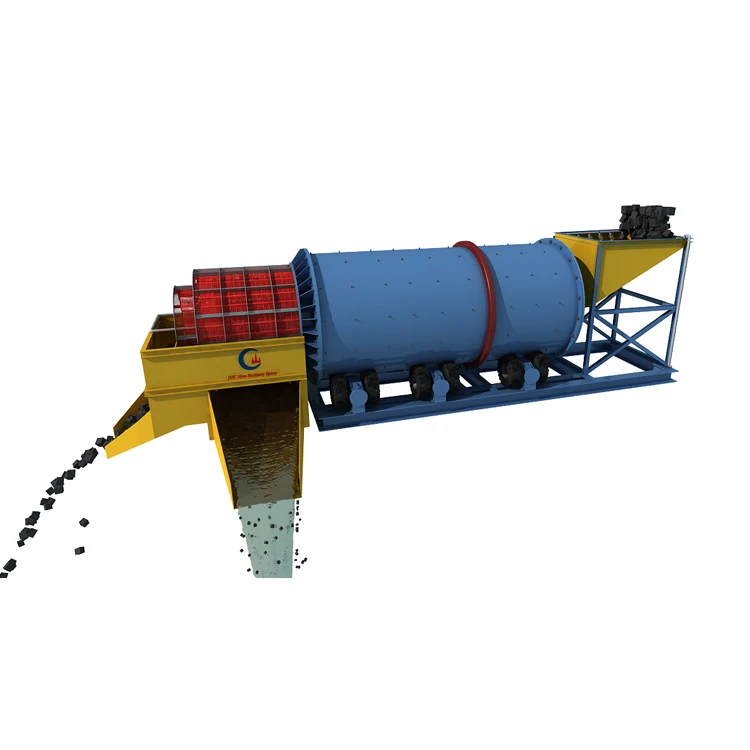

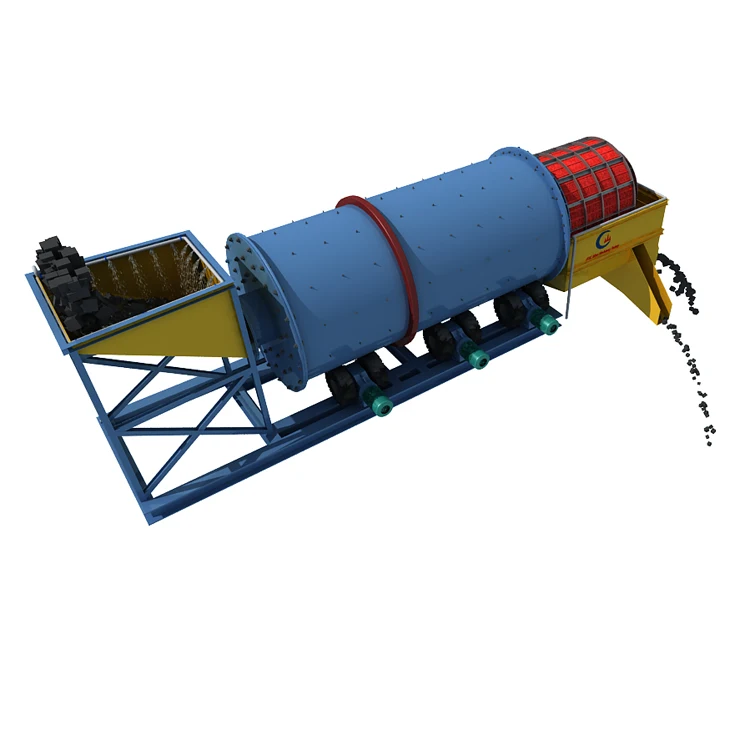

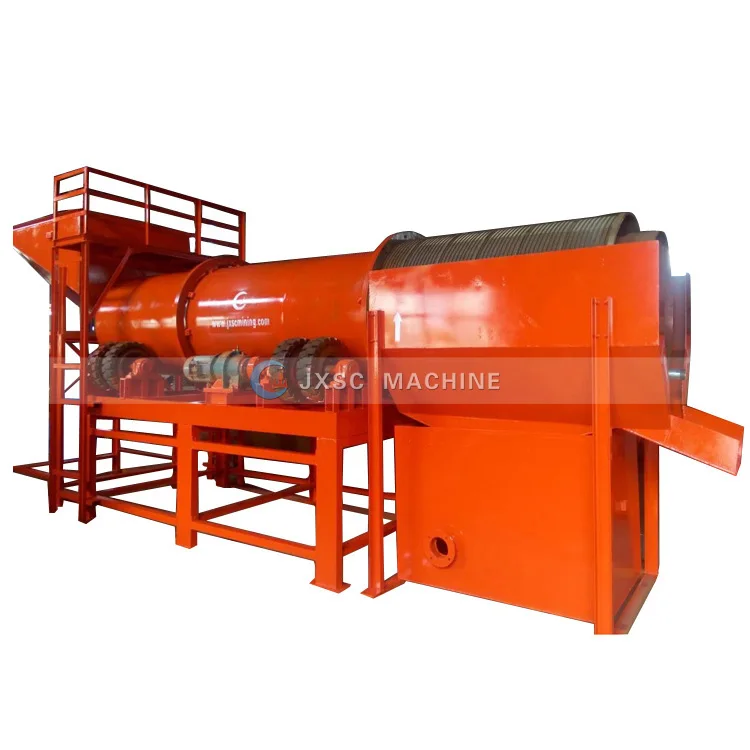

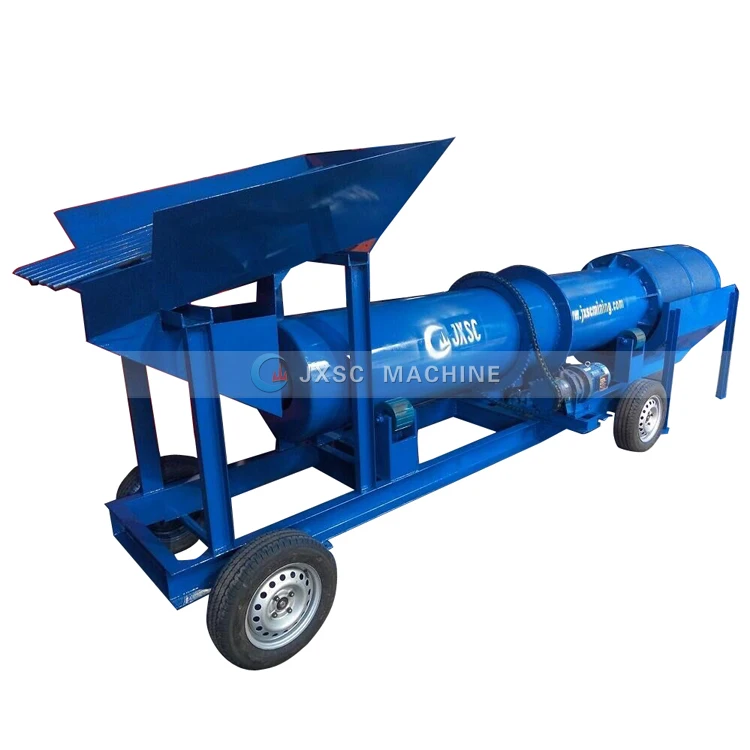

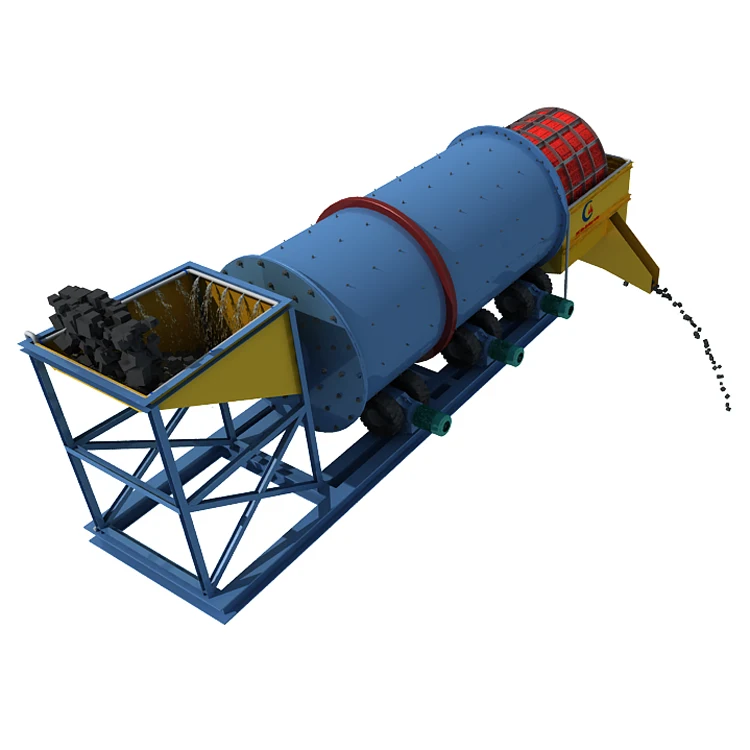

Alluvial Gold Ore Processing Plant Machine Trommel Scrubber Washing Machine

Drum Scrubber Washing Machine is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores.There are 4 carrier rollers to support the drum. The Gold Trommel Washing Machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen of Gold Trommel Washing Machine will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to nextmachine, such as sluice box, centrifugal concentrator, shaking table ect.

Application of Drum Scrubber Washing Machine

Drum Scrubber Washing Machine Mostly used for washing stick clay material, such as alluvial gold , tin ore, tungsten ore, diamond ore, coltan ore, manganese ore, iron ore, chrome ore, gravel stones, copper ore, zinc lead ore,ect

Specification

Model	Screen size (mm)	Rotation Speed (r/min)	Feeding size (mm)	Angle of inclination （°）	Capacity (t/h)	Power (kw )
400	≤20	27.9	≤80	≤10°	0-1	13
600	≤25	27.6	≤80	≤10°	20	5
750	≤25	27.6	≤100	≤10°	30	7.5
900	≤25	27.6	≤100	≤10°	40	11
1200	≤25	17	≤160	≤10°	50	15
1500	≤50	16	≤230	≤10°	70-100	30
1800	≤50	16	≤230	≤10°	120-150	37
2100	≤50	16	≤230	≤10°	150-180	45

Our customer

We have many customers visiting our facotry for checking the gold trommel scrubber , gold washing machine, talk about flowchart ,material conditions,and check machine quality .

Exhibitions

We have attention Many different country Mining Exhibitions, the gold trommel scrubber, gold washing machine are very popular for customers at exhibition.

Packing & Delivery

Company Profile

Jiangxi JXSC Mining Machinery Co., Ltd. is a privatization enterprise, which focuses on mining equipment R&D,manufacturing and sales, the main products include sand and stone making equipments,beneficiation equipments,new type dry technology cement producing equipment,limestone producing equipments etc. Besides, we also design and install sand project and some ecological improvement equipment, and self-operate and agent import and export business for all kinds of products.The stone and sand making production process, mineral separation system, grinding system and drying system which independently R&D by our company have been the world leading level. Our products have been widely used in industries, such as mining, chemical industry, metallurgy, building material, coal, refractory material and so on. In technological innovation, the offline pulse bag filter, large synchronous segmentation injection bag filter technology, series efficient classifier and other technology of our company have met the domestic leading level. For development strategy, our company successively implemented three projects which are "High beginning location", "Two strategic shift", "Brand determines the future". entire policies and development ideas, and to build the enterprise's comprehensive core competitiveness. We have passed CE Certification, National Level AAA Measurement System and ISO9001,ISO14001,OHSAS18001 Three Standard In One Certification.On service quality, our company have accomplished many wonderful projects based on service strategy of "one center, one compromise, three brace, three first-rate, four control, five operation, six criterion", and a full course of follow-up service for users. international orientation and scale development create rich experience and general contracting ability in project implementation,so on. At the same time, our products are also exported to more than 30 countries, such as to Uzbekistan, Denmark, Turkey, Vietnam, Nigeria etc.
