Product Description

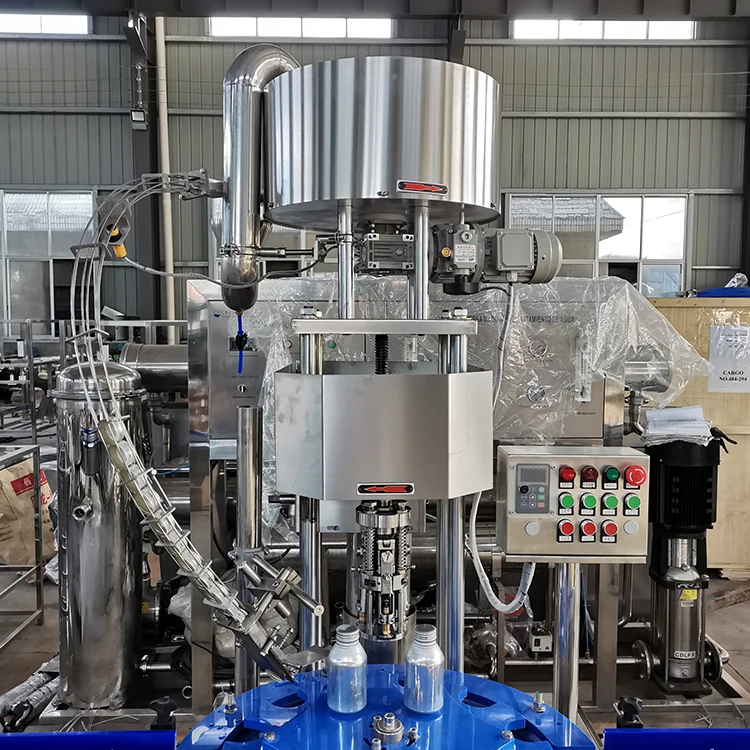

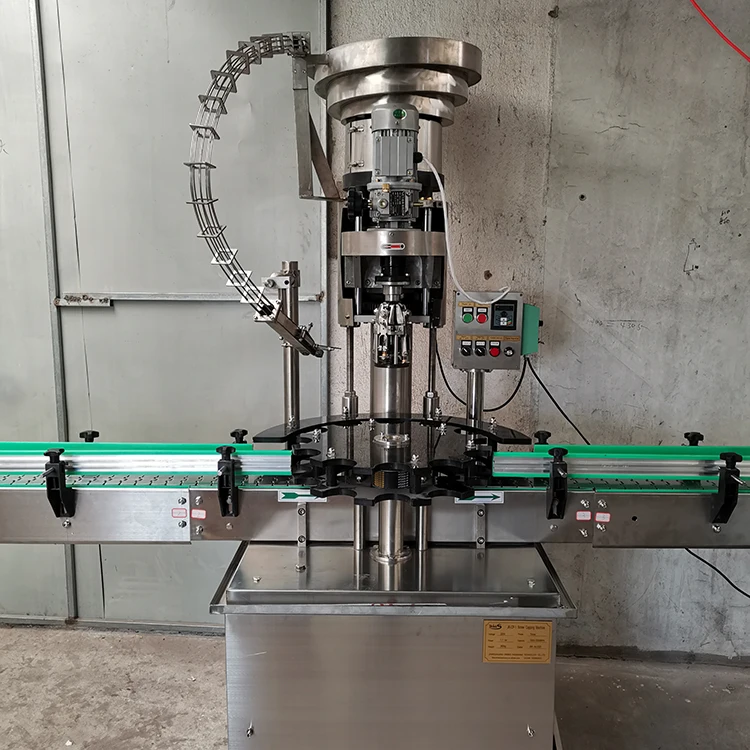

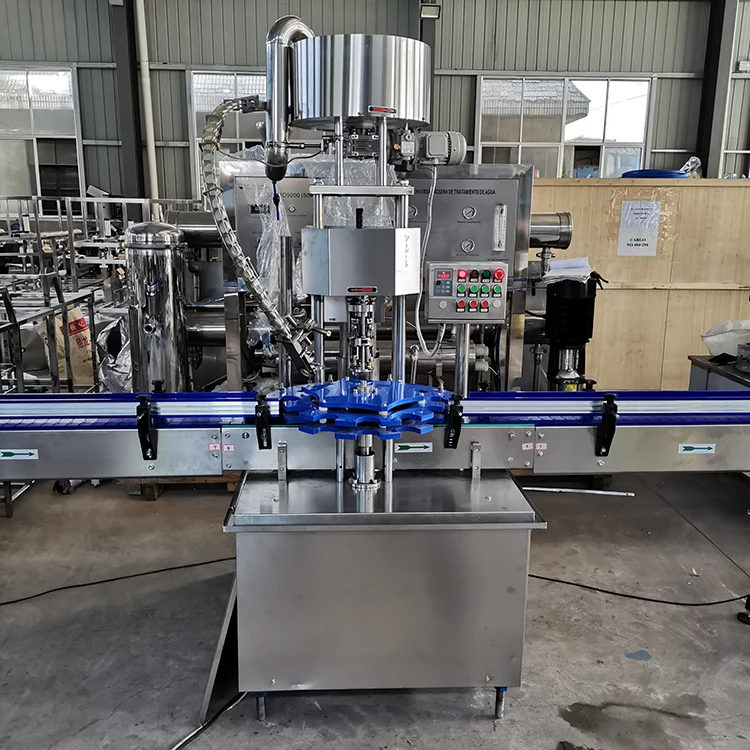

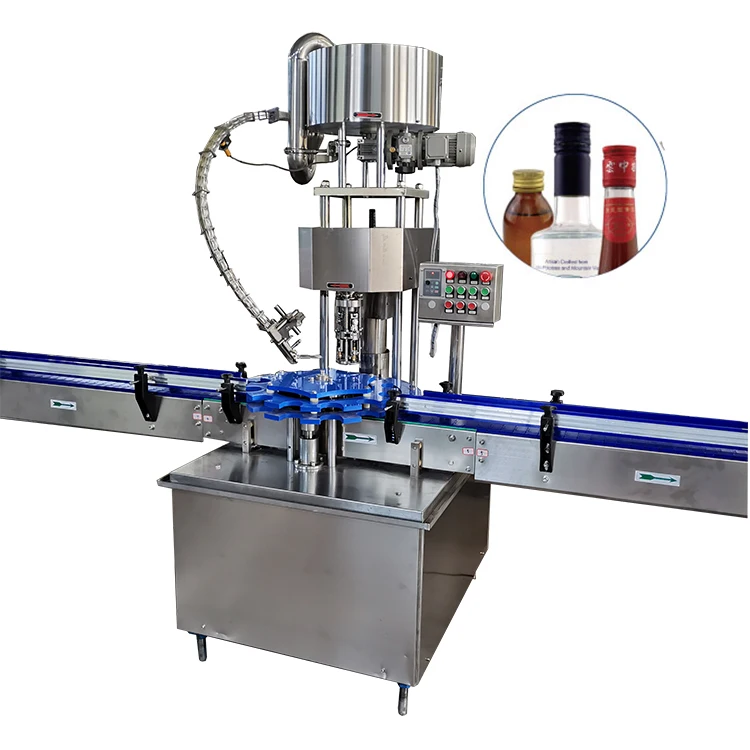

Multifunction Automatic Rotary Type Wine Bottle Capping Machine ropp Capper
What is Capping Machine and Why it is required?
Capping Machines, tighteners are used for sealing the filled bottles, containers, vials, jars and related . Caps are devices that are used to close off a container. Caps prevent product leakage, product contamination, to extend a product’s shelf life, and prevent tampering.
The different type of products that are packaged and the containers that they fill are different in nature so there are large number of processes, techniques and machines are used for sealing.
There is an important role of sealing and capping in optimal product packaging. Its protect the product by varieties of caps and seals if capping is done by correct method that only ensure product safety, quality and efficiency.
Capping Machines, tighteners are used for sealing the filled bottles, containers, vials, jars and related . Caps are devices that are used to close off a container. Caps prevent product leakage, product contamination, to extend a product’s shelf life, and prevent tampering.
The different type of products that are packaged and the containers that they fill are different in nature so there are large number of processes, techniques and machines are used for sealing.
There is an important role of sealing and capping in optimal product packaging. Its protect the product by varieties of caps and seals if capping is done by correct method that only ensure product safety, quality and efficiency.
Our factory can customize the machine according to the output per hour, different size lids, to meet the customer's demand.
Modle | YGJ-1 | ||||
Cap type | Aluminum cap | ||||
Capacity | 1000-2000bph | ||||
Bottle diameter | Φ 50-100mm (bottle can be round or flat) | ||||
Bottle mouth diameter | 18-34mm | ||||
Height of bottle | 100-350mm | ||||
Power | 1.5kw | ||||
Machine weight | 490KG | ||||
Machine size | 1000*750*1900mm | ||||
Unscramble cover:
The lid is manually placed in the extractor and the lid extractor automatically arranges the lid into the lid recess. The cover is blown into the guide ring of the gland column with the aid of compressed air.

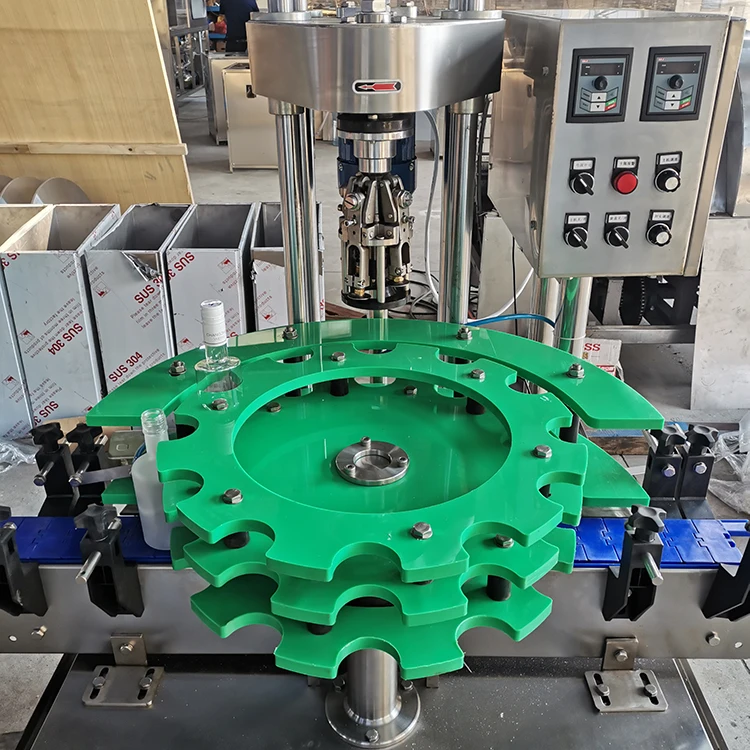

Cap slot:
The glass bottle is smoothly fed into the dial wheel by the conveyor belt. The vibrating plate sends the aluminum cover to the wearing station through the hopper and the track. The bottle dial is used to put the bottle into the cover and then sent to the rolling station; the ring around the station center The cap is pressed by the cam to press the cap.

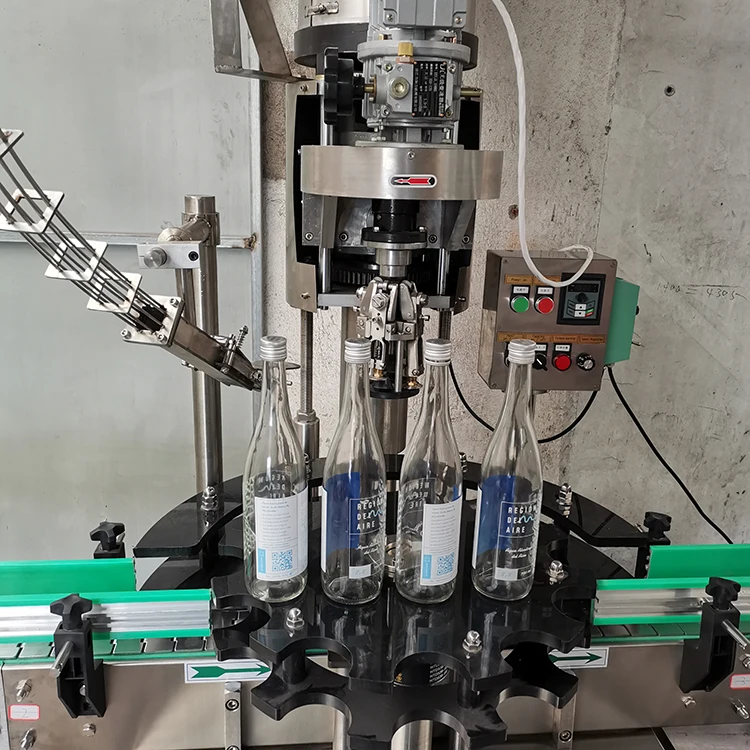

Screw cap mould:
The bottle holder starts to rotate at a high speed with a glass bottle, so that the aluminum cover tightly covers the bottle mouth.Cap - turning die adopts four - claw balanced head sealing, uniform force, beautiful sealing and other advantages.
Sealed finished product:
When the capping head rotates to the highest point of the cam, it gradually separates from the glass bottle. The bottle is pulled out from the bottle dial and enters the bottle exiting track, thereby completing the entire capping process and achieving the desired capping effect.
