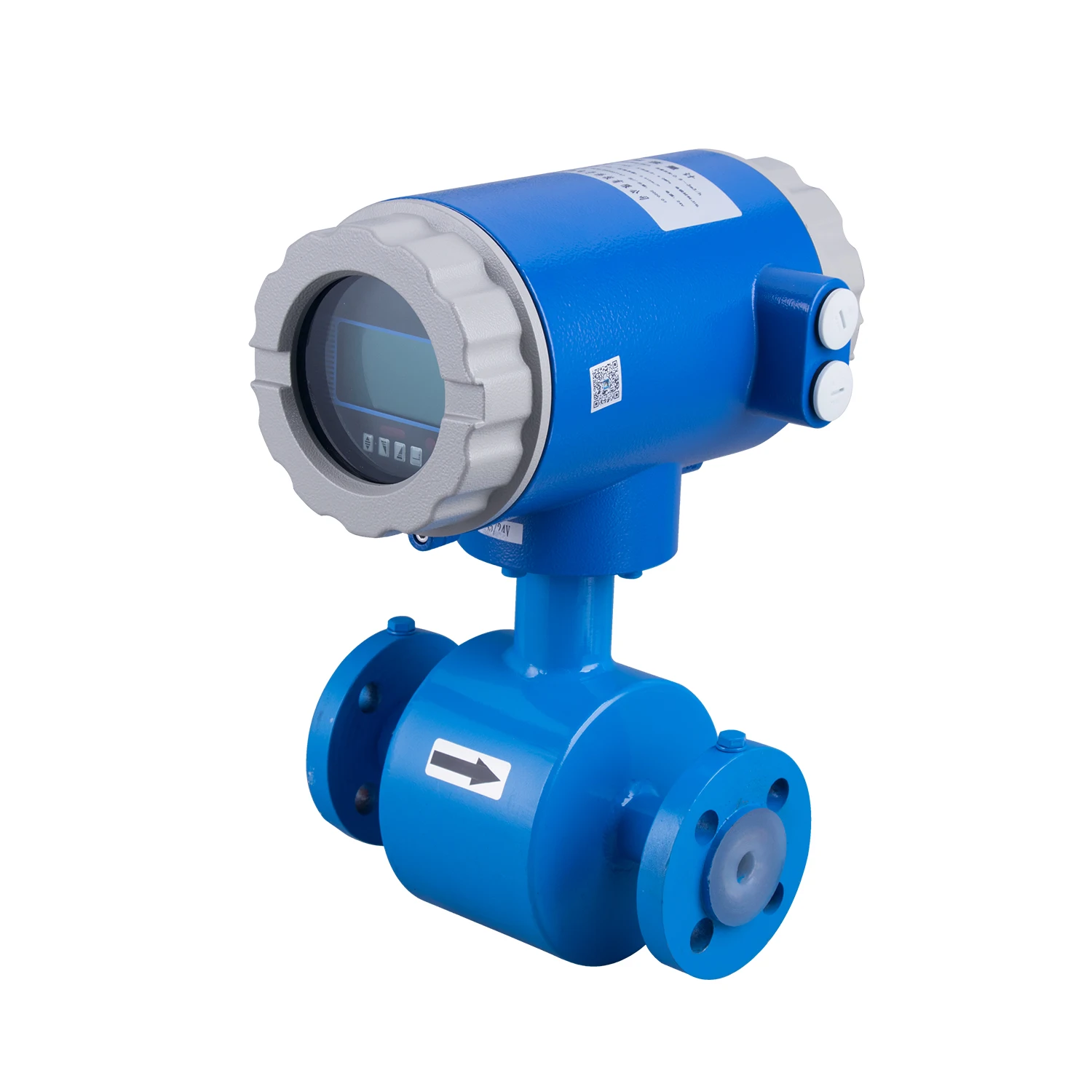

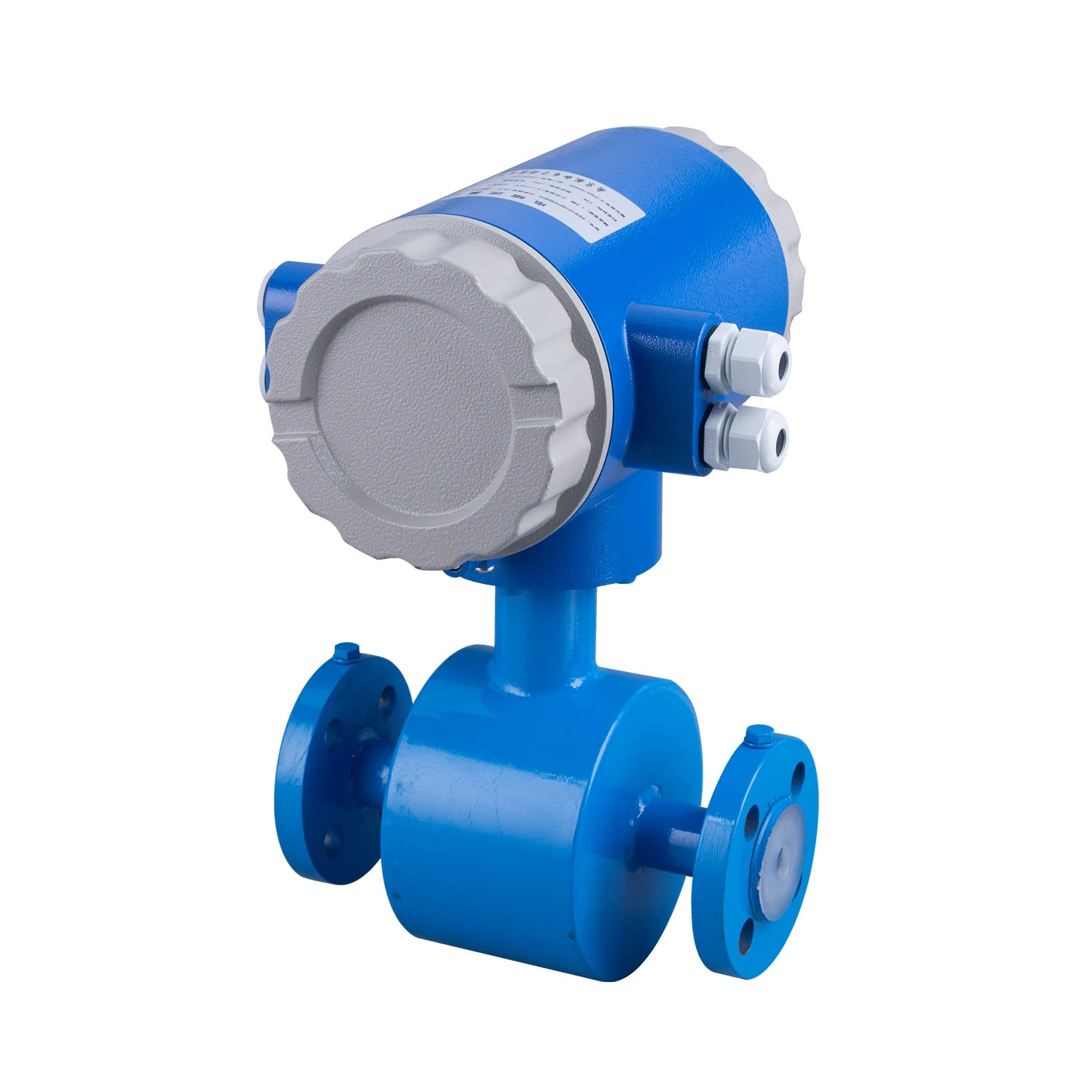

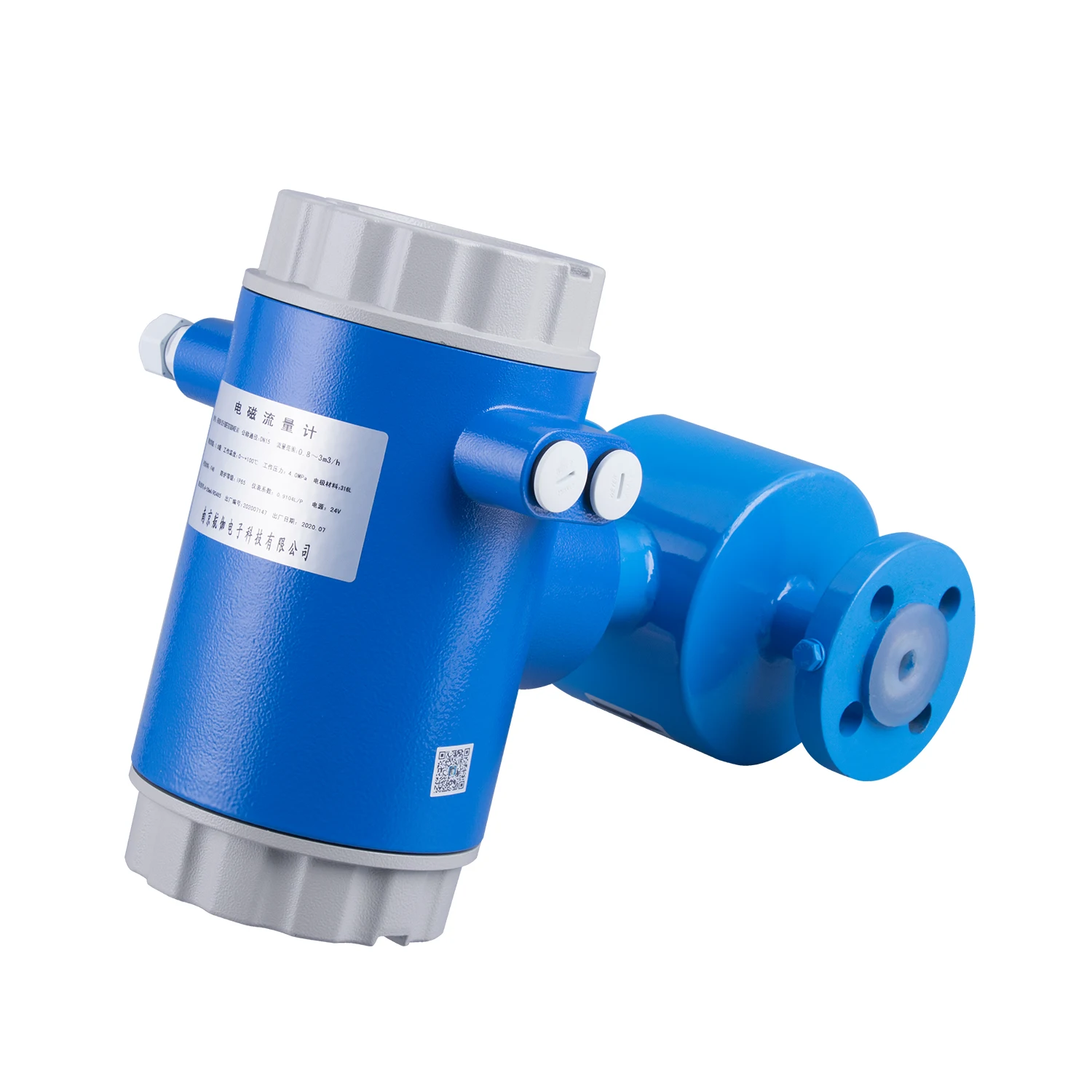

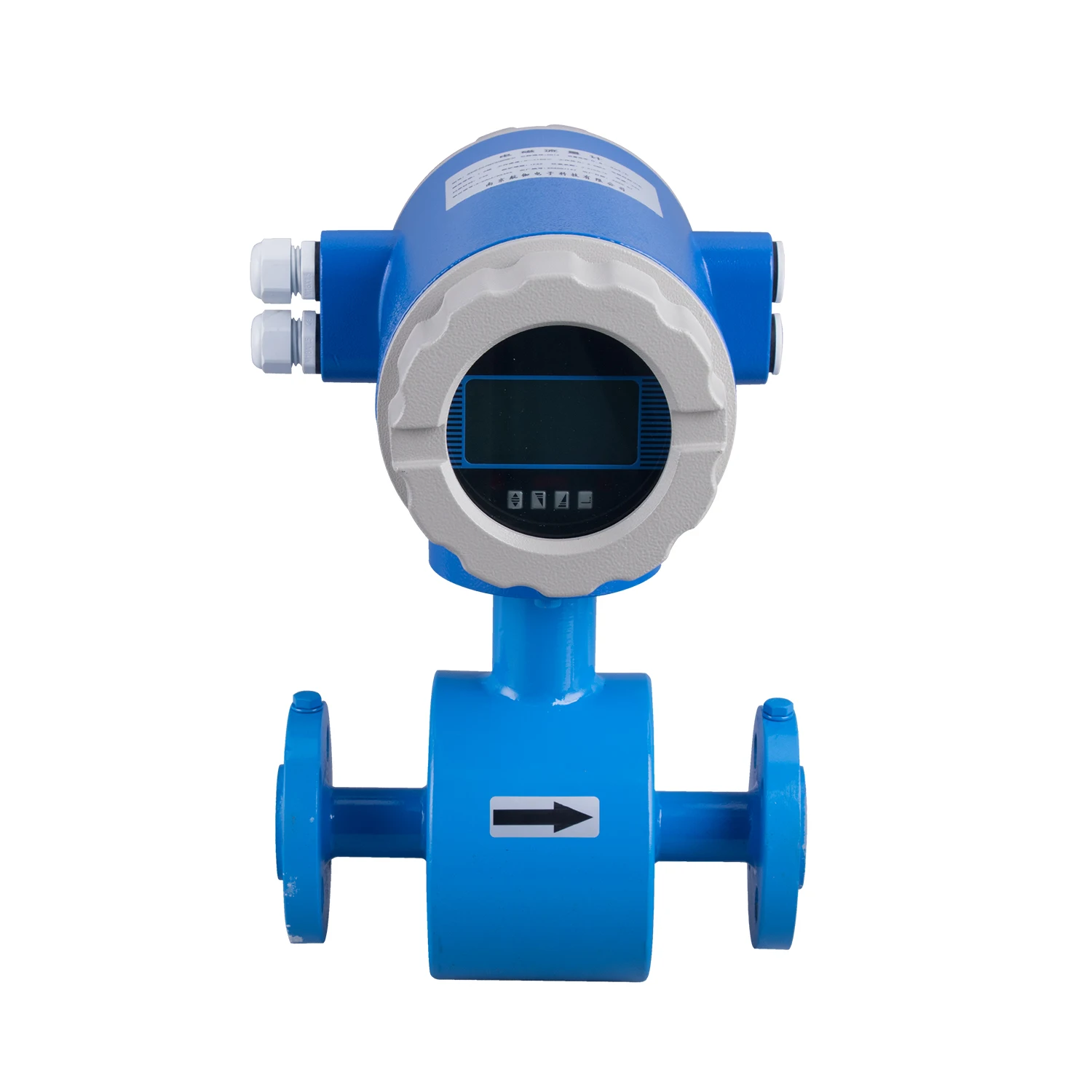

Интеллектуальный RS485 HART цифровой дисплей сточных вод электромагнитный

Интеллектуальный RS485 HART цифровой дисплей сточных вод электромагнитный

Категория: Flow Meters >>>
Поставщик: Nanjing,Hangjia,Electronic,Technology,Co.,Ltd.

Цена:190,00 $ - 280,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	226.80 $*	237.13 $*
Aug-17-2025	224.50 $*	235.18 $*
Jul-17-2025	188.79 $*	197.1 $*
Jun-17-2025	220.4 $*	231.52 $*
May-17-2025	192.3 $*	202.81 $*
Apr-17-2025	217.71 $*	228.73 $*
Mar-17-2025	215.59 $*	226.54 $*
Feb-17-2025	213.68 $*	224.42 $*
Jan-17-2025	211.73 $*	222.45 $*

Характеристики

Product Description

Features:

1. Clear LCD display screen, display instantaneous flow and cumulative flow respectively
2. Advanced excitation technology, brief excitation circuit with stability and reliability
3. Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
4. Empty and full pipe measurement technique to avoid false alarms
5.With low conductivity measurement function

6.Prompt response design for high resistance, undistorted collection of weak signals and prompt reaction for flow change , the range rate can achieve 100:1

7.Various optional output communication interfaces

Specification

Aperture Diameter	DN10-DN2400
Flange	Meet GB/T9119-2000standard carbon steel (stainless steel optional),other standards can be customized
Rated Pressure Grade	DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa
Lining Material	Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc.
Electrode	Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum
Ingress Protection	IP68, IP65 for Customized
Accuracy Grade	0.5 grade
Medium Temperature	Sensor: -25~180ºC, Transmitter: -10~80ºC
Measuring Flow Velocity	Less than 20m/s
Supply Voltage	24VDC, 220VAC
Output	Current 4~20mA, Pulse, Frequency, RS485, HART, Profibus-PA
