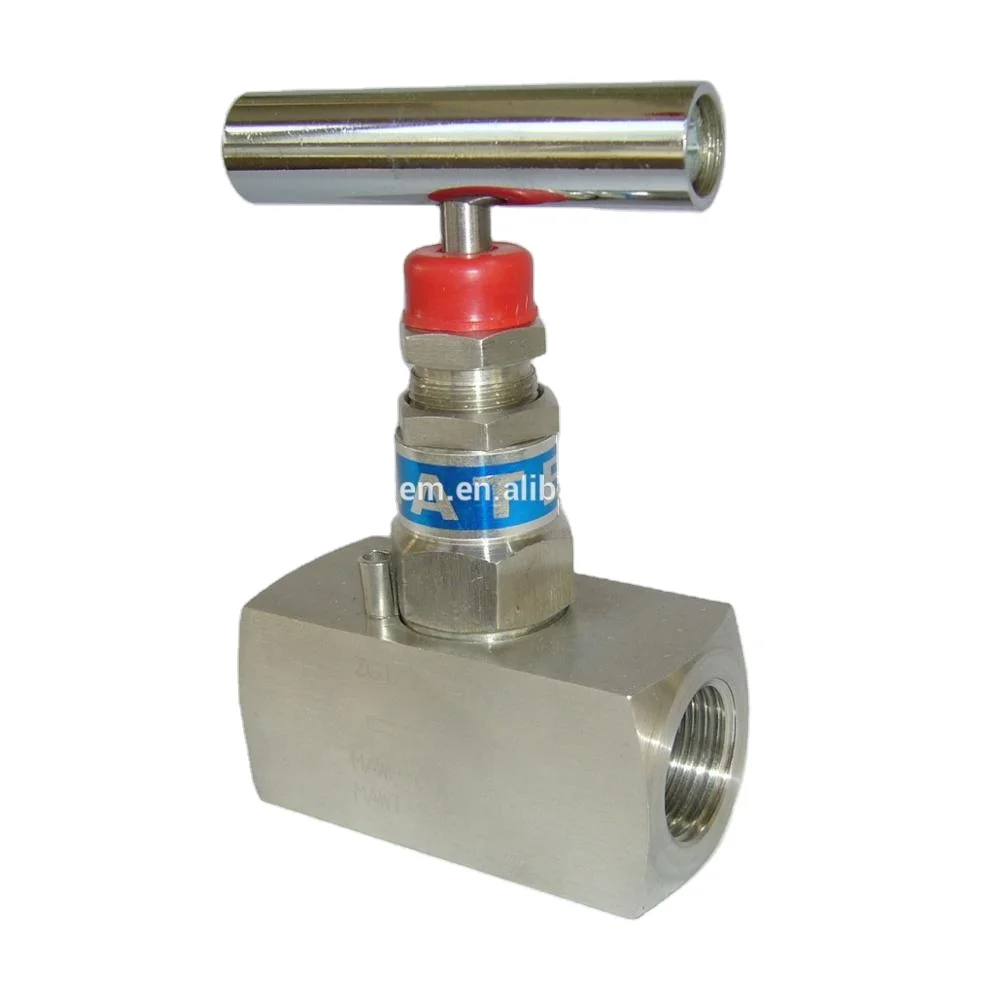

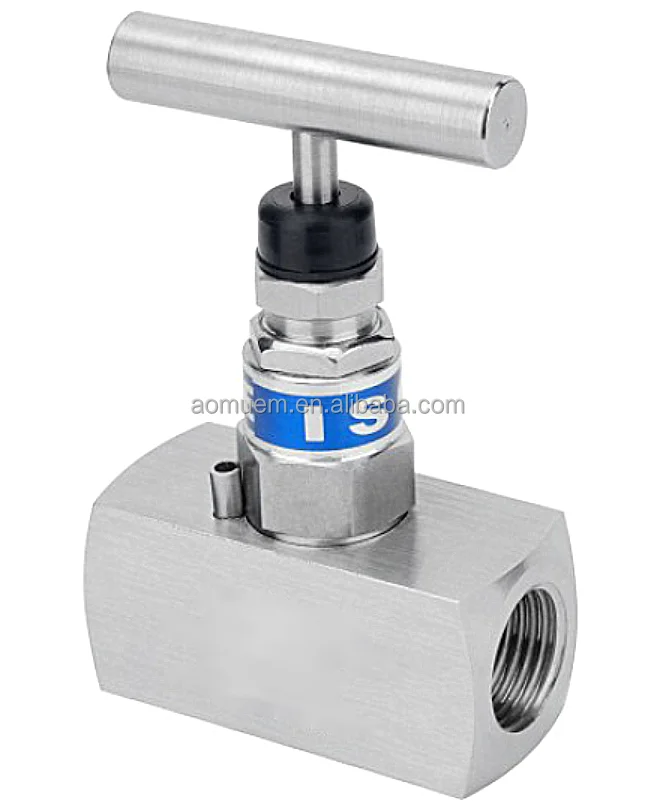

Морской Инструмент нержавеющая сталь 316 2205 игольчатый клапан для
- Категория: Needle Valves >>>
- Поставщик: Shanghai,Aomu,Mechanical,And,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.93 $* | 0.5 $* |
| Aug-19-2025 | 0.42 $* | 0.33 $* |
| Jul-19-2025 | 0.60 $* | 0.72 $* |
| Jun-19-2025 | 0.97 $* | 0.98 $* |
| May-19-2025 | 0.25 $* | 0.68 $* |
| Apr-19-2025 | 0.77 $* | 0.26 $* |
| Mar-19-2025 | 0.79 $* | 0.11 $* |
| Feb-19-2025 | 0.62 $* | 0.12 $* |
| Jan-19-2025 | 0.8 $* | 0.25 $* |
Характеристики
Specification
Item | Value |
Standard | ANSI B16.34, ASME, GB |
Working Pressure | 414bar@25°C / 116bar@648°C |
Temperature Rating | 648°C with Graphite packing(G) |
Inlet&Outlet Size | DN6-DN10 |
Orifice Size | DN6-DN10 |
Material | SS316L, Duplex Stainless Steel, Monel, Hastelloy, Titanium, Inconel Alloy |
Features

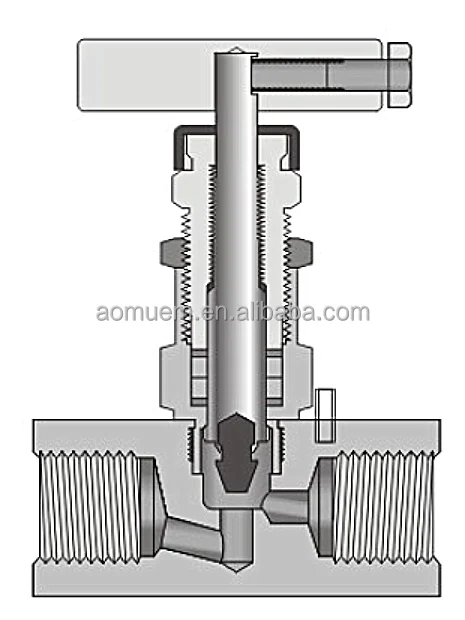

①Cold drawn bar as body
②Two-piece stem design: Upper stem threads cold rolled
and lower stem hardened for high strengthand smooth
operation
③Upper stem thread lubricant isolated from system media
④Linear instead of rotary motion of the rising,non-rotating
stem minimizes packing abrasion and reduces the friction
between the seat and the tip
⑤Safety back seating seal in fully open position
⑥Panel mounting available
⑦Steady and durable fastening of the handle by double
lock-pins
⑧Handles of different colors available
⑨ Every valve leak tested with Nitrogen or compressed air at the maximum allowable working pressure
⑩Working pressure up to:
Stainless steel:6000 psig(414 bar)
Alloy C-276: 6000 psig(414 bar)
Alloy 400: 5000 psig(345 bar)
Titanium: 3500 psig(241 bar)
Brass: 3000 psig(207 bar)
Alloy C-276: 6000 psig(414 bar)
Alloy 400: 5000 psig(345 bar)
Titanium: 3500 psig(241 bar)
Brass: 3000 psig(207 bar)
⑪ Working temperature:
PTFE: -65°F to 450°F(-54℃ to 232℃)
PEEK: -65°F to 500°F(-54℃ to 260℃)
Graphite: -65°F to 1200°F(-54℃ to 649℃)
PTFE: -65°F to 450°F(-54℃ to 232℃)
PEEK: -65°F to 500°F(-54℃ to 260℃)
Graphite: -65°F to 1200°F(-54℃ to 649℃)
1. who are we?
We are based in Shanghai, China, start from 2017,sell to Domestic Market(30.00%),North America(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Needle Valve,Ball Valve,Manifold,Stainless Steel Coil,Stainless Steel tube
4. why should you buy from us not from other suppliers?
Shanghai Aomu Mechanical and Engineering Co LTD is a comprehensive enterprise integrating valve research, production and sale. We commit ourselves to supply good quality valves for domestic and abroad customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,German
We are based in Shanghai, China, start from 2017,sell to Domestic Market(30.00%),North America(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Needle Valve,Ball Valve,Manifold,Stainless Steel Coil,Stainless Steel tube
4. why should you buy from us not from other suppliers?
Shanghai Aomu Mechanical and Engineering Co LTD is a comprehensive enterprise integrating valve research, production and sale. We commit ourselves to supply good quality valves for domestic and abroad customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,German
