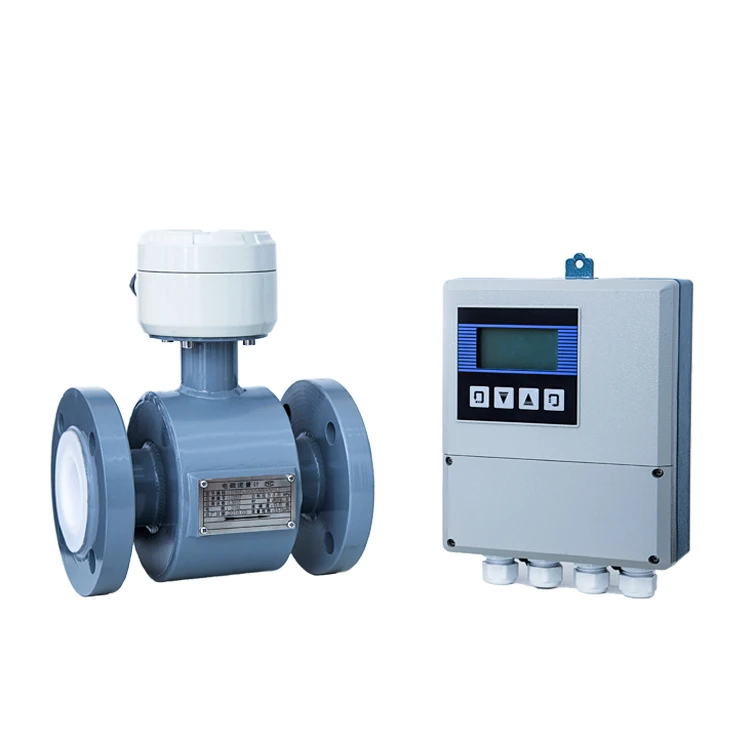

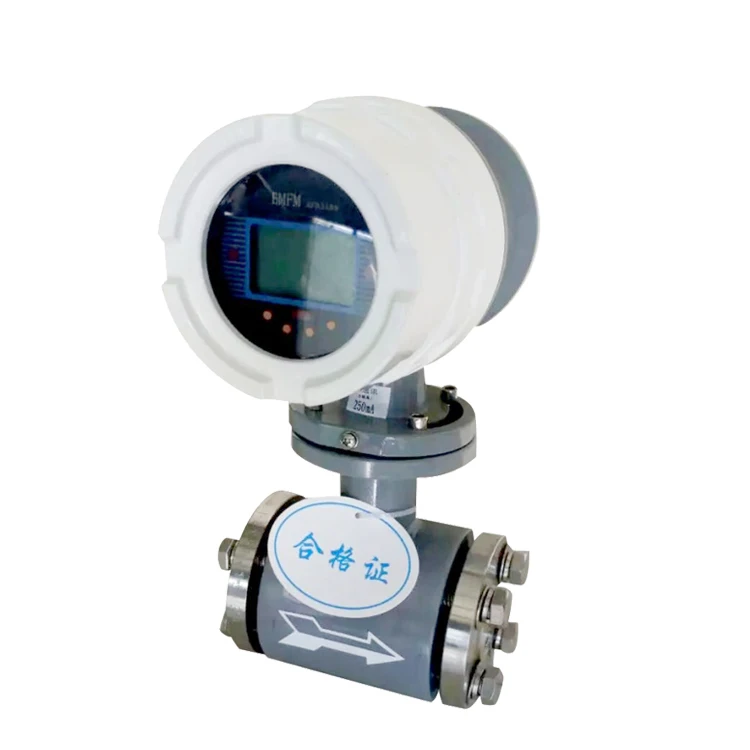

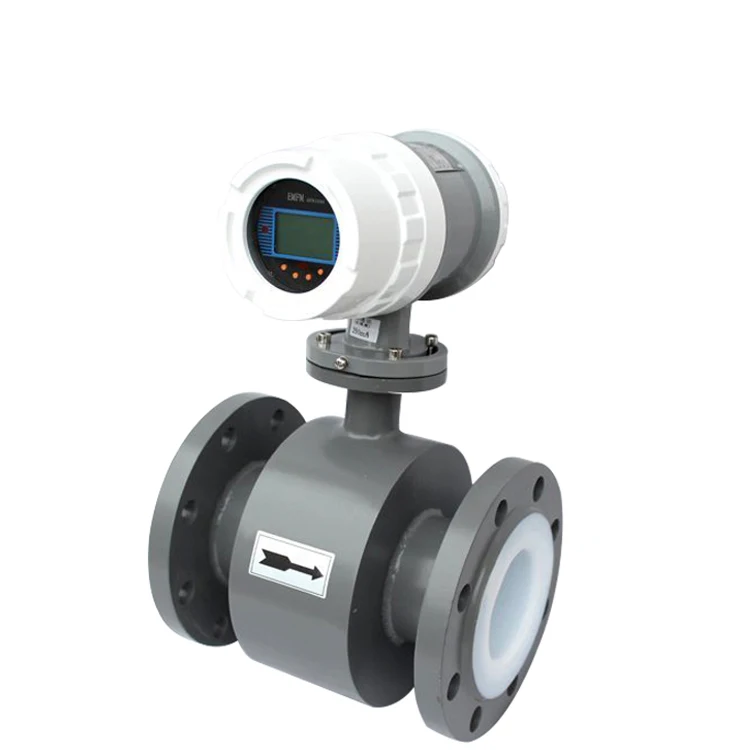

Конкурентоспособная цена электромагнитный расходомер магнитный датчик

Цена:*

Количество:

Executive Standards	Electromagnetic flow sensor(JB/T9248--2015)
Verification regulation	Electromagnetic flowmeter(JJG1033-2007)
Measured medium	Water, acid, alkali, sea water and other corrosive media
Maximum velocity	15m/s
Conductivity	≥5u s/cm

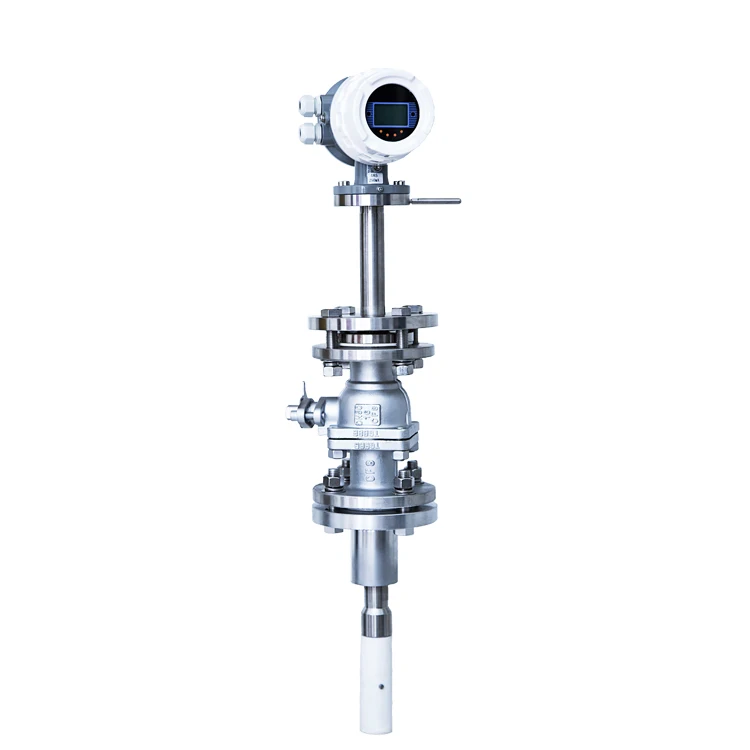

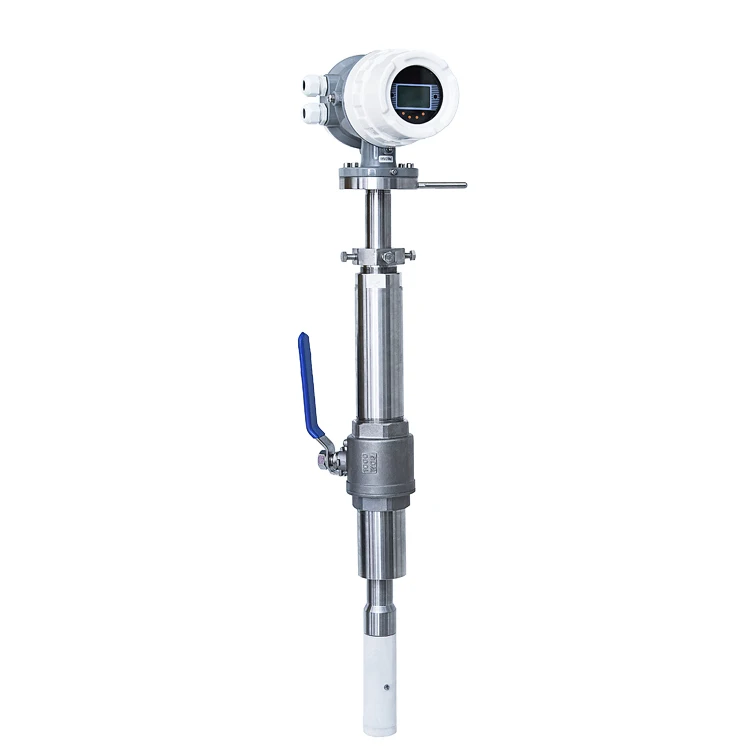

Accuracy class	士0.5%R(Pipe type)			士2.5%R(Plug-in)
Repeatability	≤0.1%(Pipe type)			≤0.3%(Plug-in)
Flange standard	GB/T9113.1-2000，Optional American Standard ANSI, Japanese Standard JIS
Instrument diameter	Pipe type PTFE lining:DN4-DN1200

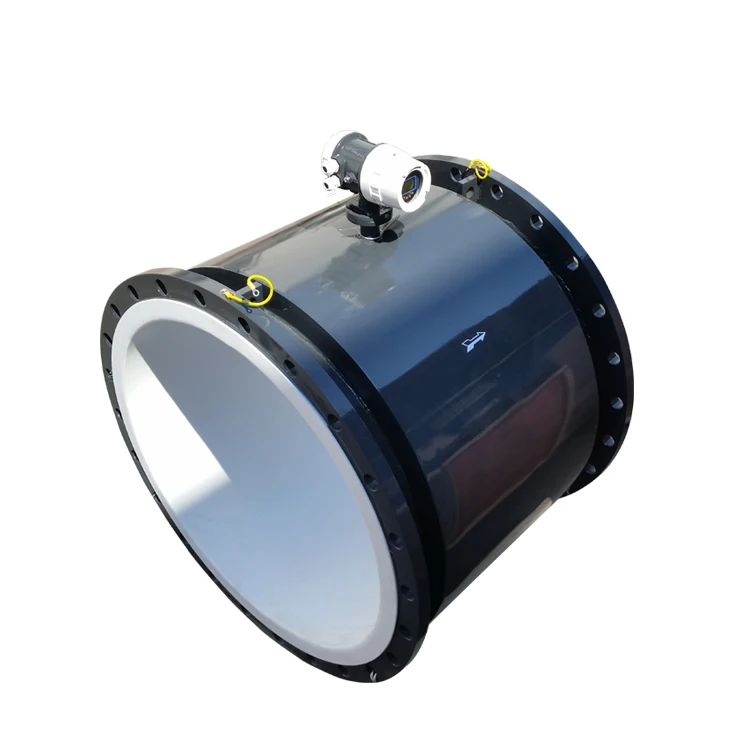

Instrument diameter		Pipe type rubber lining:DN65-DN3000
Rated pressure	DN4~DN50≤4.0MPa
		DN65~DN300≤1.6MPa
		DN350~DN1000≤1.0MPa
		DNI200~DN3000≤0.6MPa
Conditions of use	Medium temperature	Conventional rubber lining:-20~+60° c
				High temperature rubber lining:-20~+90° c
				Polyurethane rubber:-20~+80° c
				Tetrafluoroethylene lining:-30~+120°c
				High temperature F46 lining:-20~+180° c
		Ambient temperature	-25~+60° c	Relative humidity	5%~95%
Total power consumption	＜20W
