Характеристики
Product Description
1、The whole frame welding process makes the frame structure more stable.
2、Carburizing makes the frame more rigid and more stable
3、Precision milling machine processing, so that the equipment higher precision, installation size more accurate.
2、Carburizing makes the frame more rigid and more stable
3、Precision milling machine processing, so that the equipment higher precision, installation size more accurate.

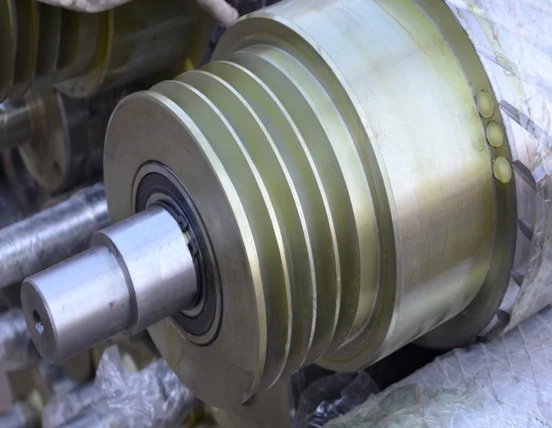

special custom sanding roller
The sand roller used has a monolithic structure and can be divided into three parts (as shown in the right figure), which are
respectively 9mm wall thickness seamless steel pipe, plus an eccentric shaft machine made of round steel, and NSK bearing at the
joint joint. After the combination, the tempering, finishing, balancing and other treatment processes ensure that the wall
thickness of the steel pipe is guaranteed to be 7 mm thick and the left and right balance error is ±0.02 mm. Finally, it is fixed
to the equipment through the bearing housing. This method can eliminate the eccentric sand and sand leakage in a large Chengdu.
respectively 9mm wall thickness seamless steel pipe, plus an eccentric shaft machine made of round steel, and NSK bearing at the
joint joint. After the combination, the tempering, finishing, balancing and other treatment processes ensure that the wall
thickness of the steel pipe is guaranteed to be 7 mm thick and the left and right balance error is ±0.02 mm. Finally, it is fixed
to the equipment through the bearing housing. This method can eliminate the eccentric sand and sand leakage in a large Chengdu.

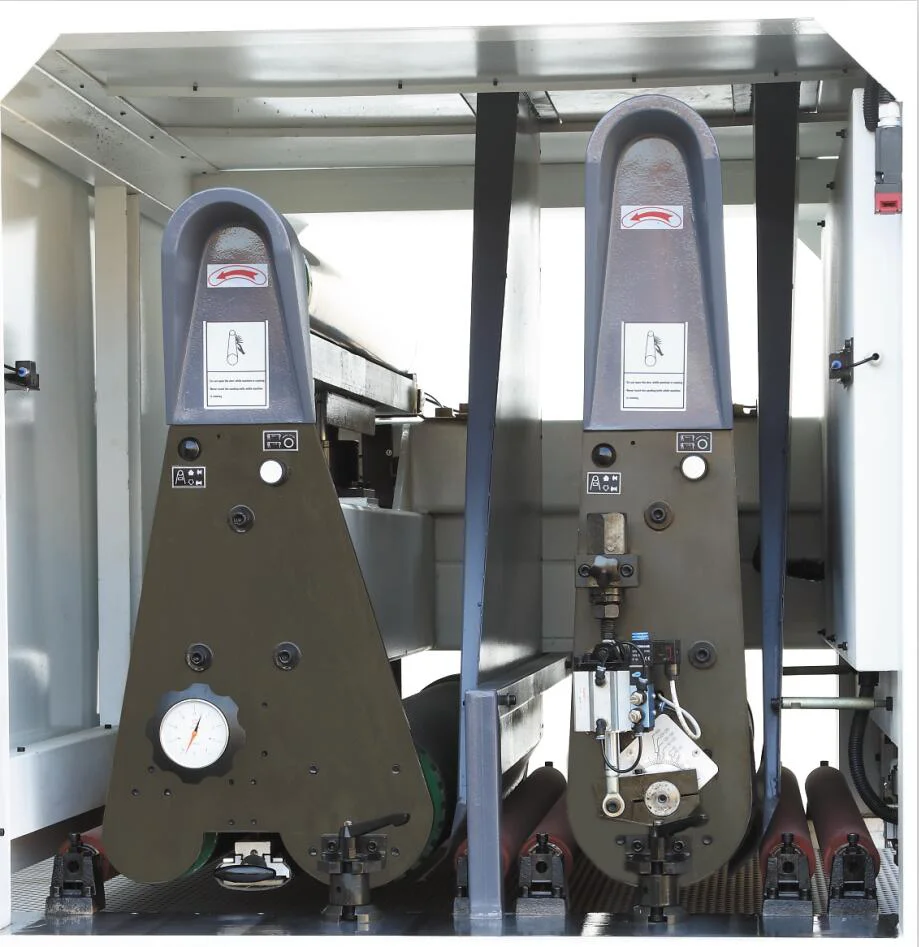

The adjustable eccentric roller
The eccentric roll of the front sand frame uses the cylinder lift function to control the lifting of the front sand frame when it
is not necessary to work. This saves manpower and protects the machining parts from being damaged by emergency parking operations.
is not necessary to work. This saves manpower and protects the machining parts from being damaged by emergency parking operations.

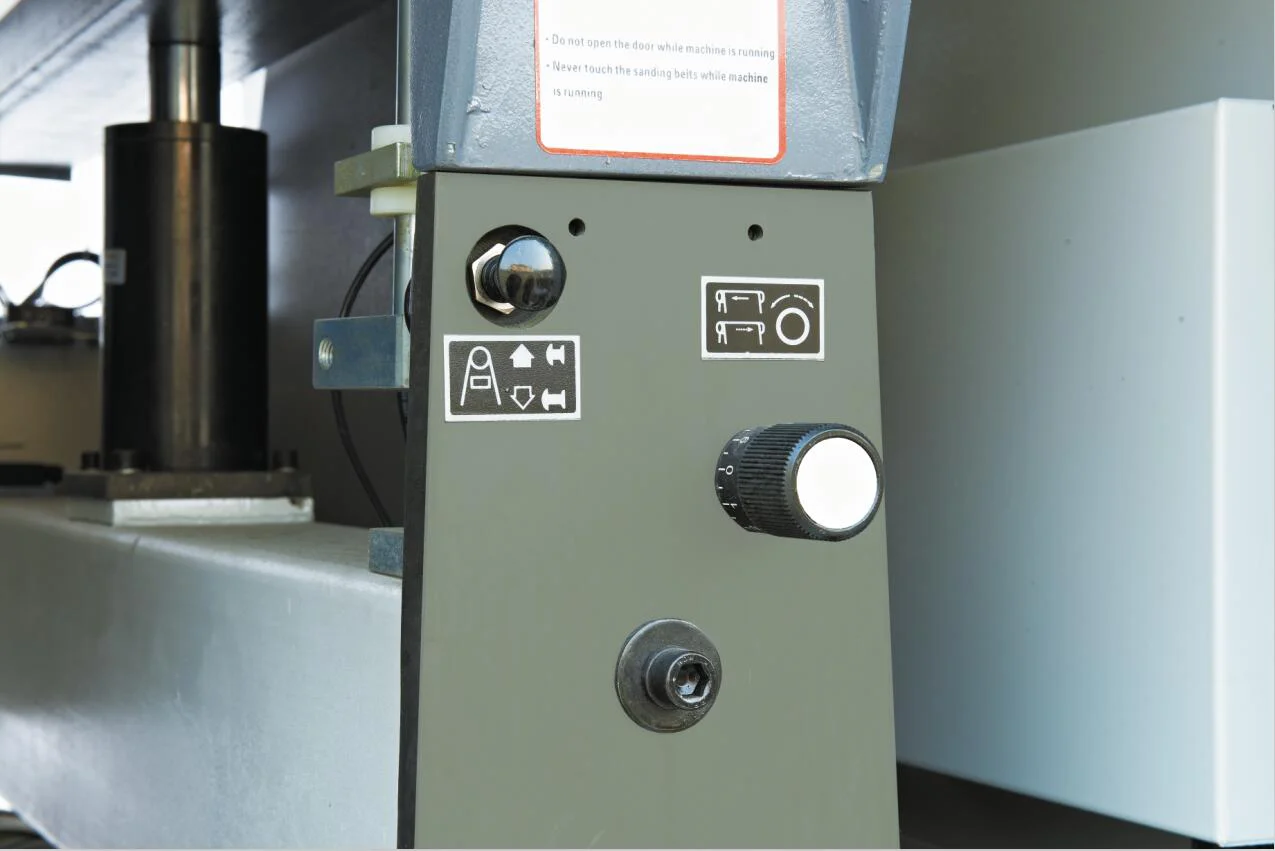

Automatic thickening function

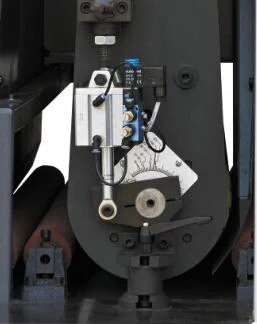

Damped sand belt running offset adjustment knob

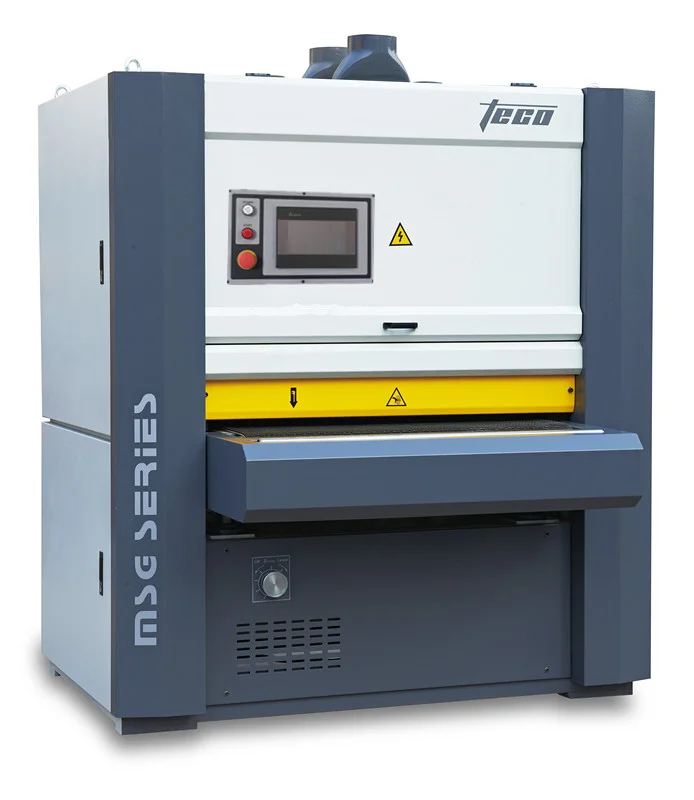

Specification
item | value |
Place of Origin | China |
Condition | New |
Type | WIDE BELT SANDER |
Weight (KG) | 3000kg |
Applicable Industries | Manufacturing Plant |
Warranty | One Year |
Key Selling Points | High Productivity |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | none |
Showroom Location | none |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Other |
TYPE | MSG630R-RP(A) |
Working Width | 40-630mm |
Working Thickness | 2-100mm |
Working Length | ≥420mm |
Feed Speed | 5-25m/min |
Size of Abrasive Belt | 1900X650mm |
Total Motor Power | 20.37KW |
WorkingAir Pressure | 0.6Mpa |
Working voltage | 380V,50Hz |
Speed of Sucked Air | 8200m3/h |
