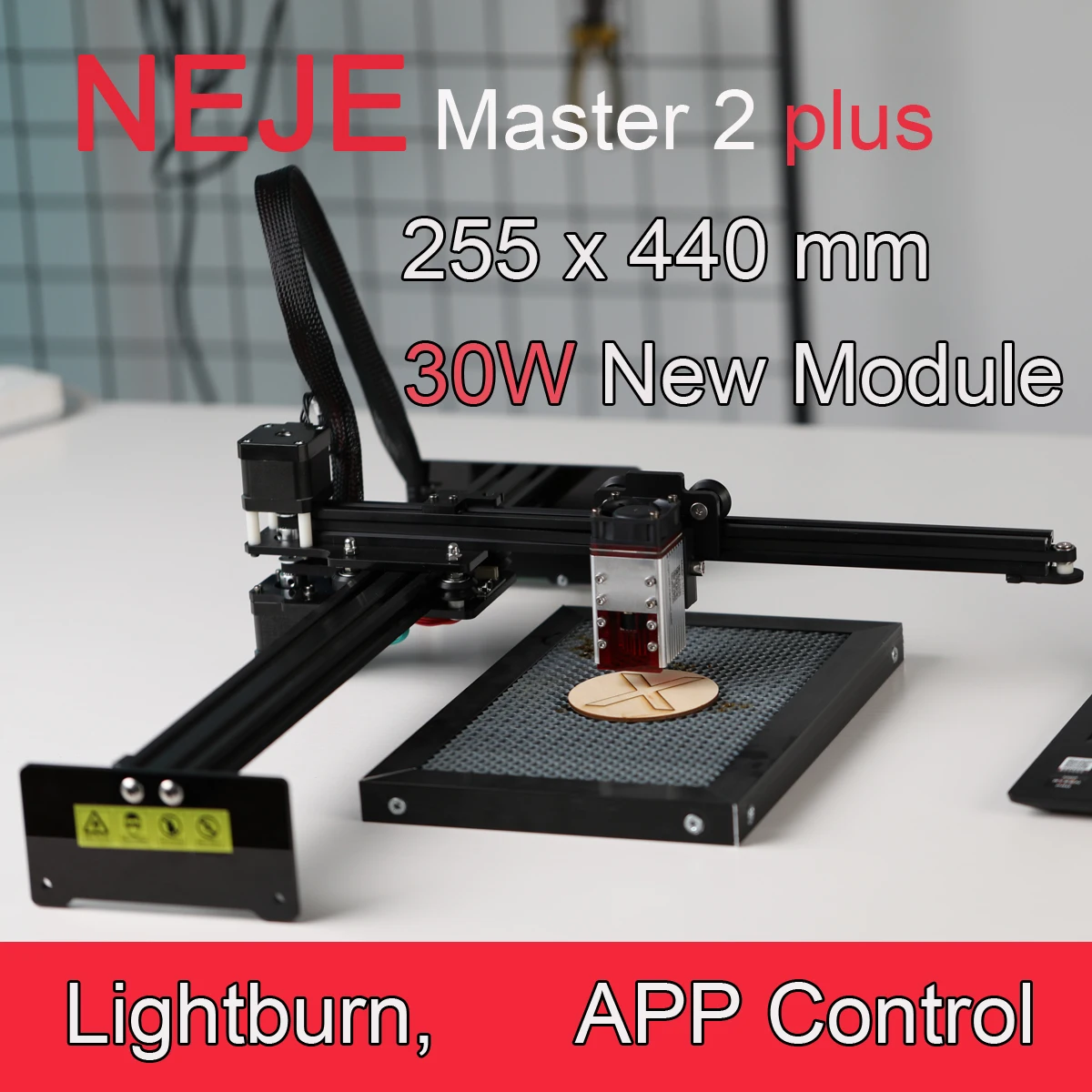

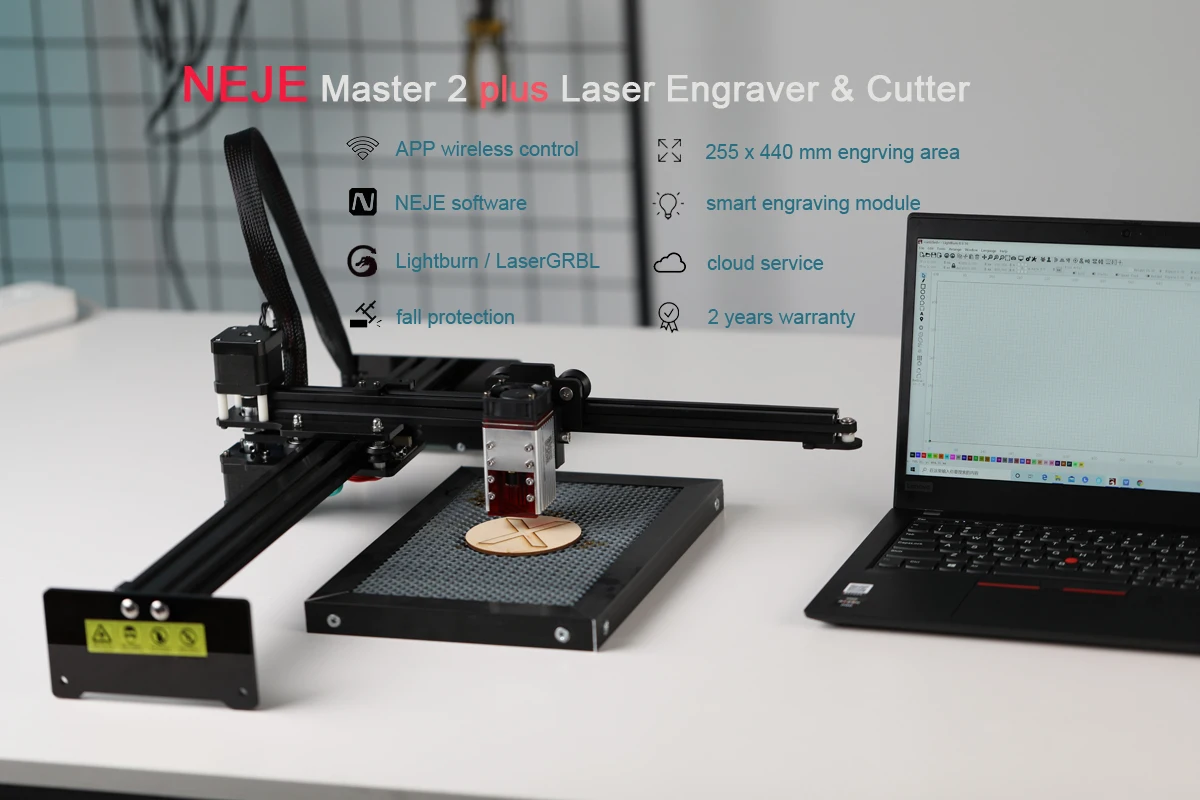

Neje master 2S plus 30w Mini Laser Engraving Machine European warehouse dropshipping diy cnc cutting engraver
Specifications:
Model： NEJE Master 2S plus 30w

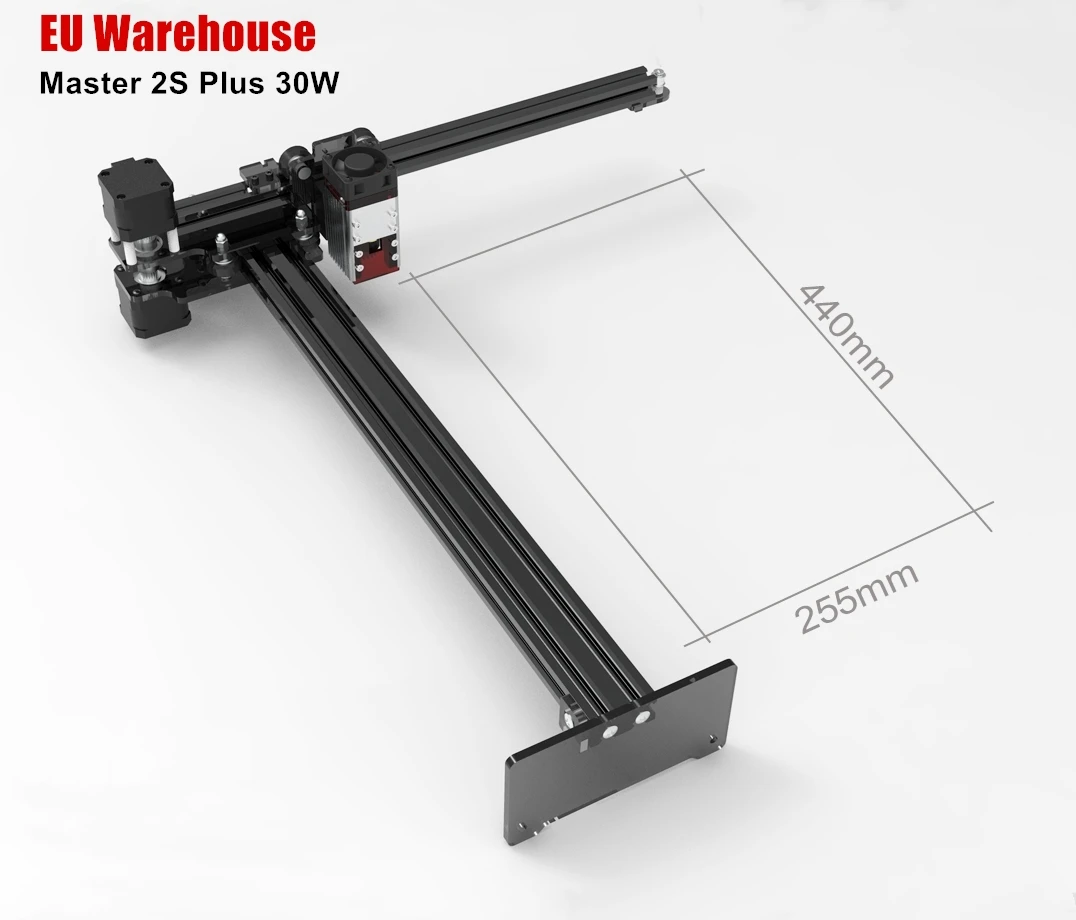

engraving and cutting area:250 x 440 mm
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Adapter Plug：5.5 2.1 port

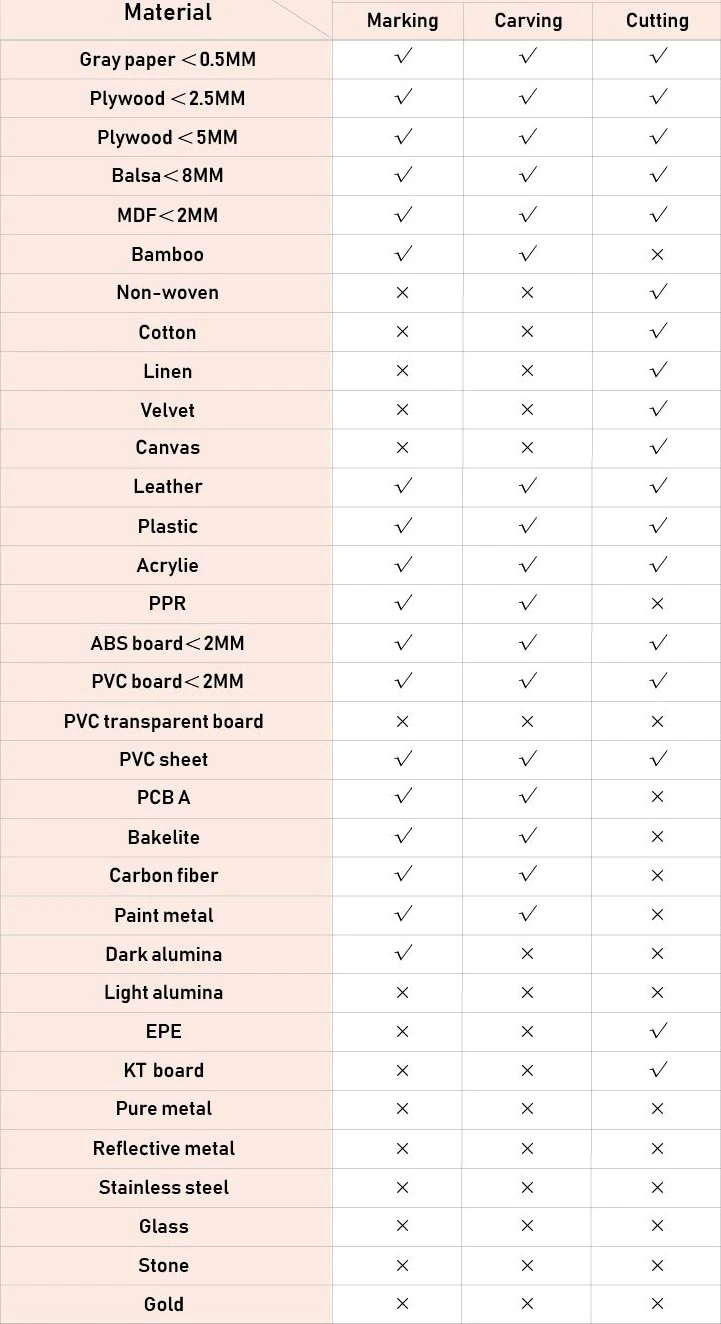

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：20-30W
Optical power output：7.5W (7500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
module Life Time：10000-20,000 hours
Product features/NEJE Master 2S plus 30w
~ Larger area, 460 x 810 mm engraving and cutting area
~30W power module, optical power output 7.5W, focal point 0.1mm, support engraving and cutting.
~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.
~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.
~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.
~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.
~ Support NEJE 4pin interface series modules, including 3500mw, 7W, 20W, 30W, 40W, etc.
~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!
Note:
- Designed for Laser Engraver, 3D printer, CNC mill, arduino project. - 7.5W/15w Optical power output, 4mm plywood from 1 pass(speed 100), Able to engrave stainless steel, but it needs good focus adjustment. - More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable. - More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature. - Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module. - slidable mounting fixture is provided for easy adjustment of focus -【2 Year warranty】We provided 2 years warranty, and full life customer service. If you have any questions about this engraving machine, please contact us, we will reply to you in 24 hours.
Packing&Shipping
Package List
1* Laser engraving machine
1* 4060 module
1* 12V3A power supply
1* European standard adapter
1* Manual
1* Red glasses
1* Data cable
1* wooden board
5* paper
1* pen
1* brush
1* focusing film
4* angle iron
1* alumina film
3* cable tie
5* nut
1* large hexagon wrench
1* small hexagon wrench
1* Open wrench
