EV зарядное устройство станция OCPP электромобиль автомобильное DC быстрый Электрический Автомобиль Мощность coche электрико Сделано в
- Категория: Настенные зарядные станции >>>
- Поставщик: Xiamen,Biyate,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 883.58 $* | 901.35 $* |
| Jul-18-2025 | 716.40 $* | 730.86 $* |
| Jun-18-2025 | 869.80 $* | 886.94 $* |
| May-18-2025 | 862.46 $* | 879.0 $* |
| Apr-18-2025 | 688.44 $* | 702.82 $* |
| Mar-18-2025 | 848.2 $* | 865.1 $* |
| Feb-18-2025 | 841.14 $* | 858.81 $* |
| Jan-18-2025 | 834.99 $* | 851.72 $* |
Характеристики
IOCAW05C
AECHARGER commercial OCPP1.6J AC Wallbox, SAE J1772 or Type-2 charging connector, 1-Phase 7kW & 3-Phase 22kW available, RFID Card reader, 7’ LCD screen, Type-B RCCB, MID Meter, Wi-Fi or 4G, smart charging, integrated with charging platform Gronn Kontakt, Greenflux, Ampeco, etc.
IOCAP06C

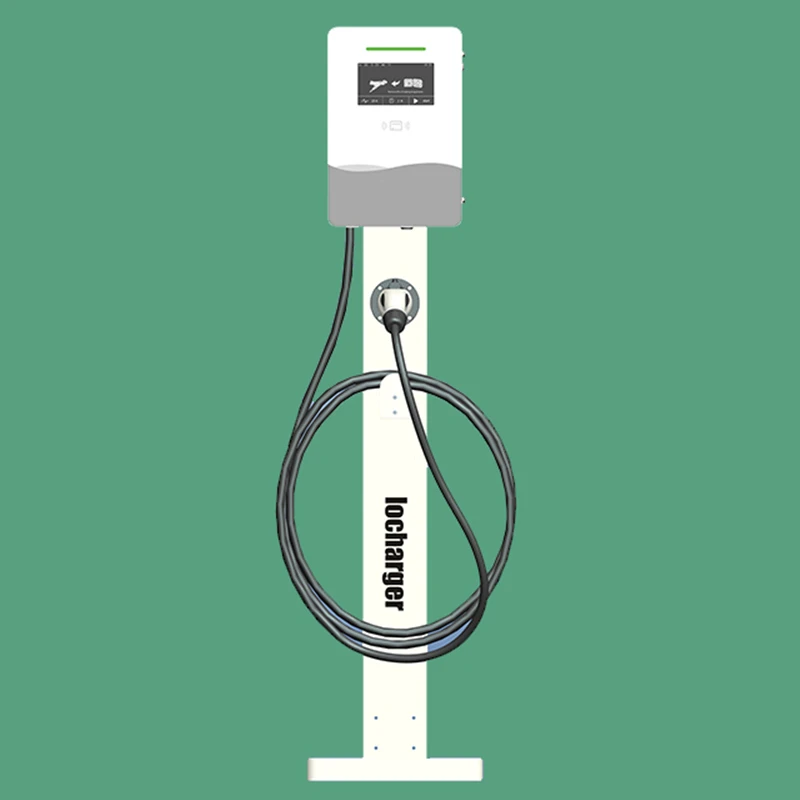

AECHARGER commercial OCPP1.6J dual AC pedestal charger, dual Type-2 sockets with dual 7kW & dual 22kW, RFID Card reader, 7’ LCD screen, Type-B RCCB, MID Meter, Wi-Fi or 4G, smart charging available, integrated with charging platform Gronn Kontakt, Greenflux, Ampeco, etc.
Smart
The intuitive design features a delay timer that you can set-and-go to save money and time.
Safe
Ground Fault Protection, Relay welding Protection, Over-Temperature Protection
Connectivity
OCPP 1.6J and OCPP 1.5S via 4G LTE/Ethernet/WiFi
Service
Remote monitoring, diagnostics and OTA upgrading
Smart AC Charger
IOCAW05C-7 / IOCAW05C-22 / IOCAP06C
| Power input | input voltage | 1-phase 230V±20% | 3-phase 400V±20% |
|---|---|---|---|
| input Frequency | 50HZ/60HZ | ||
| Input Current | 32A | 63A | |
| Power output | Output voltage | 1-phase 230V±20% | 3-phase 400V±20% |
| Output Power | 7kw | 22kw | Dual 22kw |
| DC Output Current | 32A Max | Dual 32A Max | |
| Protection | RCD | Type-B RCCB | |
| Electrical Protection | Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection | ||
| Emergency Stop Button | Optional | ||
| User Interface | LED Indicator | Standby(Green),Charging (Flashing Green), Fault(Red), Waring(Flash Red) | |
| LCD Screen | 7″ LCD | ||
| Buttons/Switches | Start/Stop Charging | ||
| User Authentication | RFID Mifare/Appltes | ||
| Payment | RFID/Applets/Credit Card(optional) | ||
| Communication | Network Interface | 4G LTE/Wi-Fi/Ethernet | |
| Protocol | OCPP1.6J | ||
| Environment | Operating Temperature | -30 ° C ~ +50 ° C | |
| Storage Temperature | -40 ° C ~ +70 ° C | ||
| Working Humidity | 5%~95% without condensation | ||
| Working Altitude | <2000m | ||
| Mechanical | Charging Outlet | SAE J1772/Type-2 Cable/Type-2 socket | |
| Cable Length | 5M | ||
| Dimension(W x H x D) | 325 * 375 * 490 mm | 1525 * 445 * 303 mm | |
| Net Weight | 11.2Kg | 12.5Kg | 30Kg
|
