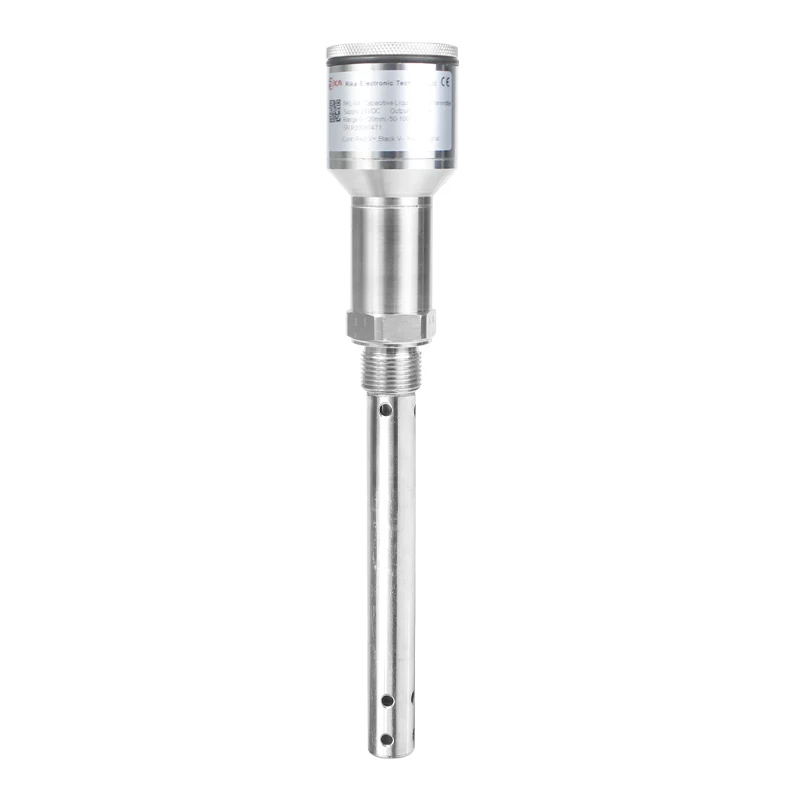

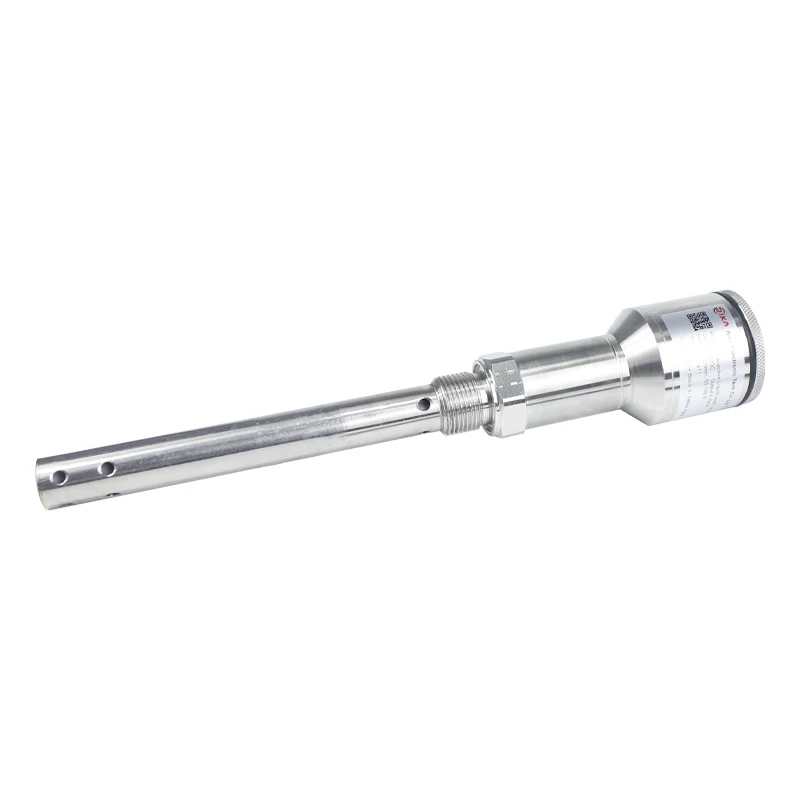

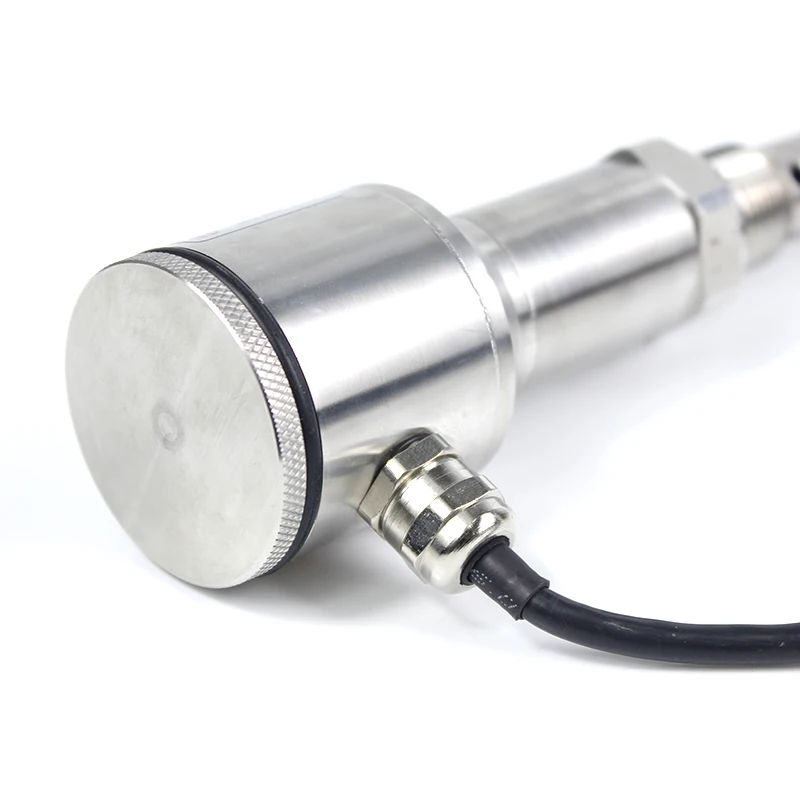

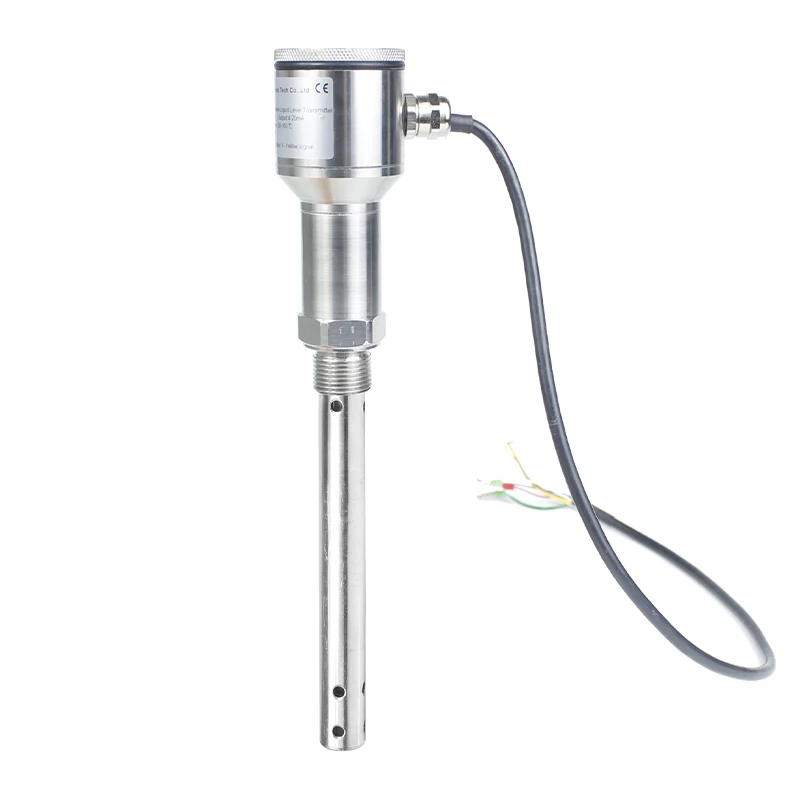

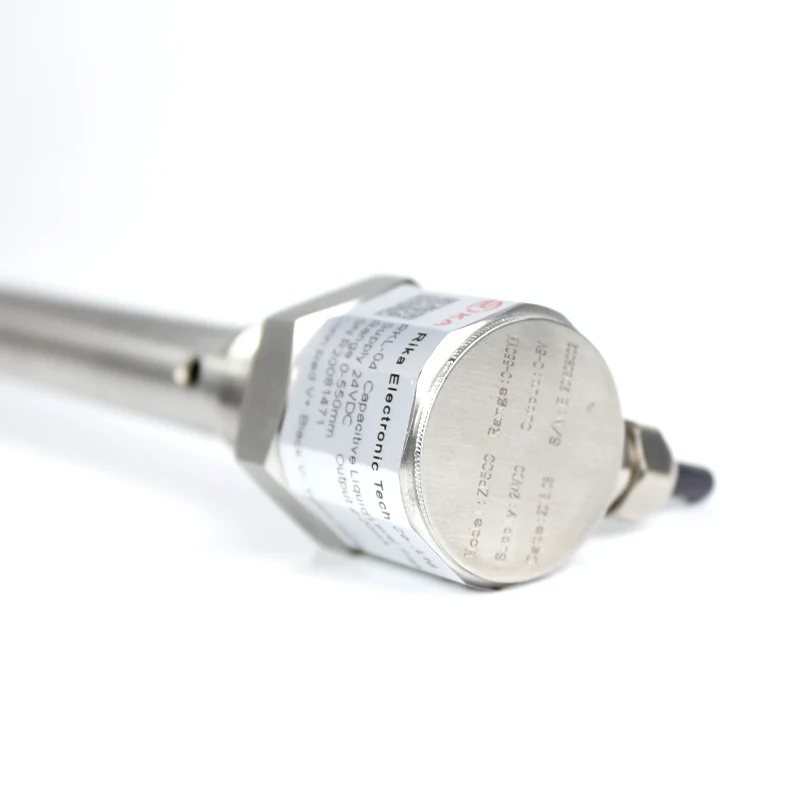

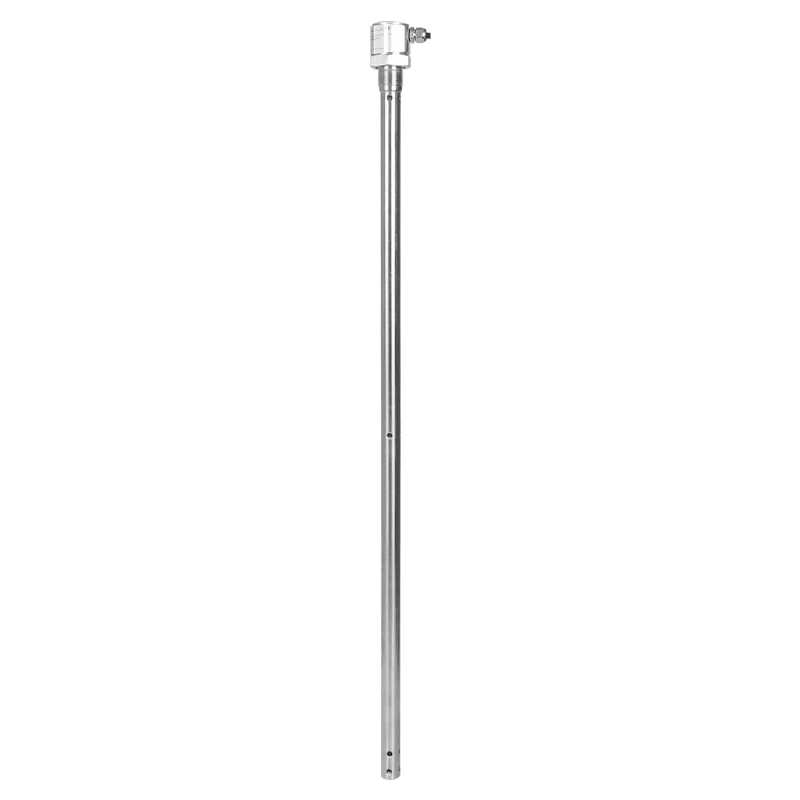

RKL-04 Capacitive Liquid Level Transmitter The sensing part of the RKL-04 is a coaxial capacitor, when the liquid enters the condenser caused the change of the sensor shell and sensor capacitance between electrodes, the variation through the subsequent acquisition and conversion circuit and precise linear and temperature compensation, the output field required standard voltage, current, the digital signal, sampling frequency is adjustable. Food grade Teflon and 304 stainless steel material with fully welded structure, high health level, high breaking strength; Long - term stability, high reliability. Used for measuring: oil (gasoline, diesel oil, hydraulic oil, lubricating oil), water (sewage), beverage, medical treatment, chemical and other liquid media, suitable for high and low temperature, or even viscous liquid media occasions. Extremely wide measuring range: 0.03......6m, especially suitable for measuring liquid heights below 500mm.

In order to recommend proper products to you, please tell me your information below:

1. What’s your testing medium ?   --  water, waste water, oil, alcohol or some other.

2. What’s your medium temperature ?  -- The standard is -40℃~ +80℃. If special demands, please specify.

3. What’s your testing range ?  -- It can be 0.5~200m H2O optional with different price. Please specify the range.

4. What’s your required output signal ?   -- We have 4-20mA, 0-5V,0-10V, RS485 optional. Please specify.

5. What’s your required power supply ? -- The standard is 10-30V. If you have other special demands, please specify.

6. What’s your required accuracy ? -- The standard is 0.25%FS, and 0.1%FS optional.

7. What’s your required cable length ? - The standard is 1m longer than your range. If you have special demands, please specify.

8. What’s your required material of probe ?  -- The standard is 304SS and 316L SS optional.

9. Quantity?

10. Price items: CIF or Exw or FOB ?  -- If CIF please tell us your detail shipping address for freight calculation.

11. Your complete company name,address, post code,contact person, tel, fax etc.
