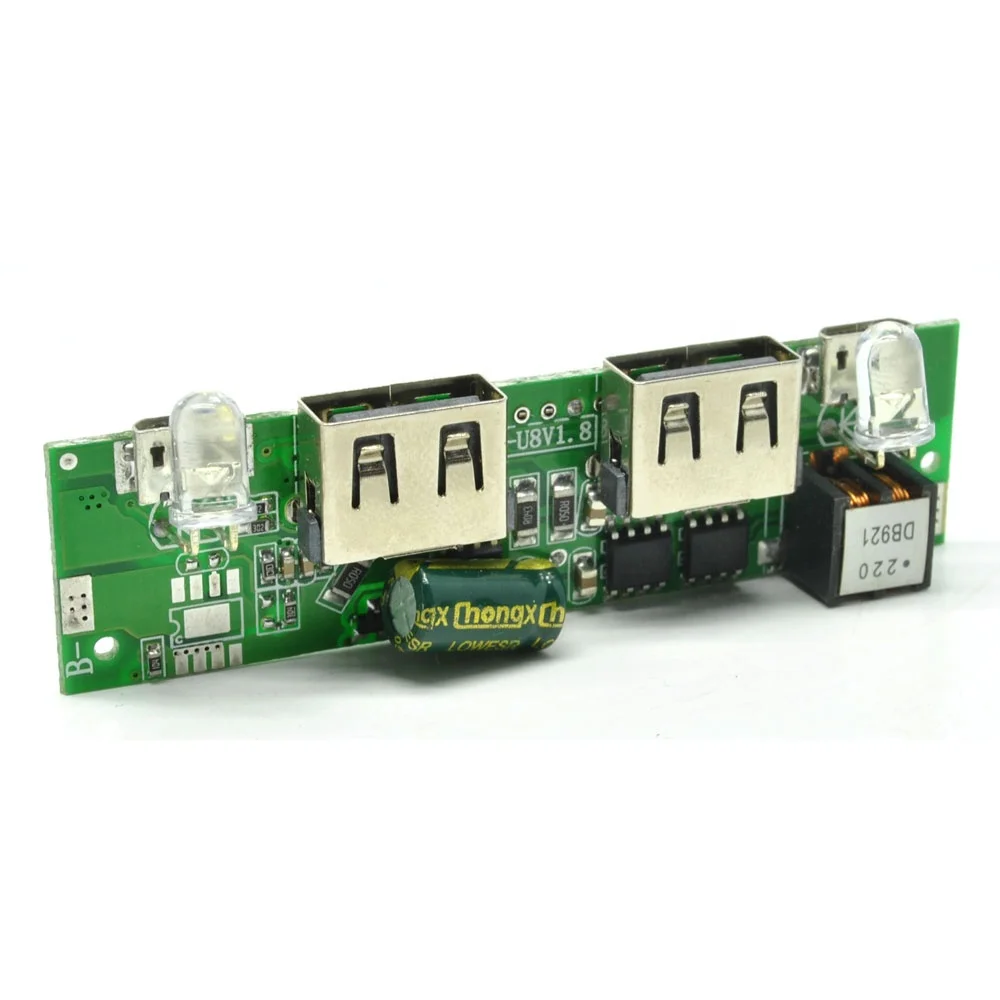

Electronic Circuit Board For Solar Power Bank 10400 Mah Power Bank Circuit Board PCB OEM Factory Supplier Mobile Power Bank PCBA

Layer count	1-28L,HDI
Material	FR-4, High TG FR4, aluminium, FPC
	Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880)
Max board dimensions	800mm*620mm
Board shape	Rectangular,round,slots,cutouts,complex,irregular
Board type	Rigid,flexible,rigid-flexible
Board cutting	Shear,V-score,tab-routed,counter sunk
Board thickness	0.2~8.0mm, Flex 0.1~0.25mm
Thickness Tolerance	±10%
Min line width / space	3mil/3mil
Minimum Drilling Hole (Mechanical)	0.1mm
Minimum laser hole	0.075mm
Blind Hole/buried plate	YES
Hole Position/hole Tolerance	PTH:±0.076MM
	NPTH:±0.05mm
InnerLayer Copper Thickness	0.5-3 oz
OutLayer Copper Thickness	0.5-4 oz
Impedance control tolerance	±10%
Surface finish	HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP...
Solder mask	Double-sided green,red,white,blue,black,etc
Silkscreen	Double-sided or single-sided in white,black,or negative
PCB Testing	E-test, Flying probe test
Acceptable File Format	Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD
Quality Standards	IPC-A-600F and MIL-STD-105D CHINA GB<4588>

Types of PCB assembly	SMT (Surface Mounted Technology)
	THT (Through Hole Technology)
	Mixed (surface mount and through hole) technology
	Cable assembly
Component	Passive Component: small as 01005, 0201
	BGA, uBGA, QFN, POP, SOP,SSOP,PLCC,LGA
	Fine Pitch Parts: 0.25mm fine pitch parts
	Max Component Height: 25mm(SMT), Top 120mm/Bot 15mm (Wave-Solder)
Component Package	Reels, cut tape, Tube and tray, Loose parts and bulk
Board Dimension	Min Board Size: No Limited
	Max Board Size: 680 x 500mm
Board Shape	We can assemble boards in Rectangular, Circular and irregular
Board Type	Rigid PCB, Flexible PCB, Rigid-flex PCB
Assembly process	Leaded Lead-Free (RoHS)
Design file format	Gerber RS-274X  BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid(Pick-N-Place/XY file)
Electrical testing	X-ray Inspection  AOI (Automated Optical Inspection)  Functional testing
Certificate	ISO13485, IATF16949, ISO9001,ISO14001
Quality Standards	IPC-A-600/IPC-A-610 compliance
Type of Service	Turn-key, partial turn-key or consignment
Sub-assembly	Plastic case,metal case,screen

 Q1: Do you have a price list?

A: We are OEM Manufacturer. We produce products per Customer’s designs and instructions. Hence we don’t have a price list.



Q2: What’s your MOQ for PCB, PCBA?

A: No MOQ for PCB and PCBA. We can do prototype and mass production as well.



Q3:Are my files safe?

A:We can sign an NDA(Non-disclosure agreement).
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.All documents from customers are never shared with any third parties.



Q4: What is needed for PCB & PCBA quotation?

PCB: Quantity,Gerber file and technic requirements( board material, board size, surface finish treatment, copper thickness, board thickness).
PCBA: PCB information,BOM,Testing documents.



Q5:What file formats do you accept for PCB and assembly?

Gerber file: CAM350 RS274X
PCB file: Protel 99SE,P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)



Q6:Can you procure all parts in BOM for us?

A:YES, we can source all parts as per your bom list required.



Q7:Do you have after-sales product servicing available for your customers?

A:Yes, for any quality problems, we will take our responsibility to solve it for you at any time.





Providing electronic contract manufacturing service for oem PCB PCBA.

For all your PCB needs, Call or email your gerber file and bom list to us right now.
