33 6 тонный экскаватор 190 5 кВт с ведром 1 куб. М для горного строительного оборудования экскаваторная машина LOVOL FR330D
- Категория: Excavators >>>
- Поставщик: Lovol,Construction,Machinery,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 136850.41 $* | 143693.39 $* |
| Aug-19-2025 | 135700.5 $* | 142485.11 $* |
| Jul-19-2025 | 113850.42 $* | 119543.48 $* |
| Jun-19-2025 | 133400.3 $* | 140070.32 $* |
| May-19-2025 | 116150.81 $* | 121958.5 $* |
| Apr-19-2025 | 131100.3 $* | 137655.97 $* |
| Mar-19-2025 | 129950.15 $* | 136448.41 $* |
| Feb-19-2025 | 128800.67 $* | 135240.91 $* |
| Jan-19-2025 | 127650.27 $* | 134033.74 $* |
Характеристики
Products Description
High reliability, High efficiency, High comfort

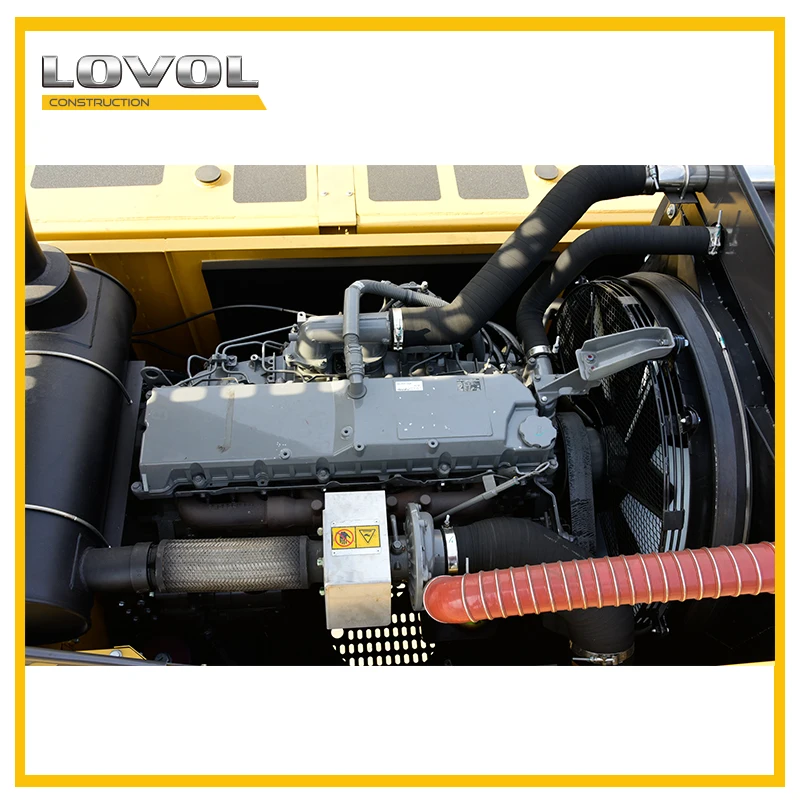

♦Equipped with original ISUZU engine which is imported from Japan features low engine speed, large torque, low fuel consumption. Kawasaki hydraulic system, KYB walking motor, 6470mm boom, 3190mm stick, bucket capacity 1.5m³.

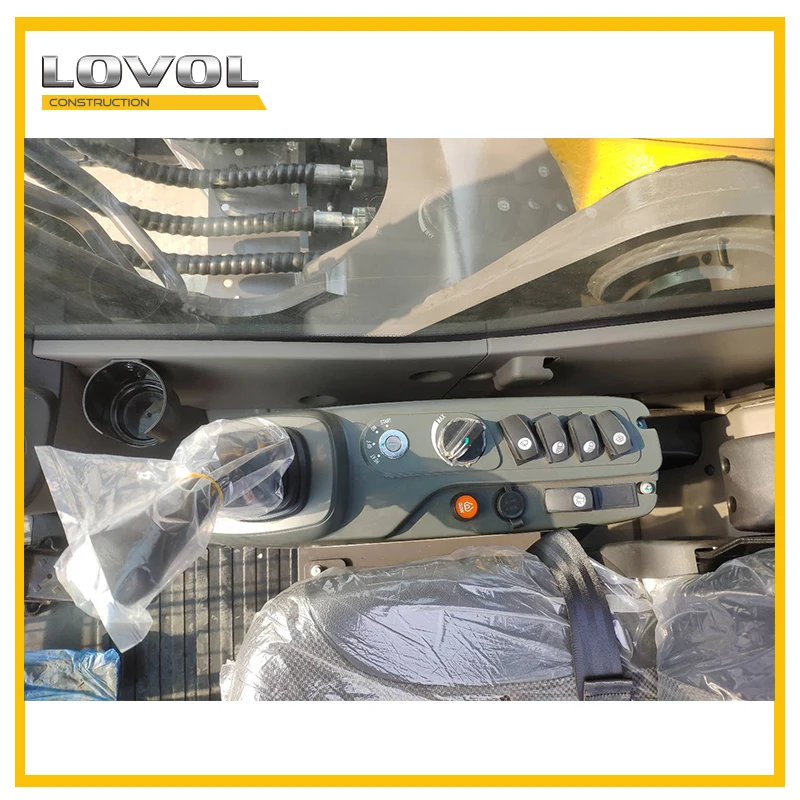

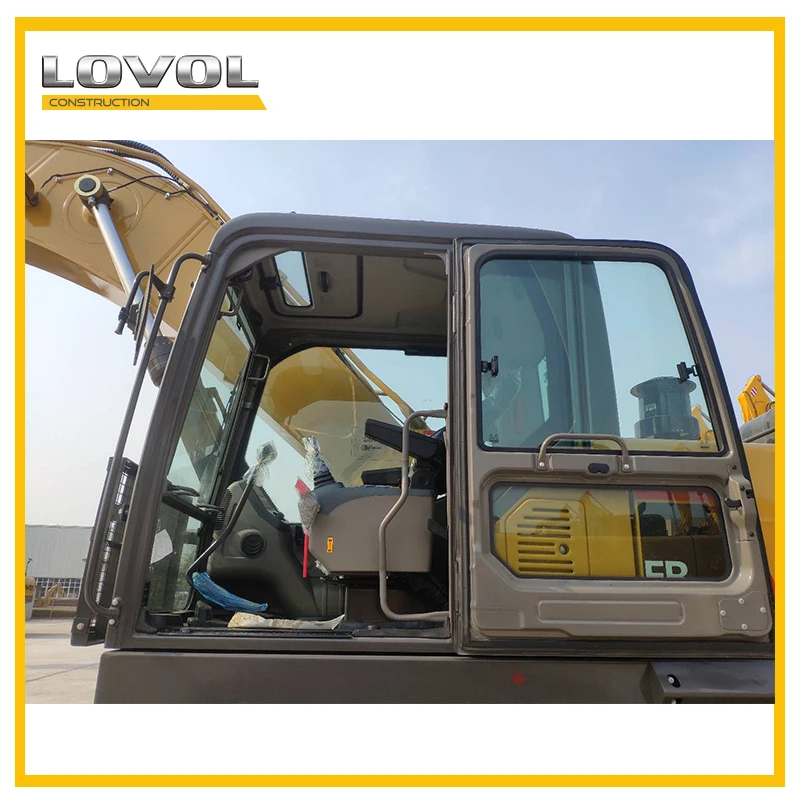

♦Equipped with spacious cab which provides operator large space to operate machine. The premium suspension seat with armrests is very comfortable and it can reduce the working fatigue dramatically. Front windshield can be partially or fully retracted to the cab roof. Rearview camera is optional to get better rear vision in order to improve operation safety in jobsite.
♦The new electronic control system is adopted in order to improve the calculation speed to achieve precise operation. Automatic idle function can reduce fuel consumption and noise dramatically.
♦The main working conditions are stone mines, coal mines, metal mines, railways, highways, water conservancy and other
infrastructure, and various heavy-duty working conditions.
These features of this machine make it competent to handle harsh applications and guarantee quick and efficient work!
infrastructure, and various heavy-duty working conditions.
These features of this machine make it competent to handle harsh applications and guarantee quick and efficient work!
Item | Unit | Specifications |
Rated Power | kW/rpm | 190.5/2000 |
Bucket Capacity | m³ | 1.5 |
Operating Weight | kg | 33600 |
Engine Model | / | ISUZU AA-6HK1XQP |
Number of Cylinders | / | 6 |
Max. Torque/Speed | N·m/rpm | 872.8/1700 |
Displacement | L | 7.79 |
Bucket Digging Force | kN | 223 |
Arm Digging Force | kN | 170 |
Max. Traction Force | kN | 290 |
Max. Walking Speed | km/h | 5.5 |
Min. Walking Speed | km/h | 3.3 |
Rotary Speed | r/min | 9.2 |
Gradeability | ° | 35 |
Ground Pressure | KPa | 67 |
Max. Main Pump Flow | L/min | 560 |
Main Safety Valve Pressure | MPa | 34.3 |
Fuel Tank | L | 630 |
Hydraulic Tank | L | 340 |
Engine Oil | L | 38 |
Shipping Length | mm | 11234 |
Shipping Width | mm | 3205 |
Cab Height | mm | 3343 |
Ground Clearance of Counter weight | mm | 1205 |
Min. Ground Clearance | mm | 520 |
Tail Turning Radius | mm | 3560 |
Wheel Tread | mm | 3700 |
Track Length | mm | 4630 |
Track Gauge | mm | 2590 |
Track Shoe Width | mm | 600 |
Rotary Platform Width | mm | 3205 |
Max. Digging Height | mm | 10120 |
Max. Dumping Height | mm | 7400 |
Max. Digging Depth | mm | 7330 |
Max. Vertical Digging Depth | mm | 6365 |
Max. Digging Radius | mm | 11075 |
Max. Ground Digging Radius | mm | 10880 |
Min. Turning Radius | mm | 4320 |
Boom Length | mm | 6470 |
Arm Length | mm | 3190 |
Track Section Number（each side） | / | 45 |
Track Roller Number | / | 7 |
LOVOL Heavy Industry is a large industry equipment manufacturing enterprise which involves construction machinery, agriculturalequipment, vehicle, finance and IT. Founded in 1998, the company has an existing asset of 16.1 billion RMB and 15,000 employees.It is the fastest growing construction machinery manufacturing enterprise in China and the largest agricultural equipment manufacturing enterprise.
LOVOL Construction Machinery is the wholly owned subsidiary of LOVOL H.I. Group. Established in 2004,the factory is located in Qingdao West Coast area with more than1,500 employees.
LOVOL Construction Machinery is the wholly owned subsidiary of LOVOL H.I. Group. Established in 2004,the factory is located in Qingdao West Coast area with more than1,500 employees.
LOVOL service
At the same time, adhering to the "LOVOL always with you" service concept, LOVOL possesses more than 1600 independent service vehicles and more than 2400 field engineers. Spare parts supply are fully covered in all approaches of transportation , providing
global customers with 24-hour full service support, ensuring that products create the best profit for customers.
At present, LOVOL product reaches more than 120 countries and regions in the world and has more than 300 sales channels. Moreover, it has formed the "five-in-one" global marketing service network of sales, service, parts supply, users training and information feedback, covering the global target market.
LOVOL MAKES WORLD BETTER
In the future, LOVOL with the aim to develop globalization, adheres to the principle of "customer-centric", continues to focus on core products, realizes optimization and adjustment of product structure, improves the ability of product innovation and marketingservices.
1. Who are we?
We are the manufacturer based in Shandong, China, start from 2003,sell to Domestic
Market(00.00%),Africa(30.00%),South America(90.00%),Southeast Asia(50.00%),Eastern Asia(20.00%),Eastern Europe(10.00%),South
Asia(00.00%),Mid East(60.00%),Oceania(40.00%). There are total about 2000+ people in our office.
Market(00.00%),Africa(30.00%),South America(90.00%),Southeast Asia(50.00%),Eastern Asia(20.00%),Eastern Europe(10.00%),South
Asia(00.00%),Mid East(60.00%),Oceania(40.00%). There are total about 2000+ people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Wheel Loader,Crawler Hydraulic Excavator, Backhoe loaders, other road machineries.
4. Why should you buy from us not from other suppliers?
Technology innovation is the soul of enterprise. To keep up with international standards in R&D abilities, LOVOL has
established the global R&D system with R&D centers in Europe, Japan, Weifang and Tianjin.
established the global R&D system with R&D centers in Europe, Japan, Weifang and Tianjin.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;Language
Spoken:English,Chinese,Russian
Spoken:English,Chinese,Russian
