KDS-950TC Электрический кнопочный Переключатель ВКЛ/ВЫКЛ ВЫКЛЮЧАТЕЛЬ фонарика с

Описание и отзывы

Трекер стоимости

Характеристики

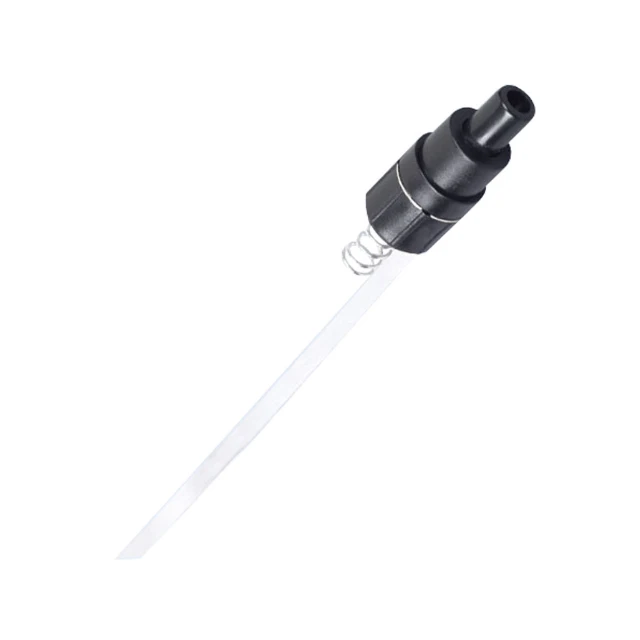

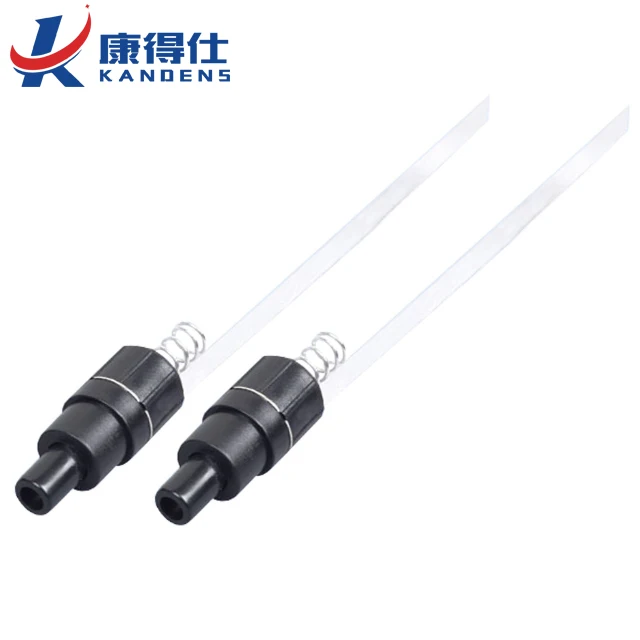

KDS-950TC electric torch push button switch on off flashlight switch with spring

Product Name	KDS-950TC electric torch push button switch on off flashlight switch with spring
Environment temperature	-25°C~85°C
Withstand Voltage	AC250V(50Hz)/min
Rated load	0.5A/12VDC
Insulation Resistance	>100 MΩ
Contact Resistance	≤50mΩ
Product Life	10,0000 Cycles
Operation Force	700gf; can customized as your request.
Torch Switch Height	The push button torch switch height can be 4.3/4.5/5/5.5/6/7/8/9/10mm;also can customized as your request.

The feature of tact switch:
Crisp clicking by tactile feedback
Prevent flux rise by insert-molded terminal
Ground terminal is attached
Snap-in mount terminal

Tact Switch Precautions for Safe Use
Use the tact switch within the rated voltage and current ranges, otherwise the Switch may have a shortened life expectancy, radiate heat, or burn out. This particularly applies to the instantaneous voltages and currents when switching.

Tact Switch Precautions for Correct Use
Storage
To prevent degradation, such as discoloration, in the terminals during storage, do not store the Switch in locations that are subject to the following conditions.
1. High temperature or humidity
2. Corrosive gases
3. Direct sunlight



Tact Switch Handling
1. Tact Switch Operation
Do not repeatedly operate the Switch with excessive force. Applying excessive pressure or applying additional force after the plunger has stopped may deform the disc spring of the Switch,resulting in malfunction. In particular, applying excessive force to Side-operated Switches may damage the caulking, which in turn may damage the Switch. Do not apply force exceeding the maximum (29.4 N for 1 minute, one time) when installing or operating Side-operated Switches.Be sure to set up the Switch so that the plunger will operate in a straight vertical line. A decrease in the life of the Switch may result if the plunger is pressed off-center or from an angle.
2. Tact Switch Dust Protection
Do not use tact switch that are not sealed in dust-prone environments. Doing so may cause dust to penetrate inside the Switch and cause faulty contact. If a Switch that is not sealed must be used in this kind of environment, use a sheet or other measure to protect it against dust.

Q1: May I get torch switch free samples?
A: Sure, 10-20 pcs torch switch free samples are available for normal models. We need to confirm torch switch height, torch switch operation force and price before shipment.



Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.



Q3: When can I get the torch switch samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.



Q4: Can you accept small order, like 1000 pcs torch switch, 2000 pcs torch switch?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.



Q5: What's the lead time of torch switch bulk order ?
A: Normally, the torch switch lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.



Q6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by T/T.



Q7. Can you open mold for teminal order or uncommon mold ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
