Китай завод оборудование для текстильной промышленности нижний ролик подшипника 19x32x23 мм LZ3200 LZ-3200 Lz3224 Lz3226 Lz3600 Lz3624 Lz3626 Lz4000
- Категория: Игольчатый подшипник >>>
- Поставщик: Jinan,Landlion,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.45 $* | 0.30 $* |
| Aug-20-2025 | 0.44 $* | 0.1 $* |
| Jul-20-2025 | 0.5 $* | 0.37 $* |
| Jun-20-2025 | 0.39 $* | 0.81 $* |
| May-20-2025 | 0.0 $* | 0.1 $* |
| Apr-20-2025 | 0.72 $* | 0.11 $* |
| Mar-20-2025 | 0.54 $* | 0.76 $* |
| Feb-20-2025 | 0.94 $* | 0.66 $* |
| Jan-20-2025 | 0.16 $* | 0.0 $* |
Характеристики
Product Description
China factory textile machine bottom roller bearing 19x32x23mm LZ3200 LZ-3200 Lz3224 Lz3226 Lz3600 Lz3624 Lz3626 Lz4000 Lz4024

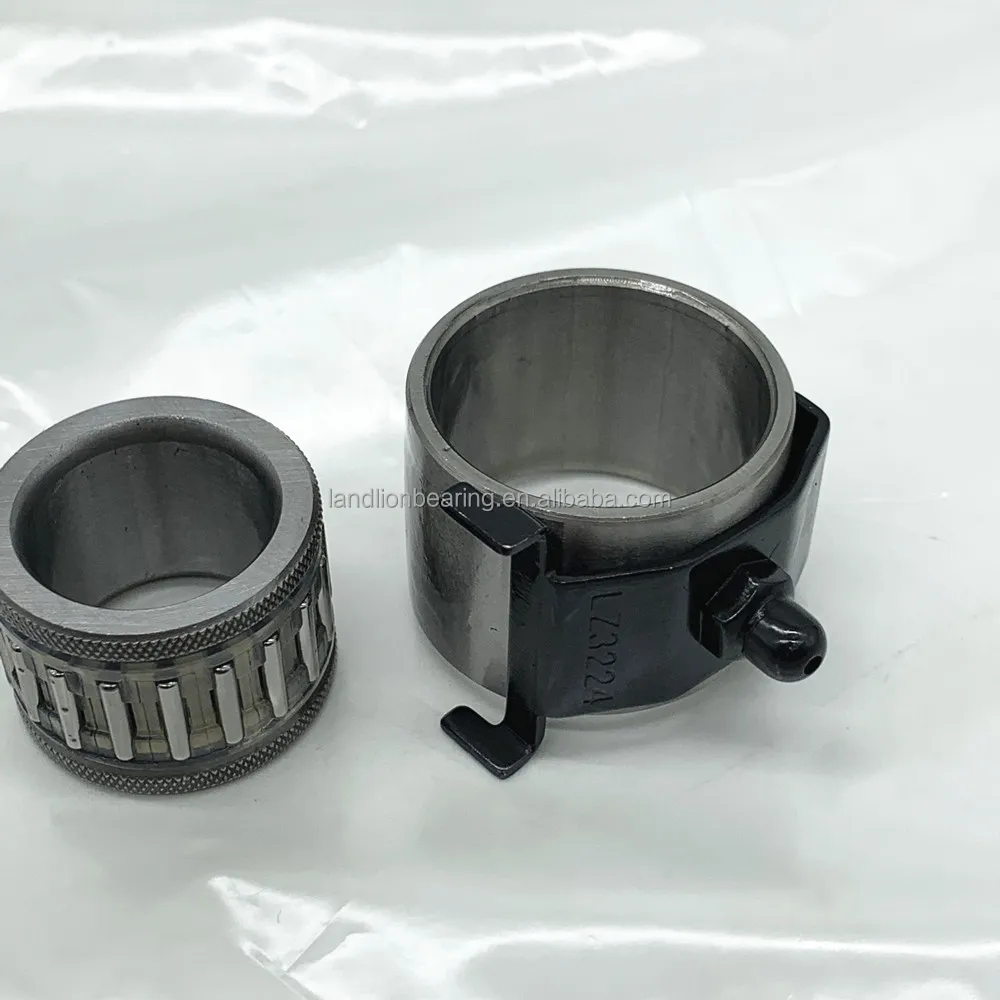

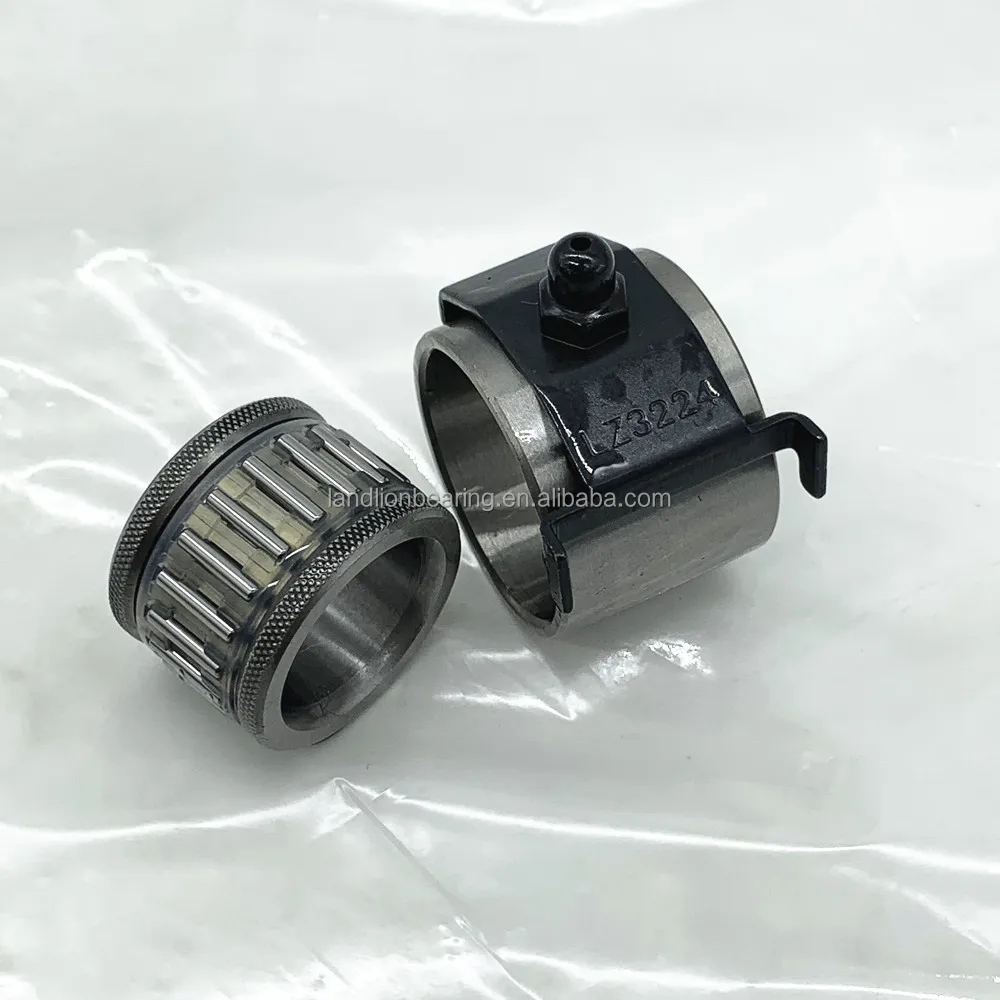

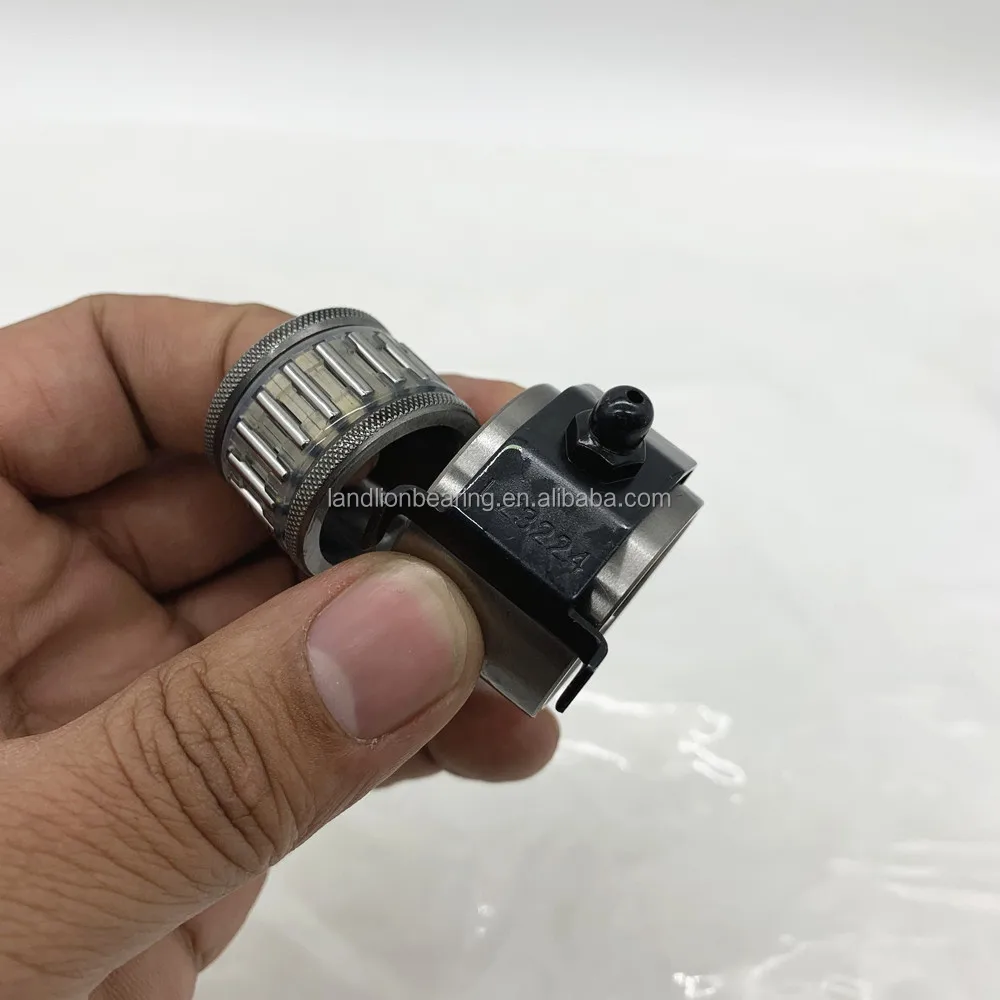

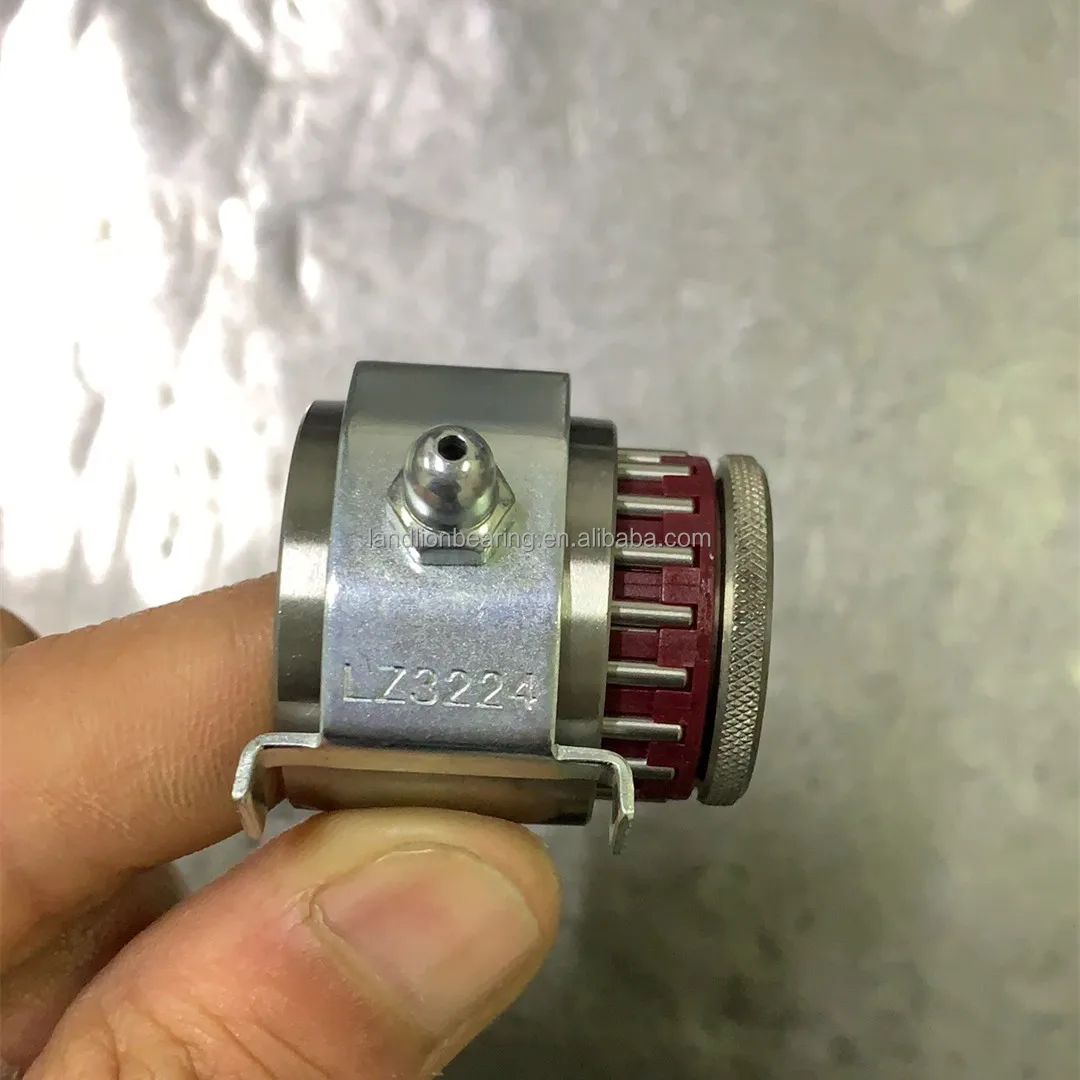

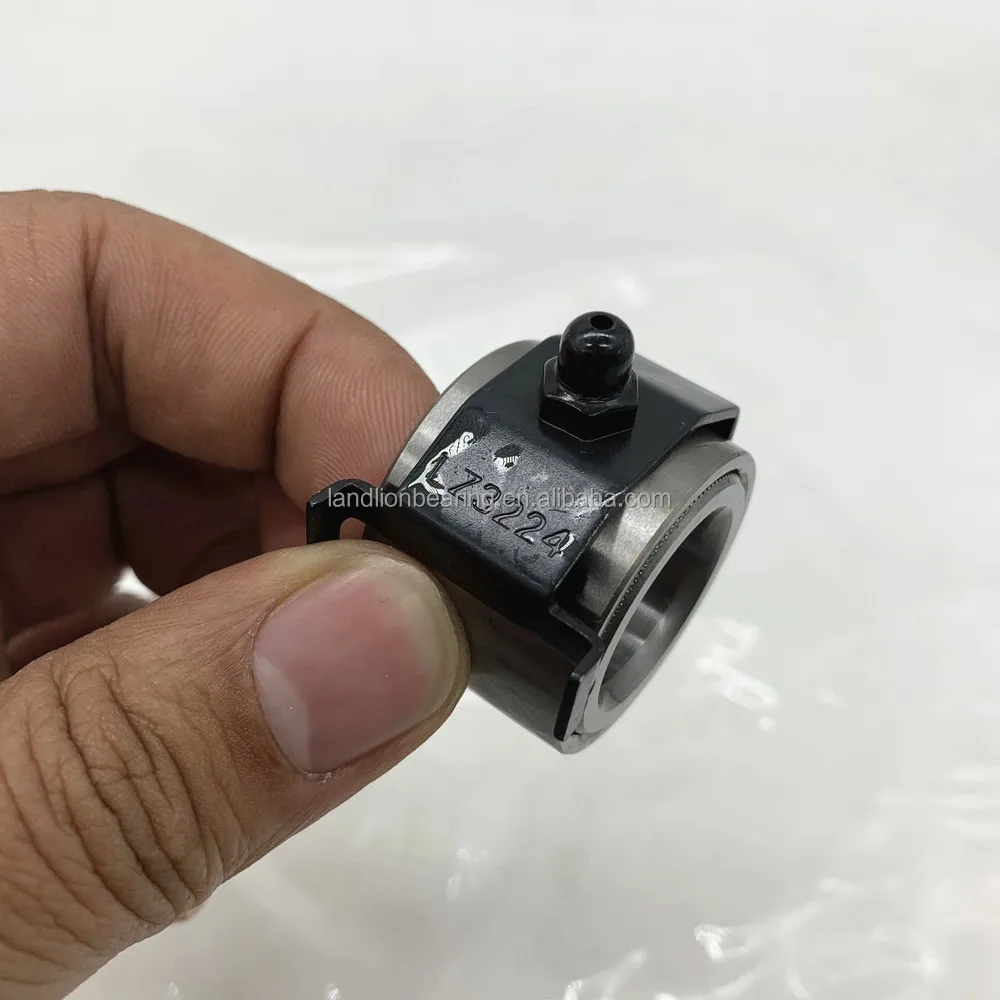

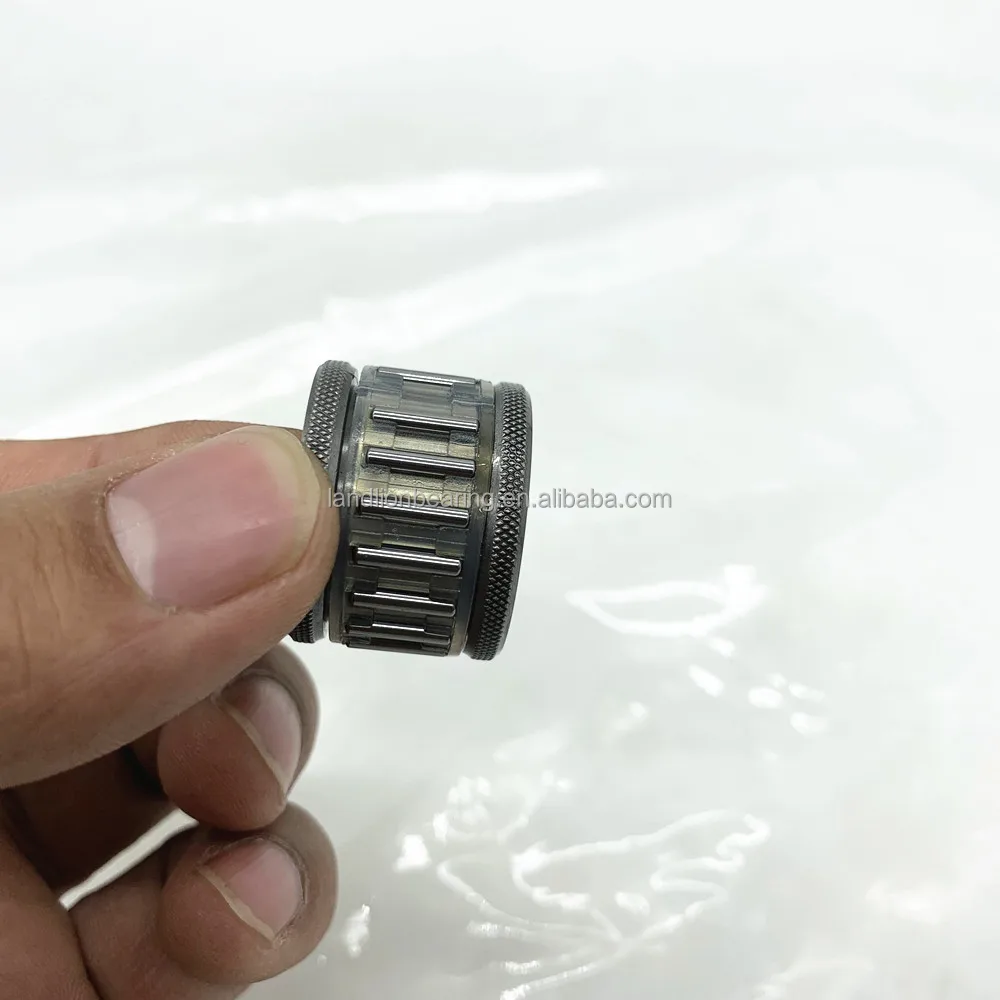

These are specifically designed Needle Roller Bearings for long life and low maintenance for Ring Frames. The outer ring of the bearing is crowned to accommodate misalignment in the roller stands. Crowning also helps in preventing early failure of the bearing by distributing the load uniformly. The inner ring has knurling on its flanges, which provides an effective seal to prevent entry of fibres in the bearing and protect it from damage. Bottom Roller Bearings incorporate a steel cage split in two halves or plastic cage. The design of cage pockets ensures that the needles do not fall and also give them positive and accurate guidance. Lubrication to the bearing is effected through the grease nipple. The bearing is secured on the roller stand very easily by a holder (locating cap). The holder (locating cap) can be customized according to unique application designs.
Bearing Modle | LZ3200 LZ3200A textile machine bearing |
Type | needle roller bearing /bottom roller bearing |
Size | 19*32*20*23 mm |
weight | 0.08kg |
Package | box+standard carton+pallet/wooden case |
contact person | jessi |
whatsapp | +8618753110215 |
skype | tradingbearing |
email | lbc001@landlionbearing.com |
China factory textile machine bottom roller bearing LZ3200 LZ-3200 Lz3224 Lz3226 Lz3600 Lz3624 Lz3626 Lz4000 Lz4024
Model No | D(mm) | d(mm) | B(mm) | C(mm) | Weight(KG) |
LZ2800 | 28 | 16.5 | 19 | 22 | 0.06 |
LZ2822 | 28 | 16.5 | 19 | 22 | 0.06 |
LZ2822E | 28 | 16.5 | 19 | 23 | 0.061 |
LZ3200 | 32 | 19 | 20 | 23 | 0.082 |
LZ3224 | 32 | 19 | 20 | 23 | 0.082 |
LZ3224E | 32 | 19 | 20 | 24 | 0.082 |
LZ3226 | 32 | 19 | 20 | 23 | 0.082 |
LZ3600 | 36 | 21 | 22 | 25 | 0.119 |
LZ3624 | 36 | 21 | 22 | 25 | 0.119 |
LZ3626 | 36 | 21 | 22 | 25 | 0.119 |
LZ4000 | 40 | 23 | 23.5 | 27 | 0.16 |
LZ4024 | 40 | 23 | 23.5 | 27 | 0.16 |
LZ16.5 | 30 | 16.5 | 19 | 23 | 0.17 |
LZ19 | 36 | 19 | 22 | 26 | 0.116 |
LZ22 | 42 | 22 | 23 | 27 | 0.16 |
LZ25 | 47 | 25 | 25 | 29 | 0.218 |
Recommend Products
Reference No. | International No. | d (mm) | D (mm) | B (mm) | B1 (mm) |
KW 11.28 (22) | UL11.28 | 14.2 | 28 | 10.2 | 18 |
KW 152813 (24) | UL28-0211159 | 15 | 28 | 13 | 23 |
KW 162823 (24) | UL28-0021164 | 16 | 28 | 13 | 23 |
KW163026 A | - | 16 | 30 | 26 | 22 |
(With pin) | |||||
KW 162826 A | - | 16 | 28 | 26 | 22 |
(With pin) | |||||
KW 282 | UZ282 | 16.295 | 28 | 17 | 20 |
KW 323 | UL32-023114 | 16.295 | 32 | 17 | 20 |
KW 21.28 | UL28-003590 | 16.5 | 28 | 19 | 22 |
KW 21.28 (20) | UL28-000416 | 16.5 | 28 | 19 | 22 |
KW 21.28 (22) | UL28-000417 | 16.5 | 28 | 19 | 22 |
KW 21.28 (24) | UL28-000418 | 16.5 | 28 | 19 | 22 |
KW 21.28 (26) | UL28-0010047 | 16.5 | 28 | 19 | 22 |
KW 23.28 (22) | UL28-0010080 | 16.5 | 28 | 23 | 23 |
KW 23.28 (24) | UL28-0010083 | 16.5 | 28 | 23 | 23 |
KW 16.5 x 32(20.6) | UZ 32 - STR | 16.5 | 32 | 19 | 23 |
KW 55749 | INA F - 55749 | 16.5 | 28 | 23 | 22 |
KW 50995 A | INA F 50995 | 17 | 32 | 22 | 25 |
(with short bracket) | |||||
KW 50995 B | INA F 50995 | 17 | 32 | 22 | 25 |
(with long bracket) | |||||
KW 519511 | SRO12304 | 17 | 35 | 22 | 22 |
KW 519512 | SRO12280 | 17 | 47 | 22 | 22 |
KW 173026 | - | 17 | 30 | 26 | 21 |
KW183226 A | NTN FRIS 183226 | 18 | 32 | 26 | 23 |
KW 183226 B | NTN FRIS 183226 | 18 | 32 | 26 | 23 |
KW 183426 | FRIS 16X28 (NTN) | 18 | 34 | 26 | 21 |
KW 18.5 32 23 A/B | - | 18.5 | 32 | 23 | 26 |
KW 32 Z | UL32-019169 | 18.5 | 32 | 19 | 22 |
KW 3000 Z | UL30-0007871 | 18.5 | 30 | 19 | 22 |
KW 3000 | UL30-028276 | 18.5 | 30 | 19 | 22 |
(with funnel nipple) | |||||
KW 3000 T | UL30 - 003665 | 18.5 | 30 | 19 | 22 |
KW 3000 (22) | UL30-002610 | 18.5 | 30 | 19 | 22 |
KW 3000 (26) | UL30-0018195 | 18.5 | 30 | 19 | 22 |
KW 36 | UL36-014782 | 18.5 | 36 | 19 | 22 |
KW 328 | UL32-0013400 / | 19 | 32 | 20 | 23 |
UL32-0015143 | |||||
KW 328 (22) | UL32-000421 | 19 | 32 | 20 | 23 |
KW 328 (24) | UL32-000422 | 19 | 32 | 20 | 23 |
KW 328 (25) | UL32-000423 | 19 | 32 | 20 | 23 |
KW 328 (26) | UL32-0012499 | 19 | 32 | 20 | 23 |
KW 3210-1D | UN3210-1D | 19 | 32 | 20 | 23 |
KW 3210-2D | UN3210-2D | 19 | 32 | 20 | 23 |
KW 193622 | - | 19 | 36 | 22 | 25 |
KW 213622 | UL36-0016442 | 21 | 36 | 22 | 25 |
KW 4008 | UL 40 - 025408 | 23 | 40 | 21 | 24 |
KW 18636 | UL32-036128 | " | 32 | " | 22 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
1. Industrial packing
2. Single box +carton +pallets
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping
PACKING:bag+box+carton+pallet/wooden case.
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Factory
Warehouse
workshop
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
