DESCRIPTION

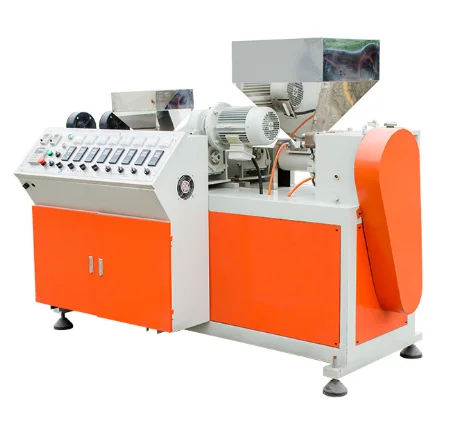

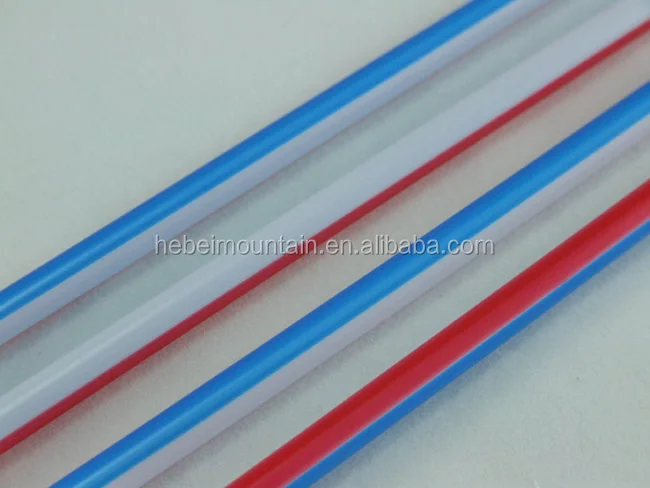

Model MT-11SEM MT-12SEM MT-13SEM MT-14SEM MT-15SEM is a tube extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking strawspiral strip strawfrom one color to five color , medical pipe, all the machines controls base with the control elements ergonomically adapted to permit easy operation.



TECHNICAL FEATURE

1.       The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,

2.       Water bath in stainless steel can be adjusted in three planes ,

3.       The haul-off unit can be belt or rollers, it is customizable.

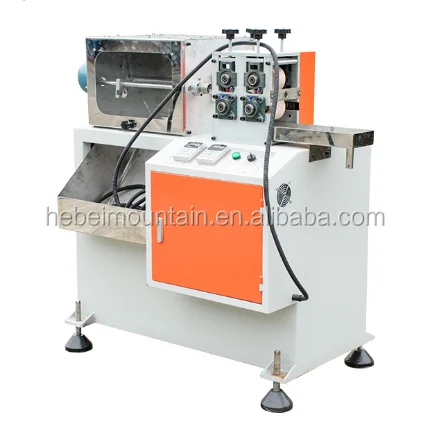

4.       Fitted with single or double rotary cutter.

5.       Conveyor device(you may select if you want)

Model	MT-11SEM	MT-12SEM		MT-13SEM		MT-14SEM		MT-15SEM
Parameter of main screw			50mm(diameter)
Parameter of sub-screw			0	1*25mm	2*25mm		3*25mm		4*25mm
Capability			25~30kg/h
Power supply	Main motor		11kw   380v   50Hz
	Sub motor		0	0.75kw*1	0.75kw*2		0.75kw*3		0.75kw*4
	Haul-off motor		0.75kw*1(VFD)
	Cutting motor		0.75kw*1(VFD)
Temp.controller	5zone	8zone		11zone		14zone		17zone
Length of cooling container	3400mm/6400mm
Specifications	Diameter3~12mm  thickness0.05~1mm
Machine weight	1400kgs	1700kgs		2000kgs		2400kgs		2800kgs
Dimension	1500mm(W)*9000mm(L)
Other specifications are customizable
