Product Description
HVLS overhead super cooling industrial roof fans
Product model | BC-D5-73AA | BC-D5-61AA | BC-D5-55AA | BC-D5-45AA |
The diameter of | 7.3m(24ft) | 6.1m(20ft) | 5.5m(18ft) | 4.5m(14.7ft) |
The weight of the | 130kg | 122kg | 118kg | 108kg |
speed | 60rpm | 68rpm | 75rpm | |
Air volume | 12800m³/min | 11500m³/min | 10300m³/min | 8700m³/min |
The wind leaf number | 5 blades | |||
power | 1.5kw (2) | |||
The rated voltage | 380V | |||
Fan packing size in wooden case:
| The product name | long(cm) | wide(cm) | high(cm) | The weight of the(kg) |
1 | 7.3 meters of the fan | 95 | 75 | 65 | 210 |
360 | 25 | 30 | |||
2 | 6.1 meters of the fan | 95 | 75 | 65 | 204 |
310 | 25 | 30 | |||
3 | 5.5meters of the fan | 95 | 75 | 65 | 200 |
280 | 25 | 30 | |||
4 | 5.0 meters of the fan | 95 | 75 | 65 | 196 |
240 | 25 | 30 | |||
5 | 4.5meters of the fan | 95 | 75 | 65 | 192 |
220 | 25 | 30 |
PRODUCT DETAILS:

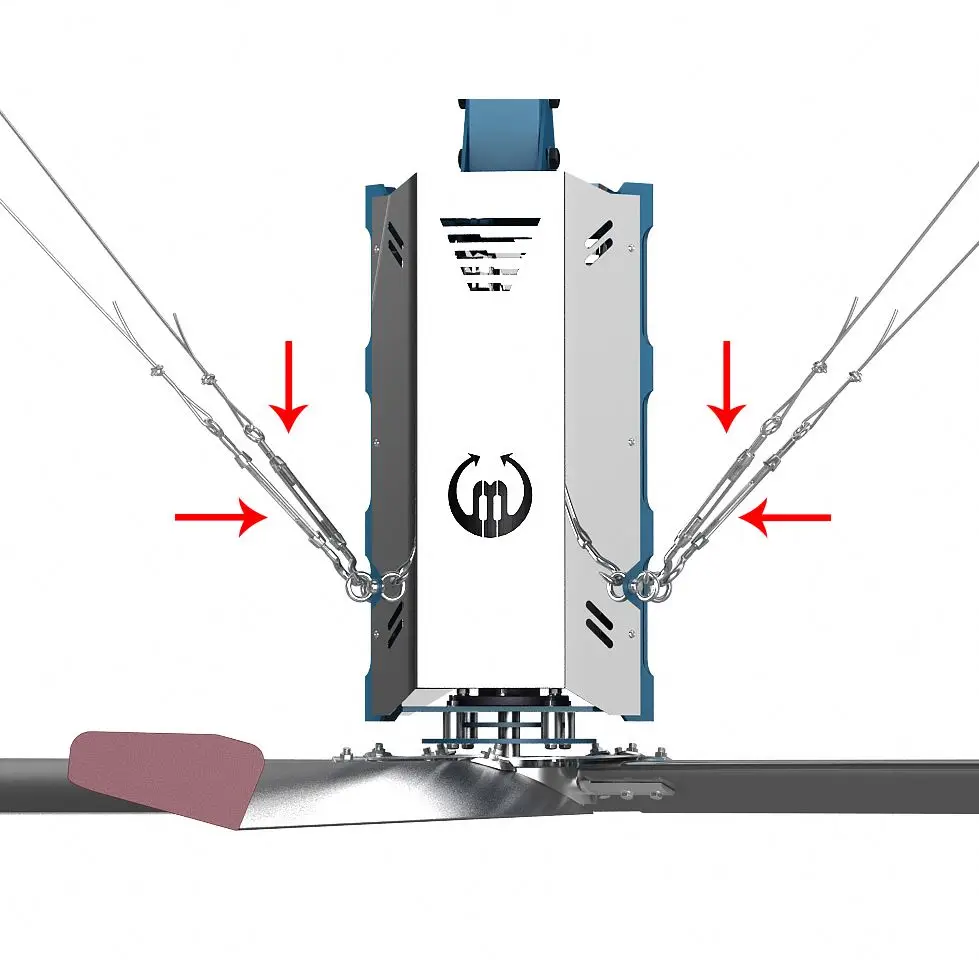

- NORD reduction motor:The power system is the heart of the wole machine, and its quality
determines the life of the machine. Bichen adopts the world-renowned German NORN brand, with 35 motor axle diameter, large bearing capacity and torque. The motor bearing is SKF brand, which is the best bearing in the world with good stability and wide application range. Ensure that the machine running for a long time without failure, and with low noise, maintenance-free features. CCC, CE, CSA, GL certification.
- 1.5mm cold rolled plate box body, the whole machine hot melt ring seal. Relay, current protection switch, time control switch, more reliable protection inverter and cooling fan, control box safety and longer service life.
KOWO converter, called KOWO ac frequency converter, is mainly used for three-phase asynchronous ac motor to control and adjust the motor speed. Kovo frequency converter products, so far the products have covered all the low-voltage market. KOWO converter always adheres to the customer-oriented research and development, which ensures the stability, innovation and flexibility of the product. As a result, KOWO inverter has become the world's leading inverter market leader and the world's leading inverter supplier.
- The shell is made of stainless steel laser cutting.Compared with the iron shell has more corrosion resistance,rustproof performance, service life is longer, safety performance is further improved.The surface of the housing is smooth and clean, high finish, easy to clean and beautiful.
- Main engine chassis:the process of using mold cavity to apply high pressure on the melted metal and obtain high-quality casting after solidification is made by hot forging, numerical control machining and CNC precision machining, which can ensure the precision of fan balance and the ultra-high hardness to completely solve the root fracture problem caused by low-pressure casting and ensure the product safety.
- Blade clip: connecting chassis and blade, safety is very important here, bichen chooses higher cost aviation aluminum material. Ultra-high hardness ensures that the blade length keeps constant operation, ensuring the safety of the product.
OUR BEST QUALITY:
Other brands use in-line insertion,Bichen use aviation aluminum The material is die-cast aluminum,rods,It's three times as hard as Low cost, concentrated stress point,aluminum alloy.Double safety Prolonged extrusion is liable to fracture.for upper and lower brackets,Make sure that the blades will not break after long operation.

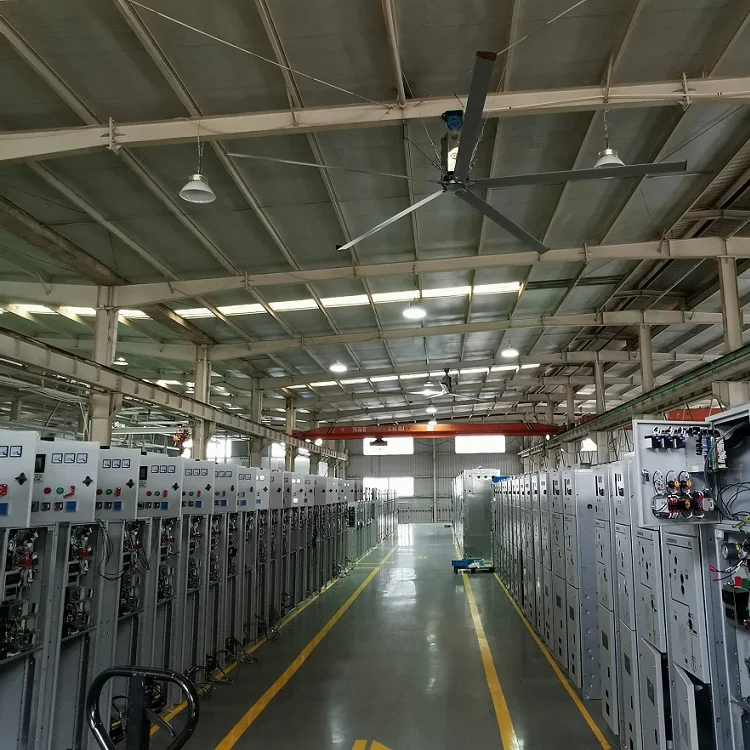

PHYSICAL PICTURE DISPLAY:
| Main product series | ||
 |  |  |
| Permanent magnet fan series | Reducer fan series | Large mobile fan series |
COMPANY PROFILE:
OUR CERTIFICATES AND PATENTS:
OUR EXHIBITION:
Packaging and transportation:
FAQ:
Q: Are you manufacturer or trading company?
A: We are professional hvls fan manufacturer, and doing this industry for over 10 years. also we offer shipping service
Q Where does your fan use in?
A: Ths fan is widely used in factory, farm & warehouse, supermarket, Church, resturant, office etc.
Q: Is it powered electrcity?
A: Yes, Power supply is electricity, but only 0.5KW and less, it's energy-saving.
Q: What is the price?
A: It depends on your quantity, your requirements, but price must be reasonable.
Q: How long is the delivery time?
A: We have fans in stock, below 5 days by air-express, about 15 days by ocean shipping.
Q: How long is the warranty, and how is your maintenance service ?
A: We offer 3 years warranty, if fan stop working, we will first teach you and find out the reason, the motor is rarely break, if you can repair it by your self, it's great, but if the motor is broken, you can send back to us and replace a new one for you.
