corrugated paperboard folding gluing machine cardboard carton box flexo folder gluer machine

Model	JGZ-C1500	JGZ-C1800	JGZ-C 2000
Voltage	According customer need	According customer need	According customer need
Power	3.2kw	3.2kw	3.8kw
Hz	50/60hz	50/60hz	50/60hz
Weight	1.0tons	1.3tons	1.45tons
Overall size	2200x1900x1300mm	2200x2400x1300mm	2200x2650x1300
Max size of box	1500x1100mm	1800x1100mm	2000x1100
Min size of box	200x260mm	200x260mm	200x260

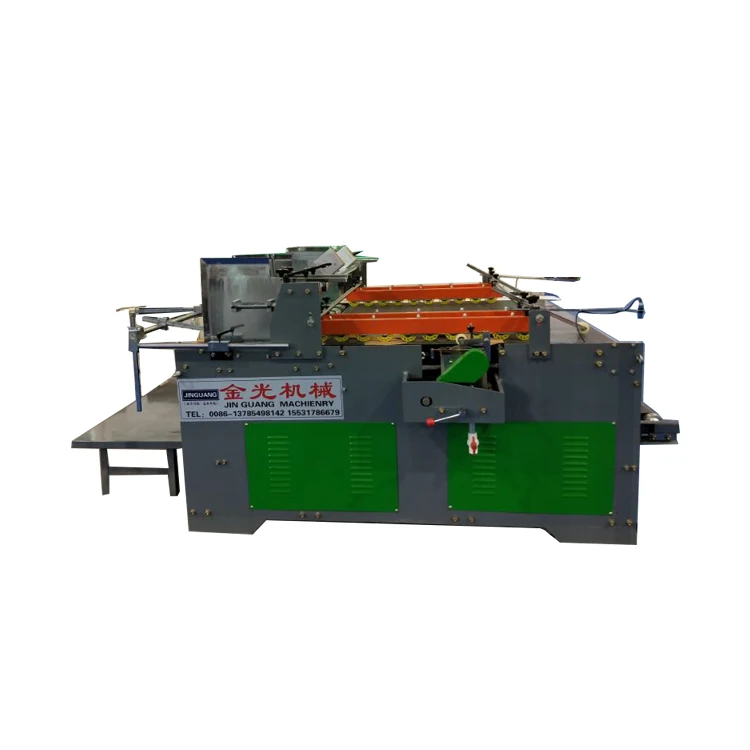

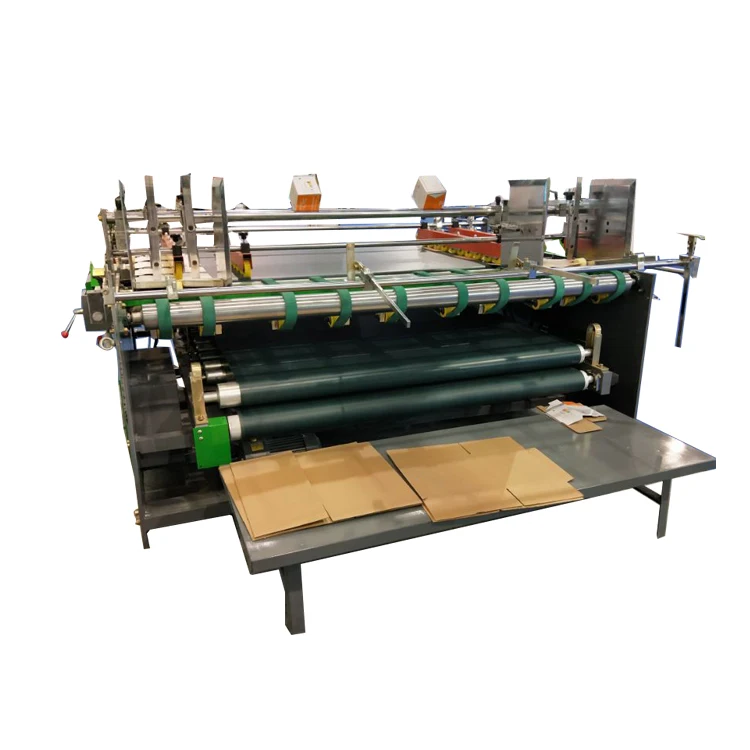

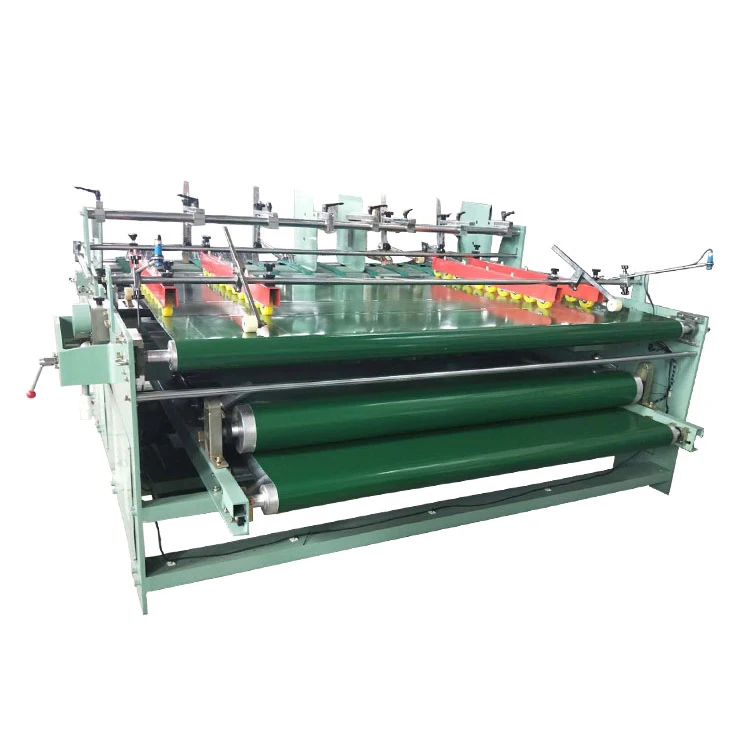

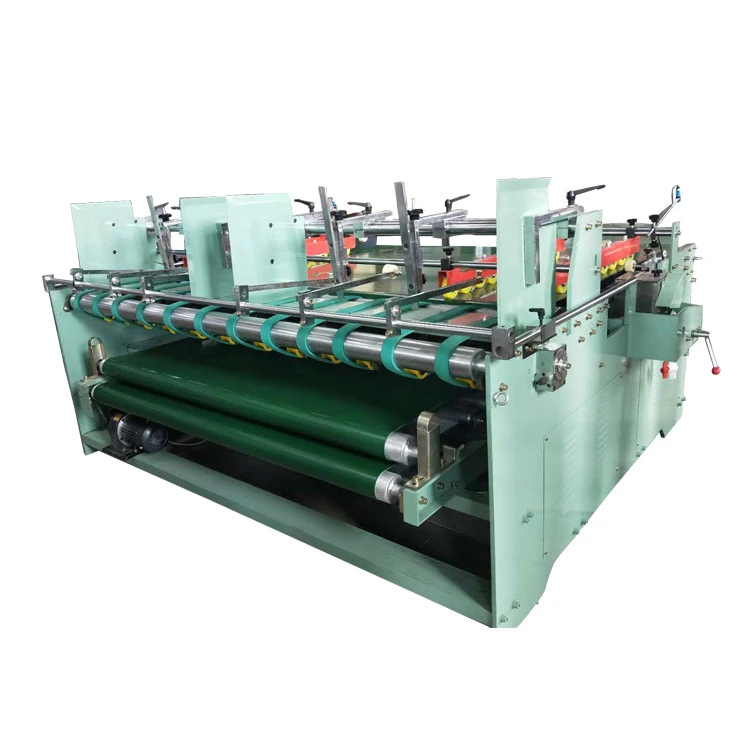

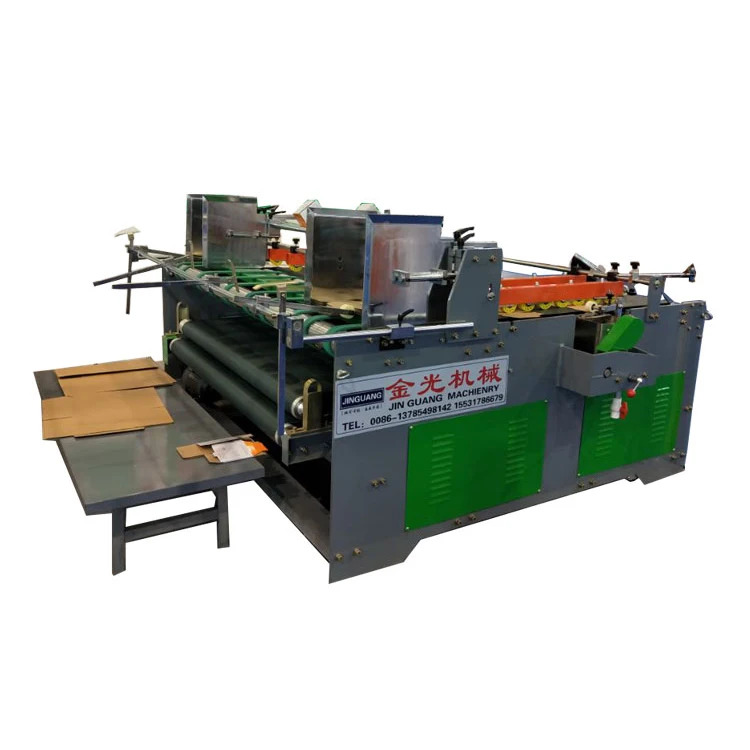

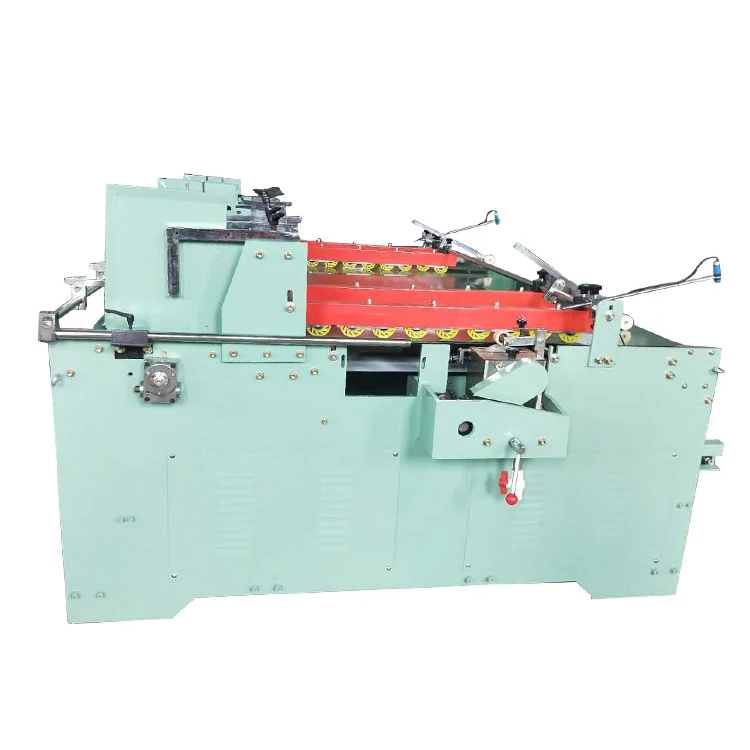

JGZ-C series Semi-Auto Gluer Machine (Combined pressure model) is the latest exploit.

According to the small order of the user,

1. It has a small volume and cover small area,

2. Easy operation without of having experience, applicability range is wide.

3. Suitable for small quantity produce and simple to change variety.

4. Ordinary carton and heterogeneous shape can be glued,.

5. It saves glue and the glue dosage is one third of the manual glue dosage.

6. Maxium mechanical speed is 56m/min, efficiency is 4 times higher than manual operation.

7. Adhesive is strong, tidy and not leak glue, UV light membrane and plastic coated of sticky mouth section can be polished and removed by two-headed burnish implement, improving the glue adhesive and solve the difficulty of some cartons are easy to opening glue problem in some seasons.
