2000BPH автоматическое оборудование для переработки птицы/Оборудование забоя цыплят/завод по переработке
- Категория: Agriculture Machinery & Equipment >>>
- Поставщик: Ningbo,Connect,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.69 $* | 0.99 $* |
| Aug-15-2025 | 0.0 $* | 0.36 $* |
| Jul-15-2025 | 0.60 $* | 0.18 $* |
| Jun-15-2025 | 0.5 $* | 0.92 $* |
| May-15-2025 | 0.40 $* | 0.29 $* |
| Apr-15-2025 | 0.20 $* | 0.96 $* |
| Mar-15-2025 | 0.40 $* | 0.35 $* |
| Feb-15-2025 | 0.54 $* | 0.8 $* |
| Jan-15-2025 | 0.25 $* | 0.70 $* |
Характеристики
CONNECT PRODUCTS WE PROMISE YOU QUALITY
Poultry Processing Line Equipment, Including all processing Equipments | ||||||

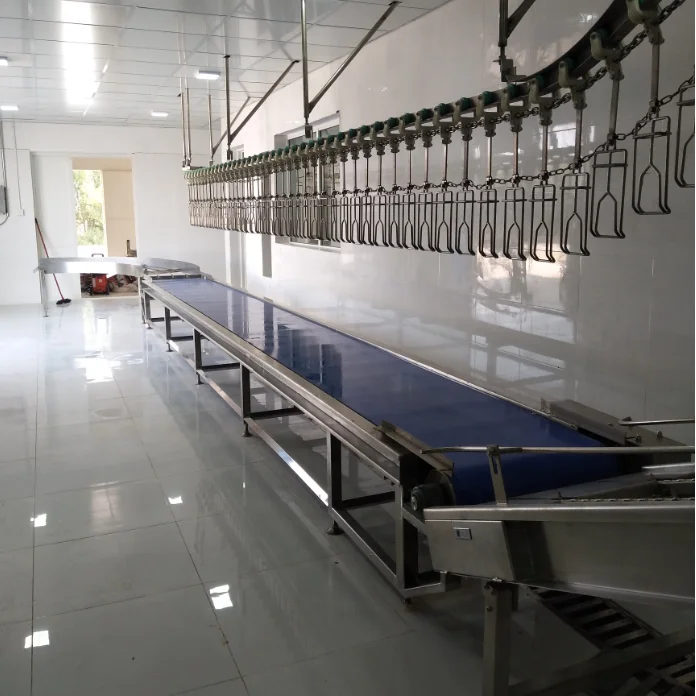

LIVE BIRDS RECEIVING UNIT ( CRATE CONVEYOR BELT)
All the crates conveyor manufactured high quality
With stainless steel 304 support, the belt is industrial grade corrosion resistance.
The commissioning system is motor reducer with power 0.75kw
PROCESSING UNIT
Type：GSDM-II
Size：L*1100*1600 (Length as clients’ need)
Power：400w
Voltage: single phase 220V 50Hz
Load regulation rate ≦1%
Frequency stability 0.01%
Waveform distortion rate ≦2%
Efficiency ≧85%
Protection device, overload, short circuit, over voltage, over current protection and alarm device
Size：L*1100*1600 (Length as clients’ need)
Power：400w
Voltage: single phase 220V 50Hz
Load regulation rate ≦1%
Frequency stability 0.01%
Waveform distortion rate ≦2%
Efficiency ≧85%
Protection device, overload, short circuit, over voltage, over current protection and alarm device
Connect RMC series stunner power core is microprocessor, with MPWM, Active component IGBT module design, Digital frequency conversion
The main basic parameters:
Processing object: poultry
Operation time: 8-10 seconds
Processing object: poultry
Operation time: 8-10 seconds
Made of fully Stainless steel 304

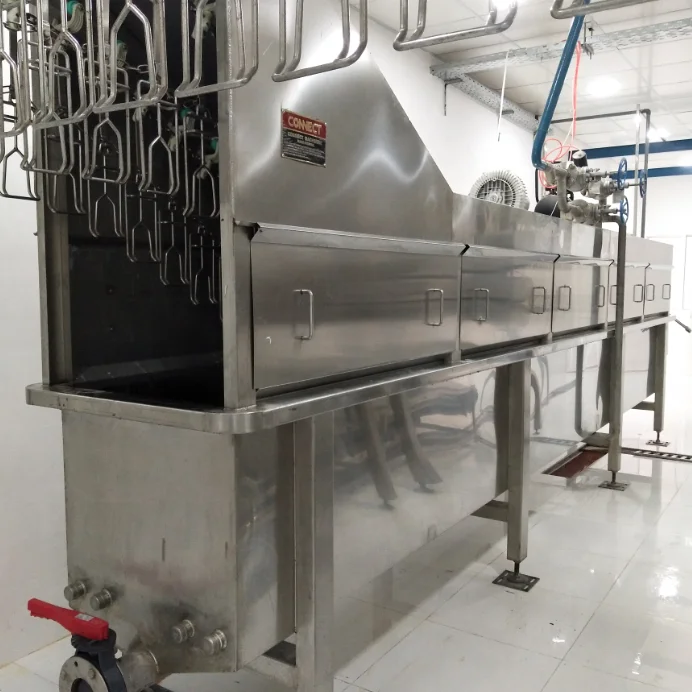

Connect Scalding raising the defeathering rate, save labors' working, reducing damage rate and increasing the profit.
Including tank body, heating supply system, automatic temperature control, automatic water supply.
** Various size is available
Made of fully Stainless steel 304

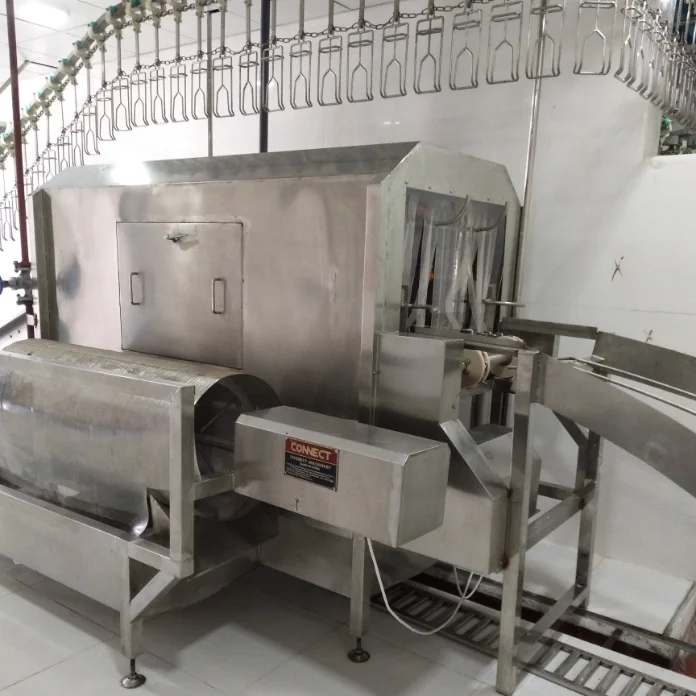

Connect plucker is the latest and development of next-generation products based on the merits of the old models.
By using the electric system adjusts the position of plucking cabinet, which is easy operation.
Avoiding the old model plucker adjusting system lock.
Auto open and close system, flexible opening and closing of the box.
** Various size is available
Made of fully Stainless steel 304

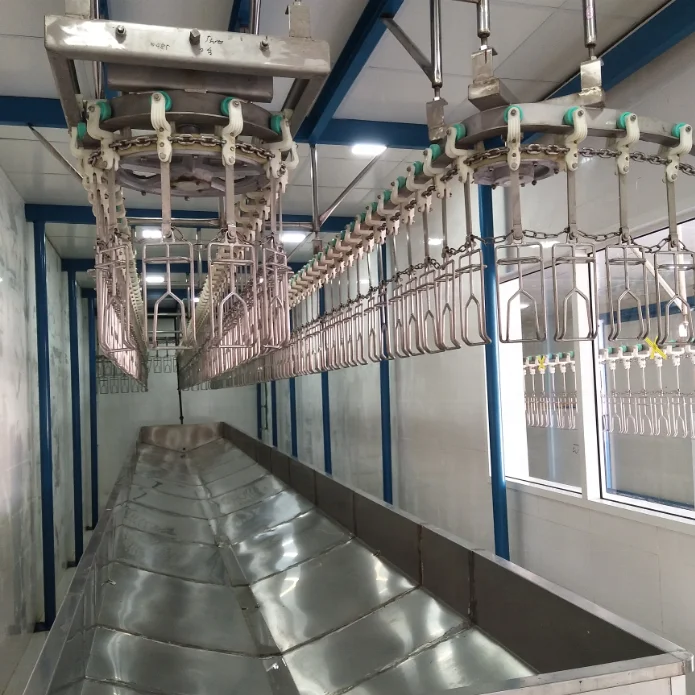

Screw chiller is used for pre-chilling carcass or its by-products during the poultry process.
The chicken in screw chiller forward by screw blade pushing, at the same time with the air blow up which by fans to make chicken turns around in the water, which make the blood move out from chest.
** Various size is available
* * *Optional equipment for clients choosing
1. how many types of chickens can it be processed?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.
2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.
3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.
4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.
5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.
6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.
7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.
8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
