Характеристики













Display


Item
Parameter
Description
Color
16.7M (16777216) colors
24 bit color 8R8G8B
Active Area (A.A.)
55.76mm (W) ×93.2mm (H)
480x800 Pixel Matrix
Resolution
480*800
Support 0°/90°/180°/270°rotated display
Backlight
LED
≥30000H(Continuous working with maximum brightness, time of brightness halves)
Brightness
200nit
TA system:64 levels adjustment;
DGUSⅡsystem:100 levels adjustment.
(It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker)
Notice: Displaying a high contrast still screen for more than 30 minutes may result in an image blurring.Please add
the screensaver to avoid.


Voltage & Current


Item
Conditions
Min
Typ
Max
Unit
Power Voltage
-
6
12
36
V
Operation Current
(None Speaker)
VCC = 12V, Backlight on
-
100
-
mA
VCC = 12V, Backlight off
-
40
-
mA
Recommended power supply: 5V 1A DC


Reliability Test


Item
Conditions
Min
Typ
Max
Unit
Working Temperature
60%RH at 5V voltage
-20.0
25.0
70.0
oC
Storage Temperature
-
-30.0
25.0
85.0
oC
Working Humidity
25oC
10%
60%
90%
RH
Protective Paint
-
-
None
-
-


Interface


Item
Conditions
Min
Typ
Max
Unit
UART2 Baudrate
User set
3150
115200
7833600
bps
239
-
15667200
bps
Output Voltage
(TXD)
Output 1, Iout = 1mA
3.0
3.3
-
V
Output 0, Iout = -1mA
-
0.0
0.3
V
Input Voltage
(RXD)
Input 1, Iin = 1mA
2.4
3.3
5.0
V
Input 0, Iin = -1mA
0.0
-
0.5
V
Interface
UART2: N81，RS232
UART4: N81,RS232
UART5: RS485

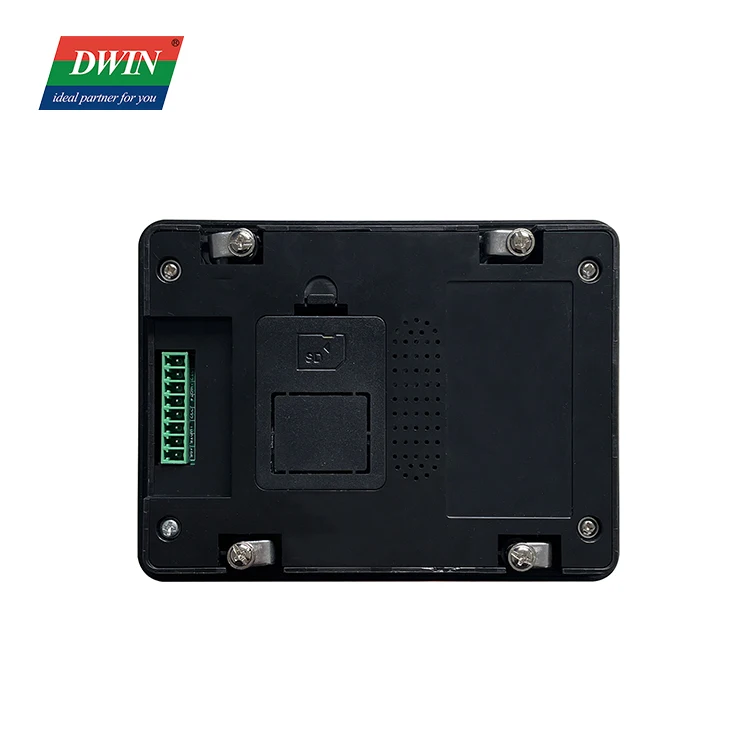

Socket

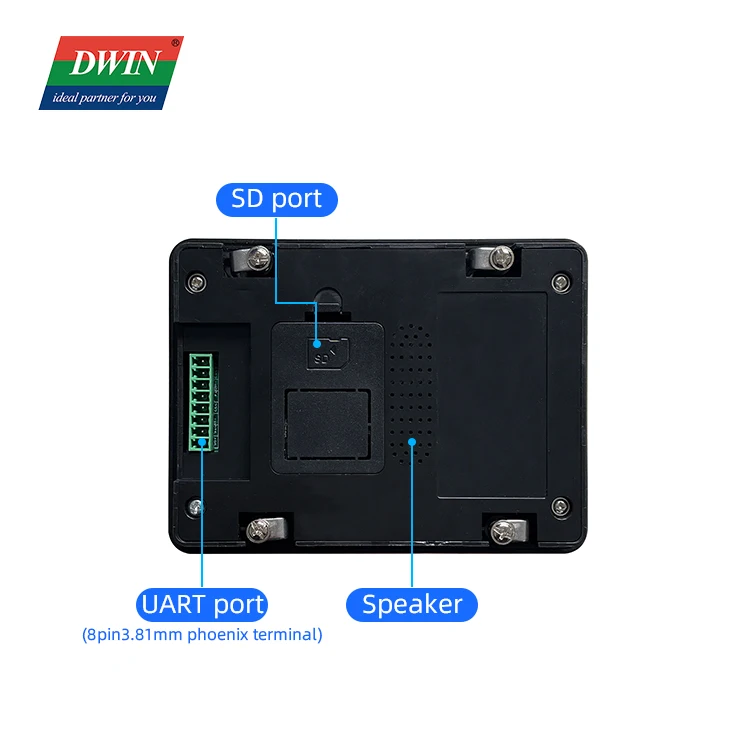

8Pin_3.81mm Socket
SD Slot
Yes (SDHC,FAT32 file format)
USB
None


Memory


Item
Typical value
Feature
Typ value
Unit
Description






          Flash






32M bytes


Space of Font-


4-12


Mbytes
A single font of 256Kbytes,store font, icon libraries,and other binary files
Font and audio file share the back half (32 Mbytes) of Font Space.
Picture Storage (256MB)



Picture Storage-




4-12




Mbytes
JPEG format(Picture quantity relate to JPEG size，size of a single JPEG image file should not exceed 252 Kbytes)
Picture Storage (1GB)
-
-
619
Pcs
RAM
128Kbytes
Variable Storage Space
-
-
Data is not saved when power down
Nor Flash
512Kbytes
User database
-
-
Data is saved when power down


UI & Peripherals


Peripherals
UI Version
TA / DGUSⅡ ( DGUSⅡ pre-installed )
Peripherals
Resistive touch panel, Speaker，RTC
DMT10768C080_07WT:  Speaker,Built-in RTC,capacitance touch screen


Packing Capacity & Dimension


Dimension
143(W)×107(H)×23(T)
Net Weight
253g
Packing Capacity
Model
Size
Layer
Quantity/Layer(Pcs)
Quantity(Pcs)
Carton1
220mm(L)×160mm(W)×47mm(H)
1
2
2
Carton2
250mm(L)×200mm(W)×80mm(H)
2
2
4
Carton3
320mm(L)×270mm(W)×80mm(H)
2
4
8
Carton4
450mm(L)×350mm(W)×300mm(H)
-
-
-
Carton5
600mm(L)×450mm(W)×300mm(H)
2
60
120


Remark: There is no extra-notice if the product design changes that do not affect performance parameters and use.
