Характеристики
Product Description
Introduction to Mold Temperature Controller
Microcomputer touch type temperature control is easy to operate, PID control.
Touch type internal storage automatic temperature control accuracy ±1℃, energy saving 3%.
The use of imported circulation pump pressure is high, large flow, ensure the mold temperature uniform.
The machine with a safety protection system, new design, beautiful appearance, small volume, easy maintenance.
Safety protection system:
Main power over current no fuse circuit breaker, motor reversal protection and indication, oil shortage protection and indication, overheat protection and indication, circulation pump overload protection and indication, abnormal warning buzzer and indication, power out of phase protection.
Touch type internal storage automatic temperature control accuracy ±1℃, energy saving 3%.
The use of imported circulation pump pressure is high, large flow, ensure the mold temperature uniform.
The machine with a safety protection system, new design, beautiful appearance, small volume, easy maintenance.
Safety protection system:
Main power over current no fuse circuit breaker, motor reversal protection and indication, oil shortage protection and indication, overheat protection and indication, circulation pump overload protection and indication, abnormal warning buzzer and indication, power out of phase protection.
Features
Features of Mold Temperature Controller
1. The control panel is selected for KL computer board touch operation, and the microcomputer touch control is easy to operate.
2. PID control, touch internal storage automatic temperature control precision 1C energy-saving 35%.
3. High pressure and large flow of the import circulation pump to ensure uniform mold temperature.
4. New design, beautiful appearance, small volume, easy maintenance.
5. All stainless steel tanks and high-pressure explosion-proof pipes.
6. The body is formed by aluminum plate design.
7. Heat pipe is used in copper pipe with power of 9KW (6KW,12KW).
8. The oil pump power is 1HP (1HP, 2HP can be selected).
2. PID control, touch internal storage automatic temperature control precision 1C energy-saving 35%.
3. High pressure and large flow of the import circulation pump to ensure uniform mold temperature.
4. New design, beautiful appearance, small volume, easy maintenance.
5. All stainless steel tanks and high-pressure explosion-proof pipes.
6. The body is formed by aluminum plate design.
7. Heat pipe is used in copper pipe with power of 9KW (6KW,12KW).
8. The oil pump power is 1HP (1HP, 2HP can be selected).
Product Parameter
Model | Max temperature | Heating power | Heat transfer media | Pump power |
KTC-1 | 120℃ | 6kw | Oil | 1HP |
KTC-2 | 95℃ | 6kw | Water | 1HP |
KTC-3 | 150℃ | 9kw | Oil | 1HP |
KTC-4 | 200℃ | 9kw | Oil | 1HP |
Pump pressure | Pump flow | Capacity of tank | Size | Weight |
4kg/cm | 60L/min | 8L | 650*280*700mm | 60kg |
4kg/cm | 60L/min | 8L | 650*280*700mm | 60kg |
4kg/cm | 60L/min | 8L | 650*280*700mm | 60kg |
5kg/cm | 60L/min | 8L | 650*280*700mm | 70kg |

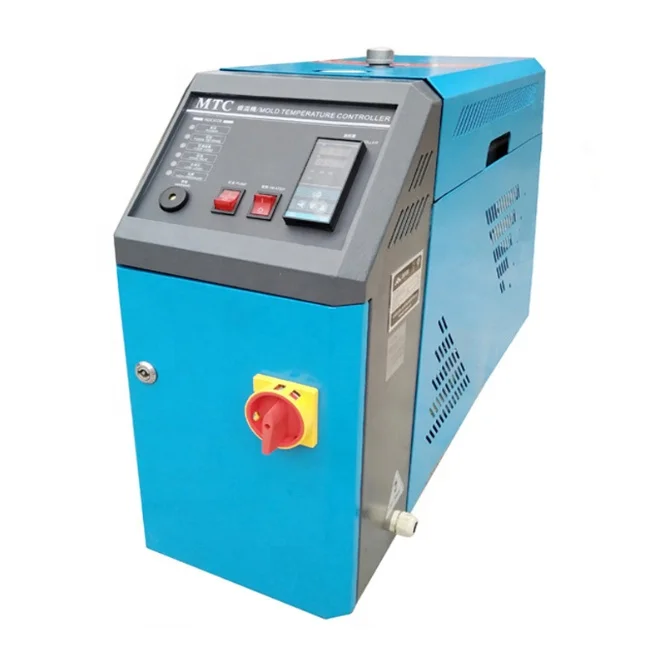

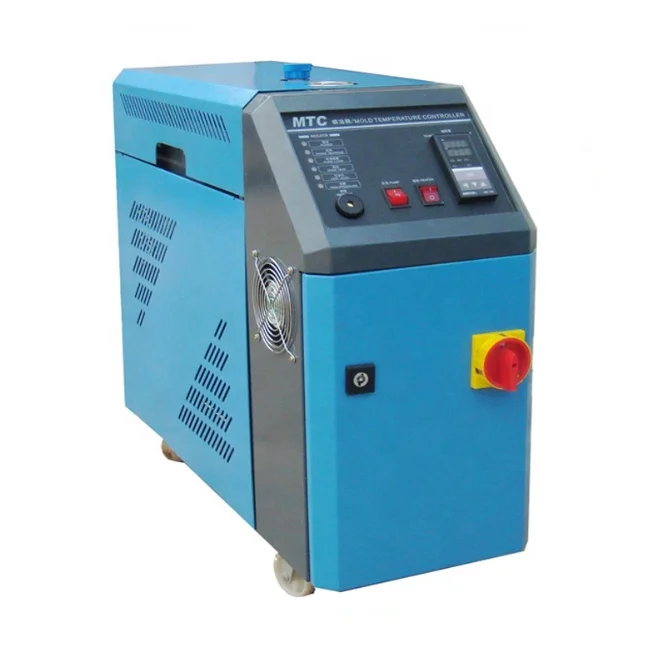

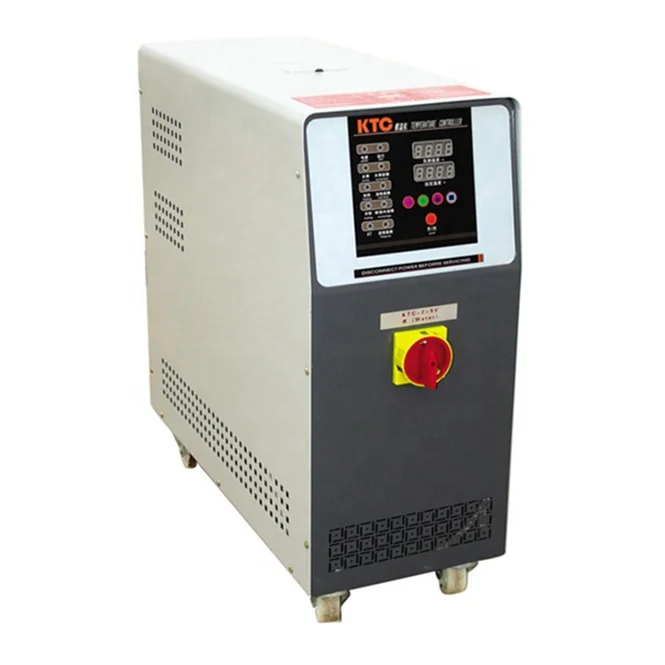

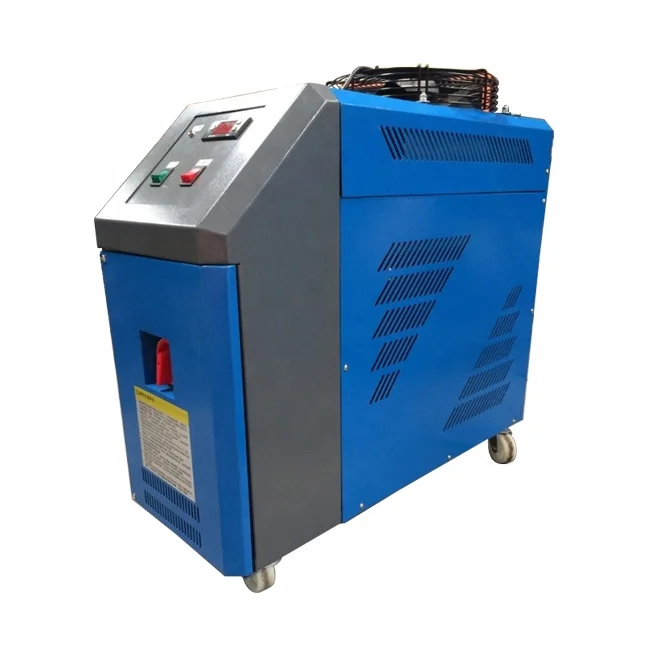

Details photo
Our service
Our service
Pre-sale Service
1. Supply item design, process design.
2. Help you to chose the fit machine.
3. Making the machine according to your requirement.
Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
After Service
1. Guarantee for a year.
2. Quality problem, we will send you the accessories.
1. Supply item design, process design.
2. Help you to chose the fit machine.
3. Making the machine according to your requirement.
Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
After Service
1. Guarantee for a year.
2. Quality problem, we will send you the accessories.
Packaging & Shipping
Package And Transportation
1.We can load the container in Qingdao,Tianjin, Guangzhou and so on.
2. Mode of transportation: express, air and sea.
3. Can you accept FCL, less FCL.
4.Our service :FOB,CIF, door to door, etc.
5.We always choose the most economical and reliable transportation company to ensure that you can receive the goods in time.
6. The tracking number will be provided to you after shipment.
2. Mode of transportation: express, air and sea.
3. Can you accept FCL, less FCL.
4.Our service :FOB,CIF, door to door, etc.
5.We always choose the most economical and reliable transportation company to ensure that you can receive the goods in time.
6. The tracking number will be provided to you after shipment.
