Характеристики

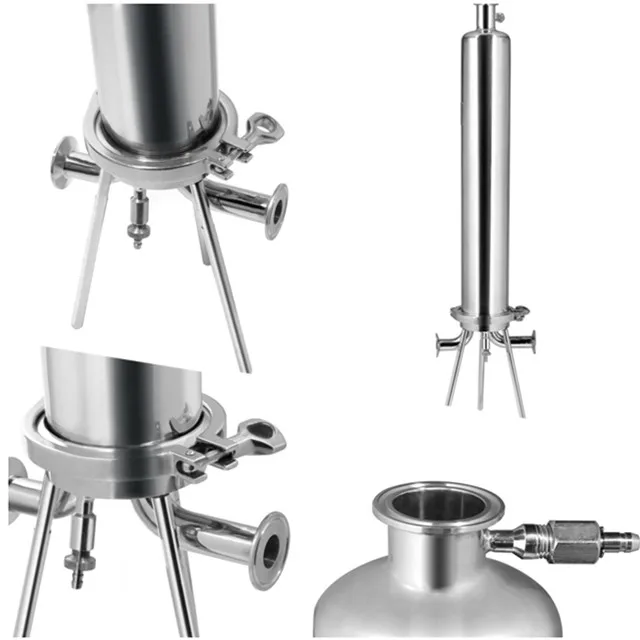

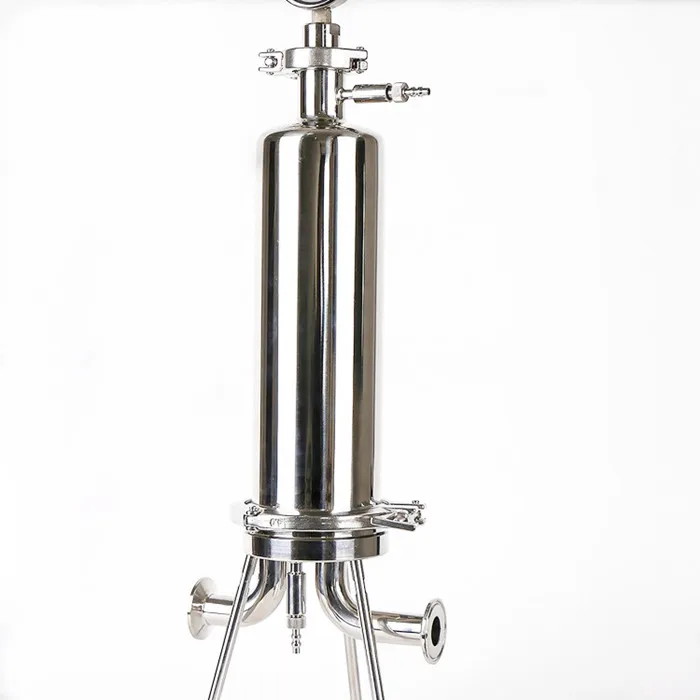

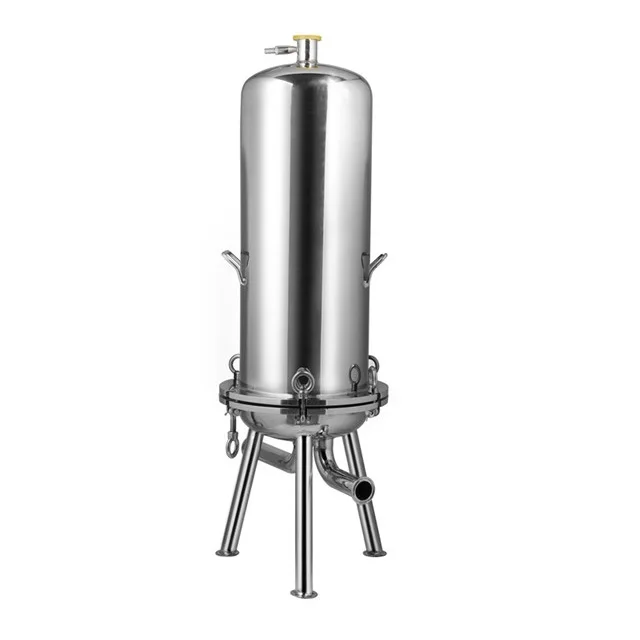

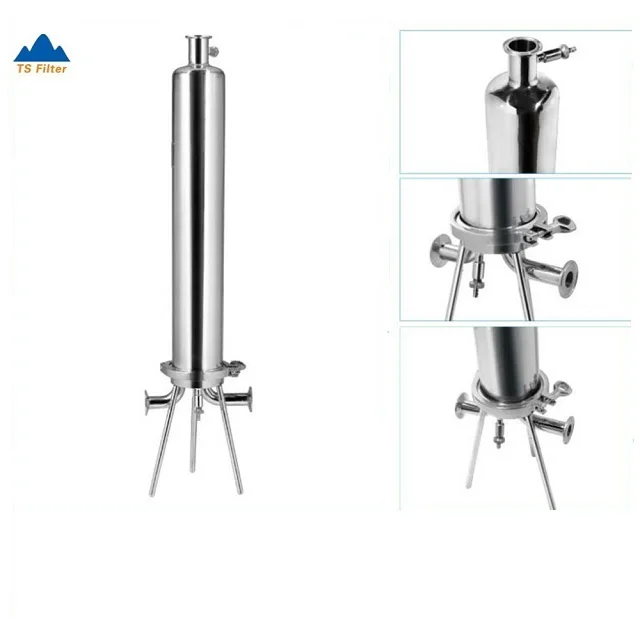

Brewery equipment food grade cartridge type filter housing
Filter housing made by SUS316l or SUS304 stainless steel, Grinding and polishing inside and outside surface. Small flow resistance, acid resistance, alkali resistance, corrosion resistance, easy cleaning and disinfection. Can assemble different filter elements according to their needs and meet the requirements of GMP for food and pharmaceutical industries. The filter equipment is good for food and pharmaceutical industries etc.
Product details
Specification
Material: | Housing | Stainless Steel 304 and 316L for Choice | |
O-Ring | Silicone, EPDM, etc. | ||
Surface Finish: | Interior/Exterior | Electro polished, Ra≤0.2um | |
Connections: | Inlet/Outlet | Tri Clamp | 1” to 10” |
Flange | |||
Thread | |||
Vent | ¼" female | ||
Drain | 1" male or as your request | ||
Lid/Cover Type: | Swing Bolts or Tri Clamp(only for single round) | ||
Designed Pressure: | 10bar (145 psi) with in 30mins | ||
Operating Pressure: | Max. 7.2 bar(108 psi) | ||
Temperature: | Max. 95 ℃ (sterilization 150 ℃) | ||
Cartridge Adapter: | 220, 222, 226, etc. | ||
Cartridge Capacity: | 1, 3, 5, 8..... 30, 36, 45 round | ||
Sketch | | ||
Features and Benefit
Mirror Surface Finish Complete Stainless Steel Construction
Reduces bacterial/particle adhesion and no dead space
Excellent corrosion resistance
Easy To Install Design With Sanitary Connections, Easy to Clean
Available in tri-clamp, flanged and thread connections
Requires minimum floor space and quickly dismantles for easy cleaning
Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges
Suitable for small to large batch sizes and flow rates
High pressure & high temperature designs are available
Clean-in-Place (CIP) /Steam-in-Place (SIP) Design
Typical Applications
Water Treatment, RO system
Pharmaceuticals, API, Biologics
Food and Beverage, Wine, Beer, Dairy, Mineral Water
Paints, Inks Plating Solutions
Process Chemicals and Electronics Industry
