Оптический SC APC UPC OTDR 500 м/1 км/2 км SM ММ кабель запуска коробка волокна кольцо
- Категория: Fiber Optic Equipment >>>
- Поставщик: Shenzhen,Datolink,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.72 $* | 0.55 $* |
| Aug-20-2025 | 0.84 $* | 0.86 $* |
| Jul-20-2025 | 0.21 $* | 0.58 $* |
| Jun-20-2025 | 0.13 $* | 0.66 $* |
| May-20-2025 | 0.51 $* | 0.50 $* |
| Apr-20-2025 | 0.38 $* | 0.37 $* |
| Mar-20-2025 | 0.30 $* | 0.57 $* |
| Feb-20-2025 | 0.46 $* | 0.48 $* |
| Jan-20-2025 | 0.55 $* | 0.71 $* |
Характеристики
Products Description
Description:

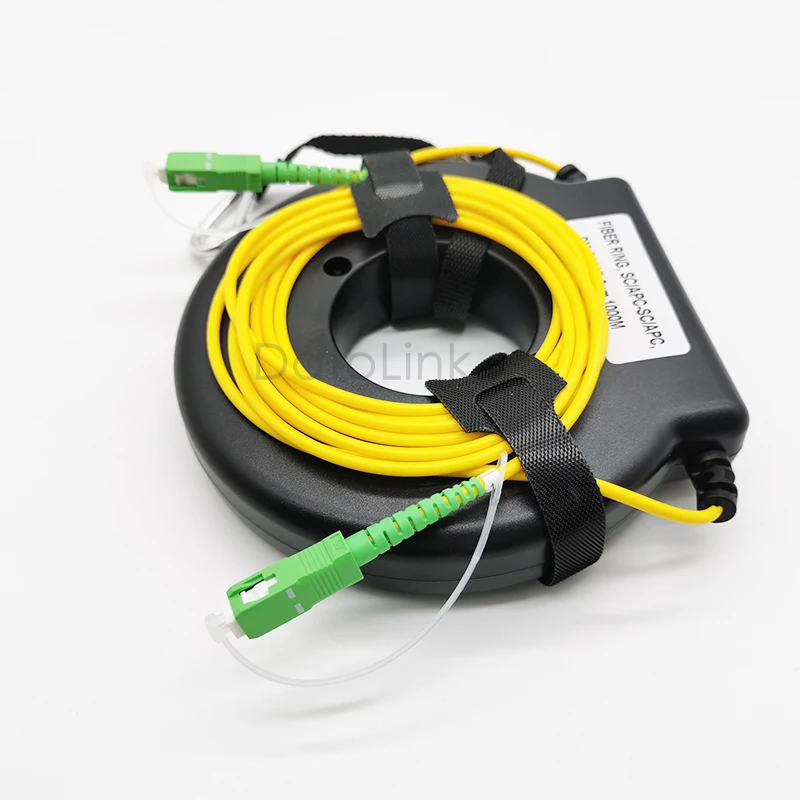

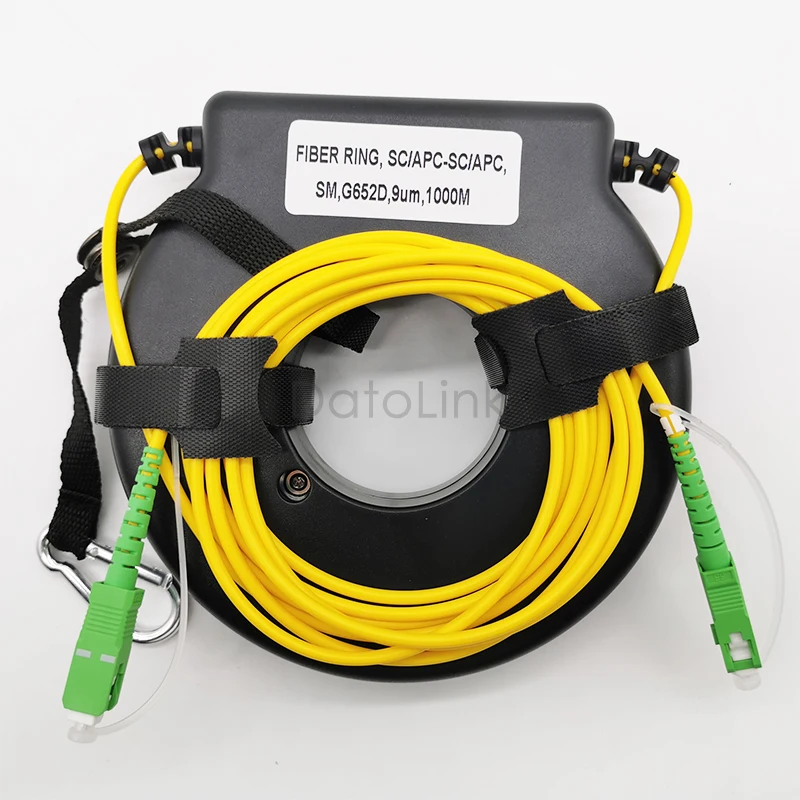

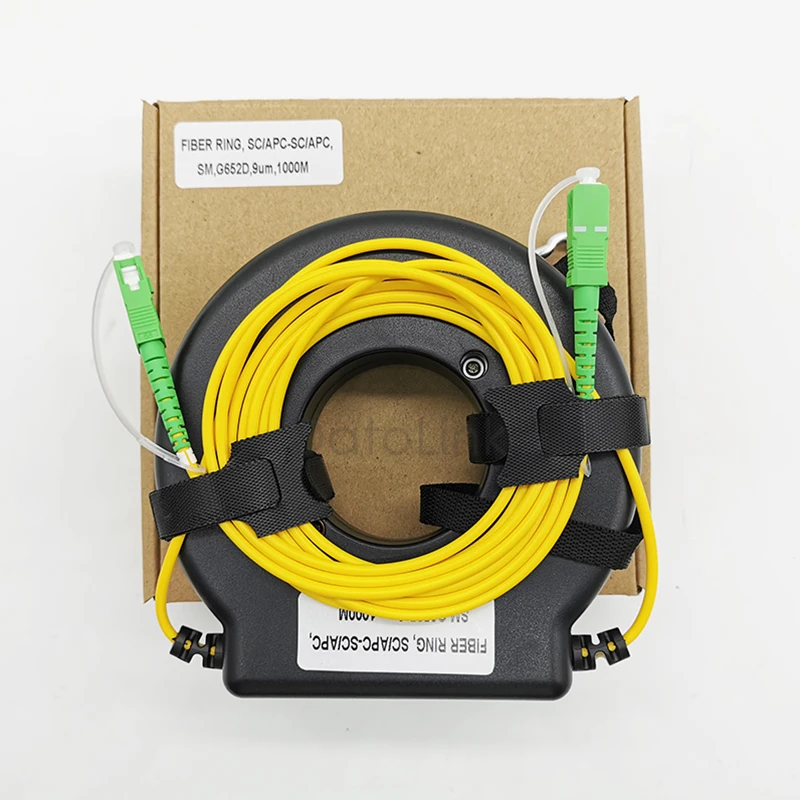

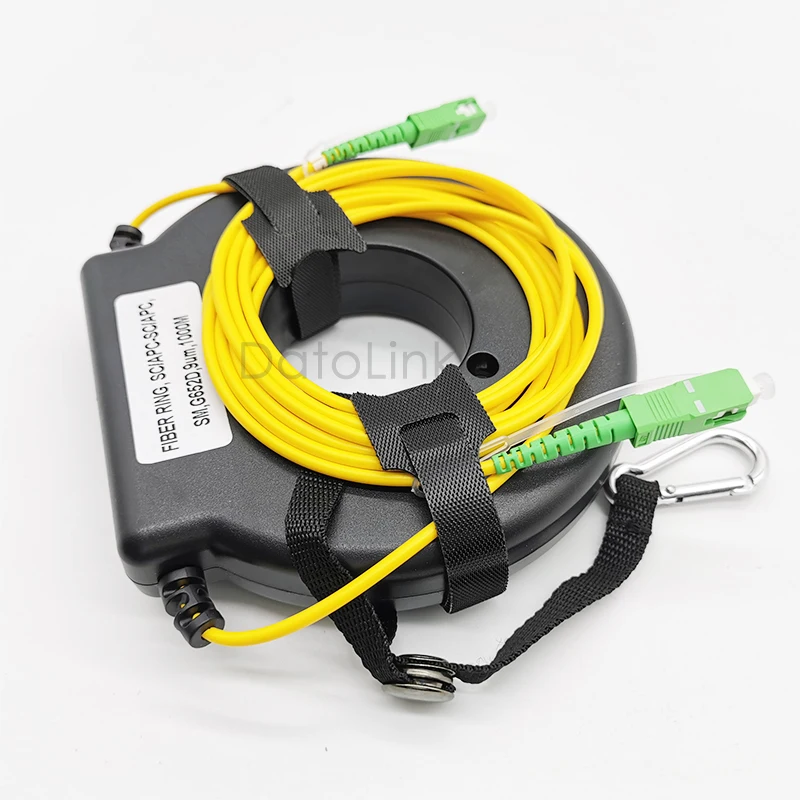

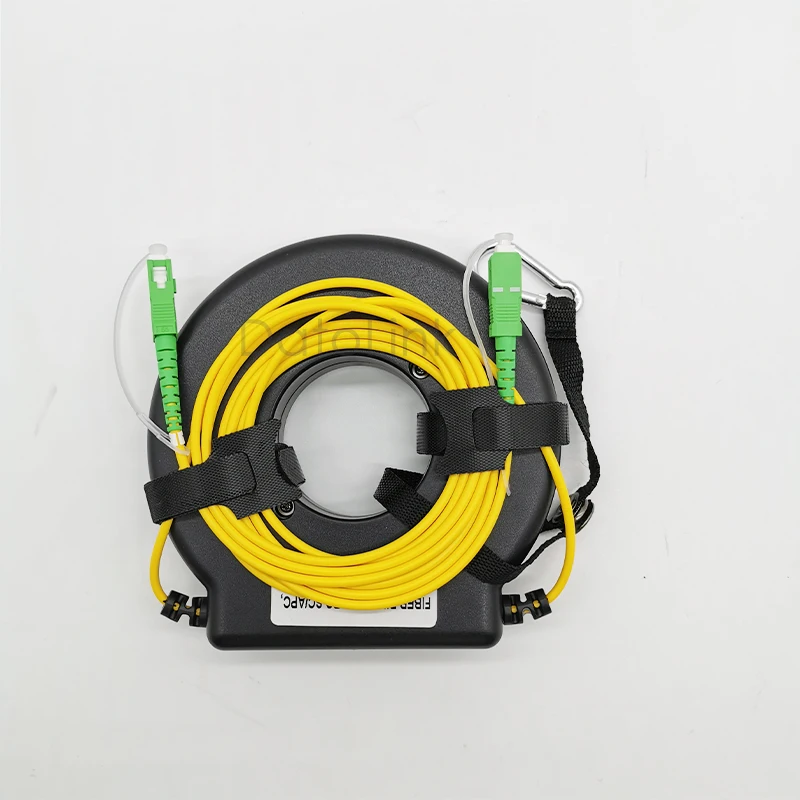

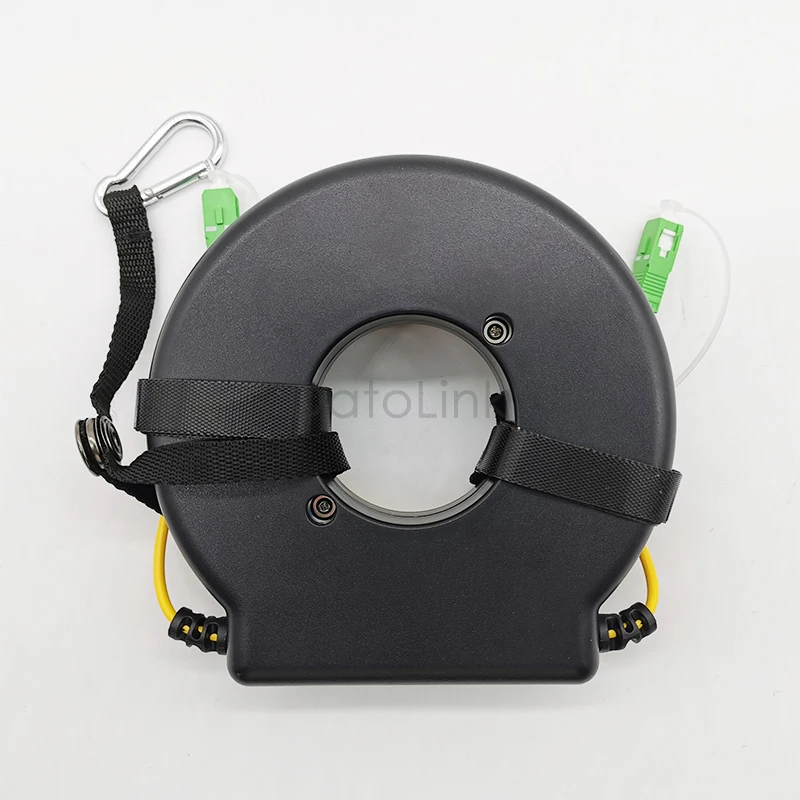

Fiber OTDR Launch Ring, SM/MM, 0.1~2km, SC/FC/LC/ST. Launch and receive test cables to measure the end-to-end loss of optical fiber links. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which is connected to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. OTDR Fiber Rings provide in a compact, lightweight ring, and are ideal for testing optical fiber links (up to about 2 km) in premises networks.
Feature :
Standard boxes along with custom configurations for OTDR applications.
Compact and rugged packaging.
Portable for field use.
Prevents fiber damage and ensures accurate results.
Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound latch for positive seal and easy opening with locking feature.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 1,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature.
Compact and rugged packaging.
Portable for field use.
Prevents fiber damage and ensures accurate results.
Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound latch for positive seal and easy opening with locking feature.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 1,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature.
Length x Width x Height | 150 x 150 x 48 mm |
Material | SR Polypropylene |
Color | Black |
Weight | 0.75kg(without fiber) |
Operating temperature | -40℃ to + 55 ℃ |
Typical Loss | <1dB @ 1310nm for 1000 meters |
Company Information
Exhibition
Our Services
1.Factory, OEM/ODM available |
2.Steady quantities supply, Strict quality control |
3.Excellent Datolink or your own brand box/roller design and package |
4.Stirictly conform to ISO, Rohs CE certificates |
5.Long time experience at domestic and export market |
Packaging & Shiping
