Недорогая камнедробилка линия комплексная Вертикальная ударная дробилка/дробильная установка для мелких камней/машина дробления

The impact crusher is mainly used in metallurgy, chemical industry, building materials, hydropower and other materials that often need to be relocated, especially for the operation of fluid stone materials such as highways, railways, hydropower projects, etc. Different configurations of finished materials require multiple configurations. China's current mobile crushing stations are mostly used in construction waste disposal projects in urban demolition. Crushing and sieving construction waste into several kinds of recycled aggregates of different sizes and rules is the basis of the project to realize the reuse of construction waste in China.

The impact crusher can handle materials with a side length of 100-500 mm or less, with a pressure resistance of up to 350 MPa, and has the advantages of a large crushing ratio, and the crushed materials are cubic particles. Widely used in construction materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical industry and other industries for medium and fine crushed materials. The discharge particle size can be adjusted, and the crushing specifications are diverse.

Pebble,granite, basalt, iron ore, limestone, quartz, diabase, etc.

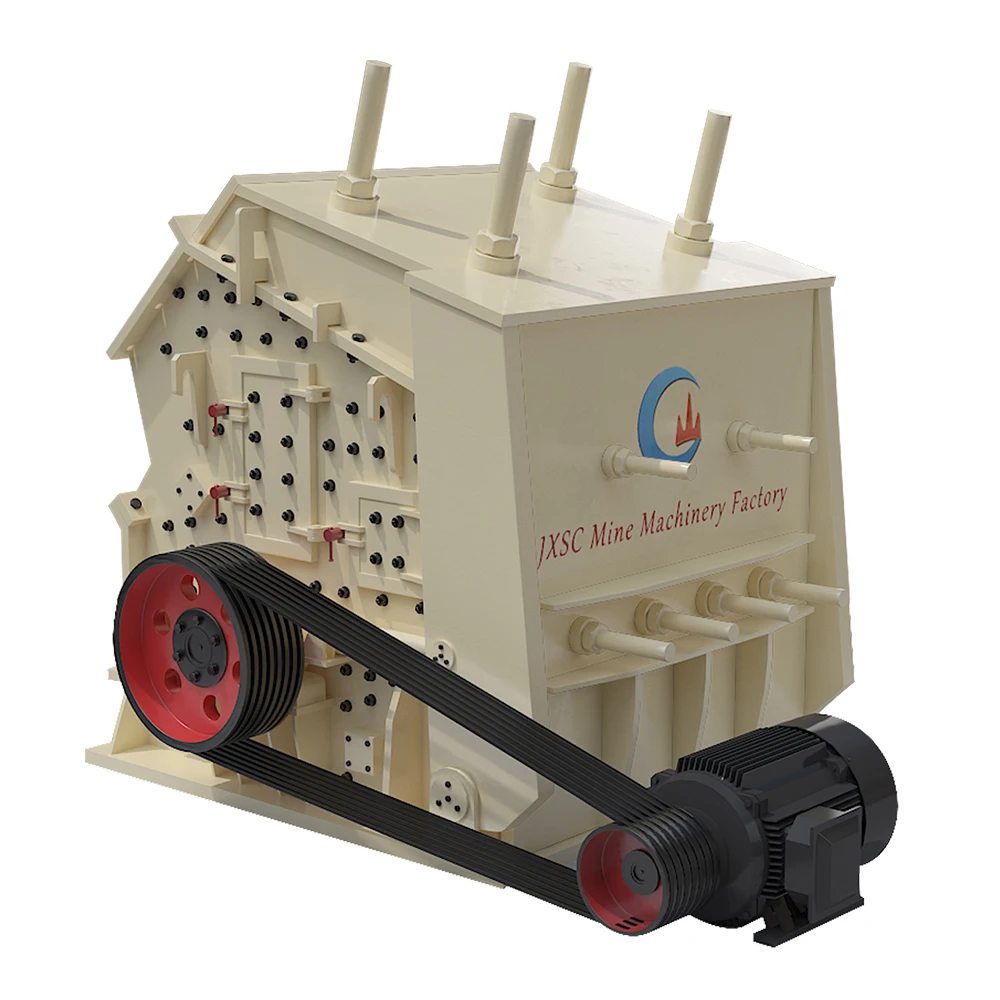

The impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the area of the hammer, it strikes and breaks with the hammer on the rotor, and then is thrown to the counterattack device to be broken again, and then rebounded from the counterattack liner. Return to the impact area of the hammer to re-crush. This process is repeated. The materials enter the first, second and third counterattack chambers from large to small to be crushed repeatedly until the material is crushed to the required particle size and discharged from the discharge port.

The stone falls directly from the upper part of the machine into the high-speed rotating turntable; under the action of high-speed centrifugal force, it will shunt the other part of the flying stone around the turntable in an umbrella-like manner to produce high-speed collision and high density crushing. An eddy current movement is formed between the turntable and the casing, causing multiple blows and crushes to each other.

Jiangxi Pronvince County Mining Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory.

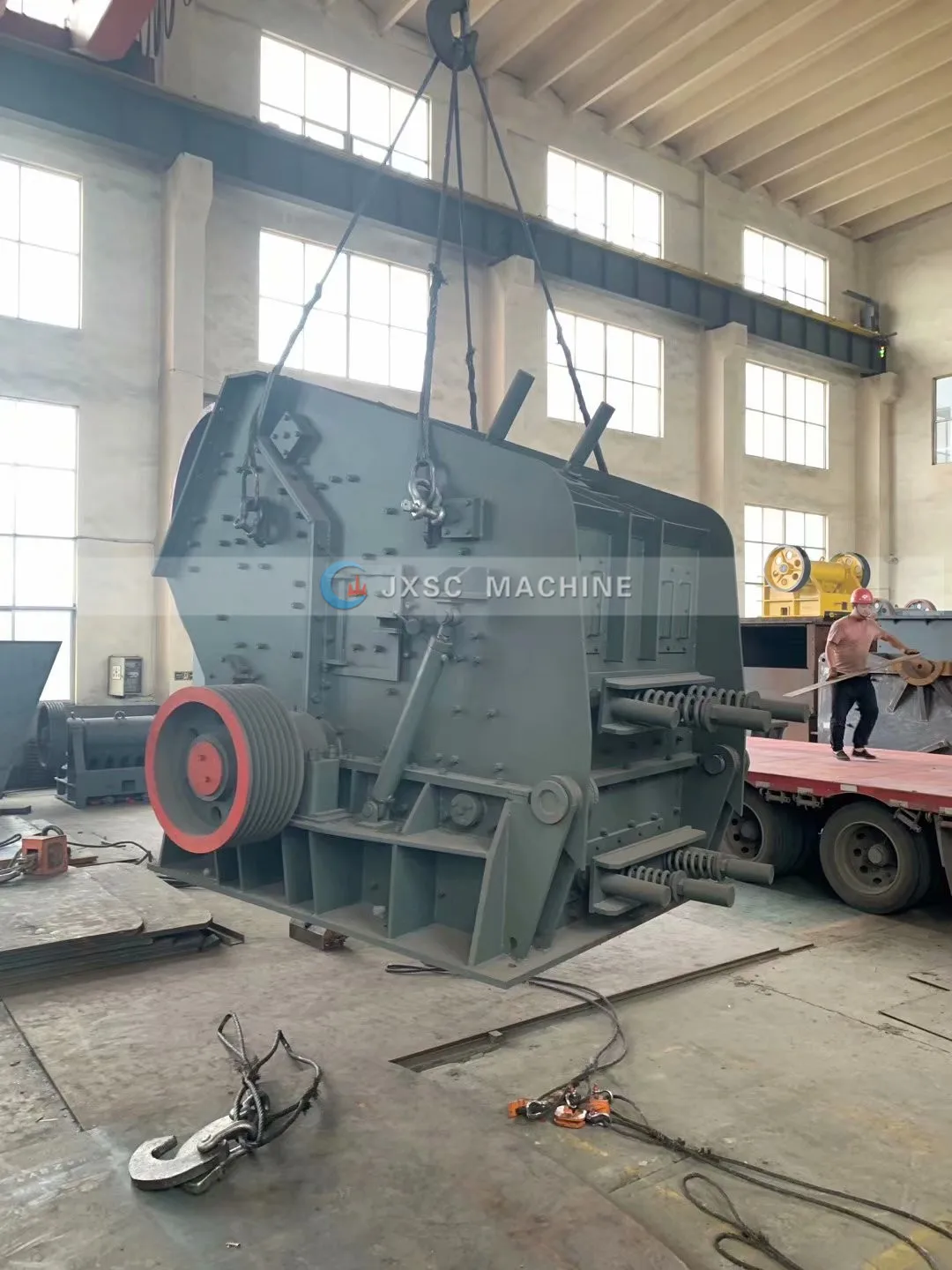

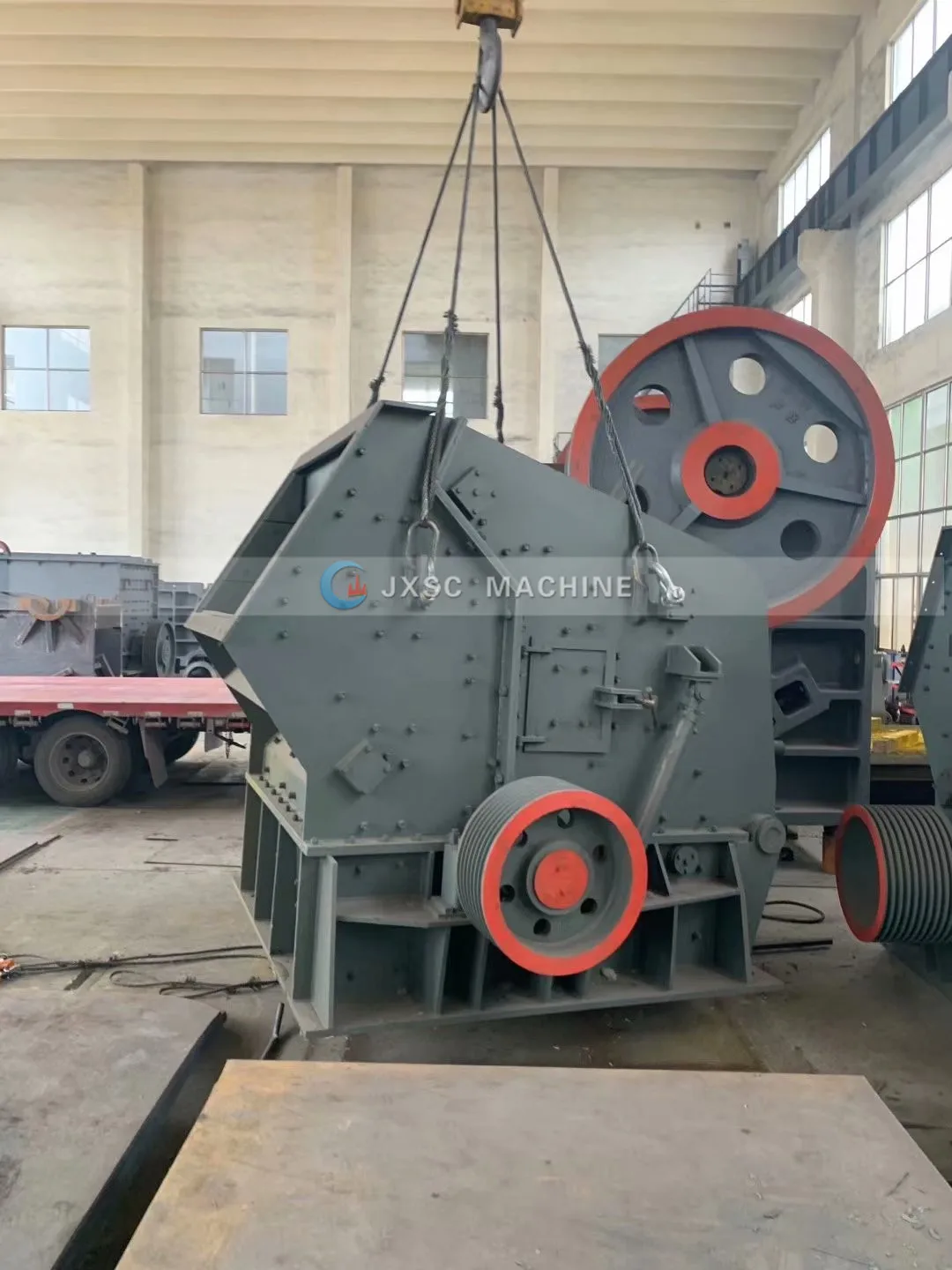

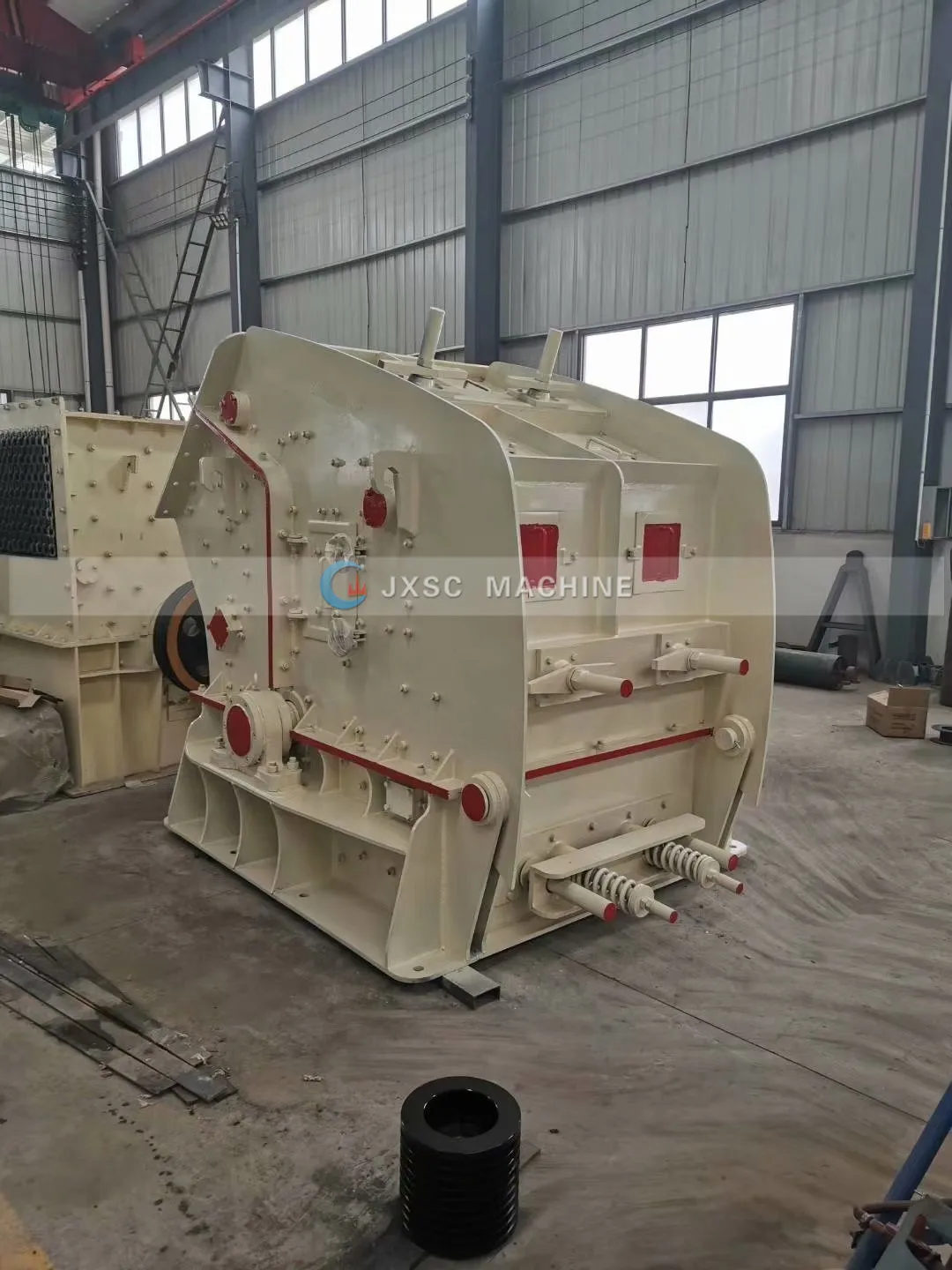

Our Workshop

●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.

●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

Our successful cases

Oman impact crusher production line site

Malaysian impact crusher production line

Chinese customer's production line
