Заводская цена полутрубчатая машина для производства заклепок гидравлическая
- Категория: Клепальная машина >>>
- Поставщик: Foshan,Nanhai,District,Yu,Hai,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21956.29 $* | 23054.26 $* |
| Aug-16-2025 | 21771.81 $* | 22860.72 $* |
| Jul-16-2025 | 18266.59 $* | 19179.61 $* |
| Jun-16-2025 | 21402.8 $* | 22472.95 $* |
| May-16-2025 | 18635.29 $* | 19567.88 $* |
| Apr-16-2025 | 21033.37 $* | 22085.98 $* |
| Mar-16-2025 | 20849.95 $* | 21891.4 $* |
| Feb-16-2025 | 20664.44 $* | 21697.32 $* |
| Jan-16-2025 | 20480.44 $* | 21504.92 $* |
Характеристики
Product Description

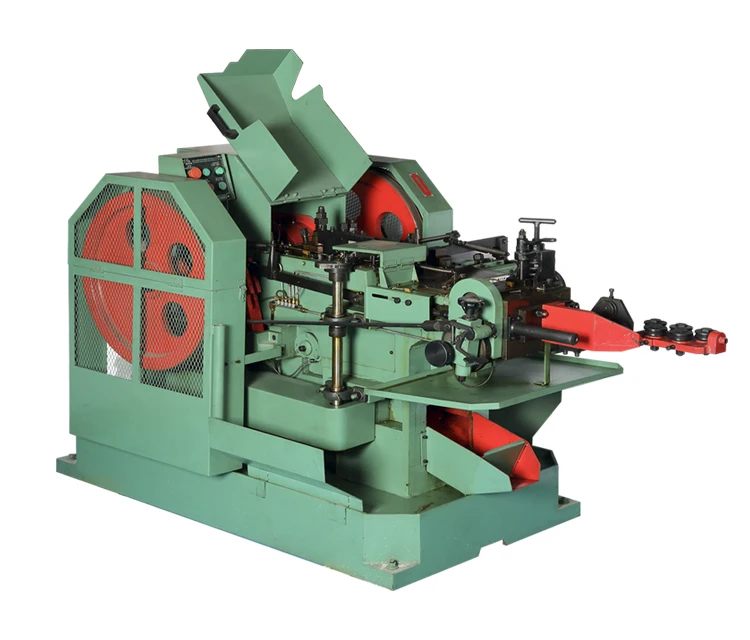

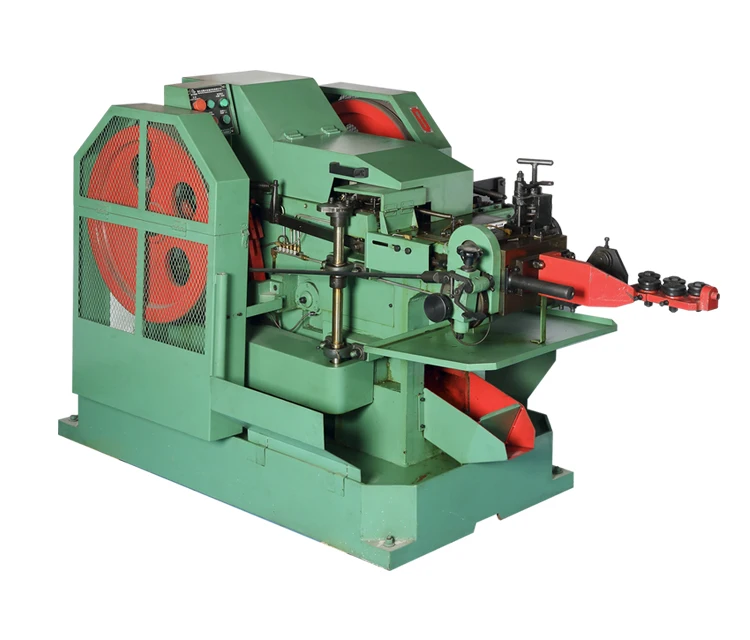

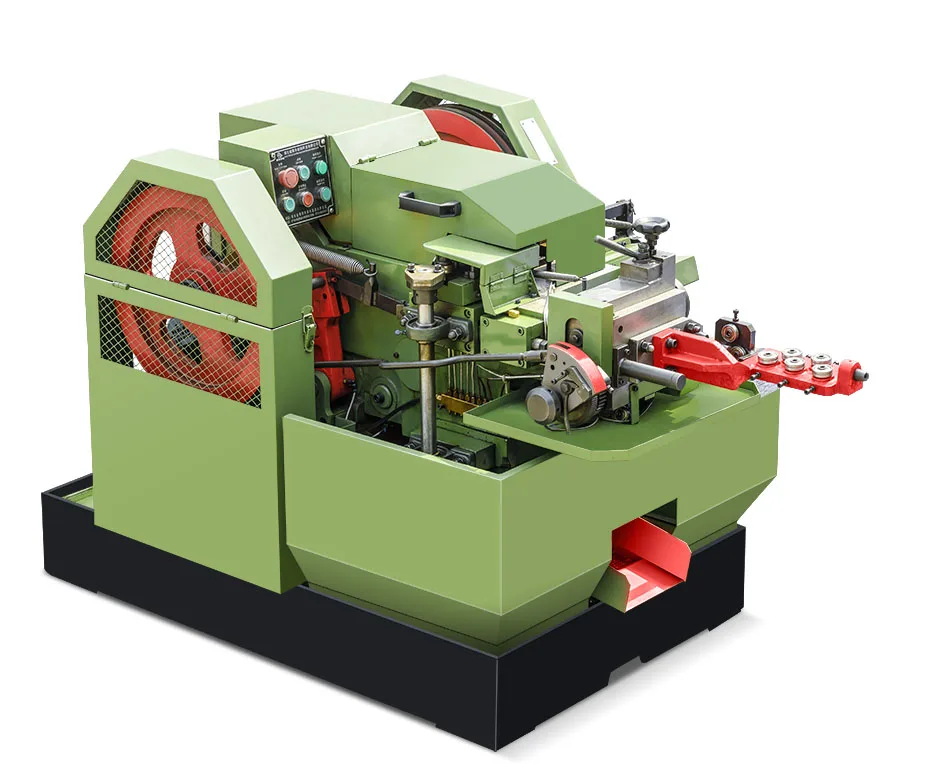

Factory price semi-tubular rivets making machine hydraulic riveting machine

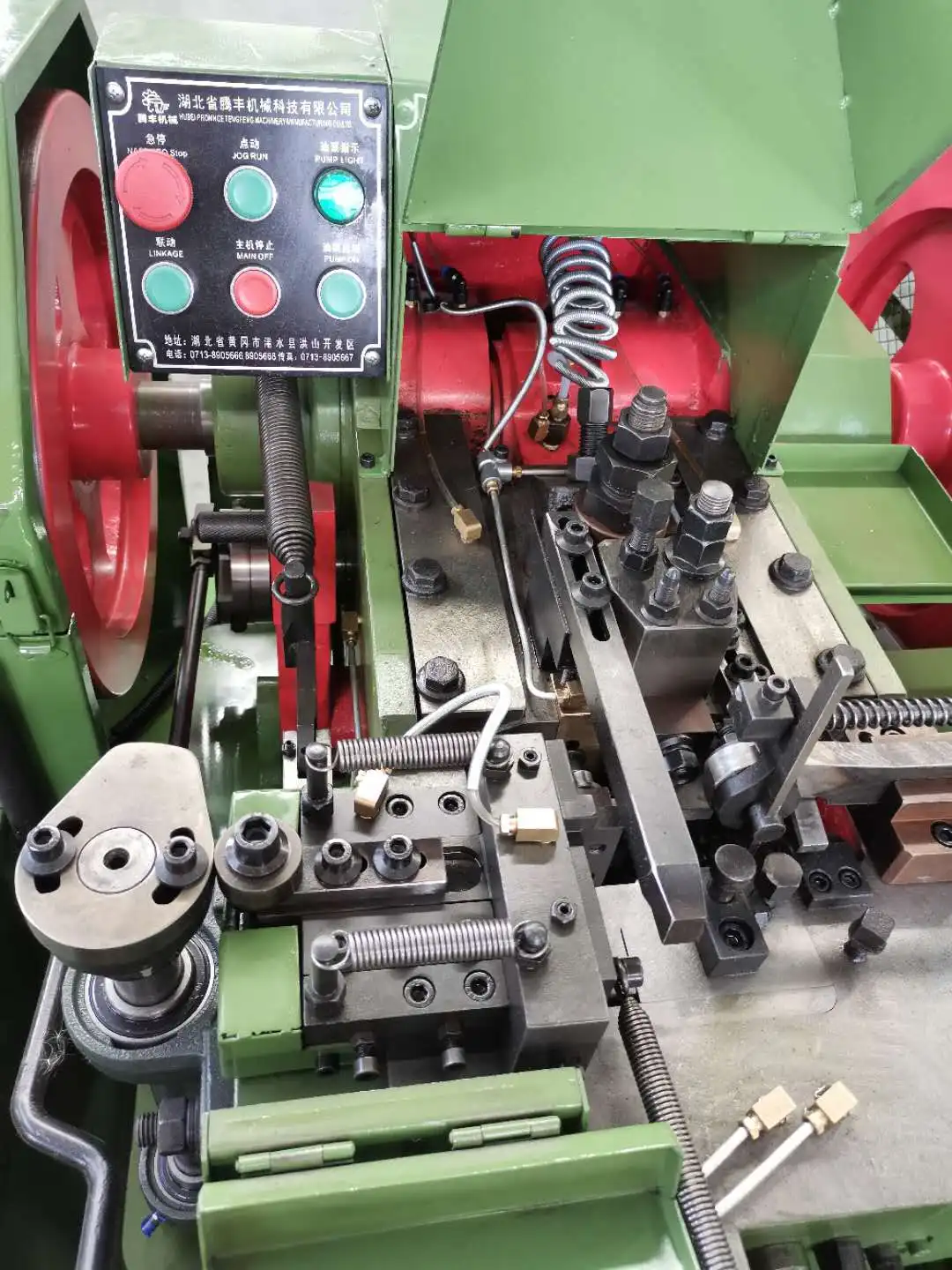

Detailed images
Technical parameters
| Model | YHW03-20 | YHD04-40 | YHW05-60 | YHW05-80 | YHW06-90 | YHW06-120 | YHW08-120 | YHW10-120 |
| Max. Blank Diameter/mm | 4.0 | 5.0 | 7.0 | 7.0 | 9.0 | 9.0 | 11.0 | 13.0 |
| Max. Blank Length/mm | 20 | 40 | 60 | 80 | 90 | 120 | 120 | 10 |
| Capacity/pcs/min | 100-120 | 90-100 | 70-90 | 70-90 | 60-80 | 60-80 | 50-70 | 50-60 |
| Main Die Diameter/mm | 20x36 | 32x58 | 34.5x95 | 34.5x98 | 45x120 | 45x150 | 55x160 | 70x160 |
| Punch Die Diameter/mm | 18x50 | 25x65 | 31x75 | 31x80 | 35x100 | 35x100 | 40x120 | 55x150 |
| Cut-off Die Diameter/mm | 13x20 | 15x30 | 19x35 | 19x35 | 24x40 | 24x40 | 28x45 | 35x50 |
| Cutter size/mm | 6x25x42 | 9x32x70 | 9x35x72 | 9x35x72 | 12x35x77 | 12x35x77 | 12x42x90 | 16x55x115 |
| Main Motor Power/kw | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | 5.5 | 11 |
| Weight/kg | 624 | 1105 | 2100 | 2340 | 3640 | 3900 | 4160 | 5980 |
| Volume | 1.40x0.75x0.9 | 2x0.85x1.15 | 2.4x1.1x1.25 | 2.4x1.1x1.25 | 2.70x1.40x1.60 | 3.10x1.40x1.60 | 3.70x1.60x1.80 | 4.80x1.80x1.32 |
Features
1. The machine specializes in the production of semi hollow rivets, which is the latest type of material.
2. The advantages of simple, traditional, fast production, small hole error, easy operation and low maintenance rate.

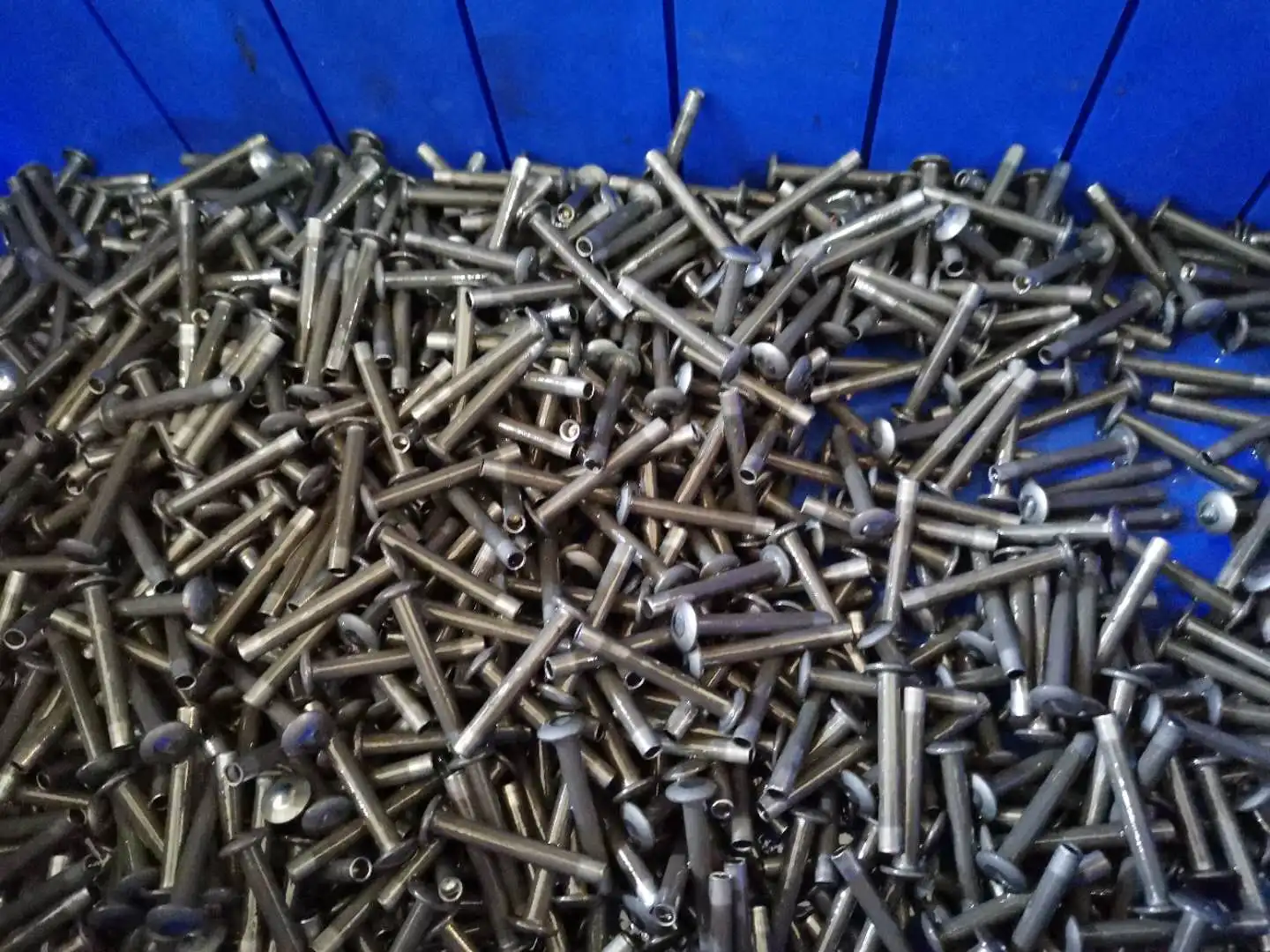

Finished products
Company Information
Packaging & Shipping
FAQ
1.why do we choose Yuhai screw machines ?
We are professional manufacturer of various kinds of screw, nail,rivets making machines located in Foshan city of Guangdong province , Which has over 18 years experience for producing screw production line. Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Russia , Malaysia , Pakistan , India, Vietnam , Indonesia, , South Africa , etc.
3.Is there any quality warranty and after service ?
The warranty of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there any quality problem of your machine and spare parts , what should I do ?
within one years, if machine have any quality problem. we will repaire for free.But if damaged parts wil be replaced by offered of charge .we provide lifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
