Suoer новый тренд CG-500.5D-F аудио 5 каналов full частота класса D max 2800 Вт автомобильный
- Категория: Автомобильные усилители >>>
- Поставщик: Foshan,Suoer,Electronic,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 148.60 $* | 155.80 $* |
| Aug-17-2025 | 146.65 $* | 153.62 $* |
| Jul-17-2025 | 123.66 $* | 129.66 $* |
| Jun-17-2025 | 144.35 $* | 151.29 $* |
| May-17-2025 | 125.81 $* | 131.2 $* |
| Apr-17-2025 | 141.21 $* | 148.84 $* |
| Mar-17-2025 | 140.72 $* | 147.40 $* |
| Feb-17-2025 | 139.75 $* | 146.58 $* |
| Jan-17-2025 | 138.83 $* | 145.80 $* |
Характеристики
Product Description
Product Name | 5 Channel Car Amplifier | ||||
Output | 5 channels full frequency | ||||
Type | Class D | ||||
Input sentivity | 0.2~6v | ||||
SNR(signalto noise Ratio) | ＞92DB | ||||
(RMS)Power(THD=1%) | 4*120W+1*500W/4Ω 4*220W+1*650W/2Ω 2*450W/Bridged 4Ω | ||||
Frequency Response(-3DB) | 13HZ~33KHZ | ||||
Low-pass Frequency(-3DB) | 14HZ~8KHZ | ||||
High-pass Frequency(-3DB) | 16HZ~7.6KHZ | ||||
Bass boost(-3DB) | 49Hz | ||||
THD(total harmonic distortion) | <0.01% | ||||
Fuse | 1*100A | ||||
Power supply | 14.4V(9V~15V) NEGATIVE CONNECTIVE THE GROUND OF THE CAR | ||||
Size(mm) | 363*240*60MM | ||||
Weight(Kg) | 4KG | ||||
Suoer CG-500.5D-F 5 channel full range 2800w class D car amplifier
designed to provide high quality performance with minimum maintenance.However,it
will get good performance only when the components well installed and match with
speakers/subwoofers.We therefore advise you to read these instructions carefully to
familiarize yourself with the product features.
The installation and connection instructions must be strictly followed. If necessary,
please consult the service center of factory.
All connections of DC power supply, signal input and speaker output can be easily
and safely connected via RCA and screw terminals.
will get good performance only when the components well installed and match with
speakers/subwoofers.We therefore advise you to read these instructions carefully to
familiarize yourself with the product features.
The installation and connection instructions must be strictly followed. If necessary,
please consult the service center of factory.
All connections of DC power supply, signal input and speaker output can be easily
and safely connected via RCA and screw terminals.
* This amplifier can only be used in connection with a 12V/24V power system with grounding.
* In order to get a good heat dissipation, installation place with good air circulation is
necessary.
* Please pay attention to keep enough distance between the input/output signal wires and the
power cables, otherwise it will cause interference and noise.
* The quality of the installation determines the performance and the stability of the product, so
it is better to ask professionals to install.
* In order to get a good heat dissipation, installation place with good air circulation is
necessary.
* Please pay attention to keep enough distance between the input/output signal wires and the
power cables, otherwise it will cause interference and noise.
* The quality of the installation determines the performance and the stability of the product, so
it is better to ask professionals to install.
Product Usage

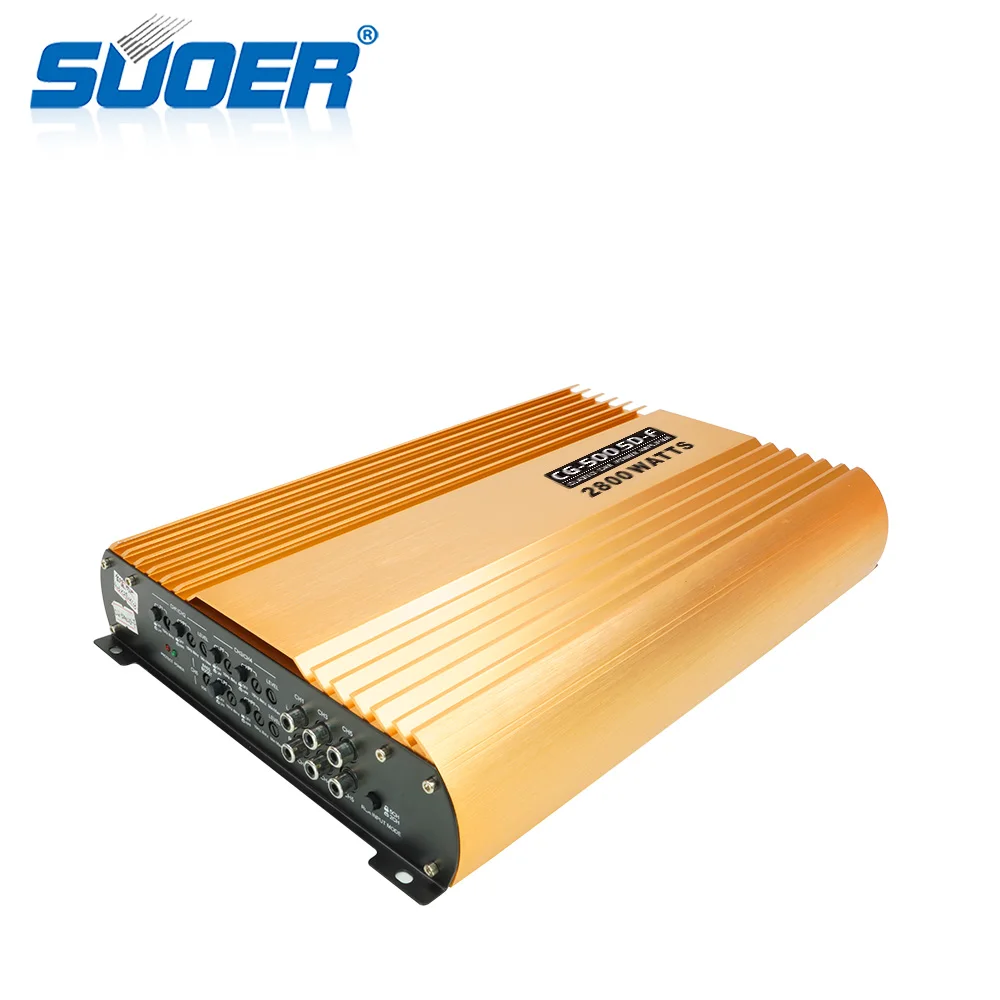

Product usage introduction
1.CH1/CH2 Low Pass Frequency
Range Regulation
Range Regulation
2.CH1/CH2 High Pass Frequency
Range Regulation
Range Regulation
3.Volume Regulator( CH1/CH2)
4.CH3/CH4 Low Pass Frequency
Range Regulation
Range Regulation
5.CH3/CH4 High Pass Frequency
Range Regulation
Range Regulation
6.Volume Regulator( CH3/CH4)
7.8.9.Signal input
10.The power amplier works normally
when the green light is on, and the
power amplier fails to protect when
the red light is on.
when the green light is on, and the
power amplier fails to protect when
the red light is on.
Product usage introduction
11.Bass Boost Regulator
12.CH 5 Low Pass Frequency
Range Regulation
Range Regulation
13.CH 5 High Pass Frequency
Range Regulation
Range Regulation
14.Volume Regulator( CH 5)
15.2CH/5CHMode Selection Switch

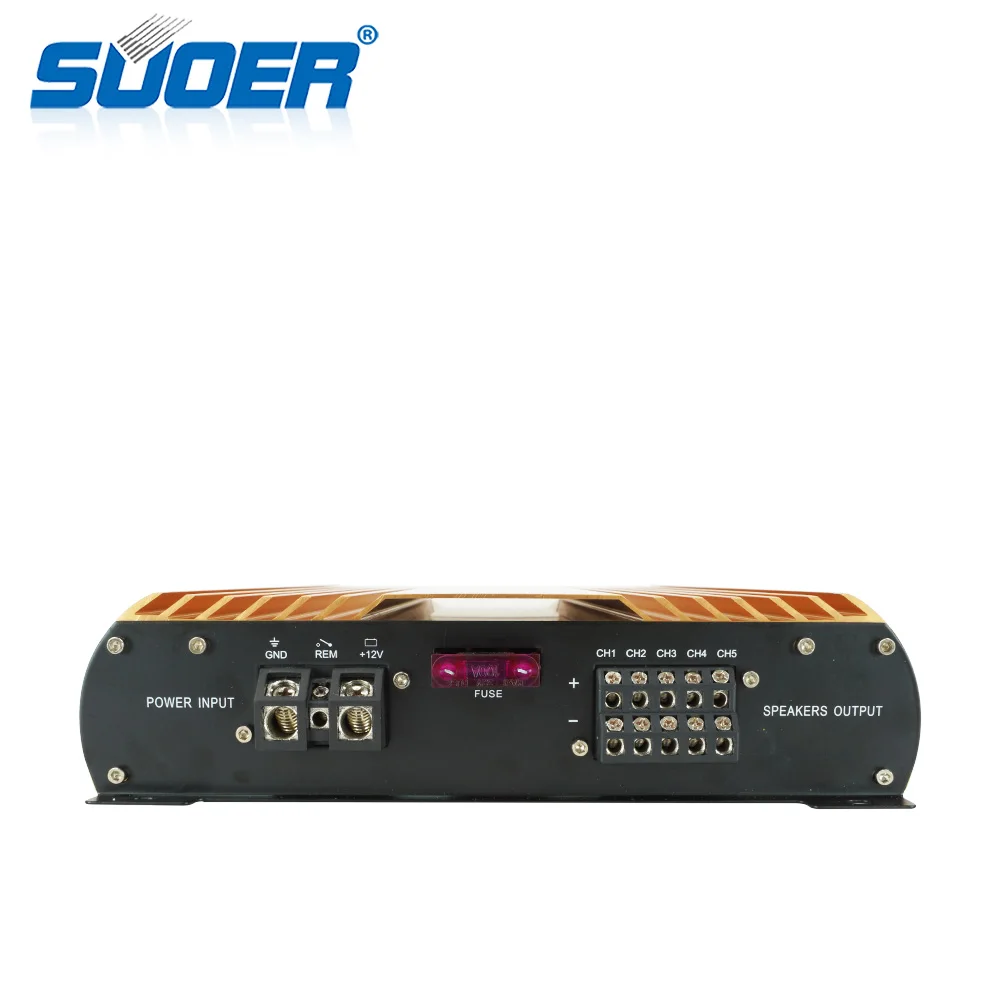

16.Power Input Terminal
17.Fuse
18.Horn Output Terminal
