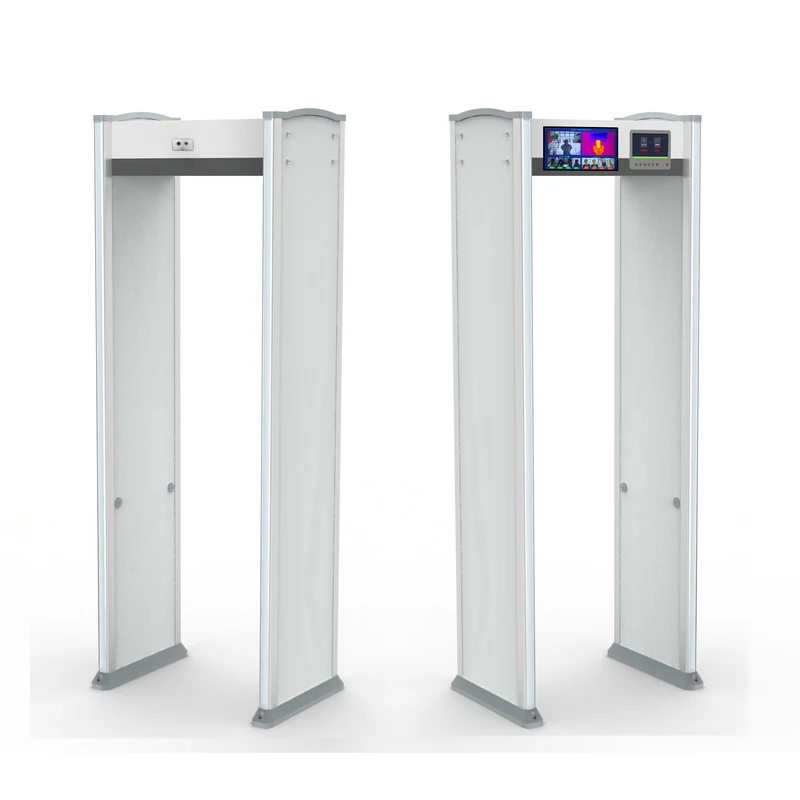

Hot Selling Non Contact Thermal Door Frame Walk Through Temperature Scanner Metal Detector gateTwo In One

Function configuration
Vertical dimensions	2230mm (H)×835mm (W)×480mm (D)
Vertical channel size	1990mm (H)×700mm (W)×400mm (D)
Weight	59KG
Packing size (detection door)	2310mm×650mm×200mm
Packing size (outer box of host)	760mm×265mm×390mm
Packed weight	67KG
Working Voltage	AC85V~240V 50/60Hz
Power consumption	30W
Operating temperature	-20℃~60℃
Working humidity	20~90%
Accuracy range of location detection of metal objects	The highest sensitivity <10g metal
Zones	6-18 zones
Display	Thermal imaging part 12-inch LCD screen display Metal detection part 7-inch LCD screen display
Temperature Time	Less than 1.0 second
Temperature resolution	0.02℃
Test accuracy	±0.3℃
Test distance	1.0-5.0m
Temperature range	30-50℃





Features:

lUsing infrared thermal imaging without sensing temperature;

lTemperature measurement range: 30-50℃, temperature measurement accuracy: ±0.3℃;

l2 million visible light resolution 1920*1080, thermal imaging resolution 256*192;

lDual camera color/infrared dual-light recognition, accurate real-time live detection;

lBuilt-in speaker voice alarm, abnormal red display alarm;

lSupport face capture function, which can detect and capture 20~30 faces at the same time;

lWiegand protocol interface, MicroSD card interface, maximum support 128G;

lHDMI directly outputs preview video, real-time display of the number of passers-by and abnormal temperature;

lSupport SD card to store data records, and export data online; support metal detection and other data for query, management and export;

lPortability: One-button power switch, no need to do other debugging, only need to manually adjust the camera angle according to the site situation, the recommended viewing angle of the camera is 0~5 degrees;

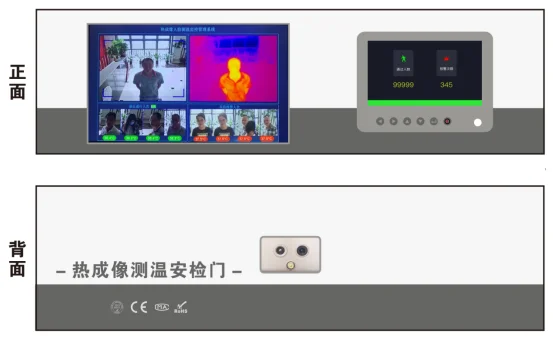

lDual screen display technology: 12-inch LCD screen display for thermal imaging part, 7-inch LCD screen display for metal detection part;

lMulti-defense zone metal detection technology: 18 detection zones, the sensitivity of each detection zone can be adjusted arbitrarily (with adaptive adjustment technology), and there is a high-brightness LED alarm position indicator to accurately locate the hidden contraband;

lIntegrated design: the mainboard display control integrated host, the signal acquisition board is placed on both sides of the door panel, which is convenient and simple, and is more conducive to after-sales service;

lSuper enclosure protection technology: IP53 superior protection performance;

Anti-electromagnetic interference: adopts DSP digital signal processing technology, automatically scans and detects the mechanical and electromagnetic interference of the installation site environment, automatically adapts to the working environment, and has high immunity to electromagnetic and mechanical interference; there is no need for periodic adjustments, which greatly improves anti-interference ability;

lMetal detection objects: can detect magnetic, non-magnetic and alloy metals;

Human body safety: harmless to pacemaker wearers, pregnant women, magnetic media, etc.
