2440x1220 мм 15 полипропиленовый пластиковый полый опалубка для строительства бетонной формы строительный


Поделиться:


Цена:29,80 $ - 39,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 37.51 $* 38.70 $*
Jul-19-2025 30.99 $* 31.58 $*
Jun-19-2025 36.38 $* 37.87 $*
May-19-2025 36.36 $* 37.41 $*
Apr-19-2025 29.42 $* 30.63 $*
Mar-19-2025 35.96 $* 36.16 $*
Feb-19-2025 35.72 $* 36.35 $*
Jan-19-2025 35.91 $* 36.69 $*

Характеристики

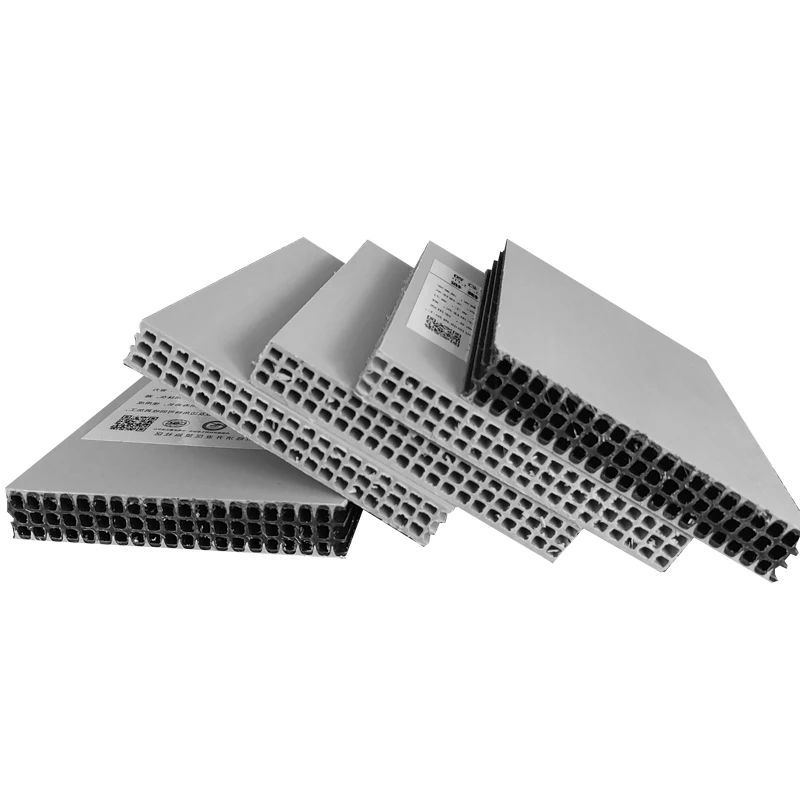

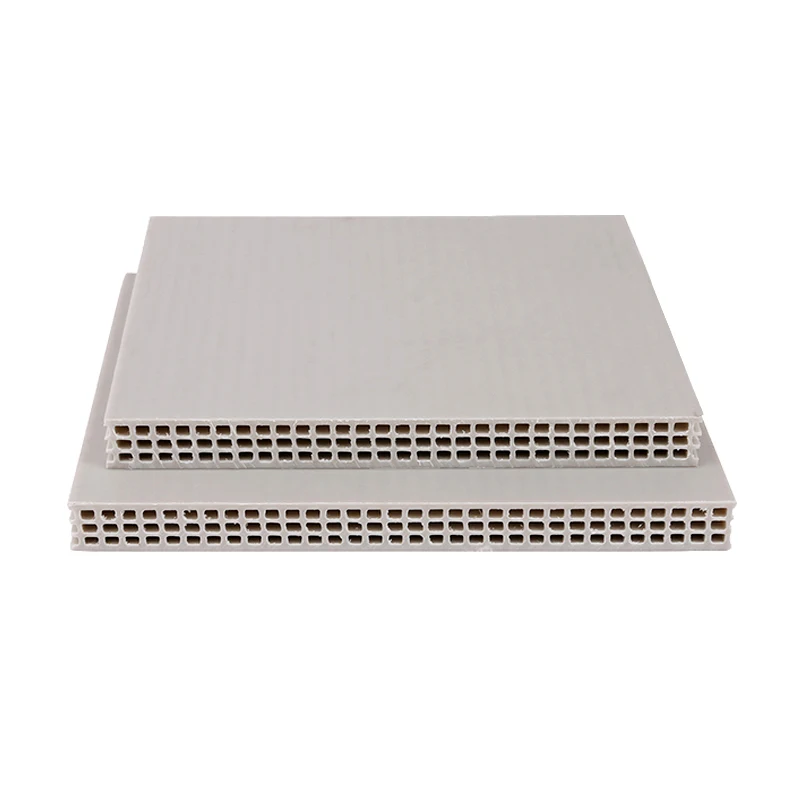

What is PP hollow plastic formwork ?
PP hollow Plastic formwork is a successful innovation of construction material and has been accepted by many countries. The pp hollow plastic formwork can reach more than 60 reusable times,No need mold release agent, Nailed easily and stably etc. It`s Green, Energy Efficient and Economical. The product is widely applied in many areas. Instead of wood and Bamboo such as :
(1)Construction
(2)Hydraulic engineering
(3)Water-power engineering
(4)Bridge and Tunnel project.


Advantage
1. Waterproof
PP Hollow Plastic formwork is waterproof, the bad weather is no longer an issue.




2. Lightweight
It is lighter, easier to move. Manual operation, It doesn't need crane, reducing 30% labor cost than plywood.




3. Surface do not need to be coated with release agent
PP Hollow Plastic formwork can be used directly, saving more construction time and improving construction efficiency.




4. High Workability
Easy to use, good to saw, nail, drill, cut, etc.




5.HIGH TEMPERATUER RESISTANCE
One set formwork can finish whole high building 2x35 floors, save 60% total budge than plywood and metal formwork.




Product details


         Thickness
                       Size
                    Weight

                    12mm
                     915x1830mm
                            12-13kg
                    1220x2440mm
                            22-23kg

                    15mm
                      915x1830mm
                            14-15kg
                    1220x2440mm
                            24-25kg

                   18mm
                      915x1830mm
                            15-16kg
                    1220x2440mm
                            27-28kg
                                                                      10-20mm thickness all we can provide
                                    Product specifications and thickness can be customized to customer requirement


Installation Details


1. The 12-15mm thickness of the formboard are used to lay intersecting surfaces.

2. Wood square of the distance:
(1) Wood batten and vertical rib of Board should mutually perpendicular fixed.
(2) The spacing of wooden blocks is determined according to the thickness of roof concrete. In general, if the thickness of roof less than 0.15m, the spacing of wooden blocks should be 200-250mm.
(3) Shear wall : the wood batten (blocks) spacing according to the height and thickness of the wall to adjust the spacing.
Take the wall of high 2.8m and the wall thickness of 0.3m for an example: The wooden batten spacing should be 100~150mm for size 15mm thickness formboard.
(4) If the shear wall , width of Columns or beams more than 1 meter, must be additional fixed framework.

3. No gaps shall be left when shear wall and column together forming board, and there must be a wooden batten in the internal corner (bottom of the wall), so that beams, walls and formboard can be connected. Shear wall formwork must be put together first into a whole ,then lifting, and then spread flat, so as to reduce labor intensity, at the same time forming good effect.
4. To the formboard nail should be from the edge 15~30mm, the nail force should be moderate, the nail length is generally 40~50mm is appropriate, should not be too long or too short.
5. The beam bottom must be set aside 15mm spigot, wall board standing on the wooden spigot, so as not to leak concrete mortar and save formboard materials.











Install&Demolding












\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tPacking and Shipping \t\t\t\t\t\t\t

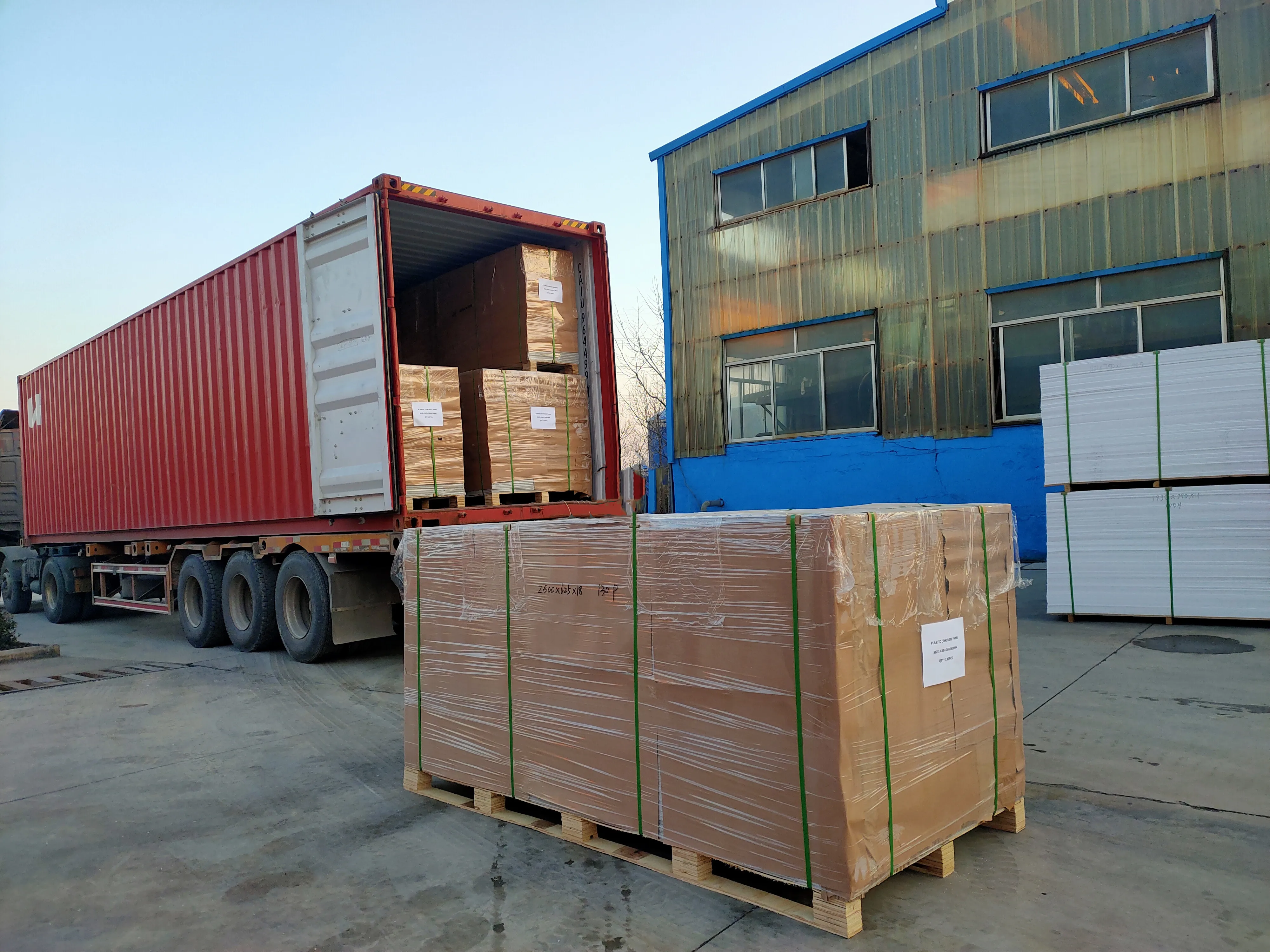

Packing
Covered with PE film or carton boxes on pallets with belts.
Delivery
Usually 7-21 days since receipt of PO and down payment.
Freight
Sea transportation (FCL&LCL).
Special size
We provide cutting services for special sizes.




\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
